14.4.1 - n-type semiconductor

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Introduction to n-type Semiconductors

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today we are going to learn about n-type semiconductors. Can anyone tell me what happens when you introduce a pentavalent element into silicon?

Student 1
Student 1

Does it create extra electrons?

Teacher
Teacher

That's right! When we dope silicon with pentavalent atoms like arsenic, we get additional electrons that are weakly bound to the atom. Can anyone tell me why these extra electrons are important?

Student 2
Student 2

They help in conducting electricity better!

Teacher
Teacher

Exactly! This makes n-type semiconductors conductive. Remember this with the acronym 'PEN' - Pentavalent Elements are the donors of extra Negative charge carriers.

Properties of n-type Semiconductors

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now that we understand how extra electrons are introduced, what can we say about their role in conductivity?

Student 3
Student 3

They are the majority carriers, right?

Teacher
Teacher

Correct! The electrons from the dopant become the majority carriers in n-type materials. What about holes?

Student 4
Student 4

Holes are the minority carriers!

Teacher
Teacher

Good! Just remember – in n-type, the charge carriers are Negative. If an n-type semiconductor has more electrons than holes, we can denote that as 'n >> p'.

Applications of n-type Semiconductors

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

What are some applications of n-type semiconductors?

Student 1
Student 1

They are used in diodes and transistors!

Teacher
Teacher

Right! They are crucial in forming p-n junctions. Since we understand that majority carriers carry current, how would you explain the conduction process?

Student 2
Student 2

The extra electrons move freely, contributing to the flow of current!

Teacher
Teacher

Absolutely! Always remember this by visualizing extra electrons as 'guests' at a party – they are free to move around and mingle.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section explores n-type semiconductors, highlighting how doping with pentavalent elements increases conductivity by adding extra electrons.

Standard

In n-type semiconductors, silicon or germanium is doped with pentavalent atoms like arsenic or phosphorus. This process introduces additional free electrons, which serve as charge carriers, significantly enhancing the semiconductor's conductivity. The section also discusses the mechanism by which these extra electrons are contributed and the implications for electrical properties.

Detailed

n-type Semiconductor

Introduction

An n-type semiconductor is created when silicon (Si) or germanium (Ge) is doped with pentavalent atoms such as arsenic (As), phosphorus (P), or antimony (Sb).

Doping Process

  • Pentavalent Elements: These elements have five valence electrons, which allow them to bond with surrounding silicon atoms while leaving one electron loosely bound to it.
  • Ionization Energy: The effective ionization energy for these extrinsic electrons is very small (~0.01 eV for Ge and ~0.05 eV for Si), allowing the electron to become a free charge carrier at room temperature.

Charge Carriers

  • Majority Carriers: In n-type semiconductors, electrons become the majority charge carriers, whereas holes are the minority carriers. This doping can lead to a situation where the concentration of electrons far exceeds that of holes.
  • Concentration Dependence: The number of electrons available for conduction is directly related to the doping level, which does not significantly change with temperature, leading to a stable behavior in electronic applications.

Conclusion

Understanding the properties of n-type semiconductors is critical as they play a pivotal role in creating various electronic components, such as diodes and transistors, which exploit these additional free electrons to facilitate current flow.

Youtube Videos

Semiconductor Electronics Class 12 Physics | NCERT Chapter 14 | CBSE JEE NEET | One Shot
Semiconductor Electronics Class 12 Physics | NCERT Chapter 14 | CBSE JEE NEET | One Shot
Semiconductor|| N-Type and P-Type || 3d animated full explanation || Electronic Devices || 12 Class
Semiconductor|| N-Type and P-Type || 3d animated full explanation || Electronic Devices || 12 Class
Semiconductor Electronics:Materials, Devices Class 12 Physics One Shot | New NCERT Chapter 14 |CBSE
Semiconductor Electronics:Materials, Devices Class 12 Physics One Shot | New NCERT Chapter 14 |CBSE
N-Type and P-Type Semiconductors - Semiconductors Electronics | Class 12 Physics Chapter 14 | CBSE
N-Type and P-Type Semiconductors - Semiconductors Electronics | Class 12 Physics Chapter 14 | CBSE
Semiconductor Oneshot in 30 minutes | Chapter 14 Class 12 Physics Oneshot Revision | CBSE Class 12
Semiconductor Oneshot in 30 minutes | Chapter 14 Class 12 Physics Oneshot Revision | CBSE Class 12

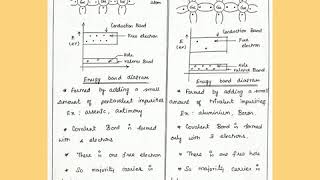

Extrinsic semiconductor notes - N type and P type Semiconductor notes, Class 12 Physics - NCERT
Extrinsic semiconductor notes - N type and P type Semiconductor notes, Class 12 Physics - NCERT
Breakdown of Diode in Reverse Bias | Class 12 Physics | Semiconductor Electronics
Breakdown of Diode in Reverse Bias | Class 12 Physics | Semiconductor Electronics

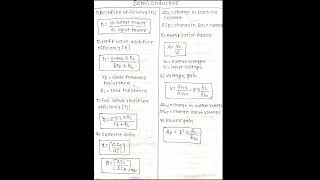

SEMICONDUCTOR CLASS 12 PHYSICS FORMULA NOTES ☑☑
SEMICONDUCTOR CLASS 12 PHYSICS FORMULA NOTES ☑☑
Introduction of Semiconductor Electronics Materials, Devices and Simple Circuits | Class 12 Physics
Introduction of Semiconductor Electronics Materials, Devices and Simple Circuits | Class 12 Physics
CBSE Class 12 Physics 14 || Semiconductor Electronics Part -2 || Full Chapter || By Shiksha House
CBSE Class 12 Physics 14 || Semiconductor Electronics Part -2 || Full Chapter || By Shiksha House

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Doping Process

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Suppose we dope Si or Ge with a pentavalent element as shown in Fig. 14.7. When an atom of +5 valency element occupies the position of an atom in the crystal lattice of Si, four of its electrons bond with the four silicon neighbours while the fifth remains very weakly bound to its parent atom.

Detailed Explanation

Doping is the process of adding impurities to a semiconductor to enhance its electrical properties. In n-type semiconductors, we use pentavalent atoms (elements with five valence electrons), like arsenic or phosphorus. When these dopants are integrated into the silicon or germanium lattice, four out of their five electrons form strong covalent bonds with the surrounding silicon atoms. The fifth electron, however, is loosely attached and can easily move, which significantly contributes to the conductivity of the material.

Examples & Analogies

Think of doping like adding a pinch of salt to a pot of water. Just as the salt dissolves and affects the flavor of the water, adding pentavalent atoms changes how easily electricity can flow through the semiconductor.

Effective Energy Levels

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

As a result the ionisation energy required to set this electron free is very small and even at room temperature it will be free to move in the lattice of the semiconductor.

Detailed Explanation

The energy required to release the loosely bound fifth electron from a pentavalent atom is very low—only about 0.01 eV for germanium and 0.05 eV for silicon. This low ionisation energy means that even at room temperature, these electrons can be freed and participate in conduction. This is a crucial feature that differentiates n-type semiconductors from intrinsic semiconductors, where much higher energy is needed to free electrons.

Examples & Analogies

Imagine trying to lift a feather as opposed to a heavy boulder. The feather is easily lifted (like the energy required to free an electron in n-type semiconductors), while the boulder requires significant effort (as in the case of intrinsic semiconductors).

Majority and Minority Carriers

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Thus, with proper level of doping the number of conduction electrons can be made much larger than the number of holes. Hence in an extrinsic semiconductor doped with pentavalent impurity, electrons become the majority carriers and holes the minority carriers.

Detailed Explanation

In n-type semiconductors, the number of free electrons—contributed by the dopant—is much greater than the number of holes generated intrinsically. This creates a scenario where electrons are the majority charge carriers, while holes are the minority. A correctly doped n-type semiconductor can have an abundance of free electrons available for conduction, making it an effective conductor of electricity.

Examples & Analogies

Think of a crowded club. If there are 80 people (electrons) dancing on the floor and only 20 people (holes) sitting at tables, the dancers greatly outnumber those sitting. Similarly, in an n-type semiconductor, the free electrons are like the dancers who are active participants in conducting electricity.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • N-type Semiconductor: Formed by doping silicon or germanium with pentavalent atoms, allowing extra electrons to facilitate conductivity.

  • Doping: The process of introducing impurities to enhance the electrical properties of semiconductors, specifically increasing the concentration of charge carriers.

  • Charge Carriers: Electrons in n-type semiconductors serve as majority carriers, while holes, present in smaller quantities, are considered minority carriers.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • Example of n-type semiconductors includes silicon doped with arsenic, where the additional electrons from arsenic atoms contribute significantly to electrical conduction.

  • In practical electronics, n-type semiconductors are often used in the manufacturing of diodes and transistors, which rely on the manipulation of charge carriers to function effectively.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • N-type is the negative kind, extra electrons you will find.

📖 Fascinating Stories

  • Imagine a party where everyone is holding hands except for one guest with an extra eager electron ready to mingle.

🧠 Other Memory Gems

  • PEN - Pentavalent Elements of Negative charge for n-type semiconductors.

🎯 Super Acronyms

N-Yes

  • N-type has Yes to more electrons!

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: ntype Semiconductor

    Definition:

    A semiconductor that has been doped with electron-rich materials, increasing electron concentration and electrical conductivity.

  • Term: Pentavalent Doping

    Definition:

    The process of adding elements with five valence electrons to a semiconductor to increase the number of free charge carriers.

  • Term: Majority Carriers

    Definition:

    Charge carriers in a semiconductor that are present in greater numbers; in n-type semiconductors, these are electrons.

  • Term: Minority Carriers

    Definition:

    Charge carriers present in fewer numbers than majority carriers; in n-type semiconductors, these are holes.
