Today, we’re going to delve into the Fineness Modulus, or FM. Can anyone tell me what FM is?
Isn't it related to how coarse or fine the aggregates are?
Exactly! FM quantifies the coarseness of aggregate materials in concrete. It’s calculated by dividing the cumulative percentage of material retained on standard sieves by 100. Why do you think that's important?
I think it helps us choose the right aggregates for concrete mixes.
Correct! The FM value guides us in selecting aggregates that facilitate the desired performance of concrete mixes. Typical FM values for sand range from 2.3 to 3.1. Let’s remember this pattern: 'Low for fine aggregates, high for coarse ones.'
So, a lower FM means finer sand, right?
Right! In summary, FM is essential for understanding how aggregate shape influences concrete performance.
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Let’s talk about how to calculate FM. Can someone recall the formula?
It’s the cumulative percentage retained divided by 100, right?
Spot on! Now, let’s do a quick calculation. Imagine we have 100 kg of aggregate, with the following percentages retained on each sieve: 5%, 10%, 20%, and so forth. Who can help me sum those up?
Sure! So, if we say 5% plus 10% plus 20%, that totals to 35%.
That’s right! So, what is the FM?
It would be 35% divided by 100, which is 0.35.
Yes, but what about the correct unit? We have to recognize that FM is a dimensionless measure. Good job, team! Just remember: 'Cumulative total over 100 gives FM!'
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Let’s explore the significance of different FM values. Why do you think sands with an FM of 2.3 would be used over one with an FM of 3.1?
It seems like a lower FM would mean fewer fines, which aids in strength.
Excellent observation! Lower FM values indeed suggest fewer fine particles, improving strength and stability. When would a higher FM be beneficial?
Maybe when we want more workability for a slab or surface finish?
Absolutely! Higher FM values can enhance workability, especially in mixes needing fine grading for finishes. Visualize FM as your guide in achieving the right balance in concrete design!
Overview
Short Summary
The Fineness Modulus (FM) is an empirical index that characterizes the coarseness or fineness of aggregate materials used in concrete.
Medium Summary
Fineness Modulus (FM) is calculated by taking the cumulative percentage of aggregate retained on standard sieves and dividing it by 100. This empirical measure provides insight into the coarseness of aggregates and affects the performance characteristics of concrete. Typical values of FM for sand are between 2.3 and 3.1, while for coarse aggregates, they range from 6 to 7.
Detailed Summary
Fineness Modulus (FM)
The Fineness Modulus (FM) is a crucial empirical measure used in concrete technology that quantifies the coarseness or fineness of aggregate materials. It emerges from the cumulative percentage of aggregate retained on a series of standard sieves divided by 100, giving a numerical value that depicts the gradation of the aggregate.
Key points include:
- Understanding FM: The FM calculation serves as a guide for the selection of aggregates in concrete, indicating their gradation which influences workability, strength, and durability.
- Characteristic Values: Typical FM values range between 2.3 and 3.1 for sands and 6 to 7 for coarse aggregates. This information is essential for determining the suitability of aggregates for specific concrete mixes.
- Applications: An ideal FM value ensures a mix design that achieves a balance of strength and workability, performing effectively under various conditions.
In essence, mastering the concept of Fineness Modulus is foundational for anyone working in concrete technology as it directly ties to the effectiveness of concrete performance and resulting structural integrity.

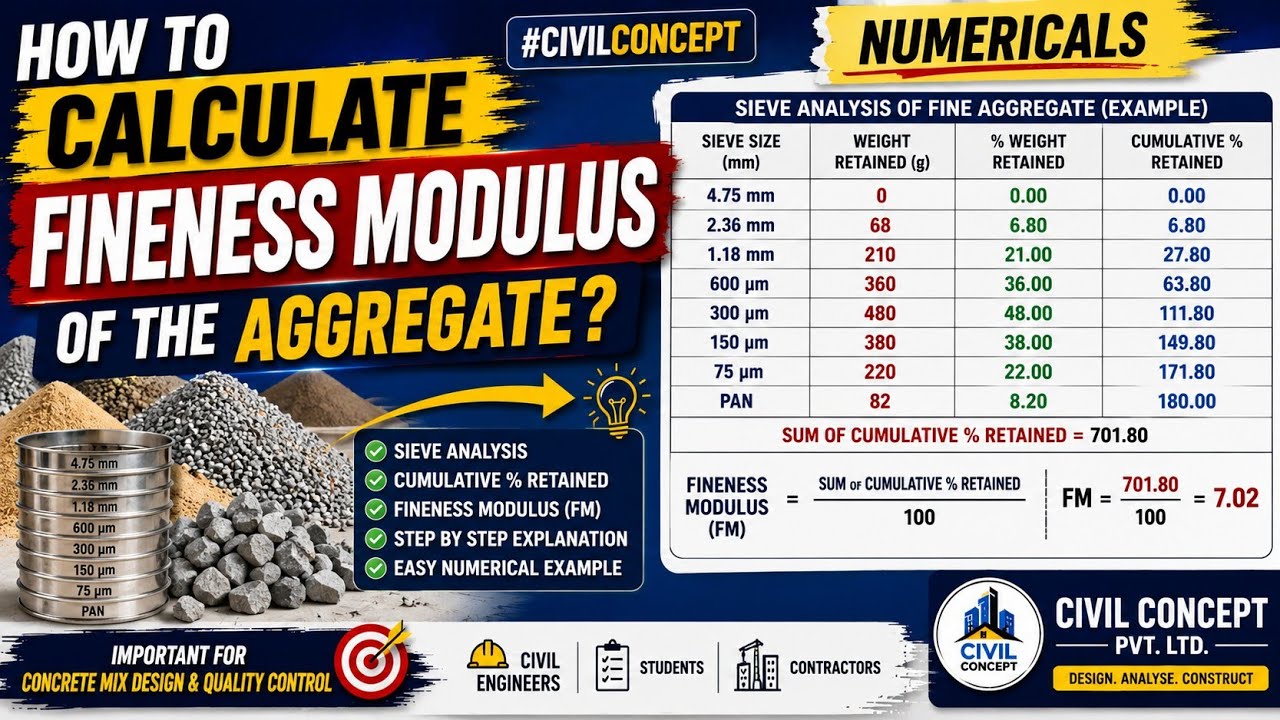

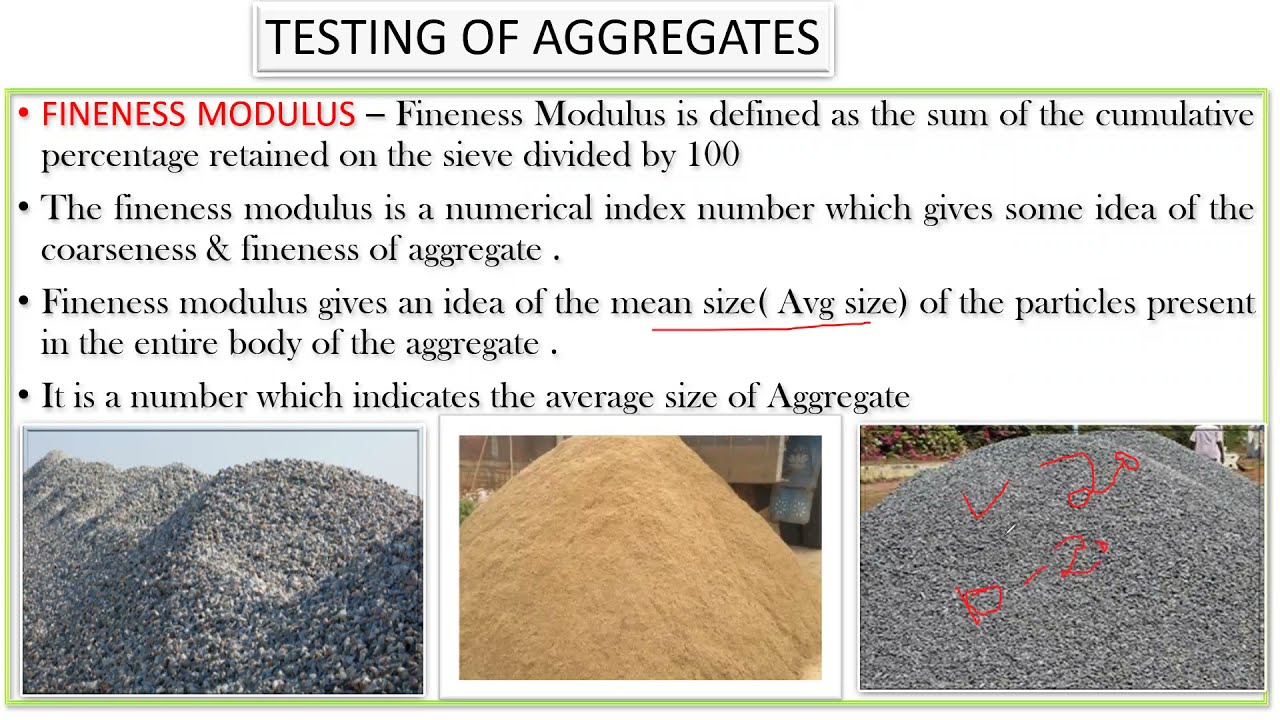

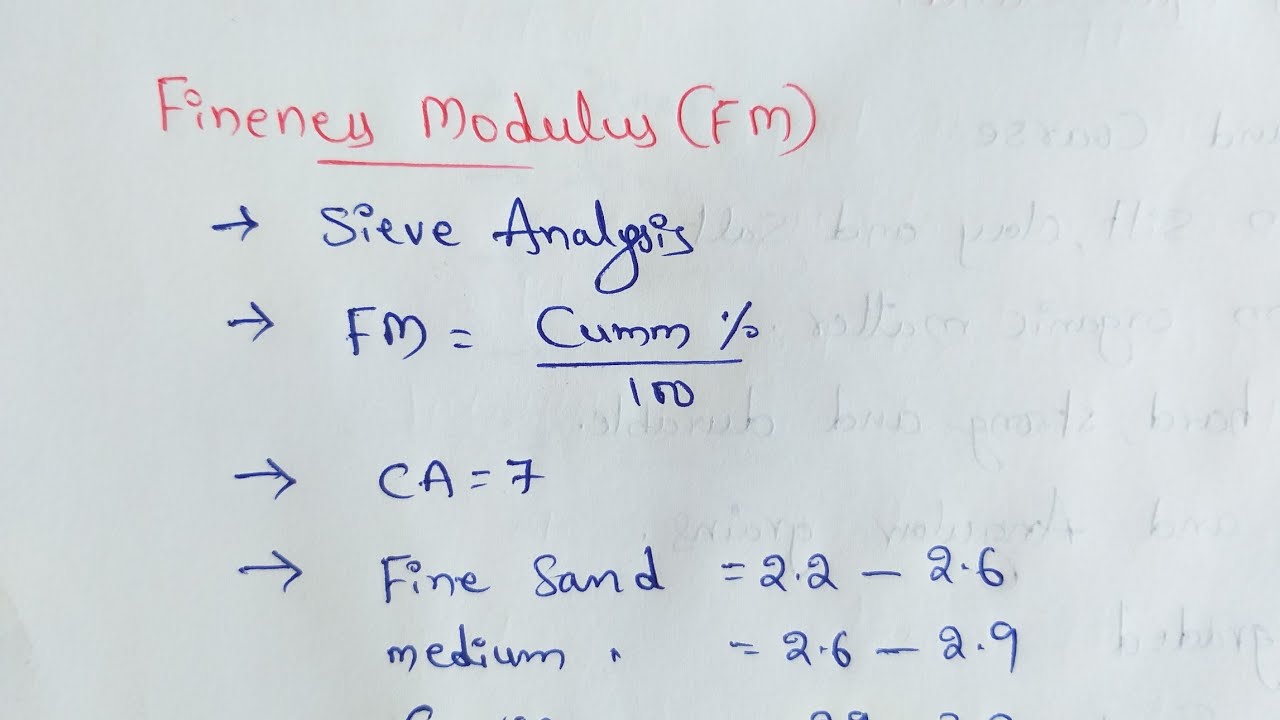

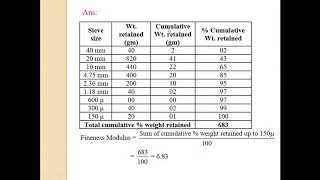

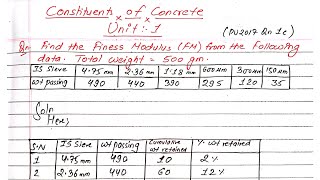

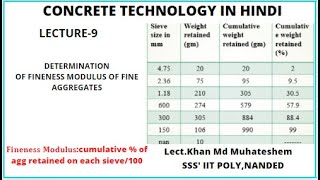

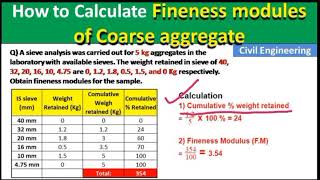

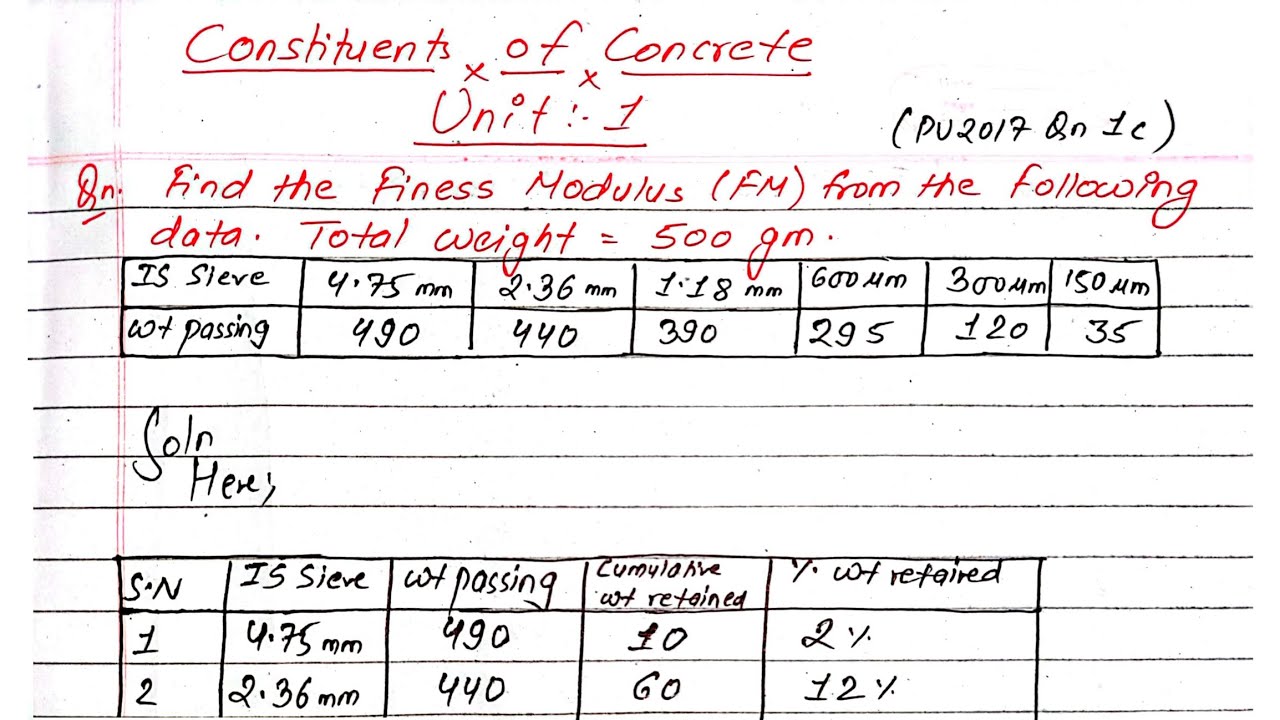

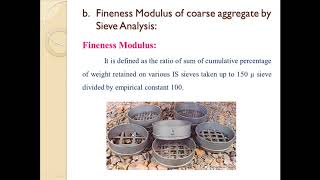

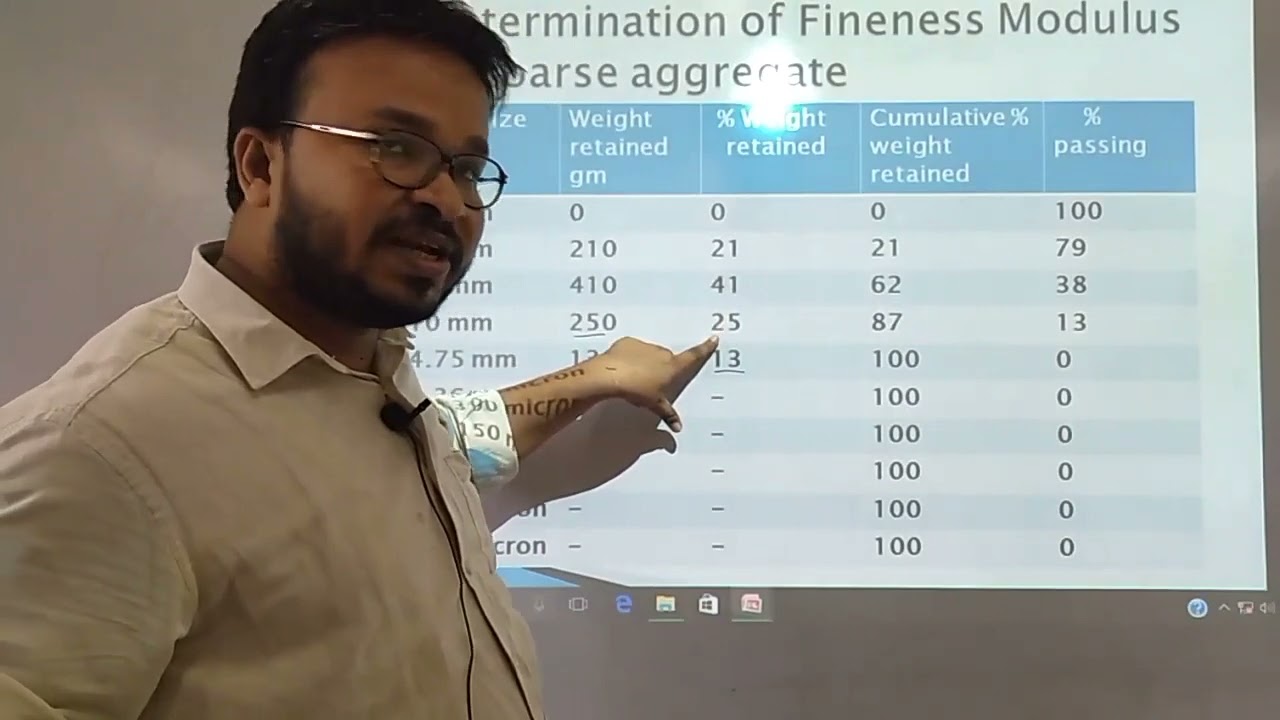

Reference YouTube Videos
Audio Book
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account- Empirical figure to describe aggregate coarseness
Detailed Explanation
The fineness modulus (FM) is a numerical value that indicates how coarse or fine an aggregate is. It is derived from the cumulative percentage of aggregate that is retained on standard sieves. A higher FM indicates coarser aggregates, while a lower FM suggests finer aggregates. Essentially, it provides a way to quantify the grading of fine aggregates.
Examples & Analogies
Think of the fineness modulus as a measure of how rough or smooth a surface is. Just as you might describe a sandpaper's texture in terms of how 'fine' or 'coarse' it feels, the fineness modulus provides a similar scale for aggregates used in concrete.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account- FM = Cumulative % retained on standard sieves / 100
Detailed Explanation
To calculate the fineness modulus, you take the cumulative percentage of aggregate retained on a series of standard sieves and divide that by 100. This calculation helps in establishing how well the aggregate will perform in concrete mixes. By providing a clear number, it enables engineers to make informed decisions about the type of aggregates to use for specific applications.
Examples & Analogies
Imagine you are measuring the sugar in a recipe. If a recipe calls for 'one cup of sugar', you might check how much is retained in a sieve (like a coffee filter) to determine how sweet the dish will turn out. Similarly, you assess aggregates by calculating the percentage retained to determine their suitability in concrete.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account- Typical FM:
- Sand: 2.3–3.1
- Coarse Aggregate: 6–7
Detailed Explanation
Fineness modulus values vary depending on the type of aggregate. For example, fine aggregates like sand typically have an FM ranging from 2.3 to 3.1. In contrast, coarse aggregates usually have a higher FM, in the range of 6 to 7. These values help determine the grading of aggregates used in concrete mixes and ensure that the selected materials will achieve optimal performance.
Examples & Analogies
Think of FM values like shoe sizes. Just as smaller shoe sizes may relate to children and larger sizes to adults, different FM values indicate different types of aggregates: fine sand represents smaller sizes, while coarse aggregates represent larger ones. Choosing the right size (or FM) is essential for comfort and function in both shoes and concrete.
--
Key concepts
Core takeaways and short definitions to help you quickly recall the key ideas from this section.
- Fineness Modulus (FM):
Measures aggregate coarseness and is calculated from sieve analysis.
- Cumulative Percentage Retained:
Total percentage of materials kept on the sieves reflecting the aggregate's grading.
- Significance of FM:
Influences concrete properties such as workability, strength, and durability.
Examples
Memory aids
Imagine a construction site where they need strong concrete - they always ask for aggregates with a lower FM, like a wise old architect choosing bricks carefully for a solid wall.
Flash Cards
Glossary
Fineness Modulus (FM)
An empirical figure calculated from the cumulative percentage of aggregate retained on standard sieves divided by 100, representing the coarseness or fineness of aggregates.
Cumulative Percentage Retained
The total percentage of aggregate retained on given sieves combined to reflect the grading of the entire aggregate sample.
Concrete Technology
A field of study focusing on the properties, performance, and applications of concrete in construction.
