Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Manometers
Unlock Audio Lesson
Today we will explore the world of manometers. Can anyone tell me what a manometer is used for?
Isn't it used to measure pressure?
Exactly! Manometers measure the pressure of fluids. They work by comparing the height of liquid columns under gravity. This is known as hydrostatic pressure. Remember this: Pressure is proportional to height!
What types of manometers are there?
Great question! There are several types, including simple manometers, U-tube manometers, and differential manometers. Each has its own unique applications.

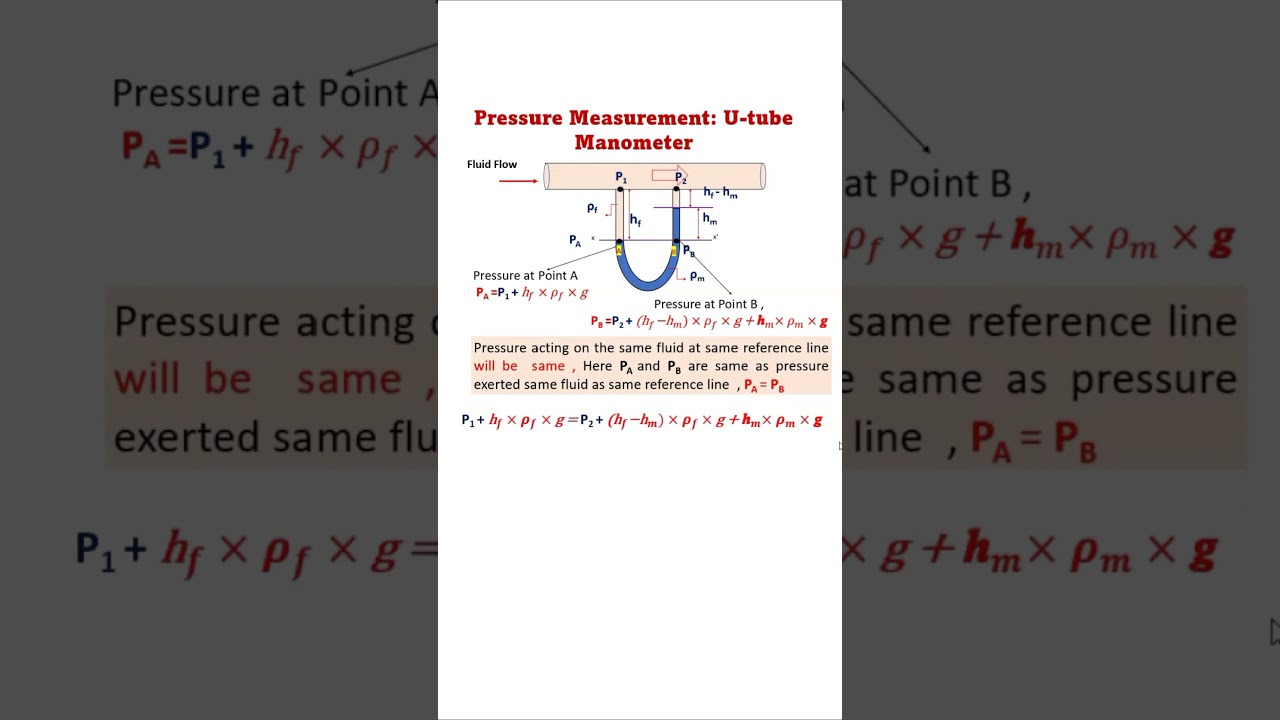

How does a U-tube manometer work?
In a U-tube manometer, two fluid columns are compared. The height difference between the fluids indicates the pressure difference between the two points. Remember the formula ΔP = ρgh!
Can you explain what ΔP means again?
Certainly! ΔP is the difference in pressure between the two points. It's affected by the density of the liquids and the height difference. So ΔP = ρgh represents the pressure difference between the two points due to the fluid column height!
Let's summarize: Manometers measure fluid pressure; U-tube manometers compare columns of liquid, and we calculate pressure differences using the formula ΔP = ρgh.
Differential Manometers
Unlock Audio Lesson
We've discussed U-tube manometers, but what is a differential manometer?
I think it measures the pressure difference between two points?
Correct! Differential manometers specifically measure the pressure difference, not absolute pressure. Why do you think this is important?
Because in many applications, we just need to know how much pressure is pushing fluid from one point to another?
Exactly! This is especially crucial in systems where the pressure at each point may vary significantly.
So how do you set it up?
Good question! You connect the differential manometer to the two points in question, ensuring that the manometric liquid can reflect the pressure difference through liquid levels.
What if the liquids have different densities?
You would still calculate the pressure difference using the same principles, but you'd need to account for the densities in your equations. Just remember: the heavier the liquid, the smaller the height difference needed to achieve the same pressure difference!
To summarize: A differential manometer measures the difference in pressure between two points, adaptable to various liquids by considering their densities in calculations.
Applications of Differential Manometers
Unlock Audio Lesson
Let's talk about where we use differential manometers in real life. Can anyone think of an example?
How about in water supply systems?
Great example! Differential manometers help assess flow rates and monitor pressure losses in pipes.
What about in industrial applications?
Absolutely! They're crucial in processes where pressure differences control flows, such as in chemical reactors or hydraulic systems.
Do they also apply in HVAC systems?
Yes, indeed! They help maintain optimal airflow by ensuring pressure levels remain stable throughout the system.
Are there different types of fluids we might use?
Very good! Depending on the application, you might use water, oil, or even gases. Each has implications for density and measurement accuracy.
In conclusion: Differential manometers serve vital functions across various systems, providing essential pressure difference readings that directly affect flowrates and operational efficiency.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section discusses differential manometers, detailing their construction and functioning. It explores their importance in measuring pressure differences, illustrating concepts through examples and explaining mathematical relationships involving pressure, density, and height differences.
Detailed
In this section, we delve into differential manometers, a key tool in fluid mechanics for measuring pressure differences between two points within a fluid system. Unlike absolute pressure measurements, differential manometers provide essential information on the relative pressures, guiding decision-making in applications such as pipe flow. We explore various types of manometers, including U-tube configurations and their use with different manometric fluids, which allow for adaptable readings across diverse scenarios. The section further explains how to establish equilibrium conditions, derive equations based on hydrostatic principles, and compute relevant pressures using measured heights and fluid densities. Ultimately, a clear understanding of differential manometers is crucial for effectively analyzing fluid behavior and system dynamics.

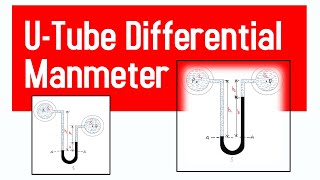

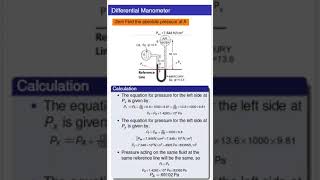

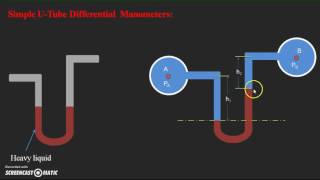

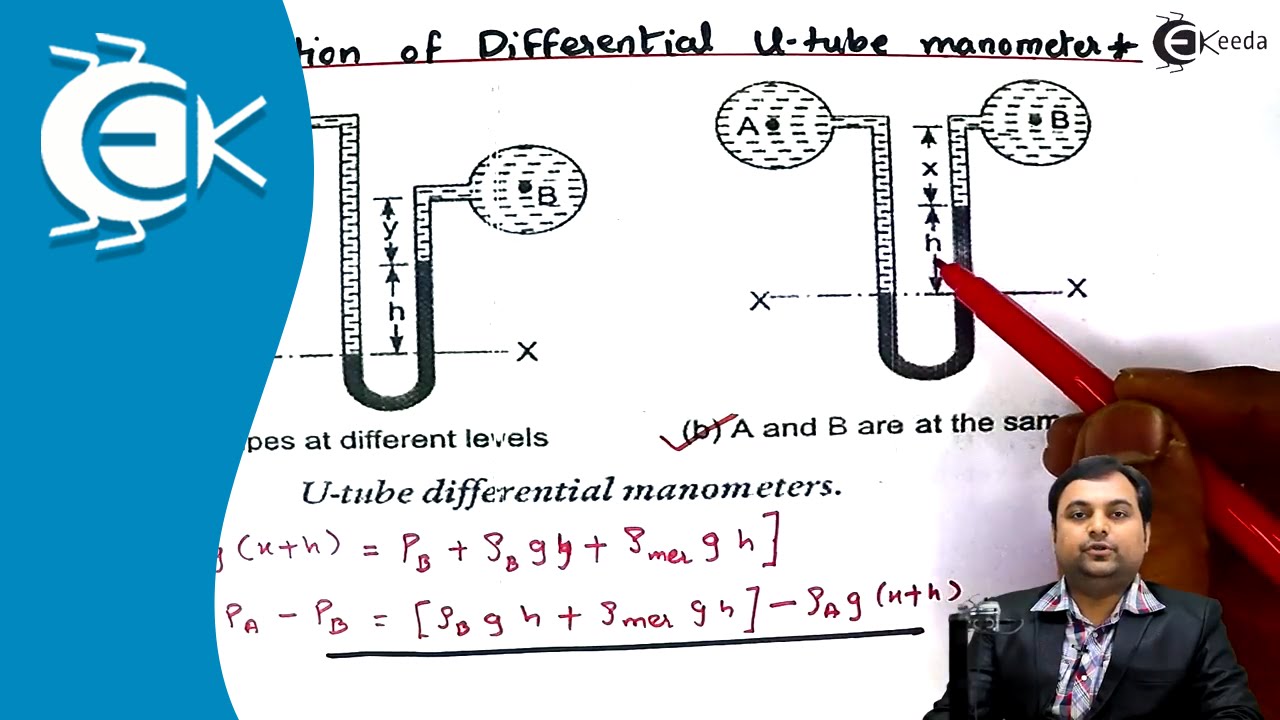

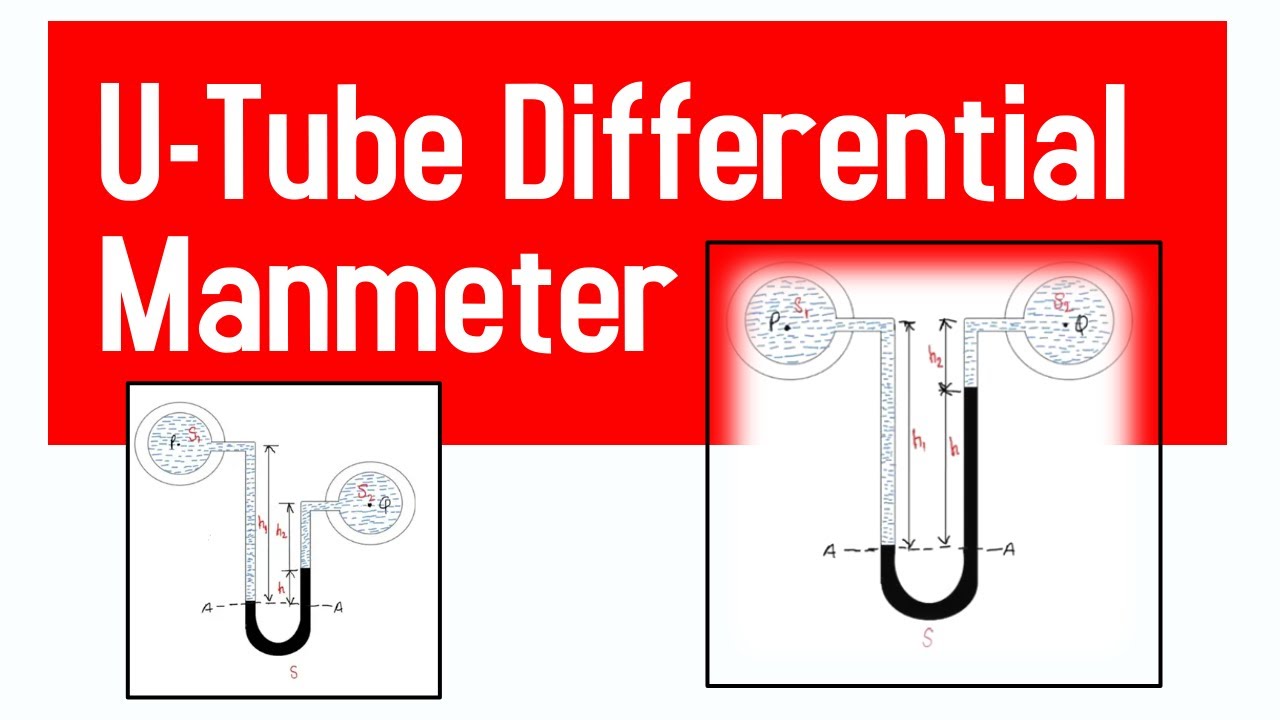

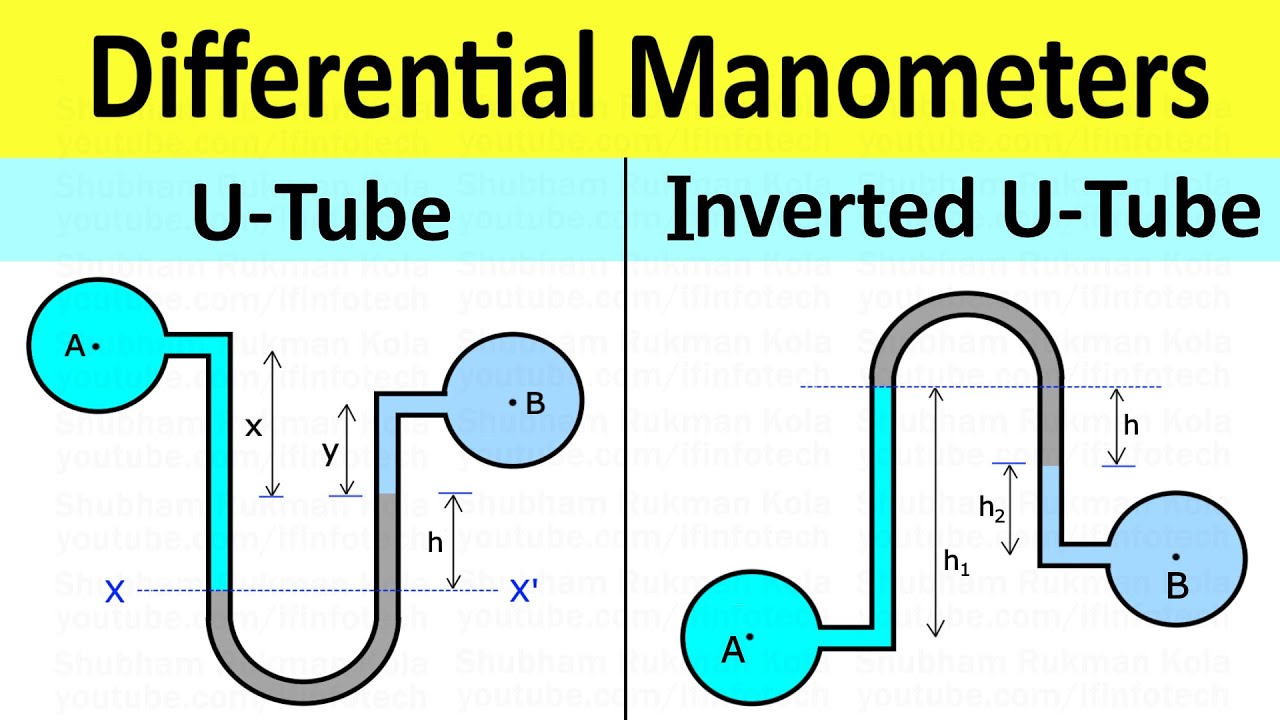

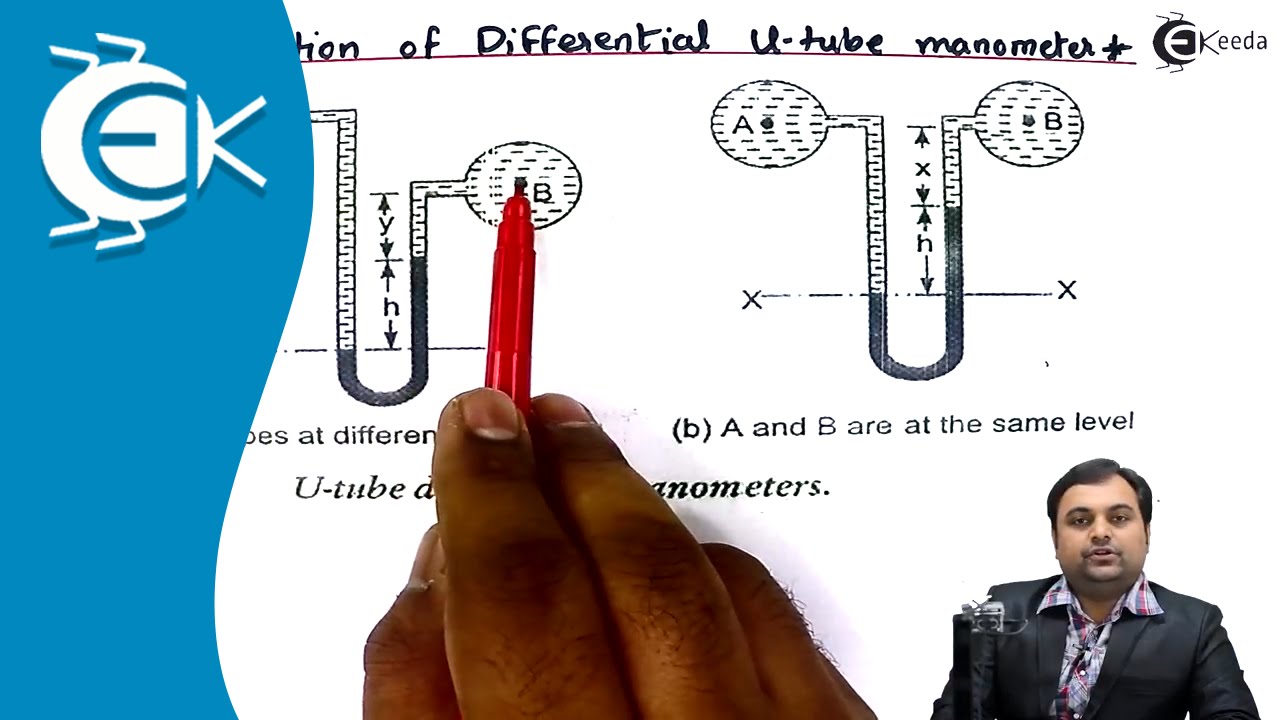

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Differential Manometers
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now there is another type of manometer which is called the differential manometers. As the name says that here, we do not measure a particular point pressure measurements where you consider two points. Because many of our applications, we are not worried about absolute pressure. Mostly we are looking it at the two points like I have the pipe and I have the point A and B. So this is a pipe flow, I have the point A and B. At this A and B locations, I want to know it what is the pressure difference between these two point of A and B in this pipe flow. I am not worried about the absolute pressure at the A or the absolute pressure B.
Detailed Explanation
A differential manometer is a device used to measure pressure differences between two points in a fluid system. Unlike other manometers that may measure the absolute pressure at a single point, a differential manometer focuses on the difference in pressure between two specified points. This is particularly useful in fluid dynamics where knowing the pressure difference drives flow is more important than knowing the absolute pressures themselves. For example, in a pipe with fluid flowing, understanding the pressure difference at points A and B informs us how much pressure is available to move the fluid from A to B.
Examples & Analogies
Consider two water tanks at different heights connected by a pipe. If we want to determine how strong the flow is from one tank to the other, we wouldn't need to know the exact pressure in each tank; we would only need to know how the pressure in Tank A compares to Tank B. This is similar to what differential manometers do.

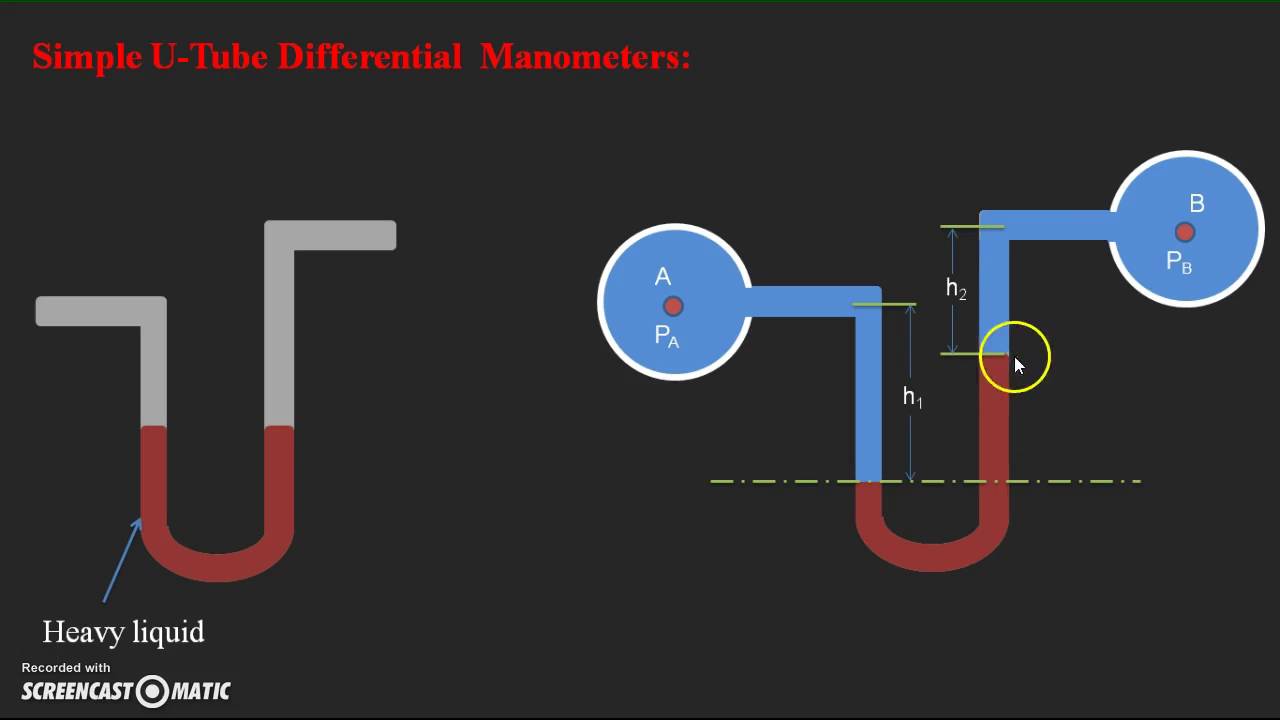

Working Mechanism of Differential Manometers
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
I want to looking for a relative pressure between these two difference between which is driving the flow from one side to the other sides. I am just looking it what is the difference pressure between that. So that means we use differential manometers which measure the difference of pressure between two points in a fluid system.
Detailed Explanation
The working principle of a differential manometer utilizes U-tube geometry where each side of the U-tube is connected to two different points in the system. When there is a pressure difference between these two points, it causes a difference in liquid levels within the U-tube. By measuring this difference in height (h1 and h2) and knowing the densities of the liquids involved, we can calculate the pressure difference. This allows engineers and technicians to assess how much force is acting to move the fluid through the pipes.
Examples & Analogies
Imagine two balloons filled with air at different pressures. The balloon at higher pressure can be likened to point A in our differential manometer, while the balloon with lower pressure represents point B. If we connect a tube to both balloons and observe what happens; air will rush from the higher pressure balloon to the lower pressure one, similar to how fluid flows in a pipe from high to low pressure. The greater the difference in balloon sizes represents the greater pressure difference that the manometer is designed to measure.
Analyzing Pressure Differences
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
If this is the arrangement and consider these tubes are carrying the same the different liquids okay. They are carrying the different liquid having the different density like ρ1 and ρ2 and ρ3 is the manometric density of the manometric liquid okay. If this is the arrangement and measure the distance from this flow systems and this manometer becomes equilibrium after this certain flow that.
Detailed Explanation
In a typical setup of a differential manometer where different liquids are used, the density of each liquid plays a crucial role in determining the pressure difference. Let's assume we have fluid A with density ρA and fluid B with density ρB flowing into the manometer filled with a manometric liquid (say mercury, density ρM). The heights of the liquid columns (h1 and h2) correlate to the pressures at points A and B. By establishing an equilibrium condition in the manometer, you can apply hydrostatic equations to derive the relation between these heights and the respective fluid pressures. The overall goal is to determine how much pressure difference drives flow through the pipe system.
Examples & Analogies
Think of a balanced seesaw with kids of different weights sitting on each side. The heavier child on one side balances against the lighter child on the other side. Similarly, in a differential manometer, the pressures exerted by different liquids with varying densities balance against each other, allowing us to find the pressure difference between two points. The height difference between liquid columns can help us 'weigh' these pressures accurately.
Mathematical Relationship in Differential Manometers
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
If I look it at this point the pressure which is connected to A part will be the P pressure at that point then because of the fluid what is carried by these conduit, you have a h is the height which will be ρ * g * h. Then you have a manometric height liquid the difference which will be a ρ * g * h.
Detailed Explanation
To express the pressures mathematically, we set the pressure at point A (PA) as a function of the liquid heights in the manometer. If h1 is the height of the liquid on one side and h2 is its counterpart on the other, the relation derived from hydrostatic pressure equations will look like: PA - PB = ρ1 * g * h1 - ρ2 * g * h2. This equation allows us to balance the pressures at points A and B influenced by the densities of the fluids and gravitational acceleration. The final equation helps solve for unknown variables as needed.
Examples & Analogies
Imagine you are trying to weigh two fruit baskets using a balance scale. The heavier basket pushes down more on its side, and you can measure how much lower it goes compared to the lighter basket. In the context of the differential manometer, the pressure difference (similar to the weight difference) affects how high or low the liquid stands on either side of the manometer, giving us the means to calculate the actual pressures indirectly.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Manometer: A device for measuring fluid pressure.
-
Differential Manometer: Measures pressure differences between two points.
-
Hydrostatic Pressure: The pressure exerted by a fluid at rest due to gravitational forces.
-
Pressure Difference (ΔP): The measurement of the force per unit area difference that drives fluid from one point to another.
-
Density (ρ): A crucial factor for calculating pressure in fluids.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A U-tube manometer is commonly used in laboratories to gauge the pressure of gases or liquids by comparing the heights of two liquid columns.
-
Differential manometers can be applied in industrial settings to monitor the pressure drop across filters or heat exchangers, aiding in performance evaluation.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In a column of liquid, pressure does flow, / Taller the column, higher the show!
📖 Fascinating Stories
-
Imagine two pipes connected by a U-tube. As water flows, the heights in the tube reveal the pressure dance, indicating which way the water prefers to prance!
🧠 Other Memory Gems
-
Use the acronym 'MAP' – Measure, Analyze, Predict for using manometers to interpret pressure differences.
🎯 Super Acronyms
D.U.C.K. – Differential, Use density, Calculate height!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Manometer
Definition:
A device that measures the pressure of liquids and gases using a column of liquid.
-
Term: Differential Manometer
Definition:
A type of manometer designed to measure the difference in pressure between two points.
-
Term: Hydrostatic Pressure
Definition:
Pressure exerted by a fluid at rest due to the weight of the fluid above it.
-
Term: UTube Manometer
Definition:
A manometer with a U-shaped tube used to compare two pressures.
-
Term: Density (ρ)
Definition:
Mass per unit volume of a substance, important for calculating pressure differences in fluids.
-
Term: Pressure Difference (ΔP)
Definition:
The difference in pressure between two points in a fluid system.
-
Term: Capillarity
Definition:
The ability of a liquid to flow in narrow spaces without external forces.
