Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Piezometers
Unlock Audio Lesson
Today, we will talk about piezometers, which are simple devices used to measure pressure by means of a liquid column. Can anyone tell me why we use liquid in a piezometer?
Is it because liquids can easily adapt to the shape of the container?
Exactly! Liquids can flow and take the shape of the tube, which allows for pressure measurement. One essential formula we'll use is that pressure is measured as the height of the liquid column multiplied by the density and gravitational acceleration: P = ρgh.
So, if the density of the liquid increases, what happens to the height of the column?
Good question! If the density increases, the height of the liquid column needed to balance the same pressure decreases. This principle is fundamental for using different liquids in piezometers.
Can you explain how a U-tube manometer works in comparison?
A U-tube manometer measures pressure differences between two points. Both liquid columns must balance based on their heights and densities. We'll explore this further in our next session!
To summarize, piezometers measure pressure using the formula P = ρgh, where P is pressure, ρ is liquid density, g is gravitational acceleration, and h is the height of the liquid column.
Types of Manometers
Unlock Audio Lesson
Now that we've established how piezometers work, let's discuss different types of manometers. Who can tell me the difference between a U-tube manometer and an inclined manometer?
I think the U-tube is just shaped like a 'U' and measures pressure, while an inclined manometer has a slant to it, right?
Correct! An inclined manometer is advantageous as it amplifies the reading for low pressures due to the longer length of the liquid column. What about the maths—how do we calculate pressure in these types?
For U-tubes, do we still use P = ρgh?
Yes, exactly! But for the inclined manometer, we use h and the angle to find the vertical height: h_vertical = h * sin(θ). Don't forget the implications of using different liquids in these manometers.
Got it! So we also have to consider the densities!
Absolutely! At the end of this session, remember: U-tube manometers measure the absolute pressure, while inclined manometers help us in measuring lower pressures more effectively as the vertical height is less impacted by the column’s angle.
Applications of Differential Manometers
Unlock Audio Lesson
Let's move on to differential manometers. Who can tell me what that measures?
Differential manometers measure the pressure difference between two points. Is that right?
Exactly! They are particularly useful when we are interested in the flow conditions between two pipe segments. For example, if we want to know the pressure drop due to friction, we can place the differential manometer at either end.
So, the equations are also similar, just focusing on the differences?
That's correct! We start with pressures at both locations, equate at the horizontal interface, and can drive our equations from there. Important to keep in mind: this is about differential pressure!
Can we also apply this in real-world applications like pumps?
Indeed, in pumps, knowing the pressure differences can help us understand performance and efficiency. Remember this—differential manometers give us insights into flow and pressure.
To summarize, differential manometers focus on pressure differences in fluid systems, which is crucial for understanding dynamic conditions in engineering applications.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
Piezometers are fundamental devices used to measure pressure in fluid systems. This section explains the working principles of piezometers and manometers, including the concepts of pressure measurement and variations like U-tube and inclined manometers, emphasizing their applications in soil and fluid mechanics.
Detailed
Detailed Summary of Piezometer
This section provides an in-depth look at piezometers, which are essential instruments in fluid mechanics for measuring pressure by utilizing columns of liquid. It begins with a recap of fluid statics, highlighting the relationship between pressure and hydrostatic forces. The piezometer is described as the simplest form of pressure measurement—a tube filled with liquid that determines pressure based on the height of the liquid column.
The section distinguishes between different types of manometers such as vertical and inclined versions, explaining how each can capture the pressure within fluid systems, including the basic principles of hydrostatics and Pascal's law. Furthermore, it elaborates on differential manometers, used for measuring the pressure difference between two points, along with varied arrangements like the inverted U-tube manometer. Numerous examples and applications of manometers in engineering contexts serve to illustrate their practical significance, particularly in the measurement of water levels in pipes and detecting flow rates in fluid systems.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Manometer and Piezometer
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now let us come to the manometer. Very simple devices are used to measure the pressure like you have a, let have these type of conduit, the pipes the carrying any liquids and you want to measure it what could be the pressure on that pipe. So we can just insert the tubes like you can see can have the tube like this or can have a tube like this with inclined and all or you can have a inclined like this. So each one having the merit and also disadvantage, like for examples, the manometer is simple device that is what use a liquid column to measure the pressure between two points okay.
Detailed Explanation

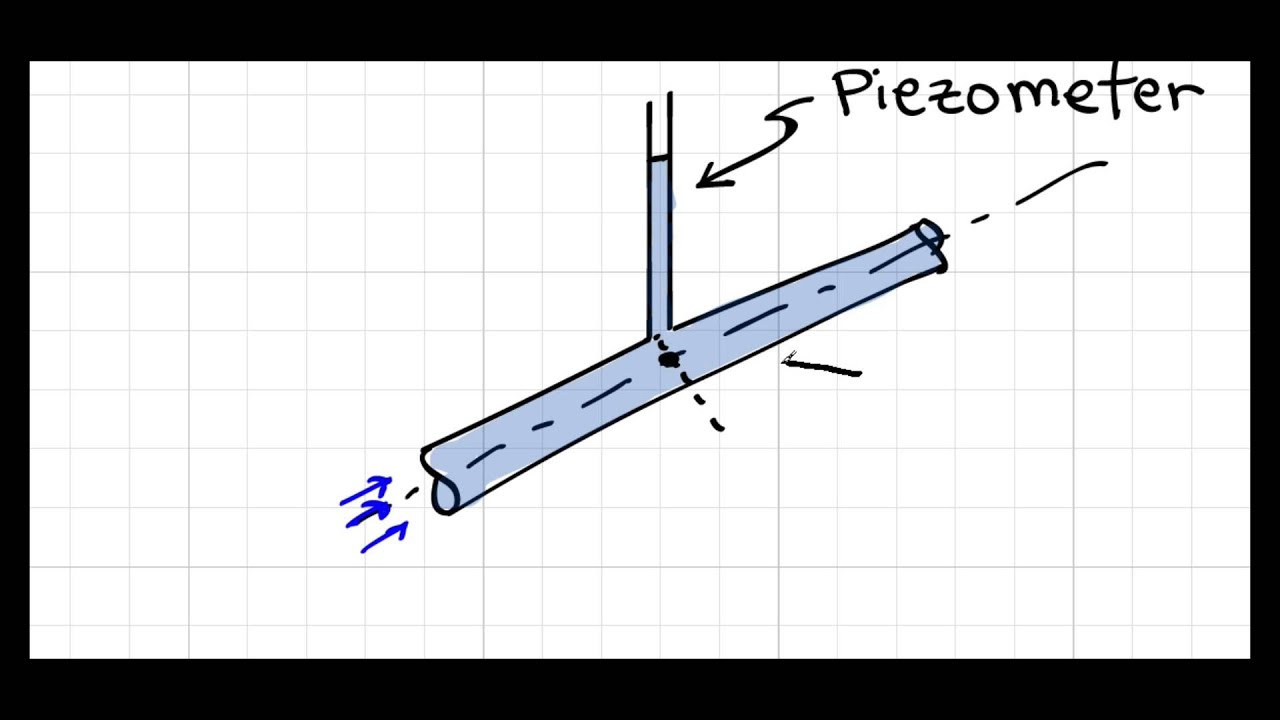

A manometer is a device used to measure the pressure of fluids within a pipe. This can be done using various types of manometers, including piezometers. A piezometer is the simplest form of a manometer and consists of a vertical tube filled with liquid that rises or falls depending on the pressure exerted on the fluid within the pipe. The key function of these devices is to provide a visual representation of pressure, which can be useful for monitoring and controlling fluid systems.
Examples & Analogies
Think of a manometer as a blood pressure gauge for fluids in pipes. Just like how a doctor's blood pressure cuff inflates and shows the pressure of your blood, a manometer measures the pressure within a pipe by showing the height of a liquid column.

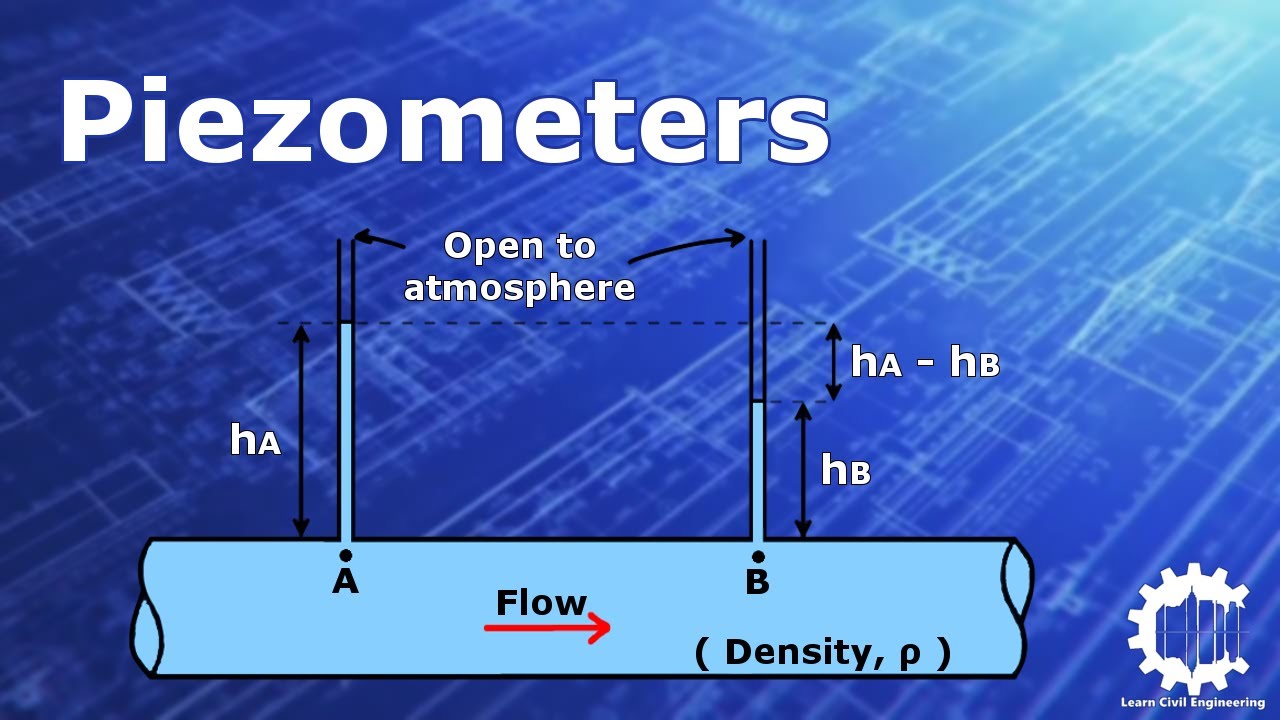

Simple Piezometer Functionality
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

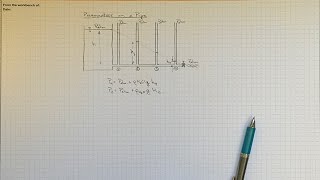

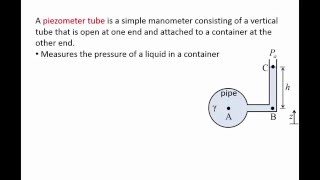

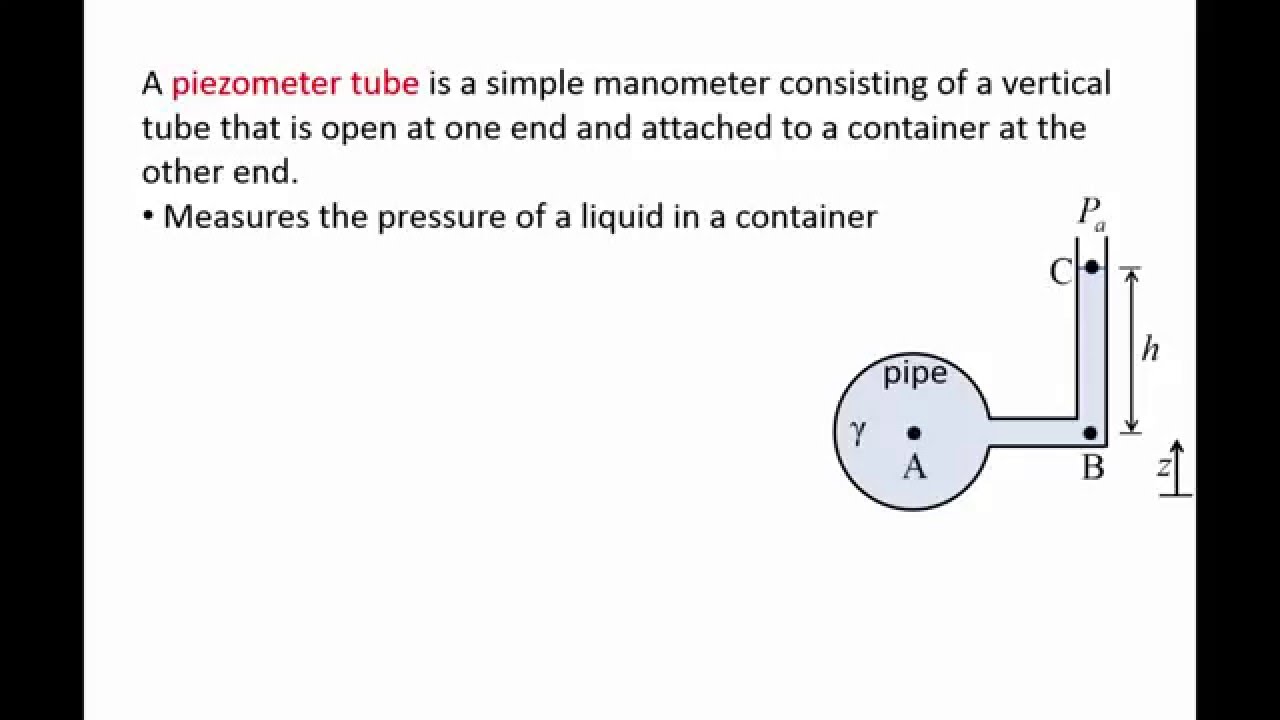

So you can see that when a simplest form is a piezometer. What is showing here is a piezometer and to find out the pressure. If you know it pressure at this point is P . P = P . If I taking a point P here and this dimension is atm atm very small as compared to the length of height of this piezometer column. So if it that this P is the pressure on this conduit will be the atmospheric pressures then weight of this column. That what will be the per unit area.
Detailed Explanation
In a piezometer, the pressure at a specific point within a fluid can be calculated using the equation P = Patm + ρgh, where Patm is the atmospheric pressure, ρ is the density of the fluid, g is the acceleration due to gravity, and h is the height of the liquid column in the piezometer. Essentially, if you know the height of the liquid column, you can determine the pressure being exerted by the fluid in the pipe.
Examples & Analogies
Imagine a drinking straw in a glass of water. When you put your finger on the top of the straw and lift it out of the water, the water stays in the straw due to atmospheric pressure pushing up on the liquid. Just like that, the piezometer relies on differences in pressure to show how high the liquid will rise in the tube.
Inclined Manometer
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Similar way you can have a inclined one or just a vertical one or the having this concept of the half rectangular case. See if you look it that in case of the inclined one that if I have the inclined length is l that means the height of the liquid rest is h = l sin(θ) simple projections okay.
Detailed Explanation
An inclined manometer is a variant that allows for more precise measurements, especially at low pressures. Because the liquid column is inclined, a longer length of liquid is measured, which results in a more sensitive reading. In this setup, the height of the liquid is related to the inclined length and the angle through the equation h = l sin(θ). This helps in measuring small pressure changes more accurately.
Examples & Analogies
Think about using a ramp instead of a set of stairs to climb a height. The ramp allows you to ascend more gradually, making it easier to monitor your ascent. Similarly, the inclined manometer provides a more gradual slope for reading lower pressures, making it clearer to observe small changes.
U-tube Manometer
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
But sometimes we use the U tube manometers. That means we do not insert just a column. We make a U-shaped manometer; we make it U shape. And then if it this is the conditions if you look it that I am to find out what is a pressure is acting on this surface which is a P pressure A at the centroid of the pipe.
Detailed Explanation
A U-tube manometer consists of a U-shaped tube filled with liquid; each side of the U measures the pressure of a different fluid within a system. The height difference between the two columns can help determine the pressure difference between two points in a fluid system. By measuring the height on both sides and knowing the densities of the fluids involved, one can easily calculate the pressure at the point of interest.
Examples & Analogies
It’s like comparing two levels of water in a U-shaped water-filled container; the height of the water on either side indicates how much pressure is being exerted. If one side goes up, it means the other side is exerting more pressure possible.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Piezometer: A device measuring pressure via liquid height.
-
U-Tube Manometer: A manometer that employs two aligned columns of liquid to read pressure differences.
-
Inclined Manometer: A manometer designed at an angle for increased sensitivity in measuring low pressures.
-
Differential Manometer: A device to measure the pressure difference between two points in a fluid.
-
Hydrostatics: The study of fluids at rest, essential for understanding pressure calculations.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A piezometer installed in a pipeline to monitor the water pressure levels.
-
Using a U-tube manometer to measure the pressure difference between two tanks, revealing flow conditions.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
If you want to gauge the fluid height, use a piezometer, and if it's tight, measure pressure right!
🎯 Super Acronyms
PMP
- Piezometer Measures Pressure.
📖 Fascinating Stories
-
Imagine a tiny tube connected to a waterfall. The height of the water inside tells how strong the waterfall’s pressure is. This tube is called a piezometer.
🧠 Other Memory Gems
-
Remember: Piezometers use 'P' for Pressure and 'P' for Piezometer to remember its main function.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Piezometer
Definition:
A device used for measuring fluid pressure based on the height of a liquid column.
-
Term: Manometer
Definition:
An instrument for measuring pressure based on liquid column height; includes types like U-tube and inclined.
-
Term: Differential Manometer
Definition:
A device that measures the pressure difference between two points in a fluid system.
-
Term: Hydrostatics
Definition:
The study of fluids at rest and the forces and pressures associated with them.
-
Term: Pascal’s Law
Definition:
A principle stating that pressure applied to a confined fluid is transmitted undiminished in all directions.
