Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Manometers
Unlock Audio Lesson
Today, we are going to discuss manometers, which are tools used to measure pressure in fluids. Can anyone tell me what they think a manometer does?
Isn't it a device that measures pressure by using liquid columns?
Exactly! Manometers operate by measuring the height of a liquid column that corresponds to the pressure. This is based on hydrostatic principles. Recall our concept of pressure being determined by height and density?
So, if the column height is high, does that mean the pressure is high?
Yes, that's correct! Higher liquid column heights indicate higher pressures. Let's remember this with the acronym P-H-D: Pressure relates to Height and Density!
What types of manometers are there?
Great question! There are several types including piezometers, U-tube manometers, and inclined manometers. We'll explore these individually shortly.
Can we see some examples?
Absolutely! Let's dig deeper into each type with connected examples in our next session.
Types of Manometers
Unlock Audio Lesson
Now, let’s delve into the types of manometers. Starting with the simple piezometer—who can tell me how it works?
Isn't a piezometer just a tube that shows the height of fluid to measure pressure?
Exactly! It’s the simplest form of manometer used primarily in open systems. What's unique about U-tube manometers?
U-tube manometers can compare two pressures, right? They help us see the difference in different liquids.
Correct! They are also versatile, allowing the use of different liquids for measurement. Can you think of a scenario where an inclined manometer might be necessary?
Maybe in low-pressure measurements? Because it can give greater precision?
Exactly! That's a prime application. Remember, for low pressure, we amplify the readings using incline.
What about differential manometers?
Good observation! Differential manometers measure pressure differences between two points rather than absolute pressures. This is essential in various engineering applications.
Applying the Concepts
Unlock Audio Lesson
Now that we understand the various types of manometers, let’s apply this knowledge. Suppose we have a U-tube manometer filled with mercury and water, with pressure P1 at one side. How would we express the height difference?
We would need to account for the densities of both liquids, right?
Spot on! The equation would incorporate their respective densities and the height difference observed. Can anyone write the equation?
It would be something like P1 = ρ_h * g * (h1 - h2), where ρ_h is the density of mercury?
Close! Always remember to keep signs in mind when it comes to height differences. Make notes of positive and negative sign conventions.
What happens in an inverted U-tube?
Excellent question! In this case, we treat the elevation change as negative due to the fluid rising rather than falling. Understanding these variations is key for accurate calculations!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section discusses manometers as tools for measuring pressure differences in fluid systems. It highlights various types of manometers, including simple piezometers and U-tube manometers, and explains their principles of operation, significant applications, and the equations used to derive pressure measurements.
Detailed
Detailed Summary
Manometers are crucial tools in fluid mechanics for measuring pressure differences between various points in fluid systems. The section begins by recapping the principles of hydrostatic pressure distributions previously discussed. Manometers use liquid columns to ascertain pressure, leveraging basic hydrostatic equations to provide accurate measurements.
- Types of Manometers:
- Piezometers: Simple devices that measure the height of a liquid column to determine fluid pressure in a pipe.
- U-tube Manometers: More versatile instruments used for comparing two pressure points, can include various liquids of different densities to measure pressure accurately.
- Inclined Manometers: Utilized for measuring low pressures due to the amplification of readings, providing greater accuracy in measurements.
- Differential Manometers: Designed to measure pressure differences between two points rather than absolute pressures. They are commonly used in applications where only relative pressure differences are of concern.
- Inverted U-tube Manometers: Used when the manometric fluid is lighter compared to the fluids being measured.
By understanding these different types and their applications, students are better equipped to select the appropriate manometer for various engineering scenarios. The section reinforces the importance of equating pressures at fluid interfaces and offers a foundational understanding necessary for advanced studies in fluid mechanics.

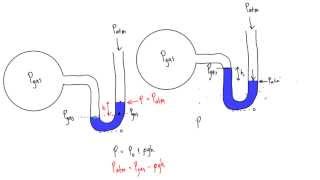

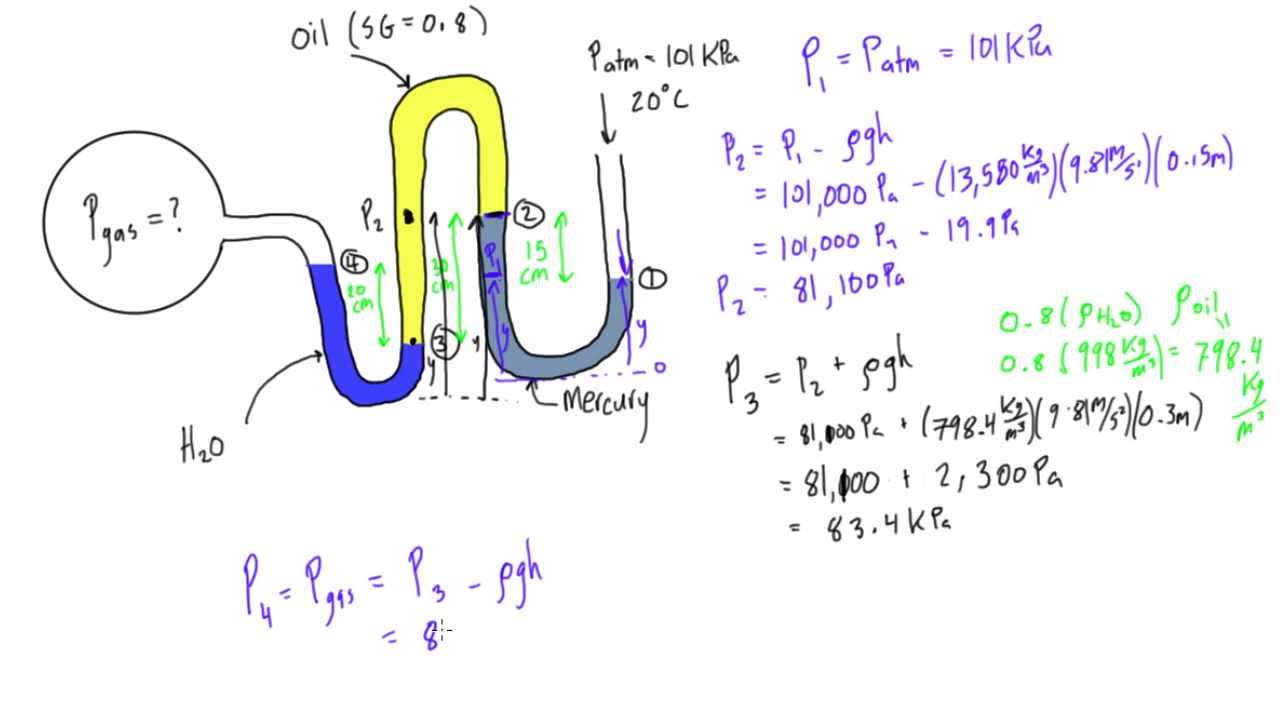

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Manometers
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now let us come to the manometer. Very simple devices are used to measure the pressure like you have a, let have these type of conduit, the pipes the carrying any liquids and you want to measure it what could be the pressure on that pipe. So we can just insert the tubes like you can see can have the tube like this or can have a tube like this with inclined and all or you can have a inclined like this.
Detailed Explanation
Manometers are simple devices that help measure pressure in liquids. They can be inserted into pipes carrying various liquids to determine the pressure inside those pipes. Depending on the configuration, manometers can be straight or inclined. Each type has its benefits and uses, providing flexibility based on the measurement requirements.
Examples & Analogies
Imagine a simple water bottle. If you want to measure how much water is in it without opening it, you could use a straw. By inserting the straw and seeing how high the water comes up, you can tell how much water is there. This is similar to how manometers use liquids to measure pressure in pipes.
The Piezometer
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So you can see that when a simplest form is a piezometer. What is showing here is a piezometer and to find out the pressure. If you know it pressure at this point is P . P = P . If I taking a point P here and this dimension is atm atm very small as compared to the length of height of this piezometer column.
Detailed Explanation
A piezometer is the simplest form of a manometer, primarily used to measure fluid pressure at a single point. By inserting a piezometer into a liquid, the height of the liquid column gives a direct indication of the pressure at that point. If the height of the column is known, you can calculate the pressure based on principles of fluid statics.
Examples & Analogies
Think of a straw again—when you suck on it, the liquid rises in the straw. The higher it goes, the more pressure is applied from your mouth. A piezometer works on the same principle, where the height of the liquid column indicates the amount of pressure present.
Inclined Manometer
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Another case let we have an inclined manometer which is have a quite advantage in the sense that it amplifies the pressure reading as compared when you are talking about low pressure ranges. When you are measuring the low pressure ranges it being inclined so it is a give a easier for us to measure the low pressure as compared to the vertical one.
Detailed Explanation
Inclined manometers are specifically designed to measure low pressures with greater accuracy. The inclined position provides a longer measurement scale for the same pressure change, making small differences in pressure easier to read. By tilting the liquid column, you increase the length over which the pressure is measured, enhancing sensitivity.
Examples & Analogies
Imagine trying to read a line on a ruler. If the ruler is flat, tiny changes in measurement can be hard to see. But if you bend the ruler into a wavy shape, the same tiny changes become much more noticeable. This is how inclined manometers work; they amplify small differences in pressure by extending the measurement along the incline.
Differential Manometers
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now there is another type of manometer which is called the differential manometers. As the name says that here, we do not measure a particular point pressure measurements where you consider two points.
Detailed Explanation
Differential manometers measure the pressure difference between two points in a fluid system rather than measuring the absolute pressure at either point. They are critical in applications where knowing the pressure difference is more important than the individual pressures themselves, such as in fluid flow through pipes.
Examples & Analogies
Think about adjusting a bicycle tire. You might not clearly see the pressure in PSI, but you can tell it’s under-inflated by how much it sinks when you press down on it compared to a properly inflated tire. Differential manometers work similarly by helping us understand the difference in 'pressure' that drives fluid movement, similar to how you can feel the difference in tire pressure when pressing down.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Manometer: A device that measures fluid pressure through liquid columns.
-
Differential Pressure: The difference in pressure between two points in a system.
-
Hydrostatic Pressure: The pressure exerted by a fluid at equilibrium due to the force of gravity.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Using a U-tube manometer filled with mercury, calculate the pressure difference between two points in a pipe.
-
A piezometer is used in an open tank to measure how high the water can go, which reflects the pressure at the bottom of the tank.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In a tube that's U-shaped, pressure’s measured well,
📖 Fascinating Stories
-
Imagine a wise engineer who uses a U-tube to measure pressures that help find whether the pipes maintain their strength; using several liquids, he makes educated decisions on fluid flow.
🧠 Other Memory Gems
-
Remember 'PMD': Piezometer, Manometer, Differential - types of pressure measuring devices.
🎯 Super Acronyms
For manometer reading remember 'LHD'
- Liquid Height Difference.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Manometer
Definition:
A device used to measure the pressure of fluids by comparing the height of liquid columns.
-
Term: Piezometer
Definition:
A simple type of manometer used primarily for measuring pressure in open or free-surface systems.
-
Term: Utube Manometer
Definition:
A manometer consisting of a U-shaped tube that measures the difference in pressure between two points in different liquids.
-
Term: Inclined Manometer
Definition:
A variant of the manometer that is inclined to amplify low pressure measurements.
-
Term: Differential Manometer
Definition:
A manometer used to measure the pressure difference between two points in a fluid system.
