Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Manometers
Unlock Audio Lesson
Today, we’re going to discuss manometers, a key device for measuring fluid pressure! So what exactly is a manometer?
Is it the tube where you can see a liquid column rising?
Exactly! Manometers use liquid columns to balance against pressure. Can anyone tell me the simplest type of manometer?
A piezometer?
Correct! A piezometer measures the height of the liquid column directly. Let's remember this with the acronym 'P' for 'Piezometer = Pressure Measurement'.
Does it work for all types of liquids?
Good question! It works best with incompressible fluids like water and mercury. Always remember, liquids must have a clear density!
So, what's the main principle behind these measurements?
Hydrostatic pressure, right?
Exactly! Hydrostatic pressure helps us calculate the pressure exerted by a column of liquid.
In summary, manometers like piezometers help us measure pressure through liquid columns based on height and density. Remember that!
Differential Manometers
Unlock Audio Lesson
Now, let’s look into differential manometers. Who can explain their unique function?
They measure the difference in pressure between two points, right?
Exactly! We use them when absolute pressure isn’t as important as the pressure difference. Why might that be useful?
It helps in pipes and flow systems to see how pressure drives fluid!
Good insight! We place the manometer at two locations and measure levels that let us calculate pressure differences. Can anyone recall how that works with liquid levels?
We equate the heights of the columns based on their densities!
Correct! If we have different liquids, we need to account for their densities in our calculations. Let’s remember: 'H' for 'Height = Hydraulics'.
So, it's like creating a balance with two sides?
Exactly! Much like balancing equations in chemistry. To summarize, differential manometers give us vital information on fluid dynamics based on pressure differences.
Inclined Manometers
Unlock Audio Lesson
Let's now explore inclined manometers. Why do we use them instead of vertical ones?
Maybe for low-pressure measurements?
Spot on! The inclination amplifies small movements in the liquid, making them easier to measure. Can anyone explain how the angles work in our calculations?
We calculate using 'h sin(θ)', right? That’s the vertical projection.
Yes! The angle helps us extend that column’s measurement. What’s the practical application of these in industry?
They are used in wind tunnels to measure airflow, I think!
Excellent example! Remember, inclined manometers give us precision in fluid measurements. Let's conclude that they are vital in measuring low pressures effectively.
Applications of Hydrostatics
Unlock Audio Lesson
Now, let’s connect these concepts with hydrostatics applications. Can someone describe what we mean by forces acting on submerged surfaces?
It’s how pressure applies to surfaces submerged in fluids!
Exactly! Pressure increases with depth, affecting submerged surfaces. What formula do we use to calculate this force?
Pressure equals density times gravity times height (P = ρgh)!
Correct! And what’s the significance of hydrostatic force in designing structures like dams or wells?
They need to withstand pressure from the water above!
Right! Proper engineering ensures stability. Remember the principle of location: pressure increases deeper in the fluid. To summarize, hydrostatics is essential for safe and effective design.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section delves into pressure measurement techniques in fluid mechanics, focusing on manometers—particularly piezometers, U-tube, and inclined manometers. It also explores applications of hydrostatics and the significance of Pascal’s law in calculating the forces on submerged surfaces.
Detailed
Pressure Measurements
This section focuses on the concepts of pressure measurements in fluid mechanics, particularly through the use of manometers. It recaps the foundational principles of fluid statics derived in prior lectures, including how hydrostatic pressure varies in relation to gravity.
Key Concepts:
- Manometer Basics: A manometer is a simple device used to measure liquid pressure by balancing the weight of a liquid column against the pressure.
- Types of Manometers:
- Piezometers: Measure atmospheric pressure and liquid height in vessels.
- U-tube Manometer: Utilizes two liquid columns to measure pressure differences between two points in a system. The heights of the liquid columns indicate pressure difference based on their densities.
- Inclined Manometers: Designed to measure low pressures more accurately by amplifying readings due to their inclined nature.
- Differential Manometers: These measure the pressure difference between two points rather than the absolute pressure at a single point. This method is significant in determining flow characteristics.
- Pressure Calculations: The section provides necessary equations for calculating pressure at various points using measured liquid heights and densities, emphasizing Pascal’s law, which states that pressure in a static fluid is exerted equally in all directions.
- Applications and Significance: It introduces practical applications of hydrostatics in assessing forces on submerged surfaces and discusses ancient architectural marvels like stepped wells, illustrating the historical context and ingenuity in managing water resources.
Youtube Videos

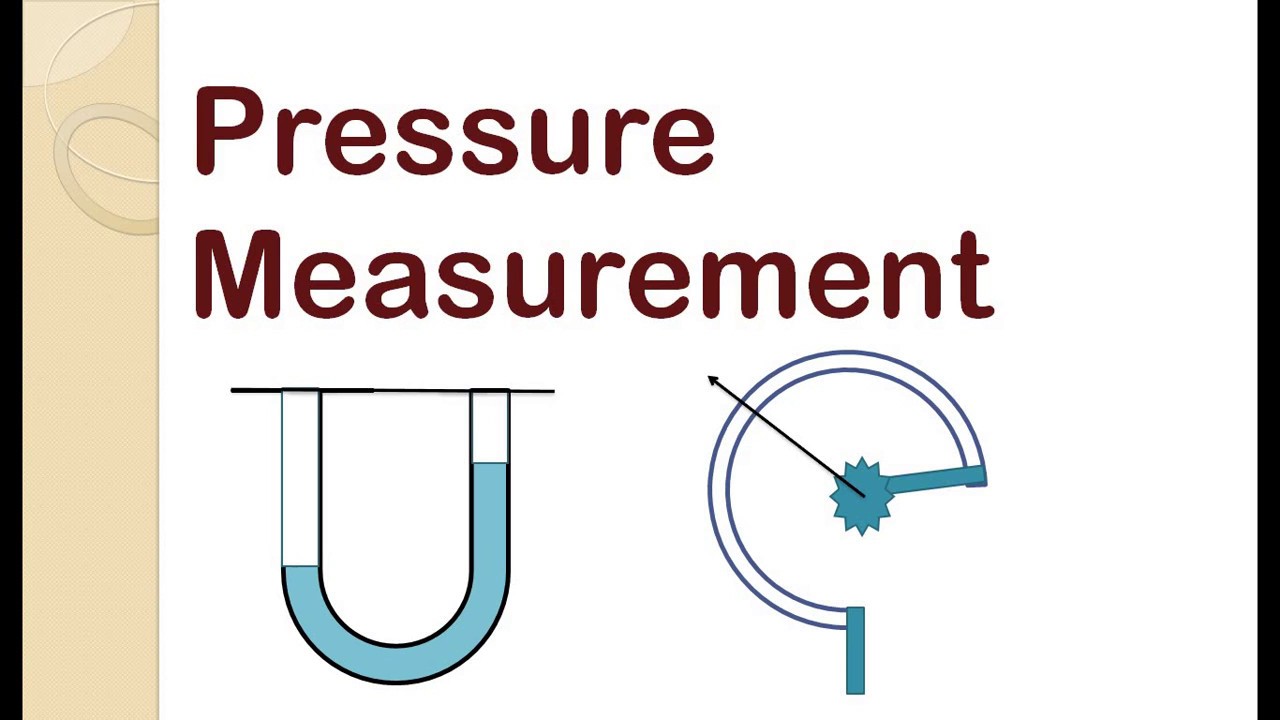

![How fluid pressure is measured? [Fluid Mechanics: Pressure Measurement]](https://img.youtube.com/vi/y9B0NqNF11I/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Pressure Measurements
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Fluid Mechanics
Prof. Subashisa Dutta
Department of Civil Engineering
Indian Institute of Technology-Guwahati
Lecture - 05
Measurement of Pressure and Hydrostatic Forces
Welcome to this lecture on fluid mechanics. As we discussed in the last class fluid at rest and fluid statics we have derived basic equations of fluid statics. That is what the pressure equations with related to gravity field. So now, just we will have two applications of the fluid at rest or hydrostatic pressure distributions...
Detailed Explanation
This introduction sets the context for the discussion on pressure measurements in fluid mechanics. It emphasizes the importance of understanding fluid statics, particularly how pressure relates to gravity. The speaker aims to cover applications using two primary tools: manometers and analysis of inclined surfaces. This foundational knowledge establishes the groundwork for understanding pressure in static fluids and prepares students for practical applications.
Examples & Analogies
Think of fluid pressure like the weight of a stack of books on top of each other. The books that are higher up feel the pressure from those above them, just as fluids in a body are influenced by the weight of fluids above. Understanding how this pressure changes with depth is crucial for various engineering applications, just like knowing how many books can stack up before the bottom one gets crushed.
Understanding Manometers
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now let us come to the manometer. Very simple devices are used to measure the pressure like you have a conduit, the pipes carrying any liquids and you want to measure it. So we can just insert the tubes like you can see can have the tube like this or can have a tube like this with inclined...
Detailed Explanation
A manometer is a device used to measure fluid pressure. It utilizes a liquid column to show the pressure difference between two points in a pipeline. The simplest form is a piezometer, where the height of the liquid column above atmospheric pressure indicates the pressure in the pipeline. If the height of the liquid column is known, one can calculate the corresponding pressure using the hydrostatic pressure equation (P = ρgh). Various types of manometers include vertical and inclined designs, where inclined manometers provide better sensitivity for measuring lower pressures.
Examples & Analogies
Imagine measuring the water level in a tube. If you've ever seen a straw in a drink, the level of liquid within the straw indicates how much pressure the drink exerts. Manometers work on a similar principle but use liquid heights to measure the pressure exerted by the fluid in a pipe, just like using the height of the liquid in a straw to gauge how full your drink is.
Inclined Manometers and Their Advantage
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Another case let we have an inclined manometer...
Detailed Explanation
Inclined manometers measure low pressure with greater accuracy than vertical manometers. The fluid height is measured along the inclined length, which increases the sensitivity of the reading. The angle of inclination enhances the scale used for the measurement, making it easier to read small differences in pressure. When calculating pressure, we use the depth measurements and apply the hydrostatic pressure formula accordingly.
Examples & Analogies
Think about using a measuring tape that has fine divisions to read lengths versus using one with large increments. The inclined manometer acts like the finer measuring tape for pressure. It allows for easier and more precise readings, especially when measuring something delicate, like the pressure differences in a gas line.
Differential Manometers
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now there is another type of manometer which is called the differential manometer...
Detailed Explanation
Differential manometers measure the difference in pressure between two points within a fluid system, rather than measuring absolute pressure. This tool is particularly useful in systems where flow dynamics are critical, such as in pipelines. Using a U-tube structure, differential manometers determine the height difference between two points influenced by different pressures. By analyzing these height differences, engineers can assess how much pressure is needed to drive the flow or overcome any resistance in the system.
Examples & Analogies
Consider the pressure monitoring system in a car's hydraulic brakes. The differential manometer helps engineers understand how much force is needed to apply the brakes by measuring pressure differences in the brake fluid system. Just as the manometer in our discussion shows how different pressures affect levels of liquid in tubes, the brake system ensures there’s enough pressure to operate safely.
Summary of Manometer Applications
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So you can write the simple equations. You need not to remember it. Only to know it that as I am going down the weight of the liquid we have to consider it when you are going down...
Detailed Explanation
In summary, manometers are essential tools in fluid mechanics, providing valuable measurements of pressure differences and fluid behavior in static and dynamic systems. Understanding the principles of how manometers function allows for efficient applications in various engineering fields. Students need to focus on identifying appropriate surfaces for pressure equations and developing skills in interpreting the results from measurements effectively.
Examples & Analogies
Think of being on a see-saw. The balance point changes depending on how far each person is from the center (the pivot). Similarly, in fluid systems, where you measure pressure changes impacts the outcomes and your design. Understanding where to center these measurements helps ensure accurate readings, just like finding balance on a see-saw!
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Manometer Basics: A manometer is a simple device used to measure liquid pressure by balancing the weight of a liquid column against the pressure.
-
Types of Manometers:
-
Piezometers: Measure atmospheric pressure and liquid height in vessels.
-
U-tube Manometer: Utilizes two liquid columns to measure pressure differences between two points in a system. The heights of the liquid columns indicate pressure difference based on their densities.
-
Inclined Manometers: Designed to measure low pressures more accurately by amplifying readings due to their inclined nature.
-
Differential Manometers: These measure the pressure difference between two points rather than the absolute pressure at a single point. This method is significant in determining flow characteristics.
-
Pressure Calculations: The section provides necessary equations for calculating pressure at various points using measured liquid heights and densities, emphasizing Pascal’s law, which states that pressure in a static fluid is exerted equally in all directions.
-
Applications and Significance: It introduces practical applications of hydrostatics in assessing forces on submerged surfaces and discusses ancient architectural marvels like stepped wells, illustrating the historical context and ingenuity in managing water resources.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Using a U-tube manometer to measure the pressure difference in a pipeline system.
-
Calculating the pressure at a certain depth in water using the hydrostatic pressure equation.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Hydrostatic pressure, deep and wide, rising with depth, a fluid’s guide.
📖 Fascinating Stories
-
Imagine two rivers flowing into a lake; one measures the water above as a castle keeps, showing pressure’s importance.
🧠 Other Memory Gems
-
DAMP: Differential, Absolute, Manometer Pressure – to remember types of pressures measured!
🎯 Super Acronyms
PAM
- Pressure = Area × Manometer; helps recall key formula connections.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Manometer
Definition:
A device used to measure the pressure of a fluid, typically through the column height of a liquid.
-
Term: Piezometer
Definition:
A simple type of manometer that measures the height of liquid in a static system.
-
Term: Utube Manometer
Definition:
A type of manometer consisting of a U-shaped tube filled with liquid used to measure the difference in pressure.
-
Term: Inclined Manometer
Definition:
A manometer that is set at an angle to measure low pressures more accurately by extending the liquid column's length.
-
Term: Differential Manometer
Definition:
A manometer designed to measure the pressure difference between two points in a fluid.
-
Term: Hydrostatic Pressure
Definition:
The pressure exerted by a fluid at equilibrium due to the force of gravity.
-
Term: Pascal’s Law
Definition:
A principle stating that pressure is transmitted undiminished throughout a fluid in a confined space.
