Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Gauge Pressure
Unlock Audio Lesson
Today, we are going to discuss **gauge pressure**. Can anyone tell me how gauge pressure differs from absolute pressure?
Isn't gauge pressure just the pressure measured above atmospheric pressure?
Exactly! Gauge pressure is the pressure measured relative to atmospheric pressure, which is effectively treated as 0 for practical engineering problems.
So, we use gauge pressure because it simplifies calculations, right?
That's correct! We often nullify atmospheric pressure since it acts equally in all directions and cancels out in surface integrals.
Can you give us an example of where we might ignore atmospheric pressure?
Sure! In scenarios involving subsonic flows, the discharge pressures can be very close to atmospheric pressure, allowing us to neglect it for our calculations.
To summarize, gauge pressure is vital in fluid mechanics as it simplifies our calculations by eliminating uniform atmospheric effects.
Stress Tensors and Their Components
Unlock Audio Lesson
Next, let's talk about stress tensors in fluid mechanics. Who remembers what a stress tensor represents?
Isn't it the measure of internal forces acting within a fluid?
Exactly! It quantifies how forces are distributed within the fluid, consisting of normal and shear stress components.
How are these components defined?
Great question! The stress tensor has nine components: the diagonal elements represent normal stresses, combining pressure and viscous stresses, while the off-diagonal elements represent shear stresses caused by viscosity.
So, how do we use these tensors in practical applications?
By integrating these stress components over control volumes, we can compute net surface forces. Understanding this helps us analyze fluid behavior in engineering structures.
To conclude, stress tensors are fundamental for analyzing forces within fluids, aiding our calculations in engineering.
Control Volumes and Surface Forces
Unlock Audio Lesson
Finally, let’s investigate control volumes and their significance in fluid mechanics. What is a control volume?
It's the volume in which we analyze fluid flow and forces where surfaces define boundaries.
Exactly! When we analyze a system, we integrate surface forces and body forces within this volume to find net effects. What are surface forces composed of?
They include the pressure forces and viscous forces acting on the surfaces.
Right! We combine our calculations of these forces to assess the overall forces on any system.
Do we always need to consider every single force acting?
Not always! In many cases, if certain forces are negligible, we can simplify our equations effectively.
To summarize, control volumes help us compartmentalize complex fluid systems for easier analysis of surface and body forces.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section delves into the definition and significance of gauge pressure in fluid systems, emphasizing its distinction from absolute pressure. It explains the use of stress tensors to describe surface forces in fluid mechanics, and how simplifying assumptions can aid in understanding control volumes in engineering applications.
Detailed
Detailed Summary
In fluid mechanics, gauge pressure is defined as the pressure relative to atmospheric pressure. It plays a crucial role in simplifying complex fluid dynamics problems. Atmospheric pressure, often represented as a constant in equations, acts uniformly on all points in a control volume, allowing engineers to ignore its effects when calculating pressure forces.
The section elaborates on the stress tensor, which summarizes forces acting on fluid elements in three-dimensional space. This tensor comprises nine components, allowing for the characterization of both normal and shear stresses based on fluid behavior. Normal stresses arise from pressure and viscous forces, while shear stresses are purely due to fluid viscosity.
Furthermore, the discussion touches on the method of integrating stress tensors over control volumes to compute net surface forces. It emphasizes the practical application of gauge pressure in engineering, especially in designs where atmospheric influences can be neglected, such as in subsonic flows typical in civil engineering scenarios. Understanding these concepts is critical for students and professionals engaged in fluid mechanics and related fields.

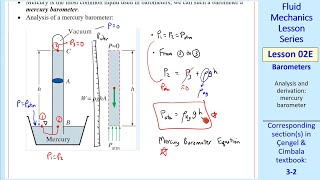

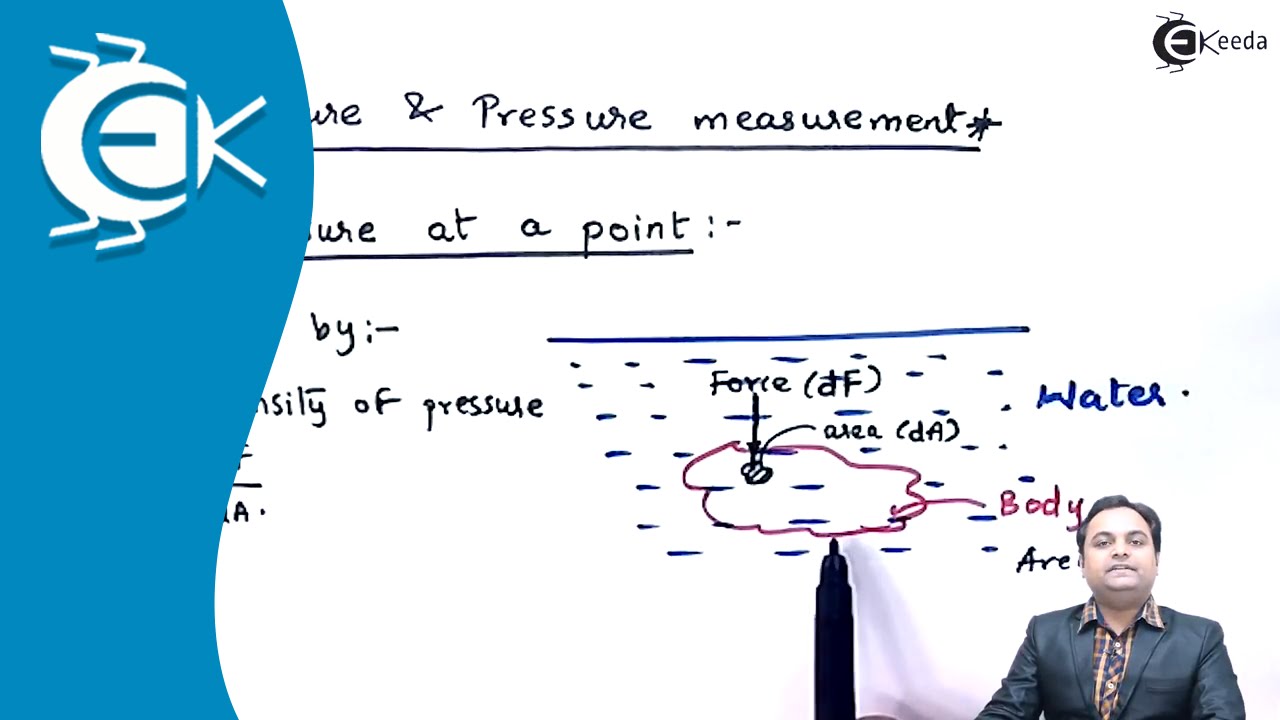

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Pressure in Control Volumes
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
When applying linear momentum equations to a control volume, the control surface has pressure equal to atmospheric pressure. It is important to note that when a control volume experiences atmospheric pressure uniformly across its surface, the integral of this pressure over the surface will cancel out, leading to a net effect of zero.
Detailed Explanation
In fluid mechanics, when we analyze control volumes, we often deal with forces acting on these volumes. Atmospheric pressure acts uniformly on surfaces, and if you calculate the total pressure forces acting on a closed control surface, these forces will cancel each other out. This is because the force exerted by atmospheric pressure is the same in all directions, resulting in no net effect. Thus, for simplification, we can ignore atmospheric pressure and instead focus on gauge pressure, which is the pressure that is monitored relative to atmospheric pressure.
Examples & Analogies
Imagine a balloon filled with air. The pressure inside the balloon (gauge pressure) is what makes it taut. However, if you were to measure the air pressure inside the balloon against the external atmospheric pressure, you would find that the effect of atmospheric pressure is uniform on all sides of the balloon and does not contribute to its overall tension when considering forces on the balloon.
Defining Gauge Pressure
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
We do not consider the atmospheric pressure distribution overall in a control volume analysis. Only the gauge pressure, which is the difference between absolute pressure and atmospheric pressure, is taken into account.
Detailed Explanation
Gauge pressure is defined as the pressure measurement that excludes the atmospheric pressure component. When analyzing systems involving fluids, it's critical to know the difference between absolute pressure and gauge pressure; gauge pressure is often what engineers refer to in calculations. By focusing on gauge pressure, we can simplify the mathematical modeling without losing essential information needed to understand how pressures behave under different conditions.
Examples & Analogies

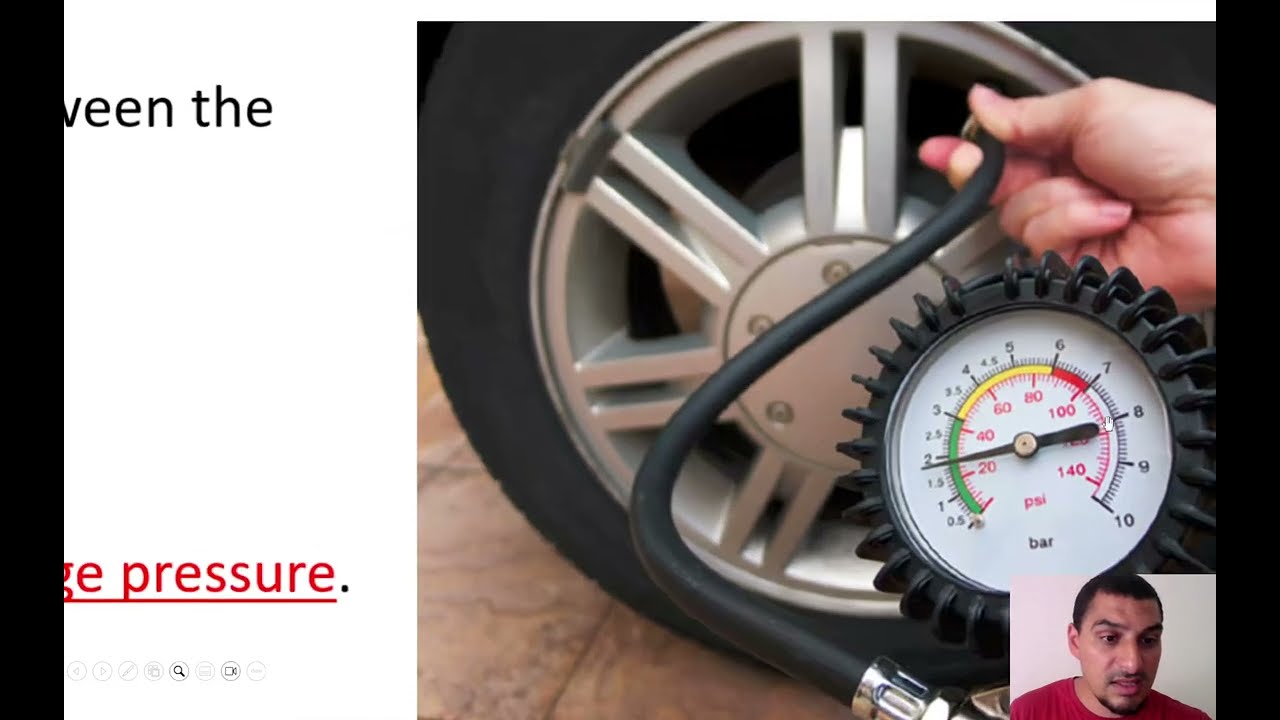

Think of a car tire. The pressure gauge in your car measures the tire pressure relative to atmospheric pressure. If the tire gauge reads 30 psi, that means the pressure inside the tire is 30 psi above atmospheric pressure. Understanding this helps in maintaining the right tire pressure for safety and efficiency.
Simplifying Control Volume Analysis
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In control volume analysis, the pressure forces can often be ignored at the outlet where fluid discharges into the atmosphere, especially if the flow is subsonic and the discharge pressure approaches the atmospheric pressure.
Detailed Explanation
When fluid exits a control volume—like water flowing out of a faucet—it typically does so at a pressure that is very close to atmospheric pressure. If the flow is subsonic (which is common), we can safely neglect the effect of pressure at the outlet. Consequently, this simplification allows us to focus only on gauge pressures for effective calculations in fluid dynamics.
Examples & Analogies
Consider a garden hose. When you turn on the tap, water flows out. The pressure at the end of the hose is very similar to atmospheric pressure, so we can think of it as being negligible during analysis. Just as a gardener would focus on the flow rate, without worrying too much about the minor pressure at the hose's end, engineers simplify their calculations by disregarding atmospheric pressure at the outlet.
Choosing the Right Control Volume
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Choosing an appropriate control volume is crucial for effective analysis. We must ensure that the control volume encompasses the inflow and outflow points clearly so that we can identify and calculate the forces acting on it accurately.
Detailed Explanation
The choice of control volume can greatly influence the complexity of the problem-solving process in fluid dynamics. An effective control volume should include what is necessary for calculating forces and should avoid regions of uncertainty. When you select a control volume well, it simplifies the calculations of pressure, forces, and overall fluid behavior, making the equations more manageable.
Examples & Analogies
Imagine setting up a safety net below a trapeze artist. If the net is placed properly to catch the artist without any gaps, it can effectively capture the force of their fall. Similarly, in fluid mechanics, a well-chosen control volume can capture all relevant forces and flow parameters without missing critical information or adding unnecessary complexity.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Gauge Pressure: The pressure relative to atmospheric pressure.
-
Stress Tensor: A mathematical representation of internal fluid forces.
-
Normal and Shear Stress: Components of the stress tensor representing different forces.
-
Control Volume: A defined area in fluid analysis to simplify problem-solving.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
When measuring pressure in a tire, the gauge pressure indicates how much air is in the tire compared to the atmospheric pressure.
-
In hydraulic systems, the stress tensor can help engineers understand the forces acting on various components under load.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In fluid's dance, pressure's chance, gauge it right, for success in sight.
📖 Fascinating Stories
-
Imagine a balloon inflating. The air pressure inside rises, but if we compare it to the outside world, we see only how much more we have — this is the gauge pressure in action.
🧠 Other Memory Gems
-
Gauging Pressure? Remember: Gauge = Atmosphere + Some Difference.
🎯 Super Acronyms
GASP
- Gauge
- Atmospheric
- Shear
- Pressure - key concepts in understanding fluid mechanics.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Gauge Pressure
Definition:
The pressure relative to atmospheric pressure, effectively treated as zero in many calculations.
-
Term: Stress Tensor
Definition:
A mathematical representation of internal forces within a fluid, characterized by normal and shear stress components.
-
Term: Normal Stress
Definition:
Forces acting perpendicular to a surface within a fluid, composed of pressure and viscous stresses.
-
Term: Shear Stress
Definition:
Forces acting parallel to a surface within a fluid, arising purely from viscous effects.
-
Term: Control Volume
Definition:
A defined volume in fluid mechanics where we analyze mass, momentum, and energy transport.
