3.7 - Compaction of Different Soil Types
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Granular Soils
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s start by talking about granular soils. These are usually sand and gravel, which compact very well due to their structure. What tools do we use to compact these types?
I think we use vibratory rollers!
Correct! Vibratory rollers are best because they apply vibration to rearrange the soil particles, increasing density. Can anyone tell me about the water content needed for good compaction?
It should be slightly below the optimum moisture content, right?
Exactly, slightly below the OMC helps in maximizing density without making it too slippery for particles to lock into place. Remember this as you think about compaction is often a trade-off with moisture levels!
What happens if there’s too much water?
Good question! Too much water can reduce the efficiency of compaction as it creates a lubricating effect, making it hard for particles to achieve proper interlock.
Cohesive Soils
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let’s discuss cohesive soils like clay and silt. How do we compact these materials effectively?
We use sheepsfoot rollers and kneading compaction, right?
That’s right! Sheepsfoot rollers provide kneading action, which is essential for rearranging those sticky particles. Why is moisture content particularly critical for this type?
If it’s too dry, it could crack, and if it’s too wet, it won’t compact well?
Absolutely! You need to maintain moisture near the optimum to ensure firmness without cracking. This is crucial for the stability of the structure being built.
Expansive Soils
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Lastly, let’s look at expansive soils. What should we consider before compacting these types?
We often need to stabilize them with lime or cement, right?
Correct! Expansive soils can swell and shrink, which can damage structures if not treated properly. Why is compaction alone insufficient?
Because they need stabilization first to make sure they don’t change size.
Exactly! Stabilization ensures they can support loads without excessive movement. Always remember to assess soil behavior before deciding on your process!
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section delves into the specific compaction methods suitable for granular soils, cohesive soils, and expansive soils, highlighting the equipment and moisture considerations for each type to ensure effective soil stabilization and improved structural integrity.
Detailed
Compaction of Different Soil Types
In this section, we explore the specific techniques and considerations for effectively compacting different types of soils, as each type behaves uniquely under compaction forces.
3.7.1 Granular Soils (Sands, Gravels)

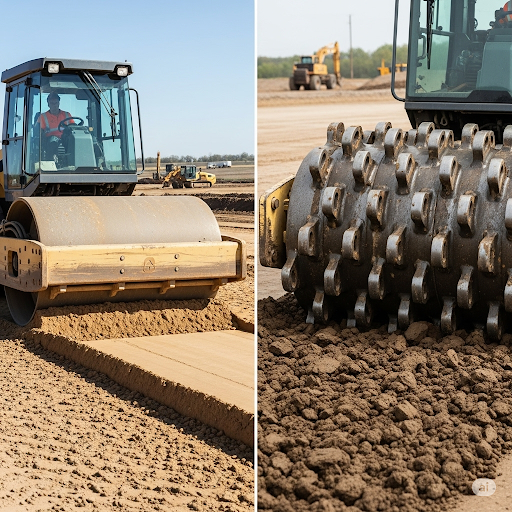

Granular soils are best compacted using vibratory rollers. This type of roller is effective due to its ability to induce vibrations, which rearranges soil particles into a denser configuration. For optimal compaction, the water content should be slightly below the Optimum Moisture Content (OMC) to maximize density without introducing excessive lubrication between particles.
3.7.2 Cohesive Soils (Clays, Silts)
Cohesive soils require different compaction techniques, typically using sheepsfoot rollers or kneading compaction methods. Unlike granular soils, cohesive soils are compacted near or slightly above their OMC. This is essential as too dry of a condition can lead to cracking and insufficient density while excess moisture can hinder effective particle rearrangement.
3.7.3 Expansive Soils
Expansive soils, known for their swelling and shrinking characteristics, often require pre-treatment with stabilizers such as lime or cement before compaction to ensure stability. Compaction alone may not create a suitable base, making early intervention crucial in the compaction process.
Understanding soil types and choosing the appropriate compaction technique is key to achieving long-lasting, stable foundations in engineering practices. Proper assessment and application continue to be essential for ensuring the integrity of constructed pavements and structures.
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Granular Soils (Sands, Gravels)
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Best compacted using vibratory rollers.
• Water content slightly below OMC preferred.
Detailed Explanation
Granular soils, such as sands and gravels, are most effectively compacted using vibratory rollers. These rollers use vibration to rearrange the soil particles, which enhances the density and stability of the soil. For optimal results, the water content in these types of soils should be slightly below their Optimum Moisture Content (OMC). This level of moisture promotes effective compaction while preventing too much saturation, which can reduce strength.
Examples & Analogies
Think of granular soils like a box of marbles. If you shake the box (similar to using a vibratory roller) when there are just a few marbles (low moisture), they settle nicely together. However, if you add too much water, they float around, preventing proper packing.
Cohesive Soils (Clays, Silts)
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Need sheepsfoot rollers or kneading compaction.
• Compacted near or slightly above OMC.
Detailed Explanation
Cohesive soils, like clays and silts, require different compaction methods compared to granular soils. They are best compacted using sheepsfoot rollers or through kneading compaction techniques. These methods apply pressure and shear force to effectively rearrange the soil particles. For cohesive soils, it is important to compact them near or slightly above their Optimum Moisture Content (OMC) to achieve the best density and strength without damaging the soil structure.
Examples & Analogies
Imagine kneading dough for bread. Just the right amount of moisture (like OMC) is crucial for achieving the right texture. If the dough is too dry, it won't hold together; if it's too wet, it becomes sticky and unmanageable. Similarly, cohesive soils need that balance for proper compaction.
Expansive Soils
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Require stabilization (lime or cement) before compaction.
• Compaction alone may not yield stable base.
Detailed Explanation
Expansive soils are known for their tendency to swell when wet and shrink when dry, which poses challenges for construction. Because of their unpredictable nature, these soils often need stabilization through additives like lime or cement before they can be compacted. This process helps in improving their load-bearing capacity and ensures that compacting them will lead to a stable foundation for structures. Simply compacting expansive soils without stabilization may lead to inadequate performance and potential structural failures.
Examples & Analogies
Consider a sponge. If a sponge is left dry, it doesn't hold much weight, but once it's soaked, it can swell and lose its shape. The same happens with expansive soils. By adding cement or lime (like drying the sponge out), we can control how it behaves when wet, stabilizing it for construction.
Key Concepts
-
Granular Soils: Best compacted with vibratory rollers and need slightly below OMC.
-
Cohesive Soils: Require sheepsfoot rollers or kneading compaction and are compacted near OMC.
-
Expansive Soils: Often need lime or cement stabilization before compaction.
Examples & Applications
Using a vibratory roller on sand to achieve optimal compaction for a stable base in road construction.
Applying lime treatment to clay soils before compacting to prevent future structure instability.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Granular soils love the vibe, compact them well, give them a ride!
Stories
Imagine a construction team faced with muddy clay. They knead it with 'sheeps' feet' till it’s firm enough for the road.
Memory Tools
GCE for soil compaction: Granular = Vibratory, Cohesive = Sheepsfoot, Expansive = Stabilization.
Acronyms
S.O.S. - Soil, Optimum, Stability – The key factors in effective soil compaction.
Flash Cards
Glossary
- Granular Soils
Soils that are primarily composed of sand and gravel and easily compacted due to their coarse texture.
- Cohesive Soils
Soils consisting of clay and silt characterized by their plasticity and ability to retain moisture.
- Expansive Soils
Soils that undergo significant volume changes due to moisture fluctuations, posing challenges in construction.
- Optimum Moisture Content (OMC)
The moisture content at which a soil type achieves its maximum dry density during compaction.
- Vibratory Rollers
Compaction equipment that uses vibration to enhance the density of granular soils.
- Sheepsfoot Rollers
Compaction equipment with protruding feet designed for kneading action on cohesive soils.
