Overview of the Modified Proctor Test
Unlock Audio Lesson
Today, we're discussing the Modified Proctor Test. This test is crucial for understanding how well soils can be compacted, particularly under heavy loads. Can anyone tell me what compaction means?
Isn't that about making the soil denser by removing air?
Exactly, Student_1! The Modified Proctor Test helps determine the optimum moisture content and maximum dry density of the soil. Why do you think moisture content is important?
I think too much or too little moisture could affect how compacted the soil becomes.
Great point! That's why finding the right moisture content is key.
Equipment and Procedure
Unlock Audio Lesson
Now, let's discuss the equipment. We use a 4.89 kg rammer for this test, which is heavier than the one used in the Standard Proctor Test. Why do we use a heavier rammer?
To apply more energy for better compaction?
Exactly! We drop it from a height of 450 mm. Can anyone explain how many layers we're compacting the soil into?
Three layers, right?
Correct! Compacting in layers helps achieve a fuller compaction. What about the outcome? How do we know if the compaction was successful?
We plot a compaction curve, right?
Yes, that's right! The compaction curve shows the relationship between dry density and moisture content.
Interpreting Results
Unlock Audio Lesson
Let's delve into how we interpret the results from the Modified Proctor Test. What information do we glean from the compaction curve?
We can find the optimum moisture content and the maximum dry density from the peak of the curve.
Exactly! This information is essential for designing proper soil layers in construction projects. If we don’t achieve the right MDD, what problems might arise?
Potential structural issues or failures, right?
Right again! This highlights the significance of the Modified Proctor Test in ensuring the safety and durability of roadways and airfields.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section details the Modified Proctor Test as defined by IS: 2720 Part 8, highlighting its significance in assessing soil compaction for projects like highways and airfields. The test is crucial for understanding different soil types and their behavior under compaction.
Detailed
Modified Proctor Test (IS: 2720 Part 8)
The Modified Proctor Test is a critical laboratory test used in soil compaction techniques, particularly for heavier compactive efforts often required in highway and airfield construction. This test employs a rammer weighing 4.89 kg dropped from a height of 450 mm, unlike the standard Proctor test, which uses lighter equipment.
Key Concepts Covered
- Purpose of the Test: The Modified Proctor Test helps determine the Optimum Moisture Content (OMC) and Maximum Dry Density (MDD) of soils, which are essential for ensuring stability and strength in construction applications.
- Testing Methodology: In this test, soil samples are compacted in a standardized 1-liter mold in multiple layers, which allows for the assessment of how well the soil can be compacted under specified conditions. This method reflects the energy applied in practical settings, making it especially relevant for heavy structures.
- Results Interpretation: By plotting a compaction curve, engineers can identify the peak points for OMC and MDD, which guide effective soil management in construction projects.
Understanding the Modified Proctor Test is vital for civil engineers to design and execute projects that require robust soil structures.

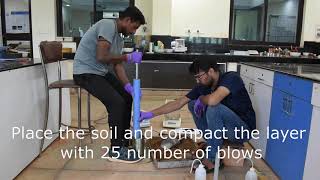

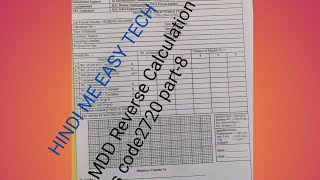

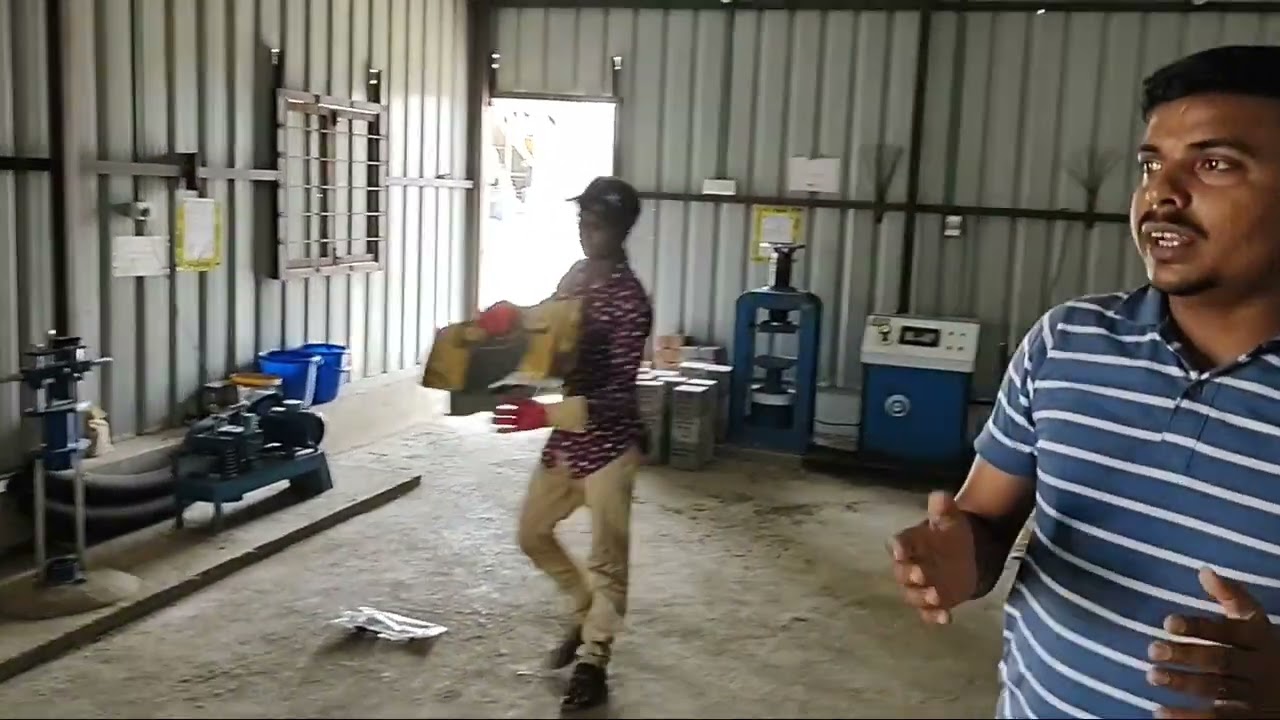

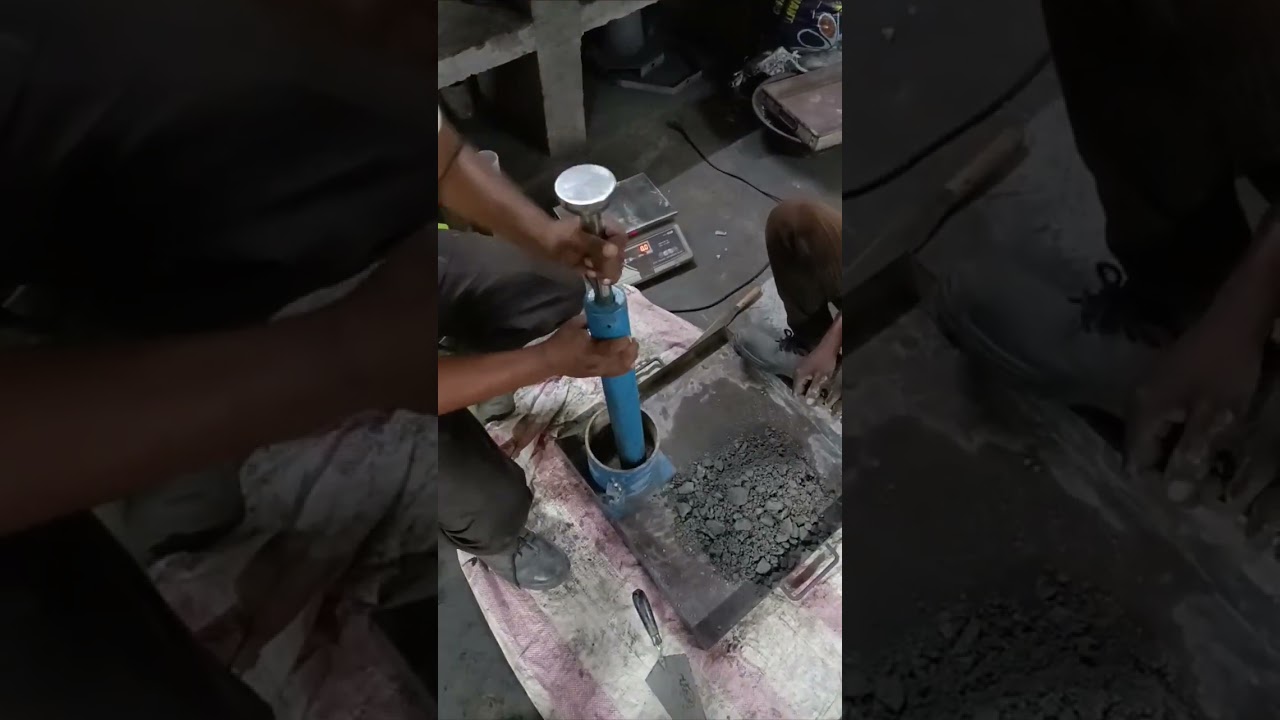

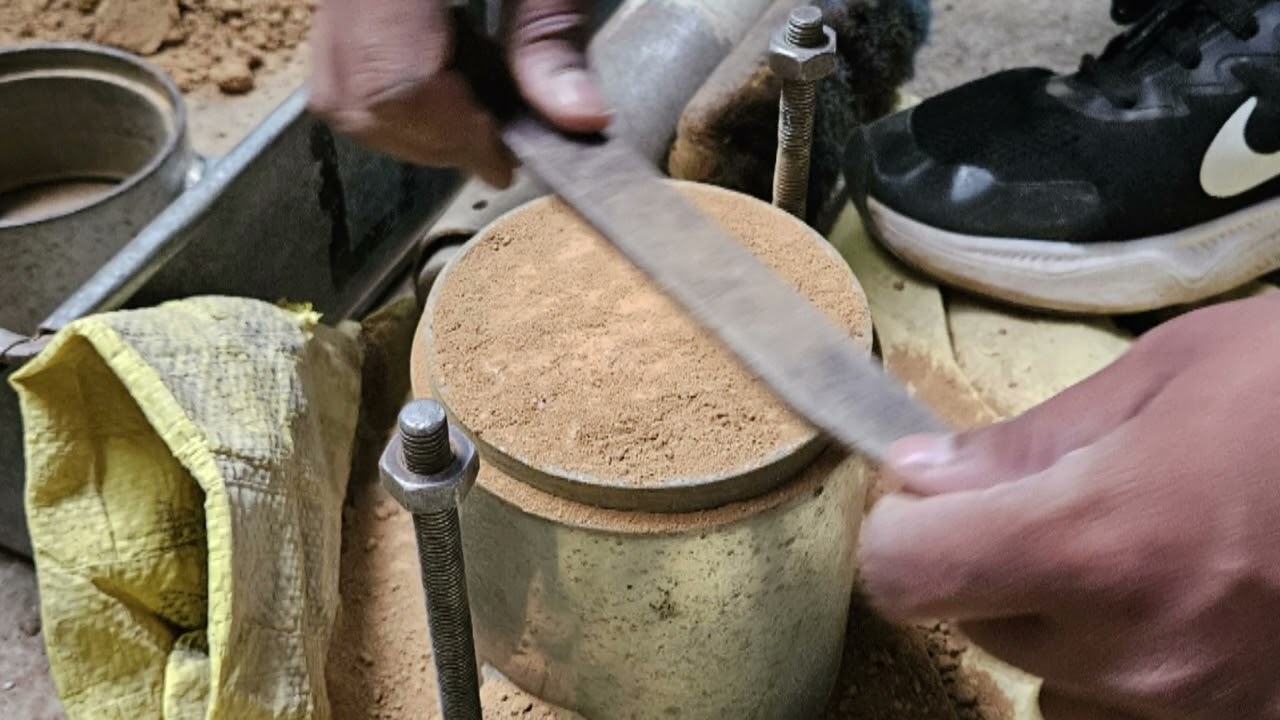

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Purpose of the Modified Proctor Test
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Used for heavier compactive efforts, common in highways and airfields.
Detailed Explanation
The Modified Proctor Test is a laboratory compaction test that assesses how soil behaves under increased loads. It is particularly important when the soil is used for construction purposes in areas like highways and airfields, where the soil must support heavier loads compared to typical ground projects. This test helps engineers determine the compactive characteristics of soil, enabling them to ensure that the foundation can adequately support the expected loads.
Examples & Analogies
Think of a sponge being pressed. When you apply more pressure by pushing harder, the sponge compresses more and may hold less water. Similarly, in the Modified Proctor Test, we apply greater compactive force to simulate the conditions soil will face under heavy traffic, ensuring that we find out how well it will compact, just like we check a sponge's ability to hold liquids under pressure.
Equipment Used in the Test
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Uses a 4.89 kg rammer and higher drop height (450 mm).
Detailed Explanation
In the Modified Proctor Test, a specific rammer weighing 4.89 kg is used to compact the soil. This rammer is dropped from a height of 450 mm, which is significant because the energy level (or compactive effort) applied to the soil is an important factor in achieving maximum compaction. The combination of weight and drop height is designed to simulate the heavy machinery that soils encounter in real-world applications, particularly in construction and roadway environments.
Examples & Analogies
Imagine trying to flatten a thick book using a lightweight paperweight; it wouldn't exert enough force to make a difference. However, if you use a heavy stone, the increased weight and the height from which you drop it significantly increase the compression. In the same way, by carefully selecting the weight and drop height in the Modified Proctor Test, we can reproduce the effects of heavy machinery on the soil.
Application of the Test Results
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Suitable for designing subgrade compaction.
Detailed Explanation
The results of the Modified Proctor Test are critical for designing subgrade layers in road construction. Engineers use the optimum moisture content (OMC) and maximum dry density (MDD) obtained from the test to ensure that the soil layer beneath the pavement structure will adequately support weight without excessive deformation or failure. This test provides necessary data to predict how different soil types perform under load and moisture conditions.
Examples & Analogies
Consider a chef preparing a cake. The recipe requires the right balance of ingredients to ensure the cake rises properly. If the ingredients are not measured correctly, the cake may not rise – it might be dense and heavy or flat and dry. Similarly, the data from the Modified Proctor Test helps civil engineers mix the right amount of moisture with soil to achieve the ideal conditions for subgrade stability before paving a road.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Purpose of the Test: The Modified Proctor Test helps determine the Optimum Moisture Content (OMC) and Maximum Dry Density (MDD) of soils, which are essential for ensuring stability and strength in construction applications.
-
Testing Methodology: In this test, soil samples are compacted in a standardized 1-liter mold in multiple layers, which allows for the assessment of how well the soil can be compacted under specified conditions. This method reflects the energy applied in practical settings, making it especially relevant for heavy structures.
-
Results Interpretation: By plotting a compaction curve, engineers can identify the peak points for OMC and MDD, which guide effective soil management in construction projects.
-
Understanding the Modified Proctor Test is vital for civil engineers to design and execute projects that require robust soil structures.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A civil engineer uses the Modified Proctor Test for a new highway to ensure soil stability under heavy vehicles.
-
An airport’s runway construction team conducts this test to determine suitable soil density for aircraft support.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Moisture right, soil's dense; Proctor Test gives us the sense.
📖 Fascinating Stories
-
Once in a land of heavy machines, engineers sought the best soils' means. They compacted with care, perfect moisture in sight, ensuring their runways would bear weight just right.
🧠 Other Memory Gems
-
COMPRESS: Compaction, Optimize, Moisture, Proctor, Results, Experiment, Soil Strength.
🎯 Super Acronyms
P.E.A.K
- Proctor
- Energy
- Aids
- Knowledge.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Modified Proctor Test
Definition:
A laboratory test for soil compaction that determines the maximum dry density and optimum moisture content using a heavier rammer than the standard test.
-
Term: Optimum Moisture Content (OMC)
Definition:
The specific moisture content at which a soil achieves its maximum dry density.
-
Term: Maximum Dry Density (MDD)
Definition:
The highest density a soil can achieve under specified compaction conditions.
-
Term: Compaction Curve
Definition:
A graph that plots the relationship between dry density and moisture content of soil.
