3.3.1 - Standard Proctor Test (IS: 2720 Part 7)

Enroll to start learning

You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.

Practice

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Understanding Standard Proctor Test

Unlock Audio Lesson

0:00
Teacher
Teacher

Today, we're going to discuss the Standard Proctor Test. Why is it important in evaluating soil?

Student 1
Student 1

Isn’t it related to how well we can compact the soil for construction?

Teacher
Teacher

Exactly! The test determines the optimum moisture content and the maximum dry density of the soil, which are critical for effective compaction.

Student 2
Student 2

How do we conduct this test?

Teacher
Teacher

The test involves compacting soil in a 1-liter mold in three layers using a rammer that weighs 2.6 kg, and we apply 25 blows per layer to achieve compaction.

Student 3
Student 3

What happens after we compact the soil?

Teacher
Teacher

Great question! We plot the dry density against moisture content to create a compaction curve, identifying where the maximum dry density occurs.

Student 4
Student 4

So, the peak of that curve tells us the best conditions for compacting, right?

Teacher
Teacher

Precisely! Understanding this helps engineers choose the right moisture and density for building stable structures.

Teacher
Teacher

To recap, the test measures how moisture affects soil density, key for stability in engineering projects.

Significance of OMC and MDD

Unlock Audio Lesson

0:00
Teacher
Teacher

Let's delve into the importance of the Optimum Moisture Content and Maximum Dry Density. Why are they critical in construction?

Student 1
Student 1

They help ensure the soil is compacted correctly, right?

Teacher
Teacher

Exactly! Proper compaction reduces settlement and increases load-bearing capacity.

Student 2
Student 2

But what if the moisture content is too low or too high?

Teacher
Teacher

Good point. If moisture is too low, the soil won’t compact well. Too high, and it can lead to inadequate density.

Student 3
Student 3

I see how that can affect the stability of structures!

Teacher
Teacher

Exactly! That's why understanding OMC and MDD from the Standard Proctor Test is essential. It ensures long-term durability.

Teacher
Teacher

In summary, OMC and MDD help engineers optimize soil conditions for building sound structures.

Interpreting the Compaction Curve

Unlock Audio Lesson

0:00
Teacher
Teacher

Now let's talk about how we interpret the compaction curve derived from the test.

Student 4
Student 4

What exactly are we looking for on that curve?

Teacher
Teacher

We plot Dry Density on the vertical axis and Moisture Content on the horizontal. The curve's peak shows the highest density achievable.

Student 1
Student 1

And that peak indicates the OMC and MDD?

Teacher
Teacher

Correct! Understanding where that peak lies helps engineers adjust their compaction methods effectively.

Student 3
Student 3

If they know the right moisture and density, they can build a more stable foundation, right?

Teacher
Teacher

Absolutely. Compaction is essential in preventing future structural issues, ensuring safety and durability.

Teacher
Teacher

To wrap up, analyzing the compaction curve is crucial for effective soil compaction management in construction.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

The Standard Proctor Test determines the optimum moisture content and maximum dry density of soils necessary for effective compaction.

Standard

The Standard Proctor Test is crucial in soil compaction, utilizing a specific methodology to identify the optimum moisture content (OMC) and maximum dry density (MDD) of soil samples. The test enhances understanding of how moisture levels affect soil compaction to ensure efficient and effective use in construction projects.

Detailed

Standard Proctor Test (IS: 2720 Part 7)

The Standard Proctor Test is a laboratory test essential for assessing the properties of soil necessary for compaction. This test specifically determines the
Optimum Moisture Content (OMC) and the Maximum Dry Density (MDD) of soil.

Key Points Covered:

  • Methodology: In the test, soil is compacted in a 1-liter mold divided into three layers, using a 2.6 kg rammer that delivers 25 blows per layer.
  • Significance: The results help construct a compaction curve, plotting Dry Density against Moisture Content, with the peak indicating the OMC and MDD. This is vital for ensuring the structural integrity and longevity of engineering projects such as highways and pavements.

Youtube Videos

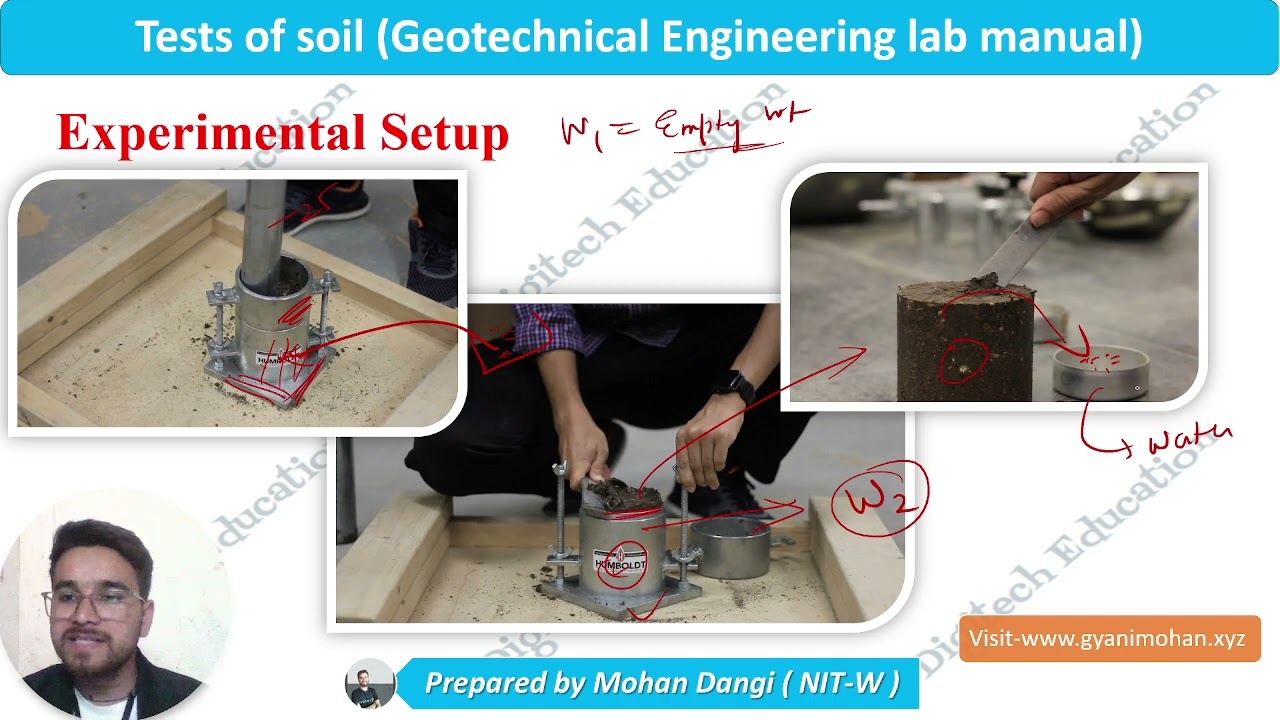

Geotechnical Engineering laboratory | Compaction test | IS-2720 | Mohan Dangi
Geotechnical Engineering laboratory | Compaction test | IS-2720 | Mohan Dangi
Modified & Standard proctor test As per IS 2720 part 7&8 |@ShaniKiVaani
Modified & Standard proctor test As per IS 2720 part 7&8 |@ShaniKiVaani

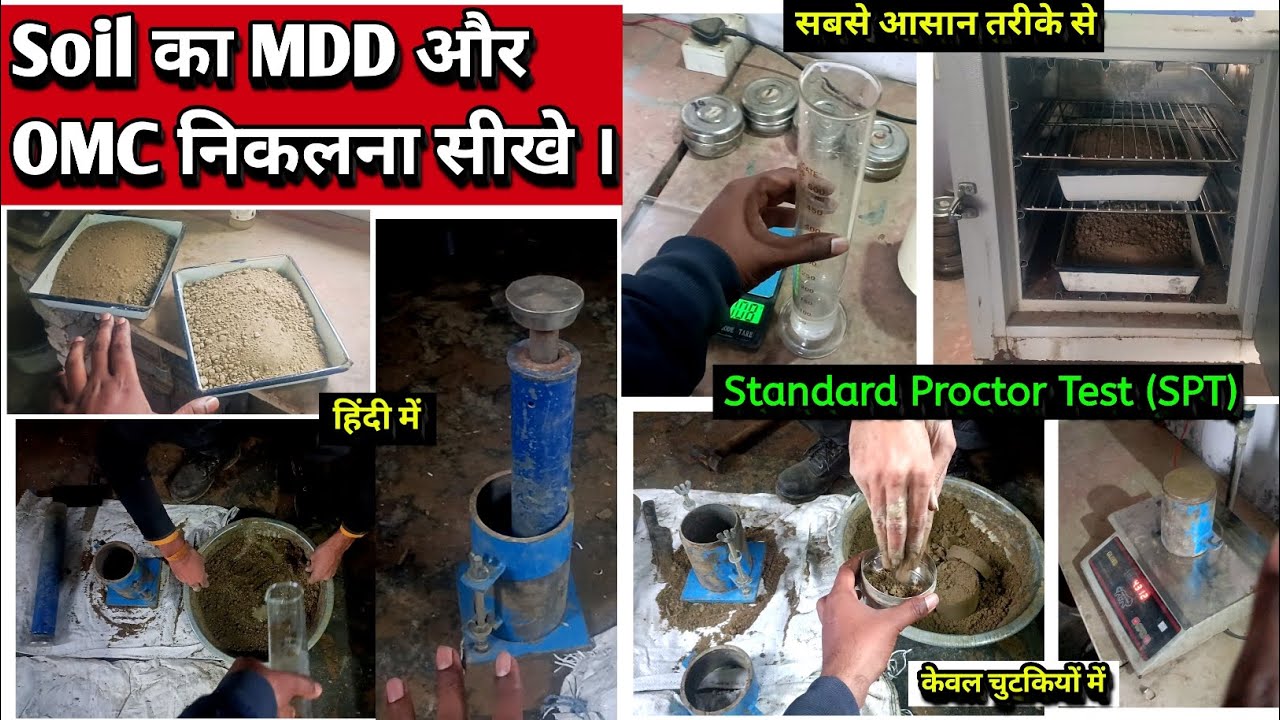

Maximum Dry Density & Optimum Water Content of Soil Test in Hindi. || IS 2720 (Part 7): 1980 || SPT
Maximum Dry Density & Optimum Water Content of Soil Test in Hindi. || IS 2720 (Part 7): 1980 || SPT
#MDD Testing Procedure Of soil as per IS:2720 (Part-7)
#MDD Testing Procedure Of soil as per IS:2720 (Part-7)

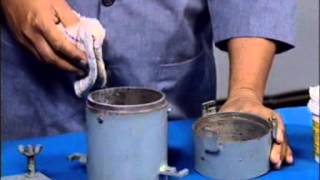

Water Content Dry Density Relation Using Light Compaction
Water Content Dry Density Relation Using Light Compaction

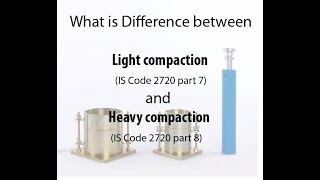

Difference between Light compaction(IS Code 2720 part 7) and Heavy compaction (IS Code 2720 part 8)
Difference between Light compaction(IS Code 2720 part 7) and Heavy compaction (IS Code 2720 part 8)
DETERMINATION OF WATER CONTENT-DRY DENSITY RELATION USING LIGHT COMPACTION-Determination of MDD&OMC
DETERMINATION OF WATER CONTENT-DRY DENSITY RELATION USING LIGHT COMPACTION-Determination of MDD&OMC
Compaction Test Procedure(IS 2720Part VII): Concept of OMC & Maximum Dry Density,Zero Air Voids Line
Compaction Test Procedure(IS 2720Part VII): Concept of OMC & Maximum Dry Density,Zero Air Voids Line
MDD test of soil- Modified proctor compaction test as per Is Code2720part8(maximumdrydensity)Viral
MDD test of soil- Modified proctor compaction test as per Is Code2720part8(maximumdrydensity)Viral
How to determine Optimum Moisture Content and Maximum Dry Density of a soil. Compaction test on soil
How to determine Optimum Moisture Content and Maximum Dry Density of a soil. Compaction test on soil

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Purpose of the Standard Proctor Test

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

• Determines the OMC and Maximum Dry Density (MDD).

Detailed Explanation

The Standard Proctor Test is essential for understanding how much moisture is ideal for achieving maximum soil compaction (known as the Optimum Moisture Content or OMC) and for determining the Maximum Dry Density (MDD). These measures help engineers ensure that the soil can properly support structures like roads and buildings without excessive settlement.

Examples & Analogies

Imagine if you were packing a suitcase. The best way to fit all your clothes is to find the right amount of packing (representing the OMC) that allows you to maximize the suitcase's capacity (the MDD). Too many or too few clothes will lead to either wasted space or a bursting suitcase.

Compaction Method in Standard Proctor Test

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

• Soil is compacted in a 1-liter mould in three layers using a 2.6 kg rammer with 25 blows per layer.

Detailed Explanation

During the Standard Proctor Test, soil is placed inside a specific mold that holds one liter of soil. The compaction process involves layering the soil and applying a predetermined amount of force using a rammer that weighs 2.6 kg. Specifically, 25 blows are applied to each layer, which helps to simulate how soil would be compacted in the field. This process ensures consistent and accurate test results.

Examples & Analogies

Think about making a layered cake. Each layer is pressed down to make sure it sticks well together. Similarly, in the Proctor Test, the rammer acts like a press that compacts each layer of soil thoroughly, ensuring it can hold weight just like a well-made cake can withstand being cut.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Optimum Moisture Content (OMC): The moisture level at which soil achieves maximum dry density during compaction.

  • Maximum Dry Density (MDD): The highest density that can be achieved during soil compaction.

  • Rammer: A device used to apply force to the soil during the compaction process.

  • Compaction Curve: A graph illustrating the relationship between dry density and moisture content.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • If soil has an OMC of 12%, it should be compacted with moisture at or near this level for optimal results.

  • During a construction project, a standard Proctor test revealed the MDD of a soil type was 1.8 g/cm³, guiding the team on adjusting moisture for compaction.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • To compact soil just right, keep moisture in sight; find the peak, and you'll see, how strong the ground can be!

📖 Fascinating Stories

  • Imagine you're a construction engineer facing wet soil challenges. You recall the Proctor Test that sets moisture limits, ensuring your building stands firm in the storm.

🧠 Other Memory Gems

  • MOM: Moisture, Optimum, Maximum. Remembering that good compaction relies on the right moisture levels.

🎯 Super Acronyms

POD

  • Proctor
  • Optimum
  • Density. The essentials for effective soil testing!

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Optimum Moisture Content (OMC)

    Definition:

    The moisture level at which soil achieves maximum dry density during compaction.

  • Term: Maximum Dry Density (MDD)

    Definition:

    The highest density that can be achieved during soil compaction.

  • Term: Compaction Curve

    Definition:

    A graph plotting dry density against moisture content, used to assess soil compaction characteristics.

  • Term: Rammer

    Definition:

    A tool used to compact soil by delivering blows over a specific area.
