28.3. JVM Runtime Data Areas
Learn content
Interactive Audio Lesson
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Today, we're going to learn about the first runtime data area, which is the Method Area or MetaSpace in HotSpot implementations. Can someone tell me what they think this area might store?
Does it store information about classes?
Exactly! The Method Area contains metadata about classes, methods, and constants. It's essential for the JVM to access this information when executing Java applications.
So, is that where all the class structures go?
Yes, perfect! It’s crucial in organizing class-related information that helps perform runtime computations, like method invocations.
What happens if there is too much data in the Method Area?
Good question, that could lead to a memory overflow known as OutOfMemoryError. Keeping track of your classes and their usage is important.
To summarize, the Method Area is where all the metadata and structure about loaded classes are stored, which is vital for runtime operations.
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Next, let’s explore the Heap. Who knows what the Heap is used for?
Is it where Java objects are stored?
Great! Yes, the Heap is the runtime data area where all Java objects and instances are allocated. It’s a critical part of Java memory management.
I heard it’s divided into generations. Can you explain that?
Absolutely! The Heap is divided into two main parts: the Young Generation and the Old Generation. The Young Generation is where new objects are allocated, whereas the Old Generation holds long-lived objects.
How does this affect garbage collection?
Excellent query! By separating objects based on their age, the JVM optimizes garbage collection process—frequently cleaning up short-lived objects in the Young Generation without affecting long-lived ones.
To recap, the Heap stores all objects in Java, and its generation structure helps in efficient memory management and garbage collection.
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Now let’s dive into the Java Stack. Can anyone explain what this stack does?
Isn't it where method calls and local variables are stored?
Correct! The Java Stack contains all the stack frames for each thread, and each frame holds local variables, operand stacks, and return addresses.
Does every thread have its own stack?
Yes, and this design allows each thread to manage its own method invocations separately, which is crucial for thread safety.
What if a method is called recursively? How does the stack manage that?
Great question! Each recursive call creates a new stack frame, so the stack grows with each call until the execution is complete or the method returns, ensuring proper control flow.
To summarize, the Java Stack is important for storing method frames, allowing efficient methods management, and ensuring thread safety.
Overview
Short Summary
This section outlines the major runtime data areas used by the Java Virtual Machine (JVM), including the method area, heap, Java stack, PC register, and native method stack, describing their functions and importance.
Medium Summary
In this section, we explore the JVM's runtime data areas that are crucial for the execution of Java programs. Key data areas include the method area (which stores class metadata), heap (for object storage), Java stack (for storing frames), PC register (for current instruction address), and native method stack (for native calls). Each area plays a pivotal role in ensuring efficient memory management and program execution.
Detailed Summary
JVM Runtime Data Areas
The Java Virtual Machine (JVM) manages a variety of runtime data areas that are essential for executing Java applications. Understanding these areas is crucial for developers seeking to optimize performance and manage memory effectively. The key runtime data areas are:
1. Method Area (MetaSpace in HotSpot)
- Purpose: It stores class-level structures such as metadata, method data, and constants associated with loaded classes.
- Significance: This area helps in organizing the class information that allows JVM to perform various runtime computations.
2. Heap
- Purpose: The heap is where all Java objects and class instances are allocated.
- Structure: It is divided into two main generations:
- Young Generation: Includes the Eden area and two Survivor spaces to optimize garbage collection processes.
- Old Generation: Stores long-lived objects.
- Significance: A well-managed heap is critical to the applications' memory performance and can significantly affect the efficiency of garbage collection.
3. Java Stack
- Purpose: The Java stack contains stack frames that hold local variables, operand stacks, and return addresses for method calls.
- Functionality: Each thread has its own stack, allowing the JVM to manage method invocations and variable resolution efficiently.
4. PC Register
- Purpose: This register keeps track of the address of the currently executing instruction.
- Significance: It ensures that the JVM can execute methods in the correct order, thus maintaining program control flow.
5. Native Method Stack
- Purpose: Specifically stores data related to native (non-Java) methods.
- Significance: This area supports methods that are written in languages like C or C++, allowing Java applications to interact with native code.
Together, these data areas form the backbone of the JVM’s execution model, optimally supporting object management and method execution during Java runtime.

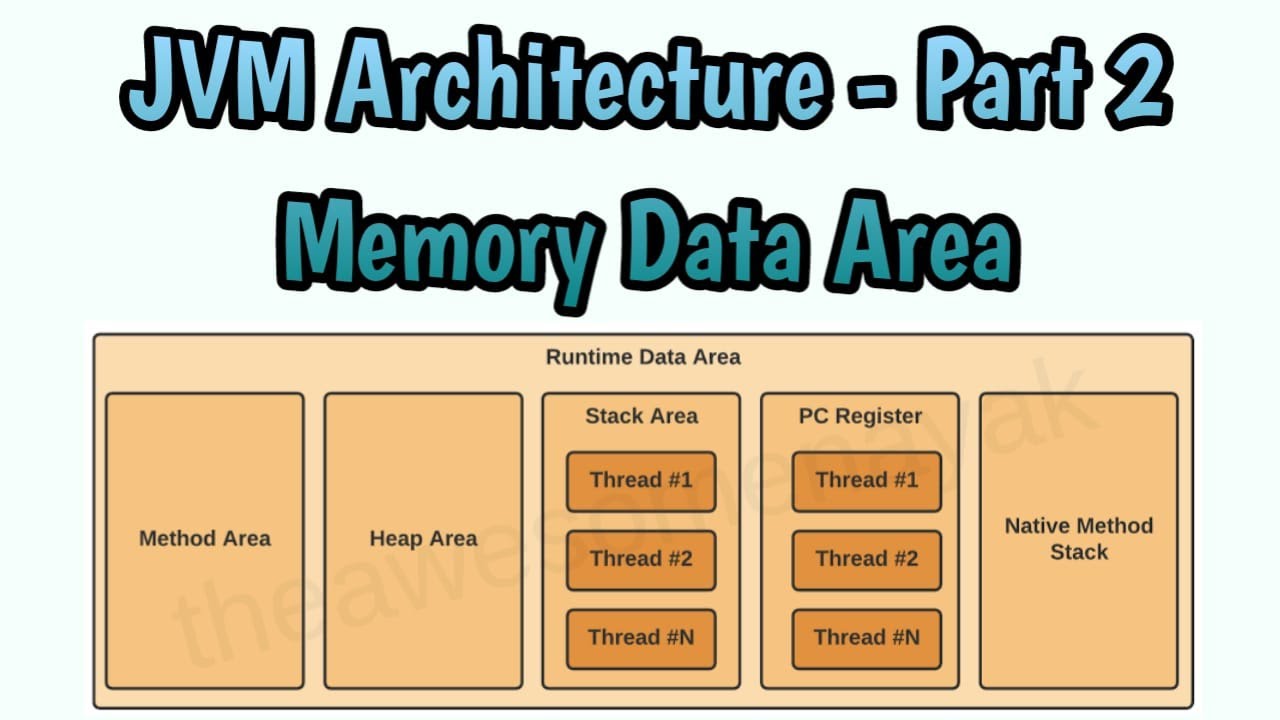

Reference YouTube Videos
Audio Book
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountStores class structure like metadata, method data, and constants.
Detailed Explanation
The Method Area is a critical part of the JVM's runtime data areas. It holds the metadata for classes being used in a Java application, including information about fields, methods, and constants. In the HotSpot implementation, it is called MetaSpace, where these class structures are managed and stored.
Examples & Analogies
Imagine the Method Area as a library. Each book in this library represents a Java class, containing information (metadata) about the storyline (method data) and important notes (constants) that help in understanding the context. Just like a library needs to store a catalog of its books, the JVM needs the Method Area to keep track of all the classes that are in use.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account• Stores all objects and class instances. • Divided into: o Young Generation (Eden + Survivor Spaces) o Old Generation (Tenured Space)
Detailed Explanation
The Heap is another essential runtime data area that stores all objects and instances of classes created during the execution of a Java application. It is divided into two main parts: the Young Generation, which is further split into the Eden space and Survivor spaces, and the Old Generation. The Young Generation is where most objects are created, and those that survive long enough may be moved to the Old Generation.
Examples & Analogies
Think of the Heap like a storage facility. When you move into a new apartment (create a new object), you store most of your boxes in the entry area (Young Generation's Eden). As you unpack and some boxes remain while others get thrown out (object creation and garbage collection), the ones you keep longer get moved to a more permanent area in the back (Old Generation). The aim is to efficiently manage space while ensuring that important items are preserved.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account• Contains stack frames. • Each frame holds local variables, operand stack, and return address.
Detailed Explanation
The Java Stack is composed of stack frames, which are created for each method call in a Java application. Each frame holds important data specific to that method, including local variables (data used only within the method), the operand stack (used for intermediate calculations), and a return address that points to where to continue execution after the method completes.
Examples & Analogies
You can think of the Java Stack as a stack of plates in a cafeteria. Each plate (stack frame) holds specific items (local variables) like food (data) that is only meant to be consumed during a meal (method execution). Once the meal is done, the plate is returned to the stack (method completes) and is only relevant as long as you are at that table (method call).
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account• Holds the address of the current instruction being executed.
Detailed Explanation
The Program Counter (PC) Register is a small memory area that keeps track of the address of the instruction that is currently being executed in the JVM. This enables the JVM to resume execution correctly after a method call or when an instruction has finished running.
Examples & Analogies
Picture the PC Register like a bookmark in a book that tells you exactly where you left off in your reading. Without this bookmark, it would be challenging to pick up exactly where you left off, leading to confusion. Similarly, the PC Register ensures that the JVM knows exactly where it is in the execution process.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account• Stores information for native (non-Java) methods.
Detailed Explanation
The Native Method Stack is used by the JVM to manage interactions with native libraries written in languages like C or C++. It stores data necessary for executing methods that are not written in Java itself. This area is essential for performance and functionality when integrating Java applications with system-level operations.
Examples & Analogies
Think of the Native Method Stack as a translator at a conference. If a speaker is presenting in another language (native method), the translator (Native Method Stack) facilitates proper communication to ensure that everyone understands what's being said, thereby bridging the gap between different languages and cultures.
--
Key concepts
Core takeaways and short definitions to help you quickly recall the key ideas from this section.
- Method Area:
Stores class metadata and constants, crucial for runtime operations.
- Heap:
Stores all Java objects and class instances, divided into Young and Old generations for efficient garbage collection.
- Java Stack:
Contains stack frames for method calls, holding local variables and return addresses.
- PC Register:
Points to the currently executing instruction, ensuring proper flow execution.
- Native Method Stack:
Stores information for native method calls, allowing interaction with non-Java code.
Examples
Step-by-step examples to apply the section's ideas and test your understanding.
When a class is loaded, its metadata, including the methods and constants, is stored in the Method Area.
If a new object is created in Java, it is allocated memory in the Heap, which may involve moving older objects to the Old Generation during garbage collection.
Memory aids
In the Method Area, classes reside, Its metadata is our guide; Objects in the Heap, where they play, Stack frames track them day by day.
Imagine a library (Method Area) with all the books (classes) organized on shelves. Each book has a summary (metadata) that tells you how to use it (methods) so you can refer to it as you write (execute) your story (program). The library has a basement (Heap) where all the stories are stored, and each person's writing desk (Java Stack) keeps their notes (local variables) safely.
Flash Cards
Glossary
Method Area
Part of the JVM runtime data area that stores metadata, method data, and constants for loaded classes.
Heap
The runtime data area in JVM where all Java objects and class instances are allocated.
Java Stack
Data structure that contains stack frames, which hold local variables, operand stacks, and return addresses for method invocations.
PC Register
Program Counter Register that indicates the address of the currently executing instruction in the JVM.
Native Method Stack
Memory area that stores data for native (non-Java) method calls within the JVM.
