4.2.2 - Magnetic Field, Lorentz Force

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Understanding the Lorentz Force

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we are going to delve deeper into the Lorentz force, which is crucial for understanding how charged particles behave in electric and magnetic fields. Let’s start with the formula: \( F = q (E + v \times B) \). Can anyone tell me what each term represents?

Student 1
Student 1

Is \( q \) just the charge of the particle?

Teacher
Teacher

Exactly! \( q \) is the charge. Now, what about \( E \) and \( v \)?

Student 2
Student 2

I think \( E \) is the electric field, and \( v \) is the velocity of the charge?

Teacher
Teacher

Great job! Now, which part of the formula represents the magnetic effect?

Student 3
Student 3

That would be \( v \times B \), right?

Teacher
Teacher

Exactly! This part indicates how velocity and magnetic fields interact. Remember, the magnetic force is perpendicular to both the velocity and the magnetic field, always affecting the path of the charged particle!

Characteristics of Magnetic Forces

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let’s dive into some properties of magnetic forces. First, what do you think happens to the magnetic force if a charged particle is stationary?

Student 4
Student 4

I think the magnetic force would be zero since it's not moving.

Teacher
Teacher

Correct! A stationary charge experiences no magnetic force. That's an essential point. Now, what happens if the charge moves parallel to the magnetic field line?

Student 1
Student 1

It should also experience no force, right?

Teacher
Teacher

Yes! Parallel movements to the field lines yield no magnetic force. We can visualize it using the right-hand rule; when the velocity is aligned with the magnetic field, the cross product cancels.

Applications of the Lorentz Force

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now let’s explore real-world applications of the Lorentz force. One prominent example is in particle accelerators. Can anyone think of how the Lorentz force is relevant there?

Student 3
Student 3

Maybe it's used to steer the particles along their path?

Teacher
Teacher

Absolutely! The Lorentz force helps in directing the charged particles as they move through various electromagnetic fields, enabling high-speed collisions. This is fundamental in nuclear physics and material science research.

Student 4
Student 4

So, it's also used in all sorts of tech like electric motors and generators?

Teacher
Teacher

Exactly! The principles of the Lorentz force are central in designing electric devices. Understanding how forces interact with charges underpins much of modern technology.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

The section delves into the concept of magnetic fields produced by moving charges and the forces they exert, encapsulated in the Lorentz force equation.

Standard

This section introduces the Lorentz force, which is the force exerted on a charged particle moving in electric and magnetic fields. It highlights the dependence of this force on the charge, velocity, and magnetic field strength, and explains how the magnetic force is defined, illustrated, and calculated in various contexts.

Detailed

Detailed Summary

In this section, we explore the Lorentz force, denoted as \( F = q (E + v \times B) \), which describes the total force acting on a particle with charge \( q \) moving with velocity \( v \) in the presence of electric field \( E \) and magnetic field \( B \). This force is pivotal in understanding how charged particles behave in electromagnetic fields. The key features of the Lorentz force include:

  1. Dependence on Factors: The force depends on the charge of the particle, its velocity, and the strength of the magnetic field. Importantly, the direction of the magnetic force acting on a charge is perpendicular to both its velocity and the magnetic field direction, effectively resulting in zero force when the charge moves parallel to the magnetic field lines.
  2. Force on Moving Charges: This section also emphasizes that a static charge does not experience magnetic force. Thus, the magnetic force becomes significant only during the motion of the charge.
  3. Magnitude of Magnetic Force: The magnetic force is quantified by the vector product of velocity and magnetic field. The right-hand rule can be applied to determine the direction of the magnetic force. If we consider a current-carrying wire within a magnetic field, the force experienced by the wire can be derived similarly based on the current flowing through it and its length in the field.

This knowledge of the Lorentz force is foundational in various applications, from particle accelerators to electrical engineering, showcasing the intricate relationship between electricity and magnetism.

Youtube Videos

Moving Charges n Magnetism 10 : Lorentz Force - Motion of Charge in Electro-Magnetic Field JEE /NEET
Moving Charges n Magnetism 10 : Lorentz Force - Motion of Charge in Electro-Magnetic Field JEE /NEET

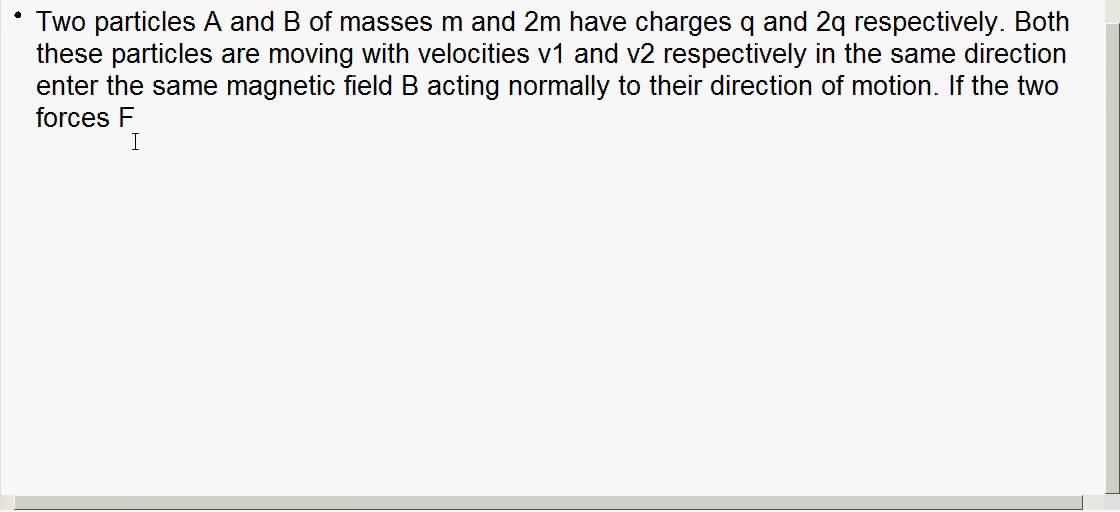

CBSE Class XII / Moving Charges and Magnetism/ Lorentz force/01
CBSE Class XII / Moving Charges and Magnetism/ Lorentz force/01
Lorentz Force - Moving Charges and Magnetism | Class 12 Physics 2022-23
Lorentz Force - Moving Charges and Magnetism | Class 12 Physics 2022-23
4.2.2 Magnetic Field, Lorentz Force | Chapter 04 Moving Charges and Magnetism | Class 12 Physics
4.2.2 Magnetic Field, Lorentz Force | Chapter 04 Moving Charges and Magnetism | Class 12 Physics
Moving Charges n Magnetism 07 : Force on a Moving Charge in Magnetic Field : Magnetic Force JEE/NEET
Moving Charges n Magnetism 07 : Force on a Moving Charge in Magnetic Field : Magnetic Force JEE/NEET
Force on a Moving charge in magnetic field | Moving charges and magnetism | 12 Physics #cbse
Force on a Moving charge in magnetic field | Moving charges and magnetism | 12 Physics #cbse
Force on a Moving charge in Magnetic field | Class 12th | Physics Notes #cbse
Force on a Moving charge in Magnetic field | Class 12th | Physics Notes #cbse
magnetic fields lines of solenoid #shorts #class10science #scienceexperiment
magnetic fields lines of solenoid #shorts #class10science #scienceexperiment
Lorentz Force, Chapter 4, Moving Charges and Magnetism, Class 12 Physics
Lorentz Force, Chapter 4, Moving Charges and Magnetism, Class 12 Physics
Lorentz Force - Moving Charges and Magnetism | Class 12 Physics Chapter 4 | LIVE
Lorentz Force - Moving Charges and Magnetism | Class 12 Physics Chapter 4 | LIVE

Audio Book

Dive deep into the subject with an immersive audiobook experience.

The Lorentz Force Equation

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Let us suppose that there is a point charge q (moving with a velocity v and, located at r at a given time t) in presence of both the electric field E (r) and the magnetic field B (r). The force on an electric charge q due to both of them can be written as

F = q [ E (r) + v × B (r)] ” F +F (4.3)
electric magnetic
This force was given first by H.A. Lorentz based on the extensive experiments of Ampere and others. It is called the Lorentz force.

Detailed Explanation

The Lorentz force describes how a charged particle behaves in electric and magnetic fields. The formula states that the total force (F) acting on a charge (q) includes two components:
1. The electric force due to the electric field (E) which is simply q times E.
2. The magnetic force, which involves the charge's velocity (v) and the magnetic field (B). The term v × B represents a cross product indicating that the magnetic force is directionally dependent. In simpler terms, the Lorentz force combines both the effect of electric fields that push or pull on charges and magnetic fields that move charges sideways depending on their velocity and the orientation of the magnetic field.

Understanding this force is essential in analyzing how charges move in electromagnetic fields, which has applications in various technologies like electric motors and particle accelerators.

Examples & Analogies

Imagine a car (the charge q) navigating through a city (the electric field E) while also driving along a windy road (the magnetic field B). The car's forward speed represents its velocity (v). The city landscape can push or pull the car forward (electric force), but when a sudden strong wind (magnetic force) blows at a certain angle, it can push the car sideways. Similarly, the Lorentz force governs how charges will move under the influence of both electric fields and magnetic fields in a coordinated manner.

Characteristics of the Magnetic Force

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

  1. It depends on q, v and B (charge of the particle, the velocity and the magnetic field). Force on a negative charge is opposite to that on a positive charge.
  2. The magnetic force q [v × B] includes a vector product of velocity and magnetic field. The vector product makes the force due to magnetic field vanish (become zero) if velocity and magnetic field are parallel or anti-parallel. The force acts in a (sideways) direction perpendicular to both the velocity and the magnetic field. Its direction is given by the screw rule or right hand rule for vector (or cross) product as illustrated in Fig. 4.2.
  3. The magnetic force is zero if charge is not moving (as then |v|= 0). Only a moving charge feels the magnetic force.

Detailed Explanation

The magnetic force, crucial to the Lorentz force, has specific characteristics:
1. It is influenced by the properties of the charge itself (q), its speed and direction (v), and the magnetic field it interacts with (B). Notably, if the charge is negative, the force's direction is reversed compared to a positive charge.
2. The force arises from the interaction of velocity and the magnetic field via a vector product, which inherently means the force is maximal when velocity and the magnetic field are at right angles to each other. However, if they align, the force becomes zero, illustrating that direction matters significantly in magnetic forces.
3. Lastly, a rest charge experiences no magnetic force, highlighting that motion is essential for this interaction to occur. A charged object needs to be in motion to feel the effect of magnetic fields.

Examples & Analogies

Consider a swimmer moving in a river (the charged particle) toward downstream (velocity v). The river current represents the magnetic field (B). If the swimmer swims straight against the current (parallel), they feel no push from the water. However, if they swim perpendicular to the current, they feel a strong push, making them shift sideways. This illustrates how the magnetic force acts based on the swimmer's path and direction relative to the current.

Defining the Magnetic Field Unit

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The expression for the magnetic force helps us to define the unit of the magnetic field, if one takes q, F and v, all to be unity in the equation F = q [v × B]. The magnitude of magnetic field B is given by the right-hand rule. Dimensionally, we have [B] = [F/qv] and the unit of B are Newton second / (coulomb metre). This unit is called tesla (T) named after Nikola Tesla.

Detailed Explanation

Defining the unit of magnetic field (Tesla) relies on the Lorentz force. If we set the charge (q), the force (F), and the velocity (v) to unity (1), we can analyze how magnetic fields interact with electric charges. The unit of magnetic field can be derived from the relation of force divided by the product of charge and velocity. This leads us to express the magnetic field in dimensions of force per unit charge and velocity. The Tesla, a significant unit in electromagnetism, reflects Nikola Tesla's contributions to this field.

Examples & Analogies

Think of a tesla as a 'strength metric' for how well a magnetic field can push a charged object. When you lift a fridge magnet (which feels the magnetic force), you're experiencing the effect of the magnetic field in action. The stronger the magnetic field (measured in teslas), the more force you might need to overcome that magnet's grip!

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Lorentz Force: Defined as the force on a charged particle moving through electric and magnetic fields, represented by \( F = q (E + v \times B) \).

  • Magnetic Force Characteristics: Magnetic forces depend on the charge's movement; stationary charges and charges moving parallel to the magnetic field do not experience a magnetic force.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • The Lorentz force is used in devices like cyclotrons to accelerate charged particles based on their interaction with electric and magnetic fields.

  • Electric motors utilize the Lorentz force principle to convert electrical energy into mechanical motion.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • Forces on charges, let us not forget, Lorentz is key, it's the best bet!

📖 Fascinating Stories

  • Imagine a charge named Charlie moving swiftly through a field; he feels the magnetic tug, guiding his path without fail, thanks to the Lorentz force!

🧠 Other Memory Gems

  • Remember: L.O.R.E.N.T.Z captures the essence of magnetic and electric forces on a charge.

🎯 Super Acronyms

Lorentz

  • L: for Laws
  • O: for Onward movement
  • R: for Reaction to fields
  • E: for Electric influence
  • N: for Normal force and T for Tangential path
  • Z: for zipping along!

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Lorentz Force

    Definition:

    The total force on a charged particle in electric and magnetic fields, expressed as \( F = q (E + v \times B) \).

  • Term: Magnetic Field (B)

    Definition:

    A vector field that describes the magnetic influence on moving electric charges, currents, and magnetic materials.

  • Term: Electric Field (E)

    Definition:

    The field surrounding electric charges that exerts force on other charges.

  • Term: Vector Product (Cross Product)

    Definition:

    A mathematical operation on two vectors yielding a third vector that is perpendicular to both.
