Before we introduce the concept of a magnetic field B, we shall recapitulate what we have learnt in Chapter 1 about the electric field E. We have seen that the interaction between two charges can be considered in two stages. The charge Q, the source of the field, produces an electric field E, where E = Q rˆ/ (4pe)r² (4.1). The charge q interacts with this field and experiences a force F given by F = q E = q Q rˆ / (4pe) r² (4.2). As pointed out in Chapter 1, the field E is not just an artefact but has a physical role. It can convey energy and momentum and is not established instantaneously but takes finite time to propagate. The concept of a field was specially stressed by Faraday and was incorporated by Maxwell in his unification of electricity and magnetism. In addition to depending on each point in space, it can also vary with time, i.e., be a function of time. In our discussions in this chapter, we will assume that the fields do not change with time. The field at a particular point can be due to one or more charges. If there are more charges the fields add vectorially. You have already learnt in Chapter 1 that this is called the principle of superposition. Once the field is known, the force on a test charge is given by Eq. (4.2). Just as static charges produce an electric field, the currents or moving charges produce (in addition) a magnetic field, denoted by B (r), again a vector field. It has several basic properties identical to the electric field. It is defined at each point in space (and can in addition depend on time). Experimentally, it is found to obey the principle of superposition: the magnetic field of several sources is the vector addition of magnetic field of each individual source.

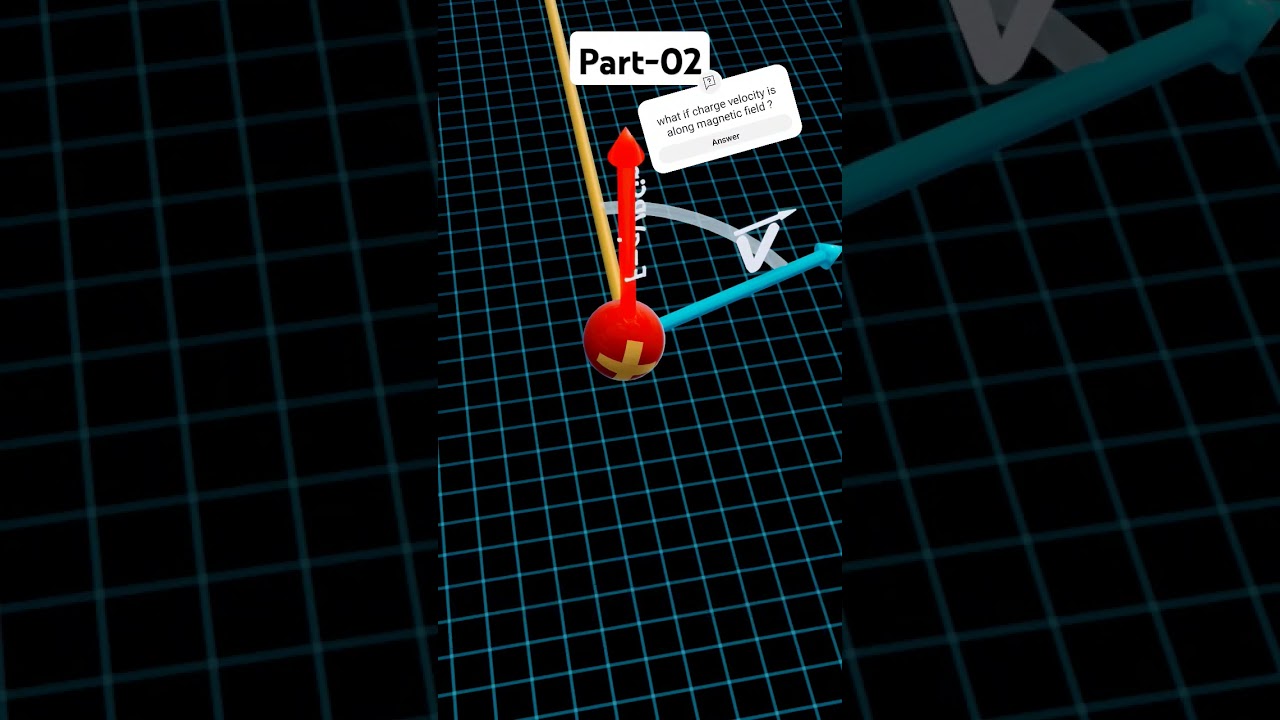

Let us suppose that there is a point charge q (moving with a velocity v and, located at r at a given time t) in presence of both the electric field E (r) and the magnetic field B (r). The force on an electric charge q due to both of them can be written as F = q [ E (r) + v × B (r)] = F electric + F magnetic (4.3). This force was given first by H.A. Lorentz based on the extensive experiments of Ampere and others. It is called the Lorentz force. You have already studied in detail the force due to the electric field. If we look at the interaction with the magnetic field, we find the following features. (i) It depends on q, v and B (charge of the particle, the velocity and the magnetic field). Force on a negative charge is opposite to that on a positive charge. (ii) The magnetic force q [ v × B ] includes a vector product of velocity and magnetic field. The vector product makes the force due to magnetic field vanish (become zero) if velocity and magnetic field are parallel or anti-parallel. The force acts in a (sideways) direction perpendicular to both the velocity and the magnetic field. Its direction is given by the screw rule or right-hand rule for vector (or cross) product as illustrated in Fig. 4.2. (iii) The magnetic force is zero if charge is not moving (as then |v|= 0). Only a moving charge feels the magnetic force.

We can extend the analysis for force due to magnetic field on a single moving charge to a straight rod carrying current. Consider a rod of a uniform cross-sectional area A and length l. We shall assume one kind of mobile carriers as in a conductor (here electrons). Let the number density of these mobile charge carriers in it be n. Then the total number of mobile charge carriers in it is nlA. For a steady current I in this conducting rod, we may assume that each mobile carrier has an average drift velocity v (see Chapter 3). In the presence of an external magnetic field B, the force on these carriers is: F = (nlA)q v ····· B where q is the value of the charge on a carrier. Now nq v is the current density j and |(nq v )|A is the current I. Thus, F = [(nq v )lA] × B = [ jAl ]· B = Il ····· B (4.4) where l is a vector of magnitude l, the length of the rod, and with a direction identical to the current I. Note that the current I is not a vector. In the last step leading to Eq. (4.4), we have transferred the vector sign from j to l. Equation (4.4) holds for a straight rod. In this equation, B is the external magnetic field. It is not the field produced by the current-carrying rod. If the wire has an arbitrary shape we can calculate the Lorentz force on it by considering it as a collection of linear strips dl and summing jF = ΣIdl × B.
