7 - Compaction of Concrete
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Purpose of Compaction
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's discuss why compaction is vital for concrete. Can anyone tell me what happens if we have air voids in our concrete mix?
I think it makes the concrete weaker and less durable.
Exactly! Air voids can compromise strength significantly. Compaction eliminates these voids and ensures a dense mix. Remember, more density usually means more strength. We can think of it like packing a suitcase — the tighter you pack, the more you can fit inside.
So, does that mean compacting concrete is like packing it tightly?
Correct! It’s all about achieving a tightly packed mix. Now, what are the other purposes of compaction besides just removing air?
To make sure the concrete is in contact with the rebar, right?
Exactly! Proper contact with reinforcements is crucial for structural integrity. Now let's move on to the different methods of compaction.
Methods of Compaction
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, we have various methods for compacting concrete. Who can name a few methods?
We have hand compaction and mechanical vibration!
Great job! Hand compaction includes techniques like rodding and tamping, while mechanical vibration can involve internal and external vibrators. What advantages do you think mechanical vibrators have over hand methods?
I guess they’re faster and more consistent?
Exactly! Mechanical methods ensure a uniform mix, reducing the risk of weak spots. Now, let’s look into some precautions while compacting.
Precautions in Compaction
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
When compacting concrete, there are several precautions we must take. Can anyone name a common mistake?
Over-vibration might be an issue.
Yes! Over-vibration can cause segregation, ruining the mix's quality. Why do you think ensuring full coverage of reinforcement is also essential?
Because it prevents weak points in the finished structure!
Excellent! So always remember, effective compaction will help achieve high-quality concrete. Let's summarize what we've learned today.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The compaction of concrete removes air voids and ensures complete contact with reinforcements and formwork, ultimately increasing density and strength. Key methods include hand compaction and mechanical vibration, with precautions needed to avoid segregation. Understanding this process is critical for achieving the desired properties in hardened concrete.
Detailed
Compaction of Concrete
Compaction is a pivotal process in concrete placement that serves multiple essential functions. It aims to:
- Remove Air Voids: Trapped air within the concrete mix can significantly weaken the structure. By compacting, the mix is consolidated, eliminating these voids that can lead to deficiencies in strength.
- Ensure Contact with Reinforcements: Proper compaction ensures that concrete envelopes the rebar effectively, which is crucial for structural integrity.
- Increase Density and Strength: A well-compacted mix ultimately leads to enhanced density, contributing to the overall strength and durability of the cured concrete.

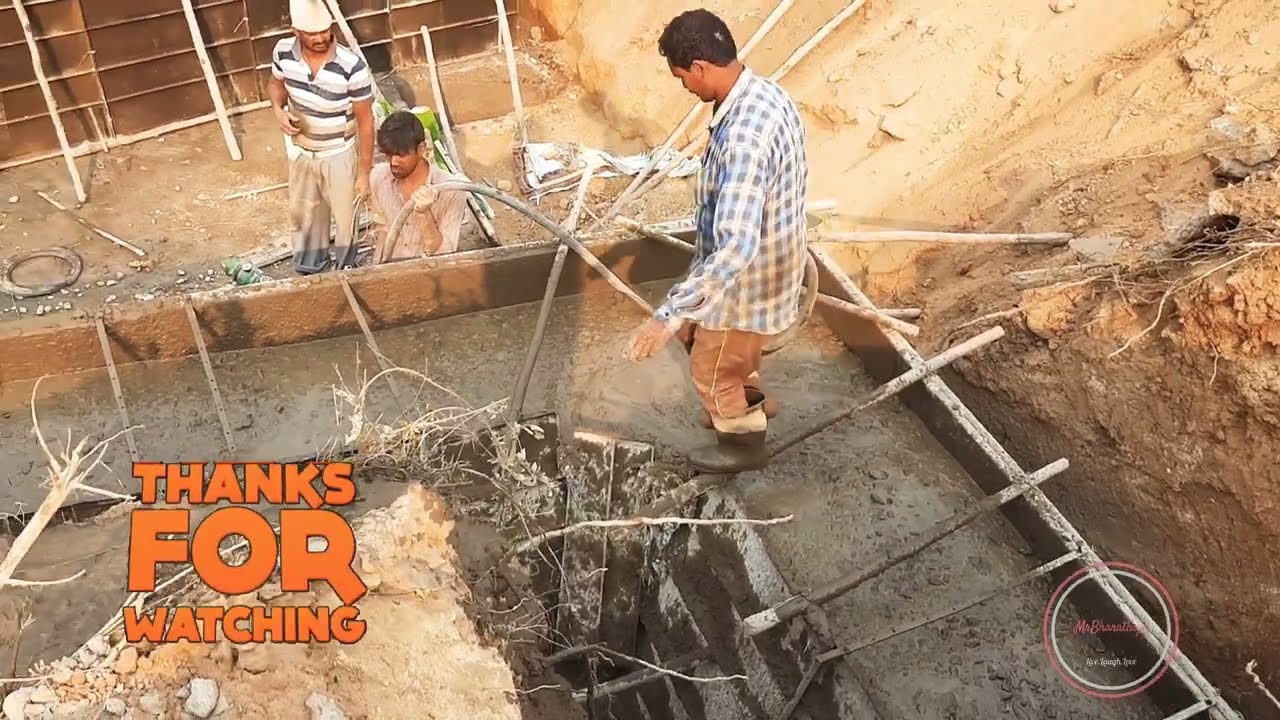

Methods of Compaction
Compaction can be accomplished through various methods, including:
- Hand Compaction: Techniques such as rodding, tamping, and the use of tamping bars.
- Mechanical Vibration: Utilizing internal vibrators, external vibrators fixed to formwork, or surface vibrators appropriate for thin slabs.
Precautions in Compaction
A few critical precautions must be observed during the compaction process to avoid:
- Over-vibration: This can lead to segregation of the aggregate and cement paste, undermining the quality of the concrete.
- Inadequate Coverage: It's crucial to ensure full coverage of reinforcement bars to prevent weak points after curing.
In summary, mastering the compaction process is non-negotiable for any concrete work, as it significantly impacts the final product's performance.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Purpose of Compaction
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The purpose of compaction is to:
- Remove air voids.
- Ensure complete contact with reinforcement and formwork.
- Increase density and strength.
Detailed Explanation
Compaction is essential in concrete work. The main goal is to eliminate air pockets that may form inside the concrete when it's mixed and placed. These air voids can weaken the concrete, reducing its overall strength and durability. By compacting the concrete, we help it form a solid mass that accurately surrounds any internal structures like rebar or formwork, enhancing its density and ensuring it meets structural requirements.
Examples & Analogies
Think of compaction like packing a suitcase. If you just throw clothes into the suitcase, air spaces remain, causing wasted space and potential damage if you sit on it. But by rolling your clothes tightly, you eliminate air pockets and maximize the strength and efficiency of the packing. Similarly, compacting concrete ensures it is dense and strong.
Methods of Compaction
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Several methods for compaction include:
- Hand Compaction: Rodding, tamping, tamping bars.
- Mechanical Vibration:

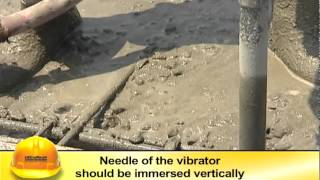

- Internal Vibrators: Poker vibrators.
- External Vibrators: Fixed to formwork.
- Surface Vibrators: Used for thin slabs.
Detailed Explanation
There are different techniques for compacting concrete, which can be broadly categorized into hand compaction and mechanical methods. Hand compaction involves using tools like rods or tamping bars to manually push the concrete into shape and remove air. On the other hand, mechanical vibrating methods use machines to enhance efficiency. Internal vibrators, often referred to as poker vibrators, insert into the concrete to vibrate and push out air. External vibrators are attached to the sides of formwork, while surface vibrators are used for thin layers.
Examples & Analogies
Imagine whipping cream. When you use a whisk (hand compaction), you can achieve some fluffiness, but if you use an electric mixer (mechanical vibration), the cream whips faster and gets air out more effectively. In concrete, using mechanical methods speeds up the process and ensures better results.
Precautions in Compaction
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
While compacting concrete, it is crucial to:
- Avoid over-vibration to prevent segregation.
- Ensure full coverage of reinforcement.
- Maintain uniform vibration throughout.
Detailed Explanation
When compacting concrete, care must be taken to balance the vibration intensity. Over-vibration can cause the heavier aggregates to settle down, leading to segregation, while leaving the lighter cement mixture on top, weakening the mix. Ensuring full coverage of reinforcement prevents weak points in the structure, and maintaining a uniform application helps ensure that the entire concrete mass is compacted consistently, maximizing strength and durability.
Examples & Analogies
Think of watering a garden. If you keep the hose in one spot too long (over-vibration), you wash away the soil and create a muddy patch instead of evenly moistening the ground. Just like with watering, effective compaction requires an even and controlled approach.
Key Concepts
-
Remove Air Voids: Compaction eliminates trapped air, enhancing strength.
-
Ensure Reinforcement Contact: Proper compaction ensures that concrete encapsulates reinforcing bars for structural stability.
-
Increase Density: A denser concrete mix contributes to increased overall strength.
Examples & Applications
Using a handheld tamper for smaller areas to compact fresh concrete effectively.
Utilizing a mechanical vibrator to ensure dense concrete placement in large pours.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Compaction's the key, to heavy and free, remove air to see, strength's guarantee!
Stories
Once a concrete builder faced weak walls due to air. By adding a big truck with a vibrator machine, they compacted the mix well and made walls strong as steel!
Memory Tools
Compaction: Remember with 'CDR' - Contact, Density, Remove air.
Acronyms
Compaction = C.A.D. (Compact, Avoid segregation, Dense).
Flash Cards
Glossary
- Compaction
The process of removing air voids in concrete to increase density and ensure proper contact with reinforcement.
- Vibration
A method of compaction using mechanical devices to induce movement in the concrete to eliminate air voids.
- Density
The mass of concrete per unit volume, an essential factor in determining strength.
- Segregation
The separation of different sized aggregates or the cement paste from the concrete mix, which can negatively affect strength.
