1.3. Measurement of Workability
Learn content
Interactive Audio Lesson
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Today, let's begin by discussing the definition of workability. Can anyone tell me what 'workability' means in the context of concrete?
I think it's how easy concrete can be mixed and placed.
Exactly! Workability refers to the ease with which concrete can be mixed, placed, compacted, and finished without segregation. Why do you think this property is important?
If it’s hard to work with, the final concrete might not be strong or even.
Right! Poor workability can lead to issues in the final product. Let's sum up: Workability is crucial for achieving quality concrete.
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Let's focus on the first test: the Slump Test. What do you think this test measures?
Does it measure how much the concrete settles?
Correct! The slump test measures the vertical settlement of concrete under its own weight. How do you think this can help us?
It gives us an indication of how workable the concrete is, right?
Exactly! A higher slump often indicates higher workability. Remember the abbreviation 'S' for Slump and 'H' for Height to help you memorize this.
That’s a good tip!
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Now, let’s talk about the Compacting Factor Test. Who can explain what it measures?
I think it measures how much the concrete compacts?
Exactly! It measures the degree of compaction achieved under standard conditions. Compared to the slump test, it provides a clearer picture of workability, especially for denser mixes. How does this relate to overall concrete performance?
Better compaction means better strength, right?
Well said! Remember, the Compacting Factor helps quantify how packed the particles are, ensuring optimal performance.
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Now let’s briefly discuss two other tests: the Vee-Bee Consistometer and the Flow Table Test. Why might we need these tests?
Maybe to measure different types of concrete?
Exactly! The Vee-Bee test measures how quickly concrete flows into a cylindrical shape, while the Flow Table Test checks how fluid certain mixes are. Why is knowing flow important?
So we can pour it better and ensure it reaches all areas!
Precisely! Having good workability ensures no voids are left behind. Let’s recap: The Vee-Bee and Flow Table Tests serve unique functions to ensure all mixes behave as needed.
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
As we wrap up, why do we need to measure workability? Can someone summarize what we've discussed?
We measure workability to ensure concrete is easy to mix and place, and we discussed several tests that help us do that!
Great summary! Each test gives us important information to predict how well the concrete will perform. Remember: Workability impacts strength and durability!
Overview
Short Summary
This section covers the various methods used to measure the workability of fresh concrete, an essential property affecting its handling and final quality.
Medium Summary
Measurement of workability in fresh concrete is critical to ensure that it can be efficiently mixed, placed, and compacted. The section highlights four primary tests: the slump test, compacting factor test, Vee-Bee consistometer test, and flow table test, each serving to quantify different aspects of workability under various conditions.
Detailed Summary
Measurement of Workability
Workability is a key property of fresh concrete, influencing its handling and overall performance in construction. This section details four primary methods for measuring the workability:
- Slump Test: This method determines the vertical settlement of concrete under its own weight, providing a quick visual indicator of consistency. A higher slump indicates greater workability.
- Compacting Factor Test: This test quantifies the degree of compaction achieved under standardized conditions, offering a more comprehensive insight into the workability compared to the slump test.
- Vee-Bee Consistometer Test: This test assesses the time it takes to transform concrete from a slump cone shape into a cylindrical shape, reflecting on its flowability and cohesiveness.
- Flow Table Test: Mainly used for very fluid mixes, this test measures how far the concrete spreads on a flat surface, indicating its flowability.
Understanding these measurement techniques is vital for engineers to achieve desired characteristics in fresh concrete, ultimately affecting the strength and durability in the hardened state.
Reference YouTube Videos
Audio Book
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account- Slump Test: Measures the vertical settlement of concrete under its own weight.
Detailed Explanation

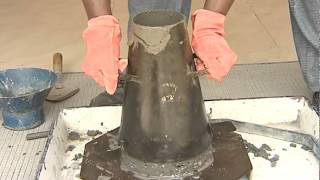

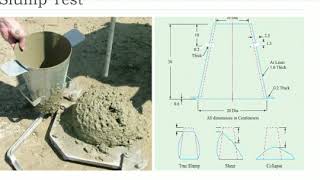

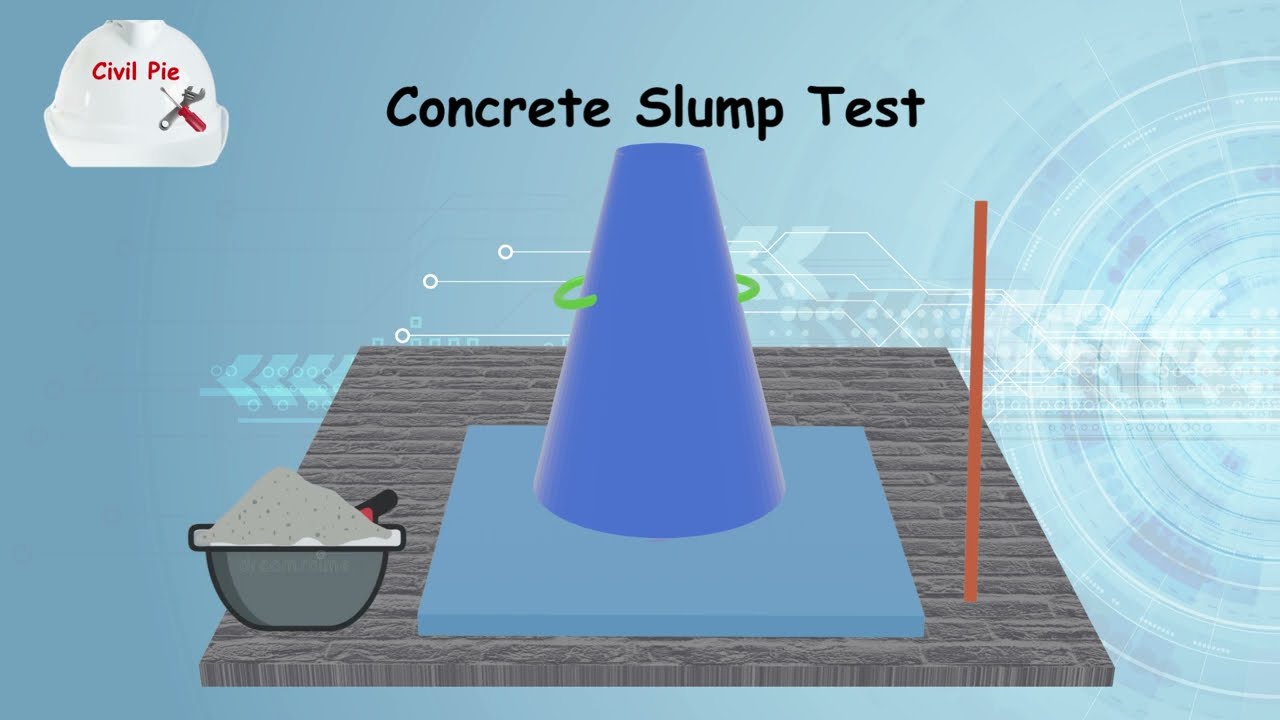

The Slump Test is a simple and widely used method to measure the consistency or workability of fresh concrete. The test involves filling a conical mold with concrete and then lifting the mold straight up. The amount that the concrete settles, or 'slumps', indicates its workability. A greater slump means higher workability, allowing easier placement and compaction.
Examples & Analogies
Imagine a stack of fluffy pancakes. If the pancakes are very soft and wobble easily when touched, they represent high workability (like a high slump). In contrast, if the pancakes are stiff and don't change shape much when you poke them, they demonstrate low workability (low slump).
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account- Compacting Factor Test: Measures the degree of compaction achieved under standard conditions.
Detailed Explanation
The Compacting Factor Test is another method for assessing workability, especially when concrete is too stiff for a slump test. It measures how much the concrete can be compacted under a specific force. This test helps evaluate how well the concrete can fill the formwork and ensure it minimizes air voids, which can weaken the final product.
Examples & Analogies
Think of packing a suitcase. If you can easily press down the clothes to fit more in, that’s like high workability (good compacting factor); but if they resist and spring back, preventing you from packing comfortably, that’s low workability (poor compacting factor).
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account- Vee-Bee Consistometer Test: Measures the time required to transform concrete from a slump cone shape to a cylindrical shape.
Detailed Explanation
The Vee-Bee Consistometer provides a different perspective on workability by assessing how concrete flows. In this test, concrete is placed in a cone and vibrated. The time it takes for the concrete to lose its shape and take on a cylindrical form is measured. This indicates how fluid the concrete is – quicker times suggest better workability.
Examples & Analogies
Consider melting ice cream. When heated, soft ice cream flows easily into a bowl, similar to concrete that flows quickly when vibrated (high workability). In contrast, hard ice cream resists flow and takes longer to change shape, indicating low workability.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account- Flow Table Test: Assesses the flowability of concrete, especially for very fluid mixes.
Detailed Explanation
The Flow Table Test specifically evaluates the flowability of highly fluid concrete mixes. Concrete is placed on a flat table and released to spread under its weight. The distance it spreads is measured, giving a clear indication of its workability. This test is crucial for self-compacting concretes that should flow easily without additional vibration.
Examples & Analogies
Imagine pouring syrup on a plate. If it spreads quickly and evenly, it shows high flowability and workability. However, if it forms clumps and takes time to spread, it indicates low flowability, similar to how some concrete behaves.
--
Key concepts
Core takeaways and short definitions to help you quickly recall the key ideas from this section.
- Workability:
Refers to how easily concrete can be mixed, placed, and compacted.
- Slump Test:
Measures the vertical settlement of concrete.
- Compacting Factor Test:
Assesses the level of compaction under controlled conditions.
- Vee-Bee Consistometer Test:
Evaluates concrete flow by timing shape transformation.
- Flow Table Test:
Tests the flowability of concrete, especially fluid mixes.
Examples
Memory aids
Once there was a builder named Sam, who loved his concrete mixes! He always checked the slump, compacting them with a thump, ensuring all flowed without a jam.
Flash Cards
Glossary
Workability
The ease with which concrete can be mixed, placed, compacted, and finished.
Slump Test
A test that measures the vertical settlement of concrete under its own weight.
Compacting Factor Test
A test that measures the degree of compaction achieved under standard conditions.
Vee-Bee Consistometer Test
A test that measures the time required to transform concrete from a slump cone shape to a cylindrical shape.
Flow Table Test
A test used to assess the flowability of concrete, measuring how far it spreads on a flat surface.
