Fresh Concrete Tests for SCC
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Overview of SCC Testing
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Welcome everyone! Today, we will discuss how we test Self-Compacting Concrete, or SCC for short. Who can tell me what they think SCC is?
It’s concrete that doesn’t need vibration to settle, right?
Exactly! SCC flows under its own weight. Now, how do we know if it’s flowing properly?
Is there a test for that?
Yes! We have several tests. First, let’s talk about the Slump Flow Test, which helps us understand how far SCC can flow by simply measuring the diameter.
So, it’s all about how well it spreads?
Correct! We want it to spread well without segregation. Let's explore more tests we use next.
Slump Flow Test
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s focus on the Slump Flow Test. This test measures the flow diameter of SCC. Can anyone remember how we conduct it?
We use a cone, right? Like in the regular slump test?
Correct! We use a similar cone but with a slightly different approach. Any ideas on what we observe?
The final spread diameter?
Exactly! A larger diameter means better flowability. Now, let’s move on to the next test: the L-box Test.
L-Box Test
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
The L-box test measures how well SCC can pass through narrow spaces without clogging. Can you visualize how this test works?
Is it like an L-shaped trough?
Yes! We pour the concrete and measure the height of the concrete in both sections. Why do you think this is important?
It shows whether the concrete can flow around rebar, I guess?
Exactly! It’s essential for filling complex formwork. Next up is the J-Ring Test!
J-Ring Test
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
The J-Ring Test evaluates the ability of SCC to flow around obstacles. How does it differ from the L-box Test?
Are the shapes of the molds different?
Yes, it is! The J-ring helps us see how well the concrete can flow around reinforcing bars or rebars. What do we measure after the test?
The difference in height from the ring?
Exactly! It's vital for ensuring clear flow around rebar. Last, we’ll touch on the V-funnel test!
V-Funnel Test
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
The V-funnel Test assesses the viscosity of SCC. Who can describe how we conduct this test?
We pour the concrete into a funnel and time how long it takes to flow out?
Spot on! The duration it takes to flow gives us insights into the concrete’s viscosity. What does a quick flow indicate?
That it’s less viscous and flows easily?
Correct! Summarizing today, we reviewed four tests essential for evaluating SCC: Slump Flow Test, L-Box Test, J-Ring Test, and V-Funnel Test. Great job, everyone!
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section describes critical testing methods for Self-Compacting Concrete (SCC), such as the slump flow test, L-box test, J-ring test, and V-funnel test, all designed to assess its flowability, stability, and ability to pass through reinforcement without segregation.
Detailed
Fresh Concrete Tests for SCC
Self-Compacting Concrete (SCC) is known for its ability to flow and fill molds without the need for vibration. Consequently, testing the fresh properties of SCC is crucial to ensure its performance meets the necessary standards. This section discusses four principal tests:
- Slump Flow Test: Evaluates how far the concrete can flow under its own weight, emphasizing its fluidity.
- L-Box Test: Assesses the passing ability of SCC through narrow spaces without segregation, simulating real-world conditions.
- J-Ring Test: Measures the height difference in concrete after filling the J-shaped box, indicating the concrete's ability to flow around reinforcement bars.
- V-Funnel Test: Examines the time taken for concrete to flow through a funnel, giving an insight into its viscosity and flow characteristics.
These tests are essential for determining whether SCC can effectively fill complex mold shapes while maintaining a consistent quality that meets structural requirements.

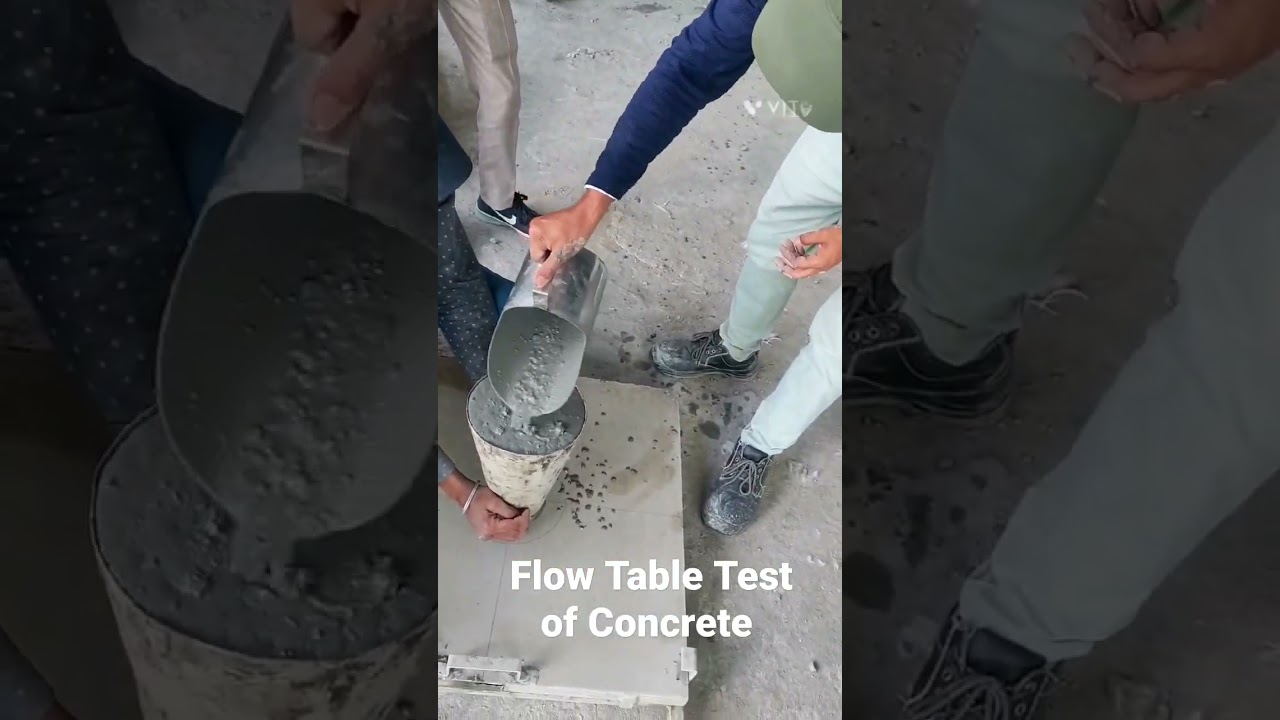

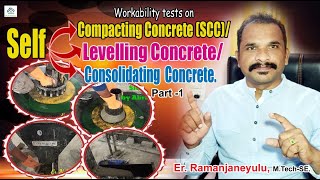

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Slump Flow Test
Chapter 1 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content

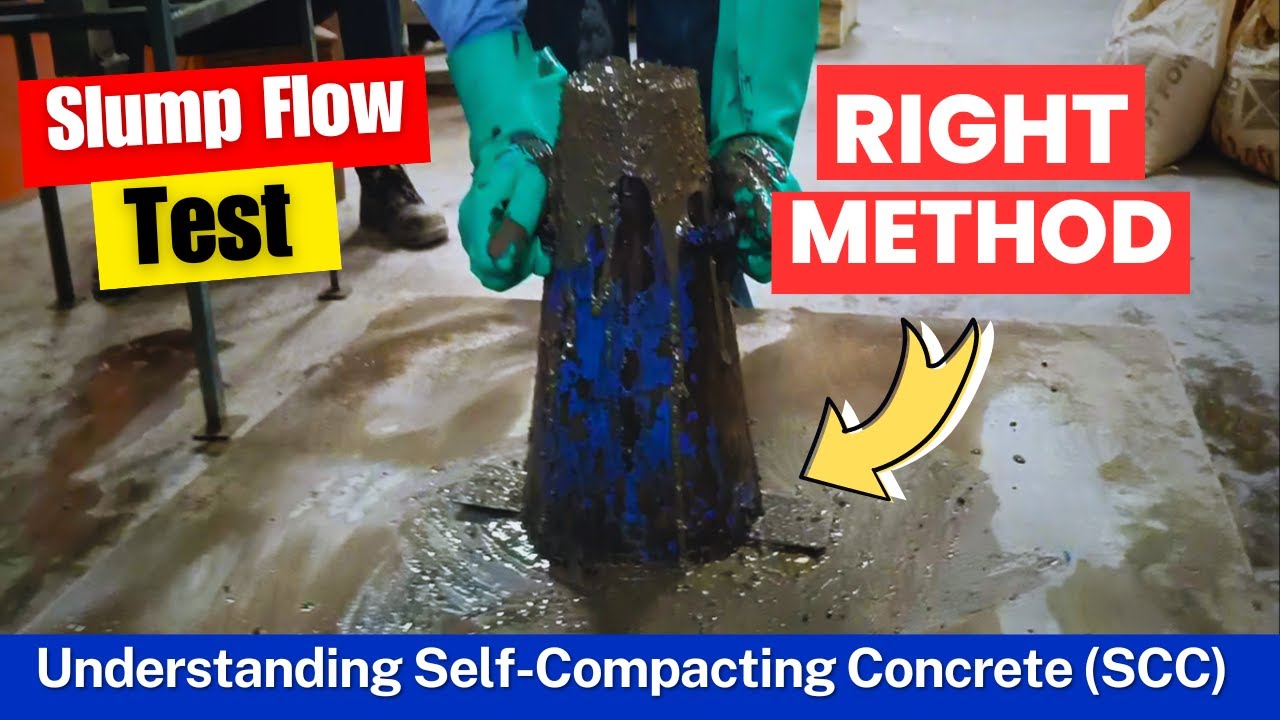

- Slump flow test.
Detailed Explanation
The slump flow test is used to measure the flowability of self-compacting concrete (SCC). In this test, a cone-shaped mold is filled with concrete, and the mold is then lifted vertically. The diameter of the concrete's spread after the cone is removed is measured. A larger spread indicates higher flowability, which is crucial for SCC, as it needs to fill forms and pass through reinforcement without the need for vibration.
Examples & Analogies
Imagine pouring syrup onto a plate. If the syrup spreads out easily, it’s akin to high flowability. In contrast, if it stays in one clump, it shows limited flow, similar to concrete that won't spread well in forms.
L-Box Test
Chapter 2 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- L-box test.
Detailed Explanation
The L-box test evaluates the ability of SCC to flow through reinforcing bars. It consists of a horizontal section and a vertical section shaped like the letter 'L'. Fresh concrete is poured into the horizontal section and allowed to pass into the vertical section. The height of the concrete in the vertical section is then measured. A higher level in the vertical section indicates better passing ability through reinforcements, which is a critical property for SCC.
Examples & Analogies
Think of it like navigating through a series of obstacles. If a basketball can pass through tightly spaced cones easily without getting stuck, it's similar to how SCC should flow through reinforcement bars.
J-Ring Test
Chapter 3 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content

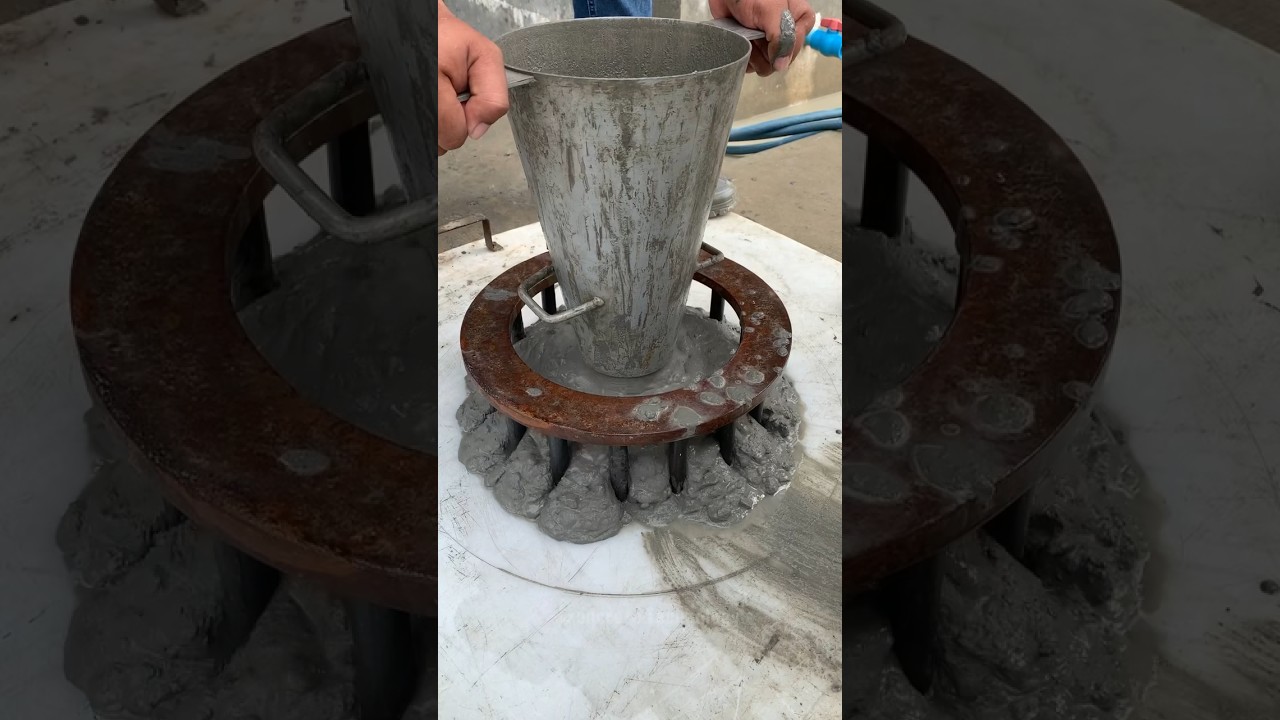

- J-ring test.
Detailed Explanation
The J-ring test is used to assess the ability of SCC to flow under its own weight while passing through obstacles. The test involves placing a ring that resembles a 'J' around the form where concrete is to flow. The concrete is poured, and the height difference between the concrete in the ring and outside it is measured. A smaller height difference indicates that the SCC can easily flow and fill the form without any blockage.
Examples & Analogies
Consider pouring a thick liquid through a strainer. If the liquid flows smoothly without getting blocked, it reflects good flow characteristics, just like an SCC that can navigate through a ring without obstruction.
V-Funnel Test
Chapter 4 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- V-funnel test.
Detailed Explanation
The V-funnel test measures the flow time of SCC as it passes through a funnel shaped like the letter 'V'. The concrete is allowed to flow through the funnel, and the time taken for it to completely exit the funnel is recorded. A shorter flow time signifies good workability and flow characteristics, which are essential for SCC to perform effectively in construction.
Examples & Analogies
Imagine timing how quickly water flows through a wide straw versus a narrow straw. Water flowing rapidly through the wide straw signifies good flow properties, similar to SCC flowing through the V-funnel quickly.
Key Concepts
-
Self-Compacting Concrete (SCC): A type of concrete that can consolidate under its own weight.
-
Slump Flow: A measurement of how far concrete can flow under its own weight.
-
L-Box Test: A test to determine the ability of SCC to flow through narrow spaces.
-
J-Ring Test: A measurement of the flowability of SCC around obstacles.
-
V-Funnel Test: A test that assesses the viscosity of concrete.
Examples & Applications
Using the Slump Flow Test, a concrete mix with a diameter of 700 mm is considered ideal for optimal flowability.
The L-Box test showed that the SCC could pass through tightly spaced rebar without segregation, which is essential for high-strength applications.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
For SCC to flow so nice, Slump Flow measures, no need for spice!
Stories
Imagine a small stream flowing through a narrow canyon, representing SCC testing its ability to travel without getting stuck.
Memory Tools
Remember the SCC tests: 'Silly Little Jokers Validate' - Slump, L-Box, J-Ring, V-Funnel.
Acronyms
SLJV - for Slump, L-Box, J-Ring, and V-Funnel tests in SCC.
Flash Cards
Glossary
- Slump Flow Test
A test that measures the flow diameter of fresh concrete to assess its fluidity.
- LBox Test
A test that evaluates the ability of concrete to flow through narrow passages without segregation.
- JRing Test
A test that measures the flow properties of concrete around obstacles such as rebar.
- VFunnel Test
A test that measures the viscosity and flow rate of self-compacting concrete.
