Introduction to Point Loads
Unlock Audio Lesson
Today, we're going to talk about how we model point loads in beam theory using the Dirac delta function. Who can tell me what a point load is?
Is it a load that is applied at a single point on the beam?
Yeah, like when a weight is placed directly in the middle of a beam?
Exactly! A point load is indeed applied at one specific point. We can mathematically describe this using the Dirac delta function. Can anyone tell me what the Dirac delta function does?
Isn't it a function that is zero everywhere except at a single point?
Correct! It's zero everywhere except at the origin and its integral over the whole space is one. This makes it perfect for modeling point loads.
How do we use it in beam equations?
Great question! We represent a point load, `P`, at `x = a` as `q(x) = Pδ(x - a)`. This simplifies our beam theory equations. Let’s summarize: the delta function helps us encapsulate concentrated loads in structural equations. Any questions?
Governing Differential Equation
Unlock Audio Lesson
Now that we understand how to model the point load, let’s look at how it fits into the beam deflection equation. The equation is `d^4y/dx^4 = (P/EI)δ(x - a)`. What do the terms in this equation represent?
I think `y` represents the deflection of the beam, right?
And `E` is the modulus of elasticity?
Exactly! `E` is the elasticity modulus and `I` is the moment of inertia of the beam's section. So our equation links the applied point load to how much the beam will deflect. Why do you think using the delta function is beneficial here?
It simplifies the equation significantly!
Yeah, and it helps in solving the differential equations more efficiently.
Right! The delta function allows us to precisely capture the behavior of the beam under a concentrated load without complicating the analysis. Let’s summarize our learning!
Practical Applications
Unlock Audio Lesson
Now that we have a solid conceptual foundation, let’s discuss practical applications. How would you apply this knowledge in civil engineering?
You could use it when designing bridges or buildings to understand how they will react to loads.
What about in the analysis of existing structures?
Definitely! Understanding how point loads affect structures can help in evaluating safety and integrity. Remember, using `q(x) = Pδ(x - a)` allows engineers to quickly analyze complex systems by reducing loads to their simplest form.
That’s a useful method. It makes the mathematics much more manageable!
And important for ensuring safety in designs!
Well put! In summary, we’ve seen how modeling point loads with the Dirac delta function simplifies our analysis of beam deflection and is essential for practical engineering applications.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section describes how the Dirac delta function can represent concentrated loads applied at a specific point along a beam. This simplification aids in the formulation and solution of differential equations related to beam deflection, illustrating its utility in civil engineering applications.
Detailed
Modeling Point Loads in Beam Theory
In structural analysis, particularly in beam theory, the Dirac delta function is employed to model point loads. A concentrated load, denoted as P, applied at a particular position x=a on a beam can be expressed as:
$$
q(x) = P\delta(x - a)
$$
Here, q(x) represents the distributed load acting on the beam. This representation is crucial when formulating the governing differential equation for beam deflection, which can be expressed as:
$$
\frac{d^4y}{dx^4} = \frac{P}{EI} \delta(x - a)
$$
where y is the deflection, E is the modulus of elasticity, and I is the moment of inertia of the beam's cross-section. This approach simplifies the solution of the differential equation, allowing engineers to determine the beam's response to point loads effectively. The use of the Dirac delta function encapsulates the concentrated nature of point loads, which is essential in practical engineering scenarios.

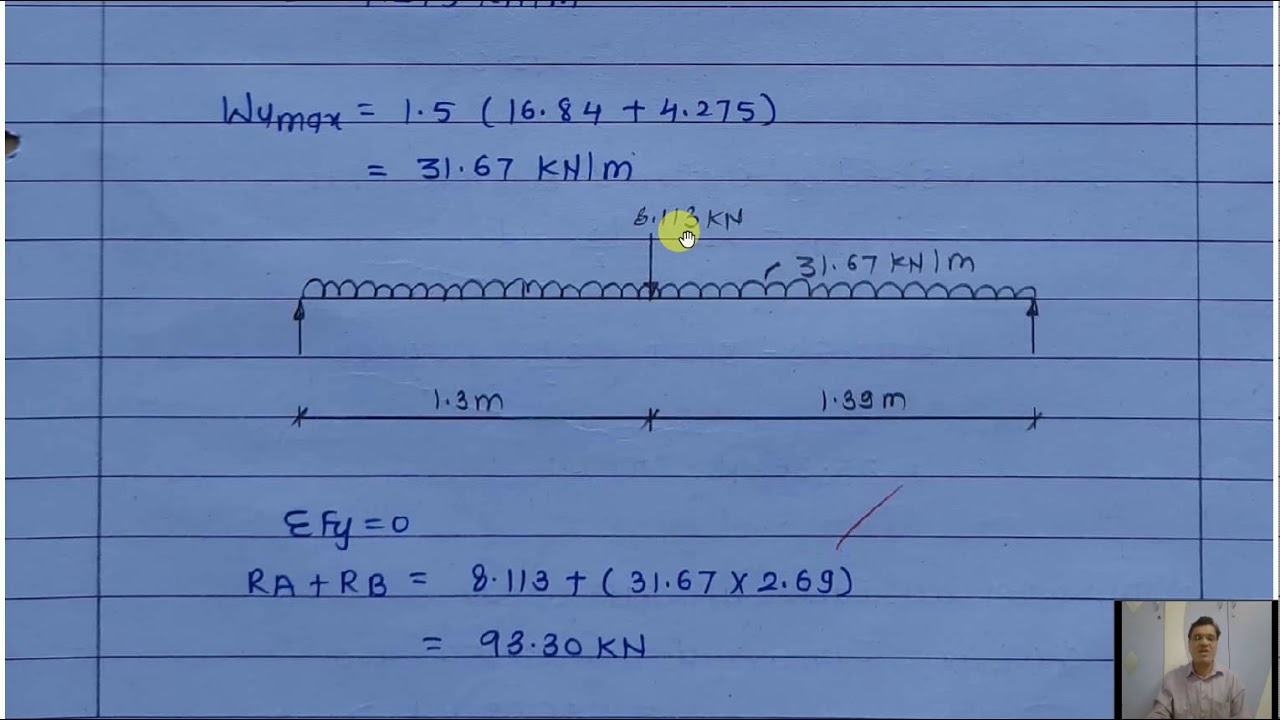

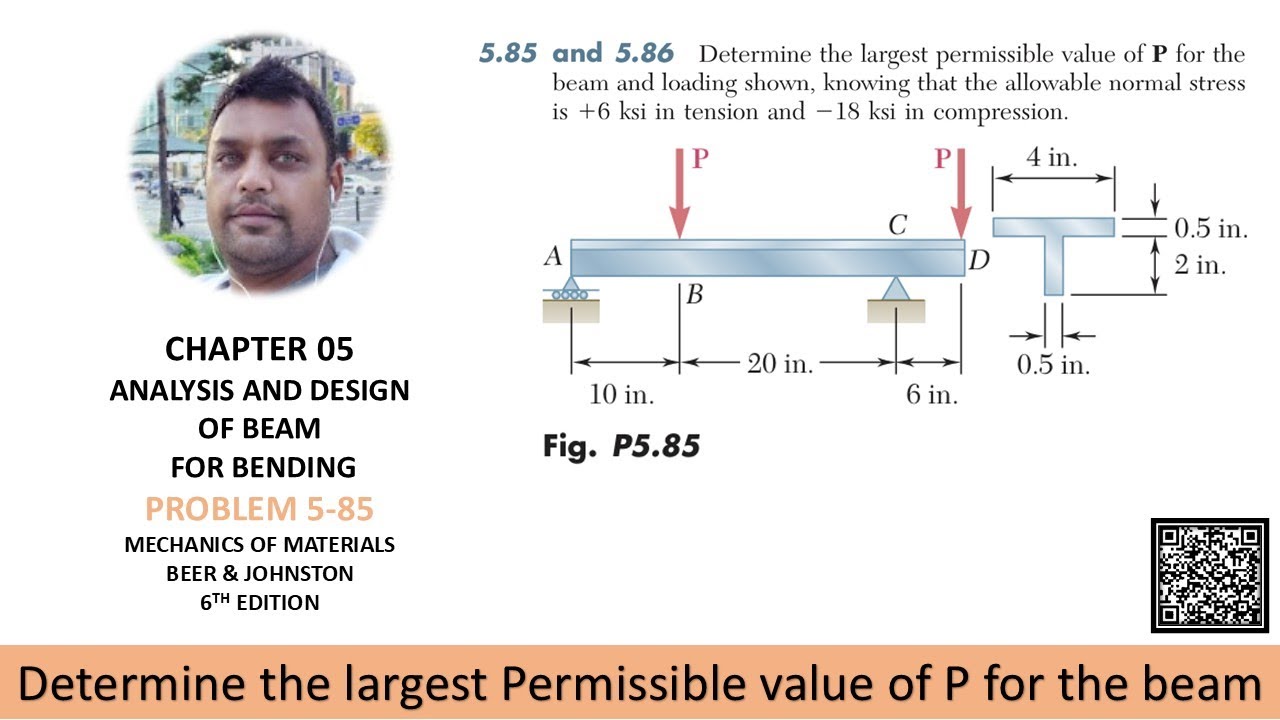

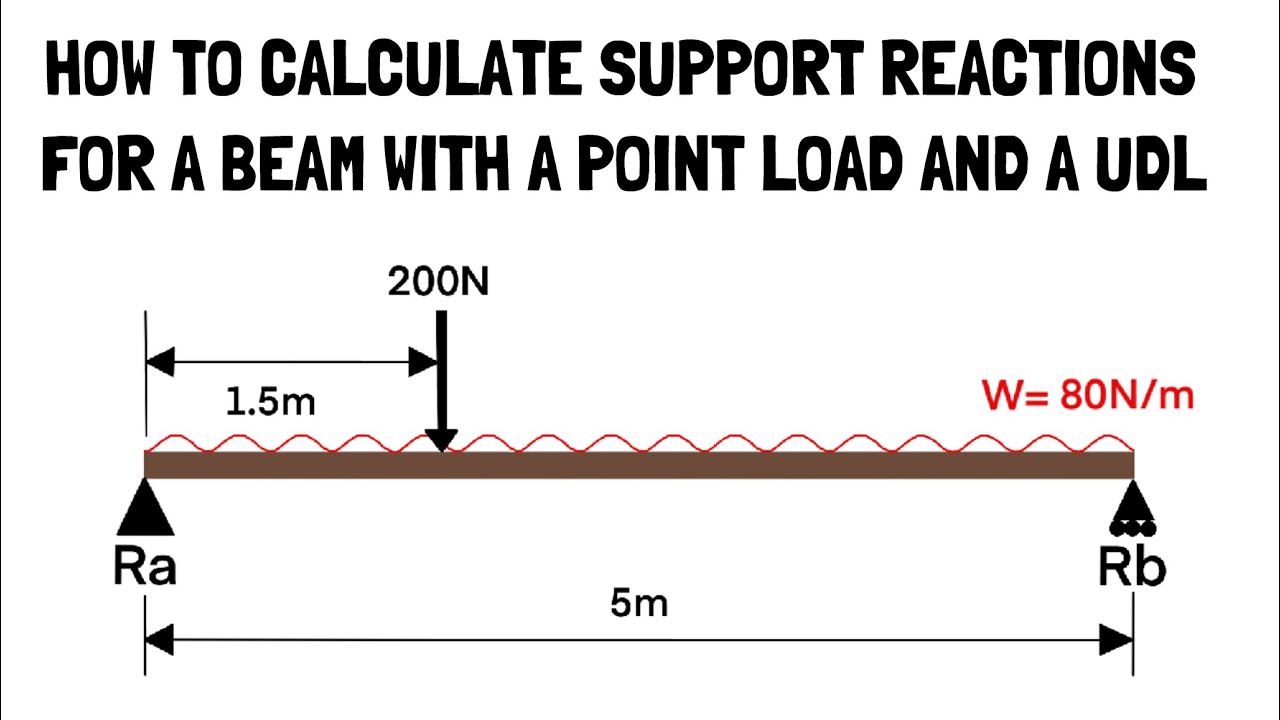

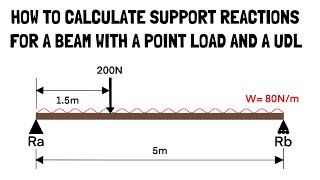

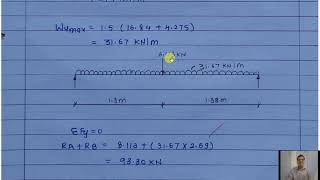

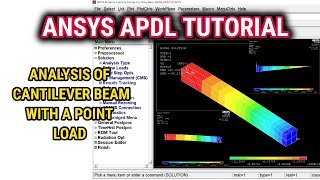

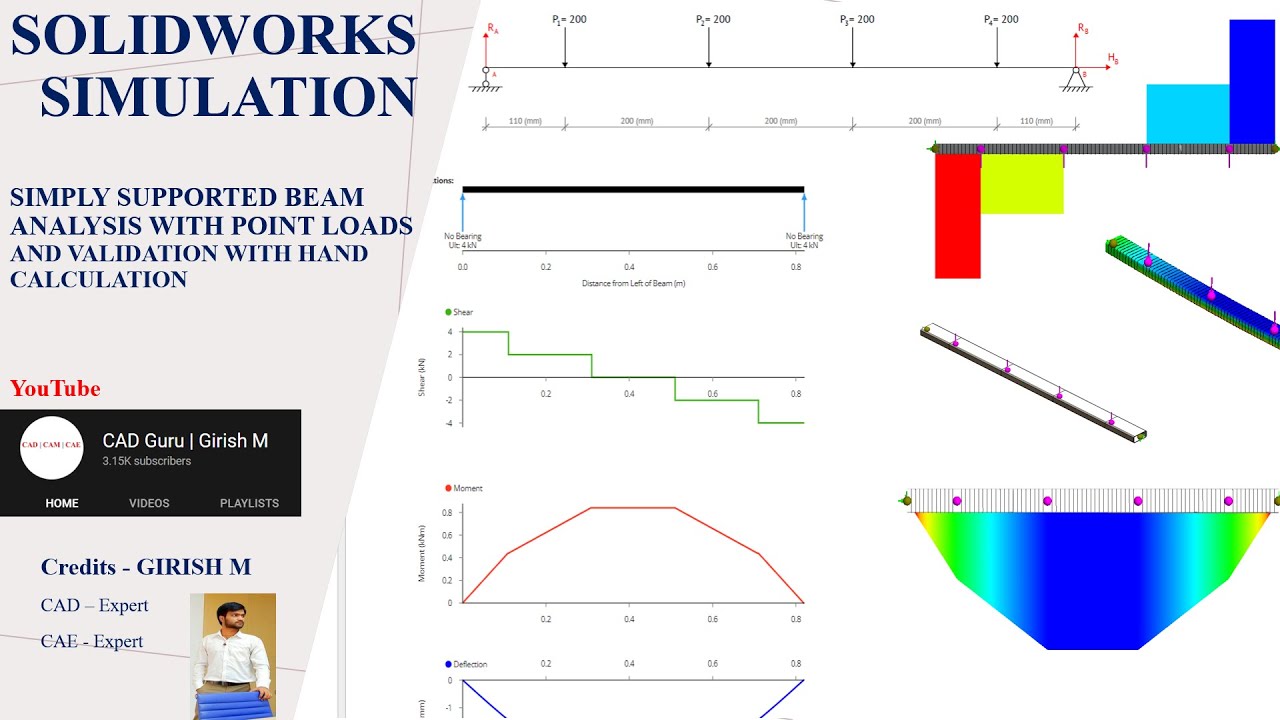

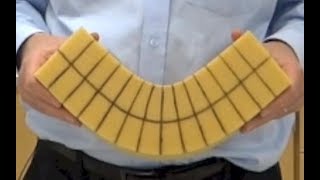

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Point Loads in Beam Theory
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In structural analysis, the delta function is used to represent a concentrated load P applied at a point x=a:
Detailed Explanation
In beam theory, engineers often need to represent loads acting at specific points along a beam. The Dirac delta function provides a way to mathematically model this by defining a function that is zero everywhere except at the point of interest. When a load P is applied at a point x=a on the beam, we can express the load distribution q(x) using the delta function as q(x) = Pδ(x - a). This means that the effect of the load is concentrated at the point x=a, allowing us to simplify complex calculations.
Examples & Analogies
Imagine you are balancing a plank on two supports. If someone places a heavy weight right in the center of the plank, that weight's effect is felt most directly at that spot. The delta function models this scenario by mapping the load to just the point where the weight is placed, much like identifying the center of the plank as the focal point of the load.
Simplification of Differential Equations
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
q(x)=Pδ(x−a) Where q(x) is the distributed load on a beam. This simplifies solving the differential equation of deflection: d4y EI =q(x)=Pδ(x−a)
Detailed Explanation
When we represent the concentrated load using the delta function, it allows us to simplify the governing equations for beam deflection. The differential equation for beam deflection involves the load distribution q(x). By substituting q(x) = Pδ(x-a) into the equation, we modify the equation of deflection to d⁴y/dx⁴ = P/ EI * δ(x - a). This form makes it much easier to calculate the deflection of the beam at various points because we only need to consider the influence of the load at the location x=a and can directly relate it to the material properties of the beam represented by EI (elasticity and moment of inertia).
Examples & Analogies
Think of a trampoline. If you stand in one spot, the fabric will dip down deeply at that point, much like how the delta function creates a concentrated effect at x=a. By knowing how deep the dip will be based on the weight you stand on, one can easily calculate how the entire trampoline behaves without worrying about the rest of its surface.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Dirac Delta Function: A mathematical model not as a typical function but useful in representing point loads.
-
Point Load: A concentrated load acting at a single point on a structure.
-
Governing Differential Equation: The relationship between applied load and beam deflection expressed mathematically.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example of a point load applied at the center of a simply supported beam, affecting deflection distinctly.
-
Modeling sudden pressure application in civil structures using the delta function to simplify analysis.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
To model a load that’s right on the spot, use delta function; it's perfect for that lot.
📖 Fascinating Stories
-
Imagine a heavy weight dropped on a beam at one spot. The resulting effect is sharp and clear, much like how the Dirac delta function pinpoints the impact.
🧠 Other Memory Gems
-
D.L.C. - Delta Loads Concentrated.
🎯 Super Acronyms
P.L.A.N. - Point Loads Applied Naturally (using delta function).
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Dirac Delta Function
Definition:
A mathematical function that is zero everywhere except at one point, where it is infinitely high, and its integral over the entire function is equal to one.
-
Term: Point Load
Definition:
A load that is applied at a single, specific point on a structural member, such as a beam.
-
Term: Beam Deflection
Definition:
The displacement of a beam under load, expressed as a function of the applied forces and material properties.
-
Term: Governing Differential Equation
Definition:
An equation that relates the deflection of a beam to the applied loads and its material properties.
-
Term: Modulus of Elasticity (E)
Definition:
A material property that measures its ability to deform elastically when a load is applied.
-
Term: Moment of Inertia (I)
Definition:
A property of a beam's cross-section that measures its resistance to bending.
