Understanding the Wave Equation
Unlock Audio Lesson
Today, we're going to discuss the wave equation, which is used to analyze vibrations in beams. Can anyone remind me what the wave equation looks like?
Is it \( \frac{\partial^2 u}{\partial t^2} = c^2 \frac{\partial^2 u}{\partial x^2} \)?
Exactly right! The wave equation describes how waves propagate in a medium. Here, \(c\) represents the speed of the wave. Why do you think understanding this equation is important for civil engineering?
It helps us understand how buildings or structures respond to vibrations or dynamic forces!
Precisely! Now let’s delve a little deeper into boundary conditions...
Boundary and Initial Conditions
Unlock Audio Lesson
In our analysis, we need boundary conditions. For a simply supported beam, we often use \( u(0,t) = u(L,t) = 0 \). What does this signify?
It means the beam is fixed at both ends and cannot move!
Exactly! We also have initial conditions such as the initial displacement \( u(x,0) = f(x) \) and velocity \( u_t(x,0) = g(x) \). Can anyone explain why initial conditions are critical?
They help us define the starting state of the vibration!
Correct! These initial conditions allow us to derive specific coefficients for our solution.
Solving the Wave Equation Using Separation of Variables
Unlock Audio Lesson
To solve the wave equation, we utilize separation of variables. Can anyone summarize the method?
We assume a solution of the form \( u(x,t) = X(x)T(t) \)!
Exactly! By substituting this assumption into our wave equation, we can separate the variables. This leads to two ordinary differential equations. What do we do next?
We solve each ODE and apply the boundary conditions!
Right! This is where our Fourier series comes into play, allowing us to express our solutions in terms of sine and cosine functions.
Understanding Coefficients in Fourier Series
Unlock Audio Lesson
In the Fourier series solution, we have coefficients A_n and B_n. Can someone explain how these are calculated based on the initial conditions?
We use the initial displacement and velocity to find their values, right?
Correct! By applying our initial conditions, we can solve for these coefficients, which define the amplitudes of our vibrational modes.
So each mode shape corresponds to a particular frequency of vibration?
Exactly! And understanding these modes is crucial for ensuring structural integrity under dynamic loads.
Physical Interpretation of the Solutions
Unlock Audio Lesson
Now that we have our solution, let’s analyze what it means physically. Can someone explain the significance of the terms in our solution?
The \( \cos \) and \( \sin \) terms represent the oscillatory behavior of the beam at different frequencies!
Correct! Each term reflects a different vibrational mode. Why is it important for an engineer to know these modal shapes?
It helps in predicting how the beam will behave under dynamic loading, ensuring safety and stability!
Precisely! Understanding these vibrations is vital for designing structures that can withstand various loads.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In the study of beam vibrations, the wave equation is utilized to model transverse vibrations in beams. By applying the method of separation of variables alongside Fourier series, we can derive solutions reflecting initial conditions of displacement and velocity, which are crucial for the analysis of structural behavior under dynamic loading.
Detailed
Application in Beam Vibrations (Wave Equation)
The section focuses on the wave equation, which is a central equation used in analyzing beam vibrations in civil engineering. It is presented in the form:
$$\frac{\partial^2 u}{\partial t^2} = c^2 \frac{\partial^2 u}{\partial x^2}$$
where c represents the wave speed.
Key Points:
- Boundary and Initial Conditions: The typical boundary conditions for simply supported beams are defined as:
- Displacement at the ends is zero: $u(0,t) = u(L,t) = 0$.
- Initial displacement $u(x,0) = f(x)$ and initial velocity $u_t(x,0) = g(x)$.
-
Solution Approach: The solution employs the method of separation of variables and Fourier series where the solution is expressed in a series format:
$$u(x,t) = \sum_{n=1}^{\infty} \left( A_n \cos\left(\frac{n\pi ct}{L}\right) + B_n \sin\left(\frac{n\pi ct}{L}\right) \right) \sin\left(\frac{n\pi x}{L}\right)$$ - Here, A_n and B_n are coefficients determined using the initial conditions. They are crucial for modeling the exact response of the beam under vibratory motion.
- Physical Interpretation: This method allows engineers to model the transverse vibrations of simply supported beams, leading to insights into vibrational behaviors and performance under dynamic loads. Each term in the series corresponds to a different vibrational mode of the beam.
Overall, the application of the wave equation through these methods serves as a fundamental technique in structural analysis and design.

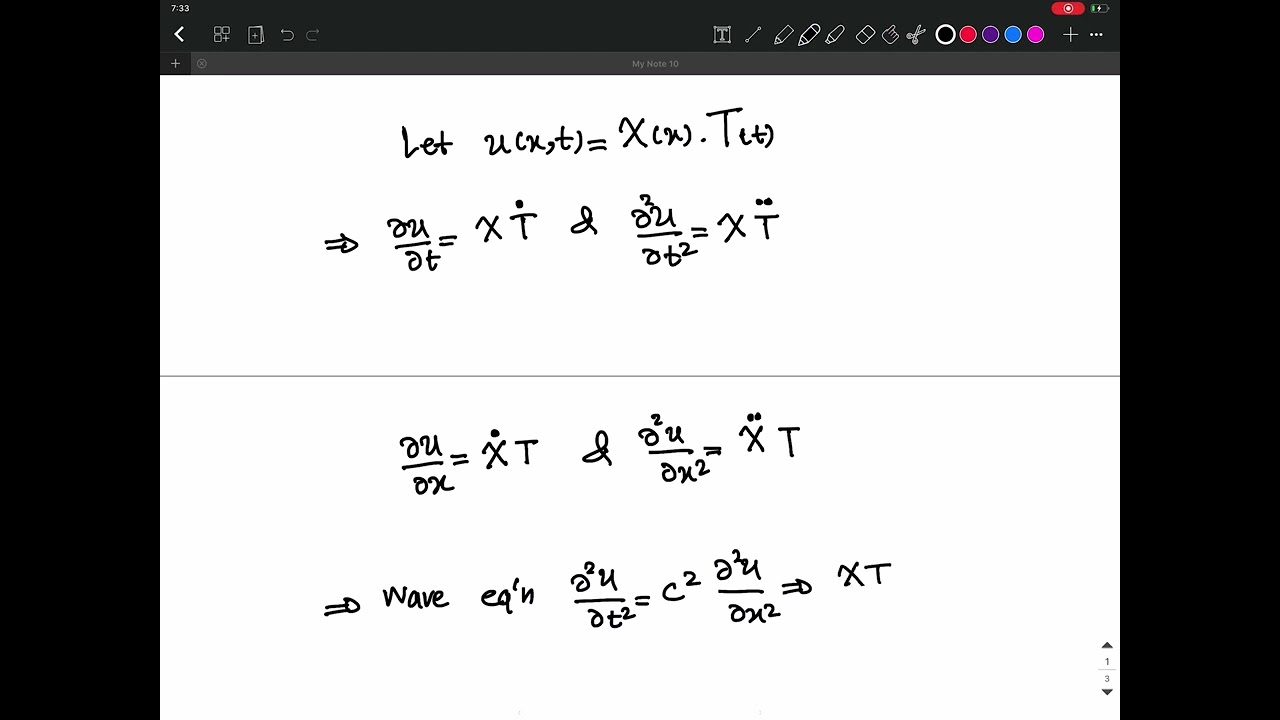

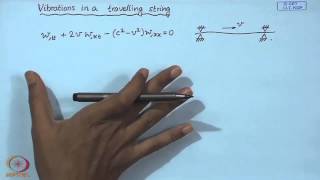

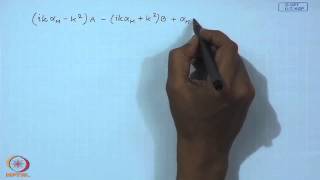

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to the Wave Equation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Wave Equation:
∂²u/∂t² = c² ∂²u/∂x²
Boundary Conditions: u(0,t)=u(L,t)=0
Initial Conditions:
• Displacement: u(x,0)=f(x)
• Velocity: u_t(x,0)=g(x)
Detailed Explanation
In this section, we are introduced to the wave equation, which is a partial differential equation that describes the behavior of waves, such as vibrations in beams. The equation can be represented as:
\[ \frac{\partial^2 u}{\partial t^2} = c^2 \frac{\partial^2 u}{\partial x^2} \] where \(u\) represents the displacement of the beam at point \(x\) and time \(t\), while \(c\) is the wave speed.
The boundary conditions specify that the displacement at the ends of the beam, points 0 and L, must be zero (\(u(0,t) = u(L,t) = 0\)), indicating that the beam is simply supported at these points.
Initial conditions provide specific starting parameters for the displacement and velocity at time \(t=0\). For example, the displacement is given as \(u(x,0) = f(x)\), which defines the shape of the beam at the beginning. The velocity condition is defined as \(u_t(x,0) = g(x)\), specifying how fast each point on the beam is moving initially.
Examples & Analogies
Imagine a guitar string when you pluck it. The waves created on the string can be described using the wave equation. The ends of the string are fixed in position (just like our boundary conditions), meaning they can't move. At the moment you pluck the string (time t=0), the initial shape of the string defines how it will vibrate thereafter, similar to how the initial conditions define the starting properties of our beam.
Solution to the Wave Equation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Solution using Separation of Variables + Fourier Series:
X∞ (cid:20) (cid:18) nπct(cid:19) (cid:18) nπct(cid:19)(cid:21) (cid:16)nπx(cid:17)
u(x,t)= A cos +B sin sin
n=1
• A_n, B_n are computed from f(x), g(x)
• Models transverse vibration of simply supported beam
Detailed Explanation
The solution to the wave equation can be approached using the method of separation of variables combined with Fourier series. This allows us to express the displacement \(u(x,t)\) as a sum of harmonic functions, leading to:
\[ u(x,t) = \sum_{n=1}^{\infty} \left( A_n \cos\left(\frac{n\pi ct}{L}\right) + B_n \sin\left(\frac{n\pi ct}{L}\right) \right) \sin\left(\frac{n\pi x}{L}\right) \]
Here, \(A_n\) and \(B_n\) are coefficients computed from the initial conditions \(f(x)\) and \(g(x)\). This series representation effectively models the transverse vibrations of the beam, where each term represents a mode of vibration determined by the beam's properties and boundary conditions.
Examples & Analogies
Think of a trampoline. When you jump on it, the surface vibrates up and down in waves. Each wave corresponds to a different mode of vibration, just like each term in our series solution. The coefficients \(A_n\) and \(B_n\) help tell us how deeply each mode vibrates based on how hard you jumped (the initial displacement) and how fast you bounced (the initial velocity).
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Wave Equation: Models the propagation of waves through a medium.
-
Boundary Conditions: Essential for defining the constraints in the physical system.
-
Fourier Series: Represents the solution as a sum of sine and cosine functions.
-
Separation of Variables: A technique to simplify complex differential equations.
-
Vibration Modes: Characteristic patterns of oscillation in beams under dynamic loads.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
The displacement function for a vibrating beam can be expressed in terms of Fourier series, representing various modes of vibration.
-
In practical scenarios, understanding the frequencies at which beams vibrate is crucial for designing structures that withstand dynamic forces.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When waves sway and beams can bend, the wave equation helps comprehend.
📖 Fascinating Stories
-
Imagine a tightrope walker on a beam; they oscillate and sway with each movement, like waves traveling through a medium. The wave equation is their guide.
🧠 Other Memory Gems
-
For Beam Analysis, remember 'B-WISC' (Boundary conditions, Wave equation, Initial conditions, Series expansion, Coefficients).
🎯 Super Acronyms
FOCUS
- Fourier series
- Oscillation
- Coefficients
- Understanding
- Stability in beam structures.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Wave Equation
Definition:
A second-order partial differential equation describing how wave functions evolve in time and space.
-
Term: Boundary Conditions
Definition:
Constraints that specify the values of a function at the boundary of its domain.
-
Term: Initial Conditions
Definition:
The values of a function and its derivatives at the initial time.
-
Term: Fourier Series
Definition:
A way to represent a function as the sum of simple sine waves.
-
Term: Separation of Variables
Definition:
A method for solving partial differential equations by reducing them to simpler ordinary differential equations.
-
Term: Vibration Mode
Definition:
A pattern of motion that a vibrating structure can experience.
