Session 1: Understanding Capillary Action

Unlock the classroom podcast

The transcript is free to read. A free account plays the conversation back.

Create a free account

SarahInstructor

Today, we are diving into the fascinating phenomenon of capillary action. Can anyone tell me what capillary action is?

Noah

Isn't it the ability of a liquid to rise in a narrow space, like in a tube?

SarahInstructor

Exactly! Capillary rise occurs due to the balance between gravitational forces and the forces acting at the liquid's surface, primarily surface tension. Remember the acronym 'SAC' for Surface tension, Adhesion, and Cohesion. These three factors drive capillarity. Now, can anyone explain how surface tension plays a role?

Isabella

Surface tension allows the liquid to climb up the walls of the tube because it creates a force that pulls the liquid up.

SarahInstructor

Correct! It's crucial to note how that force varies with the diameter of the tube, especially in annular tubes. Let's summarize: Capillarity occurs due to surface tension, and it can be influenced by both the tube’s diameter and the angle of contact.

Session 2: Deriving Capillary Rise Formula

Unlock the classroom podcast

The transcript is free to read. A free account plays the conversation back.

Create a free account

RobertInstructor

Now, let's derive the formula for capillary rise in annular tubes. Who remembers how we set up the forces acting on the liquid in the tube?

Akash

We start with the balance of the weight of the liquid column and the upward force due to surface tension!

RobertInstructor

Right! If we let $h$ be the height of the liquid column, and using the contact angle $\phi$ , we can establish that: $h = \frac{4 \sigma \cos(\phi)}{\rho g (D - d)}$ . Can someone explain why each term in this equation matters?

Ananya

The numerator represents the upward force due to surface tension, while the denominator is the weight of the liquid, which depends on density $\rho$ , gravity $g$ , and the effective area between the diameters.

RobertInstructor

Excellent! So, the more significant the surface tension or the smaller the gap, the higher the liquid will rise.

Session 3: Applications of Capillary Action

Unlock the classroom podcast

The transcript is free to read. A free account plays the conversation back.

Create a free account

SarahInstructor

Can anyone provide an application for capillary action in real life?

Noah

Plants use capillary action to draw water from the soil!

SarahInstructor

That's a great example! This principle is pivotal in many fields, from agriculture to engineering materials. In materials science, especially, understanding how fluids behave in small spaces can lead to innovations. How might capillary action be a concern in engineering?

Isabella

If water gets into small gaps in structures, it could affect insulation or cause damage over time.

SarahInstructor

Exactly! So remember the importance of capillary action: it not only influences how plants function but also impacts engineering design and material selection.

Audio Book

Voice:

Overview of Capillarity

Unlock the audio lesson

The script is above and free to read. A free account plays it back, in the voice you pick.

Create a free account

Two coaxial glass tubes forming an annular with a small gap are immersed in clear water. The inner and outer diameters are small d and the capital D respectively.

Detailed Explanation

This statement introduces the concept of capillarity, which refers to the ability of a liquid to flow in narrow spaces without the assistance of external forces. In this case, we have two coaxial tubes, which means one tube is inside the other, creating a thin space, or annulus, between them. The diameters of these tubes are defined as 'd' for the inner tube and 'D' for the outer tube. The ability of water to rise in this space is a demonstration of capillary action.

Examples & Analogies

Think of this situation like using a straw. When you place a straw in a drink, the liquid rises within the straw without any external force. Similarly, water rises between two coaxial tubes due to adhesive forces between the water and the glass.

Understanding Surface Tension

Unlock the audio lesson

The script is above and free to read. A free account plays it back, in the voice you pick.

Create a free account

What is capillary rise of water in the annular if the sigma is the surface tension of the water in contact with air and phi is the angle of contact between water and glass tube?

Detailed Explanation

This section highlights the factors that influence capillary rise. The symbol 'sigma' represents the surface tension of the water, which is a force that acts at the surface of a liquid. It is what allows the water to rise in the narrow gap between the tubes. The 'phi' represents the angle of contact between the water and the glass tube, which affects how water interacts with the surface. A smaller angle indicates better adhesion of water to the glass, leading to a higher capillary rise.

Examples & Analogies

Imagine placing a piece of paper towel into a glass of water. You will see the water rise up the towel due to the surface tension. The angle at which the water meets the towel also determines how high the water climbs. This relationship can help us understand the mechanics behind the movement of water in the annular tubes.

Conditions for Capillary Rise

Unlock the audio lesson

The script is above and free to read. A free account plays it back, in the voice you pick.

Create a free account

The fluid outside since is it at the atmospheric pressures, the fluid which is inside in this capillary tube also will be the atmospheric pressures.

Detailed Explanation

In capillarity, the pressure of the fluid outside of the tubes is equal to the atmospheric pressure. This condition is crucial because the height to which water can rise depends on balancing the weight of the water column against the forces exerted by surface tension. The equilibrium happens when the weight of the water in the annular tube is balanced by the upward force of surface tension acting at the liquid's surface.

Examples & Analogies

Think of balancing a variety of weights on a seesaw. If one side gets too heavy (the weight of the water in the tube), it will tip. Similarly, the weight of the liquid must be perfectly counteracted by the forces from the surface tension for the water to remain at a certain height within the tubes.

Effect of Adhesion

Unlock the audio lesson

The script is above and free to read. A free account plays it back, in the voice you pick.

Create a free account

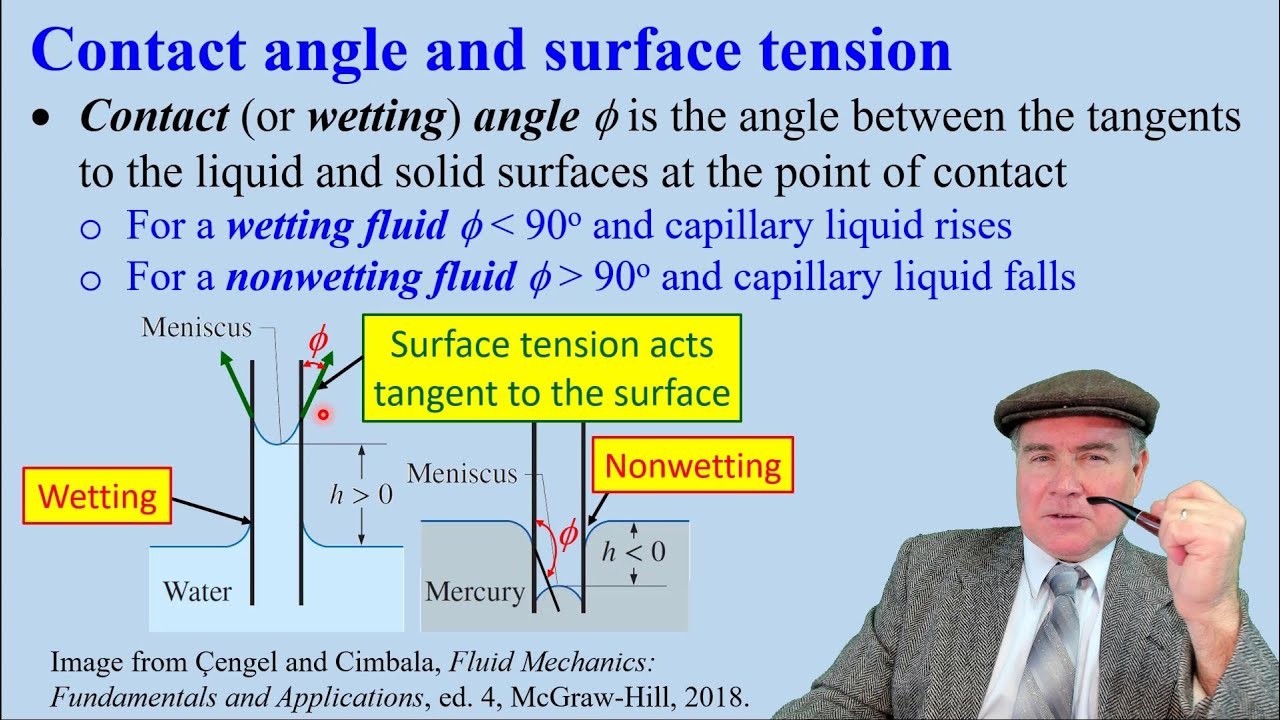

Due to adhesion of water to wall of vessel, the meniscus turns upwards making an angle of phi.

Detailed Explanation

This describes how adhesive forces between the water and the glass wall of the tubes cause the water to rise and create a curved surface, known as the meniscus. The angle 'phi' refers to this curvature, which is a visual representation of how much the water is being pulled up by the walls of the tube due to adhesion. This upward curve is key to understanding how high the liquid will rise in the annular space.

Examples & Analogies

When you fill a glass with water, you'll notice that the surface of the water is slightly higher around the edges. This is similar to the way the water rises along the inner walls of the glass because the water molecules are attracted to the glass, which illustrates adhesion.

--
