Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Hydrostatic Pressure Distribution
Unlock Audio Lesson
Let's discuss hydrostatic pressure distribution. Can anyone tell me what happens to the pressure as we move deeper into a fluid?
I think the pressure increases with depth due to the weight of the fluid above.
Exactly! The pressure increases linearly with depth, which can be represented with the formula P = ρgh. Can anyone remember what each symbol represents?
ρ is the density of the fluid, g is the acceleration due to gravity, and h is the depth.
Great! To remember this, think of the acronym 'DGH' - Density, Gravity, Height. Now, how does this relate to force?
The total force acting on a surface is related to this pressure distributed over an area.
Correct! The net force can be calculated using the average pressure multiplied by the area. This is fundamental for understanding gate forces in fluid mechanics.
Calculating Forces on Gates
Unlock Audio Lesson
Now, let's analyze a problem involving a square gate submerged in water. Can someone summarize how we calculate the force on this gate?
We first calculate the pressure at the centroid of the gate and then multiply it by the area to find the total force.
Absolutely right! And to find the line of action of this force, we can use the concept of the center of pressure. Can anyone tell me where the center of pressure is located relative to the centroid?
It's typically located below the centroid in a triangular pressure distribution.
Good memory! This is crucial for stability analysis of floating bodies.
Buoyancy and Stability
Unlock Audio Lesson
Next, let’s look at the buoyancy forces on submerged objects. What can you tell me about Archimedes' principle?
It states that the upward buoyant force equals the weight of the fluid displaced by the object.
Correct! Now, when analyzing stability, what factors do we consider?
We look at the center of buoyancy and the center of gravity.
Exactly! If the center of gravity is below the center of buoyancy, the body is stable.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, the focus is on solving practical problems related to fluid statics, including pressure distributions, forces exerted by fluids, and applications of hydrostatic principles with examples taken from GATE and Engineering Service Exams. The section illustrates how theoretical concepts can be applied to real-world scenarios using various problems including gate forces and buoyancy.
Detailed
Further Problem Examples
This section delves into practical applications of fluid statics by exploring various problem examples relevant to examinations such as GATE and Engineering Service Exam. The discussion starts with an introduction to hydrostatic experiments with a focus on pressure gauges and manometers. Key formulas regarding hydrostatic pressure, buoyancy, and capillarity are provided to guide the student through problem-solving processes. The section breaks down several numerical problems, elucidating how to calculate forces acting on gates, understand hydrostatic pressure distributions, and compute buoyancy forces on submerged objects. The significance of understanding these problem examples lies in their practical application in engineering scenarios, strengthening students’ abilities to apply theoretical knowledge to real-world situations.
Youtube Videos

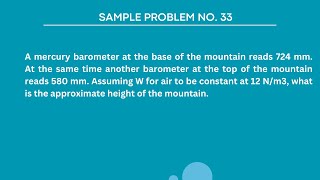

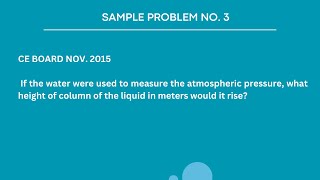

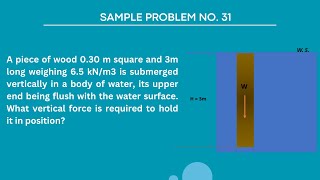

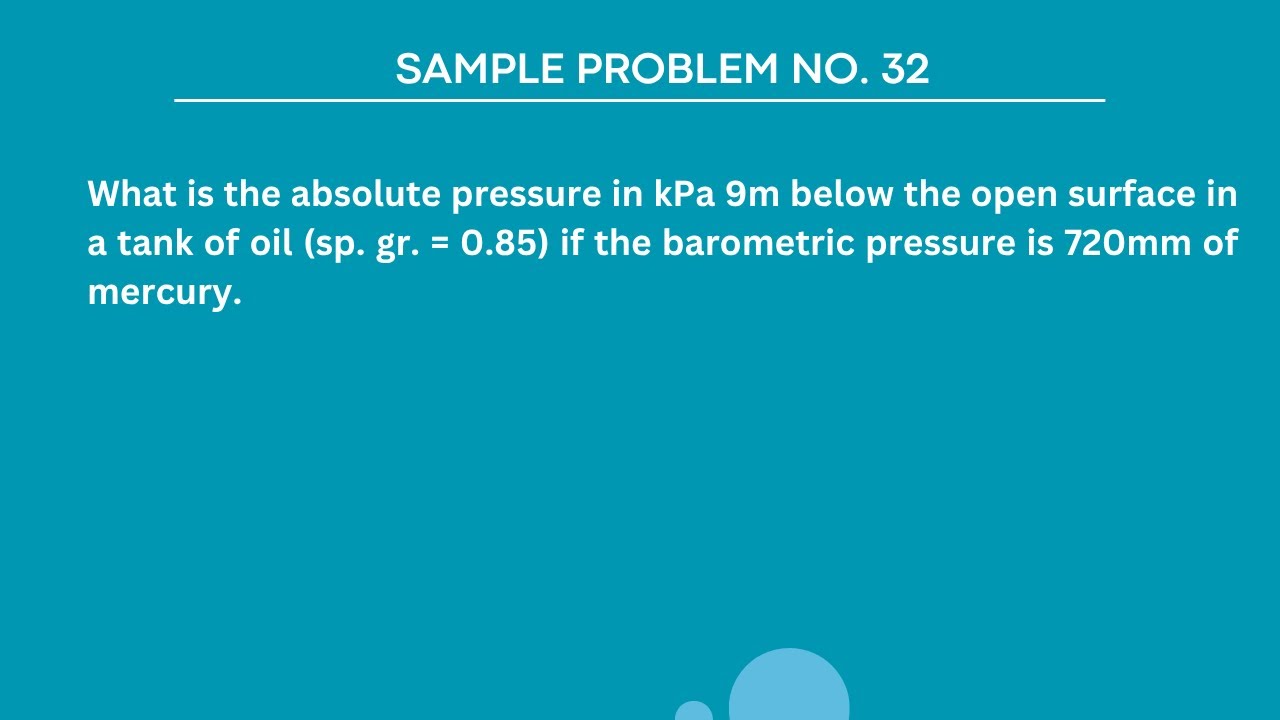

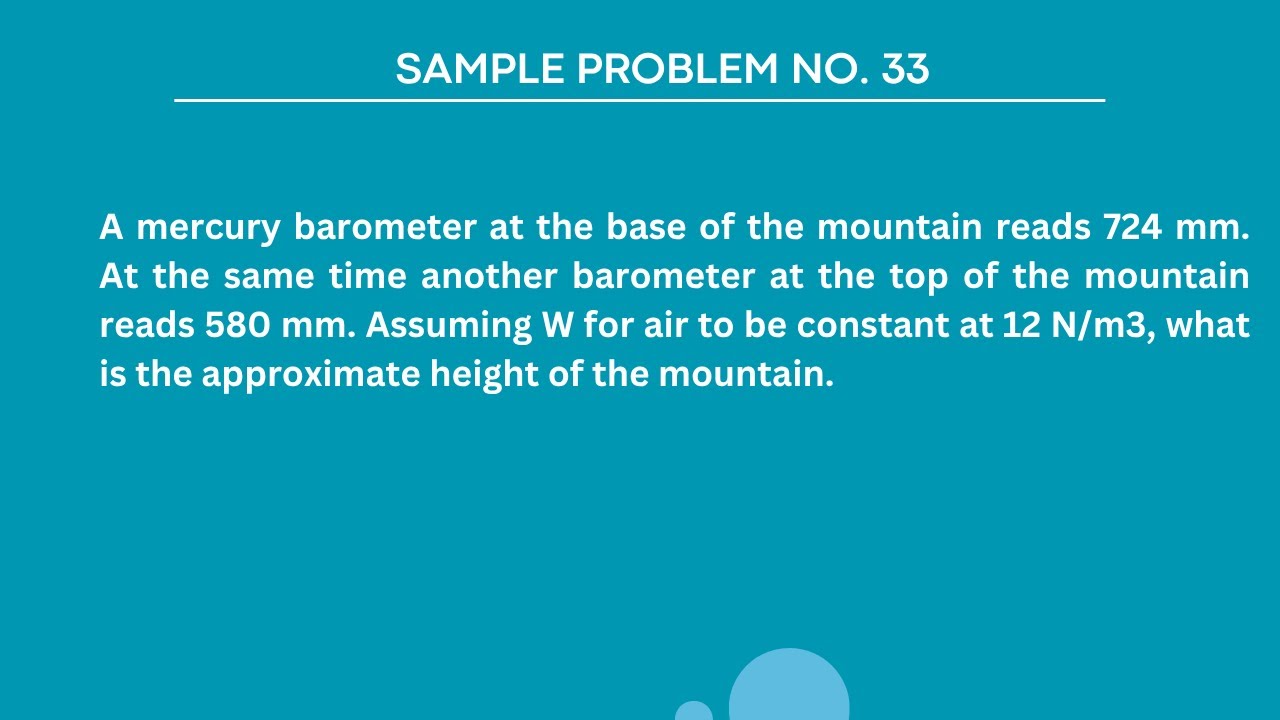

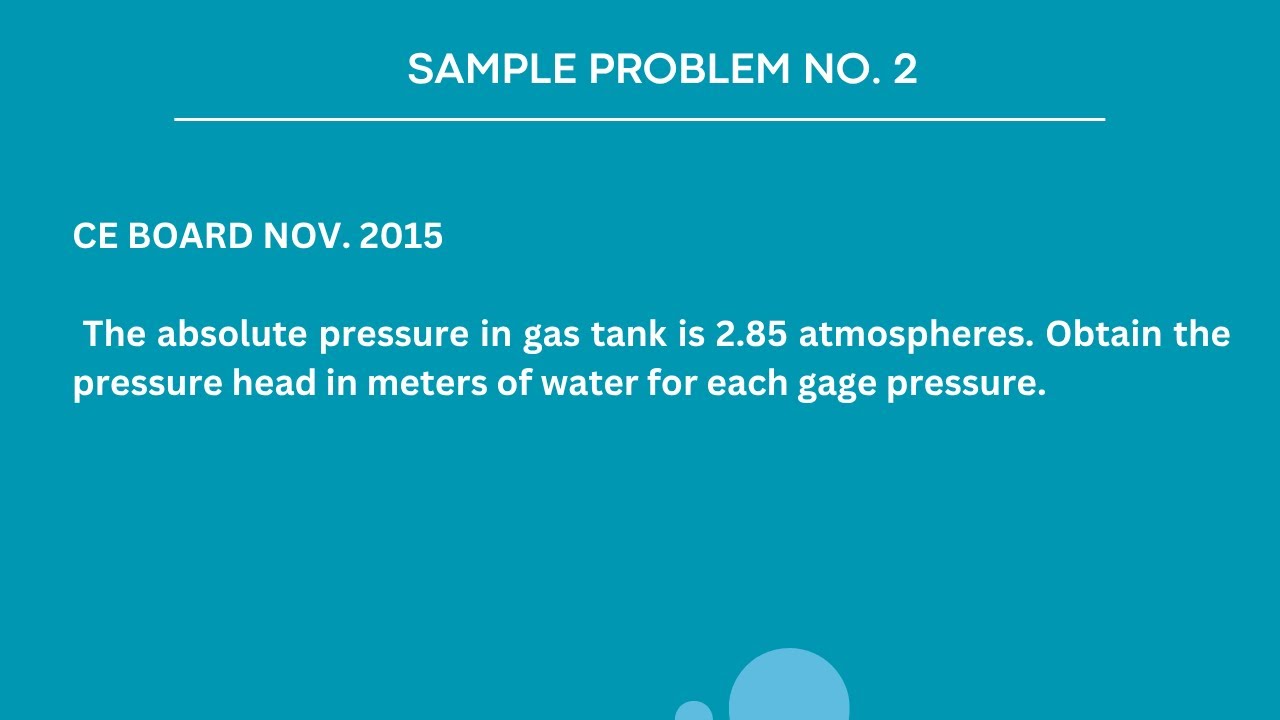

Audio Book
Dive deep into the subject with an immersive audiobook experience.
Problem 1: Force on a Square Gate
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Let us start to solve the problems, these very easy problems that there is a square gate of dimensions of 1.5 meter into 1.5 meters. One of the vertical sides of a fully filled water tank has one side on the free surface. It is hinged on the lower horizontal sides. Here it is hinged it and is held in a position by force applied on the vertical central line at a depth of 0.75 meter below the free surface. The magnitude of this force is?
Detailed Explanation
This problem describes a square gate in a water tank. To find the magnitude of the force holding the gate, we need to calculate the hydrostatic pressure acting on the gate at different depths. The pressure at any depth in a fluid is given by the formula P = ρgh, where ρ is the fluid's density, g is the acceleration due to gravity, and h is the depth. Since the gate is 1.5 m tall and submerged 0.75 m below the free surface, we can find the average pressure acting on the gate's surface. By calculating the force exerted by this pressure over the area of the gate, we can determine the force applied at the hinge.
Examples & Analogies
Think of a large door in a swimming pool. The deeper you go, the heavier the water pushing against the door becomes. Just like the swimming pool door needs a strong handle (or force) to keep it closed, the square gate also needs force at the hinge to stay in place against the water pressure.
Understanding Pressure Distribution
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now the pressures at the water surface levels will be the atmospheric pressures, will be the atmospheric pressures and we can consider this atmospheric pressure is close to zero okay that as compared to the pressure distributions. This the correct the pressure distribution varies linearly with respect to the depth.
Detailed Explanation
In a fluid at rest, pressure increases linearly with depth. This means that the deeper you go in the fluid, the higher the pressure you will encounter. At the water surface, the pressure is considered as atmospheric pressure (often treated as zero for calculation purposes), and as you go lower into the fluid, pressure builds up because of the weight of the fluid above. This principle allows us to predict how much pressure will be exerted at a certain depth and can be calculated using P = ρgh.
Examples & Analogies
Imagine diving into a lake. The deeper you dive, the more you feel the weight of water above you pressing down. This feeling is the increasing water pressure, just as the problem describes.
Moment Calculation Around the Hinge
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
As you know in a triangular pressure distribution diagrams, the resultant force acts at a one third distance from the bottoms or two thirds distance from the free surface. So one third distance locations that what will be act it the fluid F we know it what is the distance from this. So we just take a moment about the hinge to compute what will be the F, the force into distance, force into distance.
Detailed Explanation
When a force acts on a submerged surface, its effect can be analyzed by considering moments around a pivot point—in this case, the hinge. The resultant force due to the fluid pressure acts at a particular distance from the hinge, specifically one-third of the height of the gate from the base. To find out how much force is needed to keep the gate from moving, we can set the moments created by the forces acting on either side of the hinge to be equal. This method uses the formula: moment = force × distance from the pivot.
Examples & Analogies
Think of a seesaw. If one side is heavier, it will tip. The force (the weight of a person) needs to be balanced by the moment it creates at the pivot (the hinge). If you shift farther from the hinge, you don't need as much weight to balance out the seesaw, much like finding the force on the gate.
Problem 2: Semi-circular Gate
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now let us we another GATE question we can solve it with as it is a diagrams given here. There is a semi-circular cylindrical gate is there and force F is acting here and there is a hinge at this point. So we need to compute it if this is a free surface. This is the two meter depth of the water is there. What could be the force is required if the hinge at this point?
Detailed Explanation
In this problem, we need to analyze a semi-circular gate submerged to a depth of two meters in water. Similar to the square gate problem, we must identify both vertical and horizontal forces acting on it due to hydrostatic pressure. The pressure can be calculated using the fluid's density and height, then applied to determine the forces acting on the curved gate surface. By summing these forces and considering the moments around the hinge, we can figure out the applied force needed for equilibrium.
Examples & Analogies
Imagine a large beach ball held beneath the water; like the ball, the semi-circular gate feels different pressures pushing on it depending on how deep it is underwater. If you wanted to keep the ball from floating up or sinking, you’d need to apply a force—similar to how we calculate the force on the gate to keep it in place.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Hydrostatic Pressure: Pressure varies with depth in a fluid.
-
Buoyancy: The force exerted by a fluid, opposing the weight of the object.
-
Center of Pressure: The point where the total hydrostatic force acts.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example of calculating pressure at a given depth using P = ρgh.
-
Example of net force on a gate submerged in fluid.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Pressure rises with depth, it’s true, Hydrostatics guides what fluids do.
📖 Fascinating Stories
-
Imagine a square gate underwater. As you dive deeper, the pressure on it pushes harder, showcasing how force increases with depth.
🧠 Other Memory Gems
-
BRP: Buoyancy, Pressure, Relationships - remember how these concepts interconnect.
🎯 Super Acronyms
HBG
- Hydrostatic
- Buoyancy
- Gate - key terms in fluid statics.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Hydrostatic Pressure
Definition:
The pressure exerted by a fluid at rest due to the weight of the fluid above it.
-
Term: Buoyancy
Definition:
The upward force exerted by a fluid that opposes the weight of an immersed object.
-
Term: Center of Pressure
Definition:
The point where the total pressure force acts on a submerged surface.
