Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Manometers
Unlock Audio Lesson
Welcome students! Today we’re diving into manometers, specifically how they function and why they are essential for measuring fluid pressure.
What exactly is a manometer, and how does it work?
Great question! A manometer is a device that measures the pressure of a fluid by looking at the height of a fluid column in a tube. We can use fluids such as mercury or oil, depending on the application.
So, the height difference tells us the pressure difference?
Exactly! The height difference in the columns correlates directly with the pressure difference using the hydrostatic equation.
What would happen if we use a fluid with a different density?
Good point! The specific gravity of the fluid affects the height measurement, which we’ll explore in detail later.
To summarize, a manometer uses fluid column height to gauge pressure differences. Key takeaway: higher fluid density results in lower height measurement for the same pressure difference.
Inclined Manometers
Unlock Audio Lesson
Now let’s focus on inclined manometers. Who can tell me why we might prefer to use an inclined manometer instead of a vertical one?
Is it because they can measure smaller pressure changes more accurately?
Absolutely! The inclination increases the sensitivity, making it easier to measure minor fluctuations.
How does the angle of inclination affect the readings?
The angle impacts the effective height of the column measured since the vertical component relates to pressure. You can calculate potential heights using trigonometric ratios.
Can we apply the same hydrostatic principles as before?
Yes, the basic principles remain, but the calculations will involve the sine of the angle for accurate vertical height!
In summary, inclined manometers are sensitive tools for pressure measurement, especially for small changes, with their angle of inclination being crucial for computations.
Calculating Pressure in Inclined Manometers
Unlock Audio Lesson
Let’s put our knowledge to test! Consider our inclined manometer with a deflection of 100 mm. Can anyone tell me how to derive the pressure at point A?
We need to use the specific gravity and the height in our calculations!
Correct! Given the fluid's specific gravity of 0.86 and the angle of inclination of 30 degrees, we can find the vertical height using the sine function.
So, it will be 100 mm times sine of 30 degrees?
Exactly! And then we can relate that height back to pressure in terms of mm of water.
What if we had used mercury instead of oil? The pressure would be different, right?
Yes! Using different fluids directly impacts the pressure readings due to their varying densities.
In summary, to determine pressure at point A in inclined manometers, we calculate height based on deflection and angle, adjusting for fluid density.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, we explore manometer problems, particularly focusing on inclined manometers, their design, operation principles, and key calculations to derive pressure differences. Specific focus is on practical applications, such as the analysis of gas pipelines and capillarity phenomena.
Detailed
Manometer Problems
Manometer problems are significant in fluid mechanics, particularly within the realm of fluid statics. They play a critical role in understanding how fluids behave under various conditions and are essential for pressure measurement. In this section, we dive into the workings of inclined manometers, discussing how they can be utilized to gauge pressures in connected gas pipelines.
Key Concepts:
- Manometer Basics: Manometers measure pressure differences using fluids contained within tubes, utilizing gravity to relate pressure to height differences between fluid columns.
- Inclined Manometer: We specifically examine inclined manometers which provide enhanced sensitivity for small pressure variations. The fluid’s specific gravity and the angle of inclination significantly affect readings.
- Pressure Calculations: Calculating the pressure at a point in the system by analyzing the pressures at various points within the manometer and ensuring that they satisfy hydrostatic pressure equations. A detailed example involves a 100 mm deflection in a manometer tube with oil of specific gravity 0.86, where the calculations yield pressure values in relation to atmospheric pressure.
- Capillarity and Surface Tension: The section briefly touches on capillarity where surface tension affects measurements, especially in narrow tubes, stressing the importance of tube dimensions.
Understanding these concepts is critical for engineering exams and real-world applications, as they form the groundwork for analyzing fluid systems effectively.

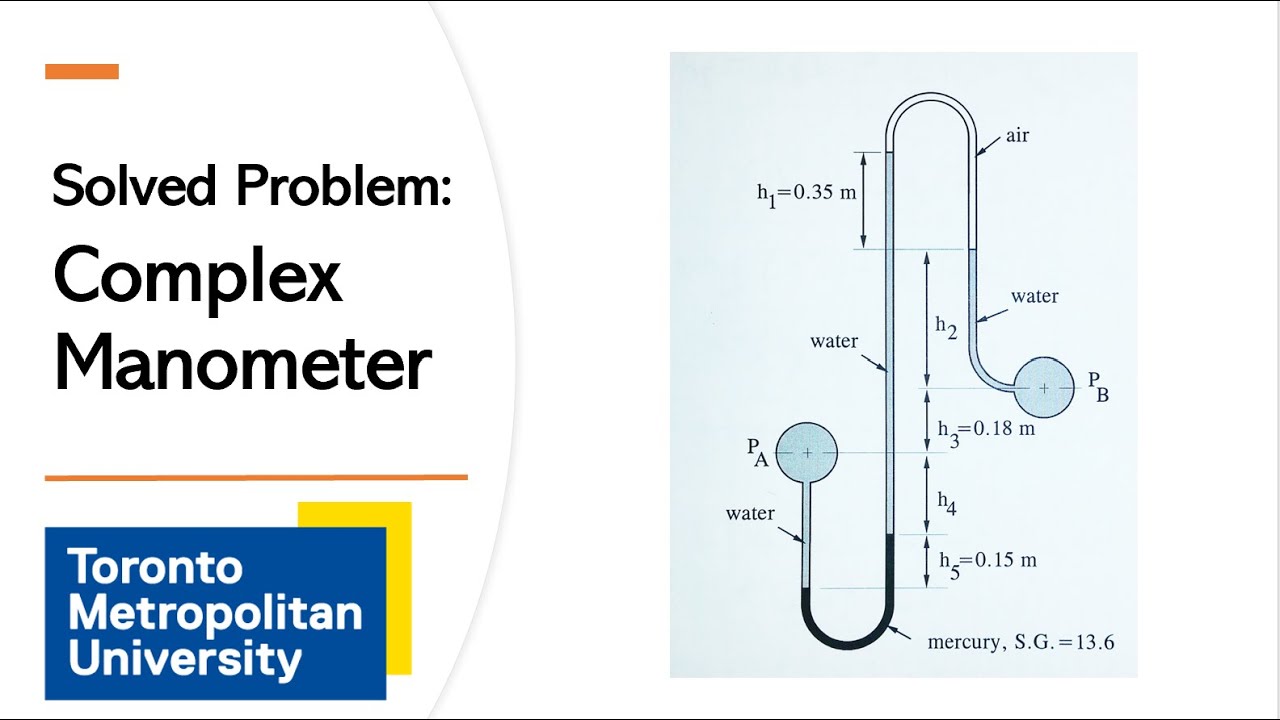

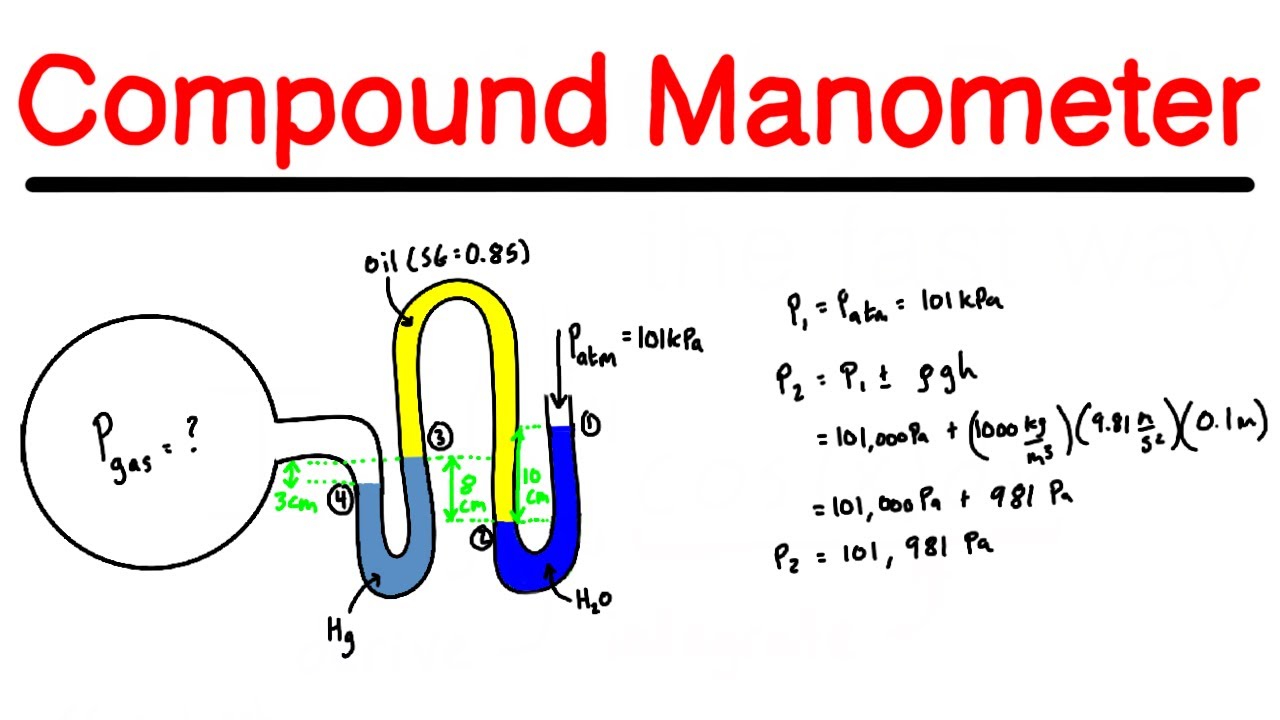

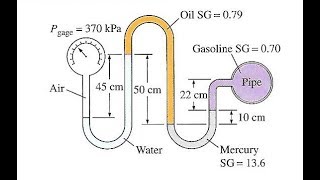

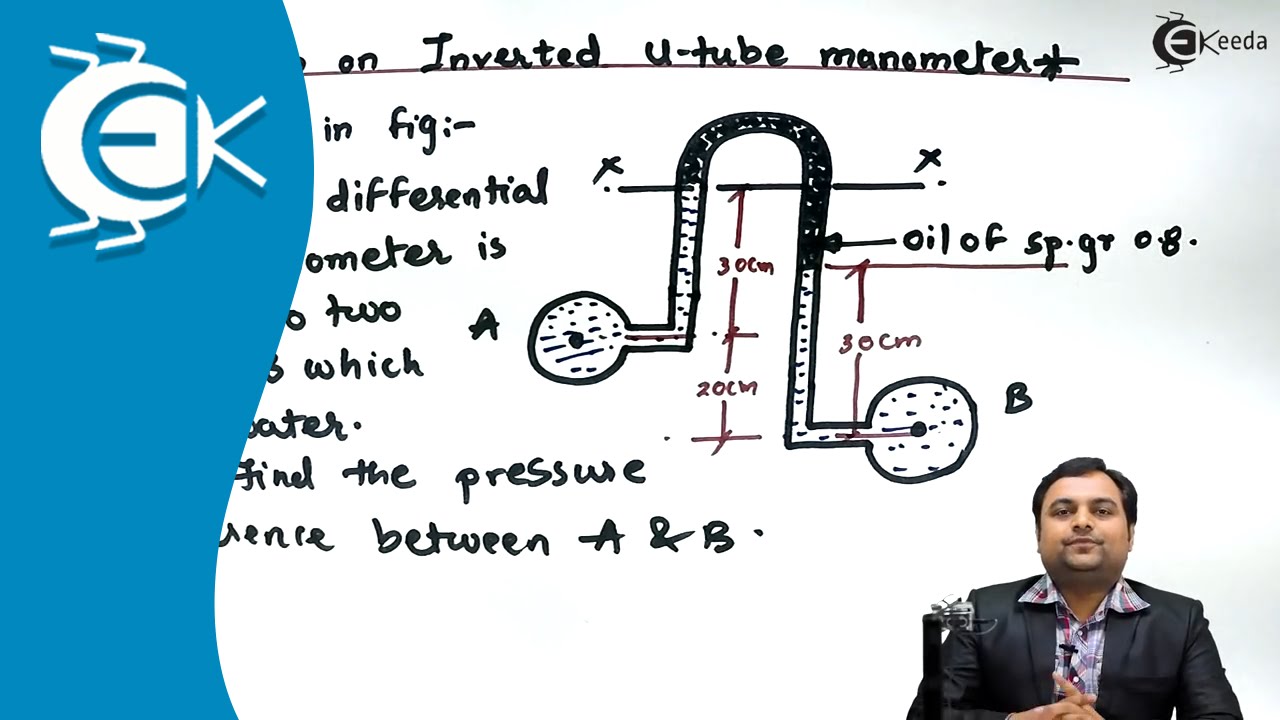

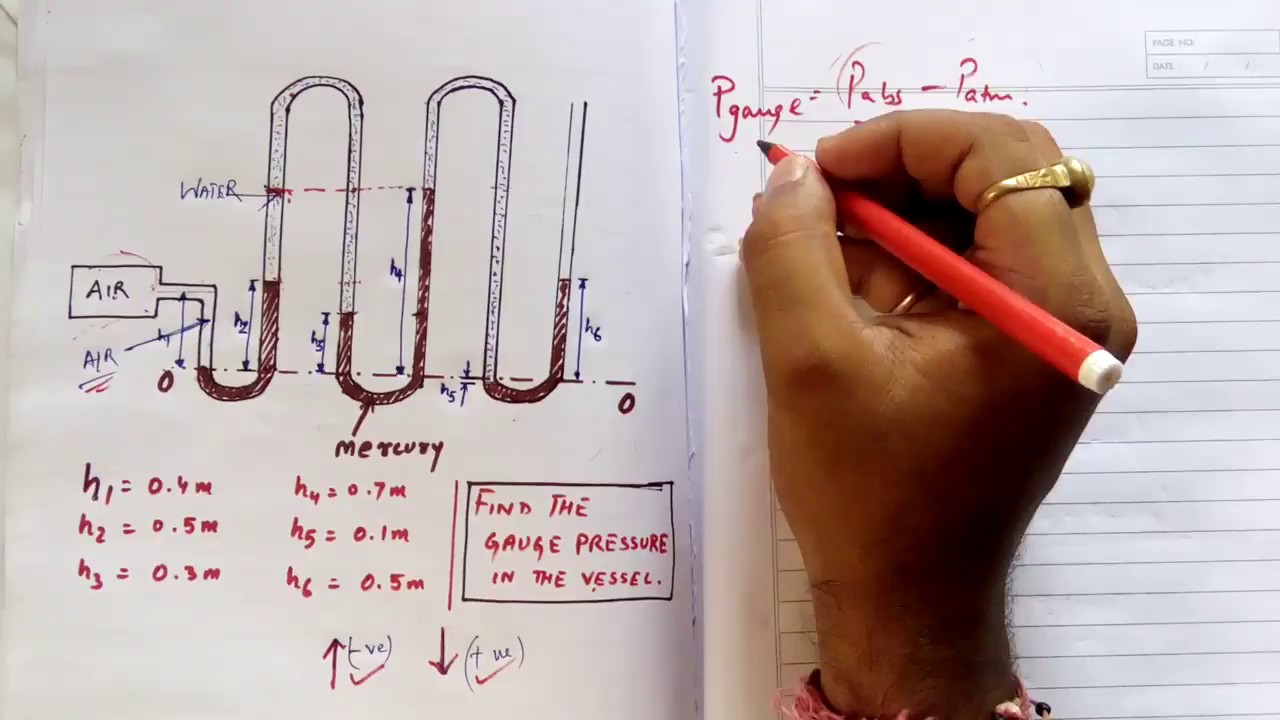

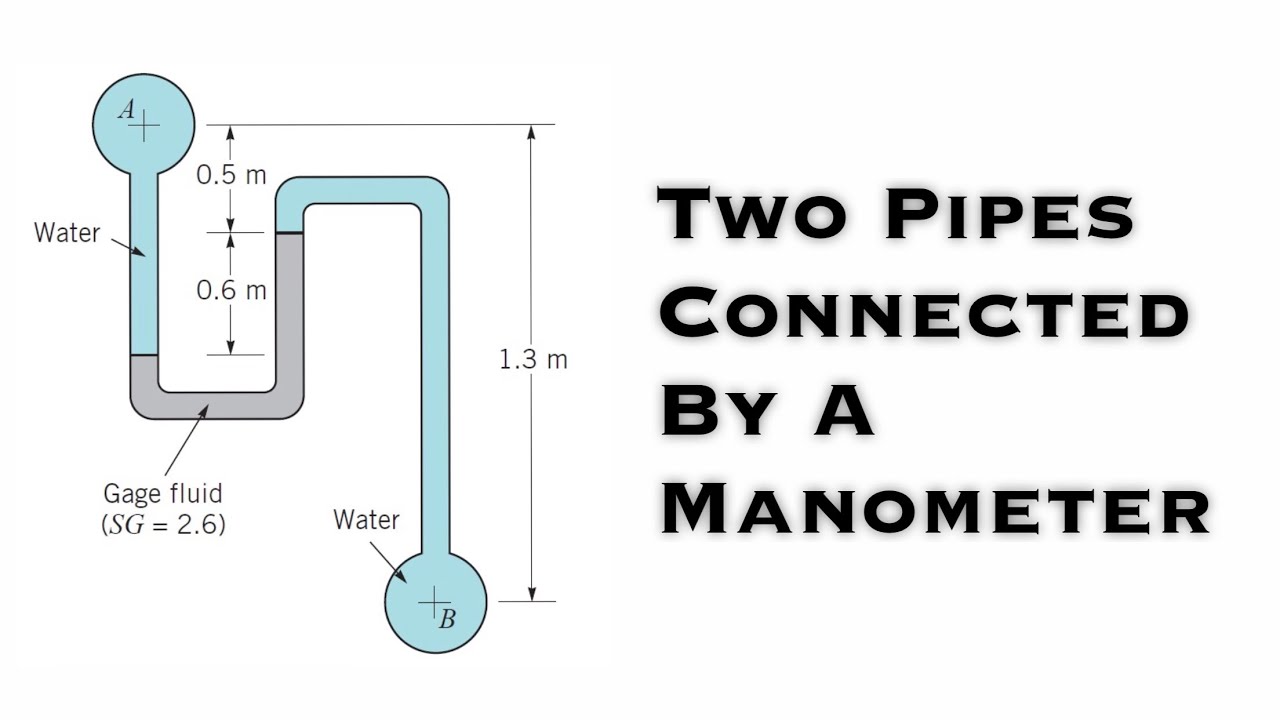

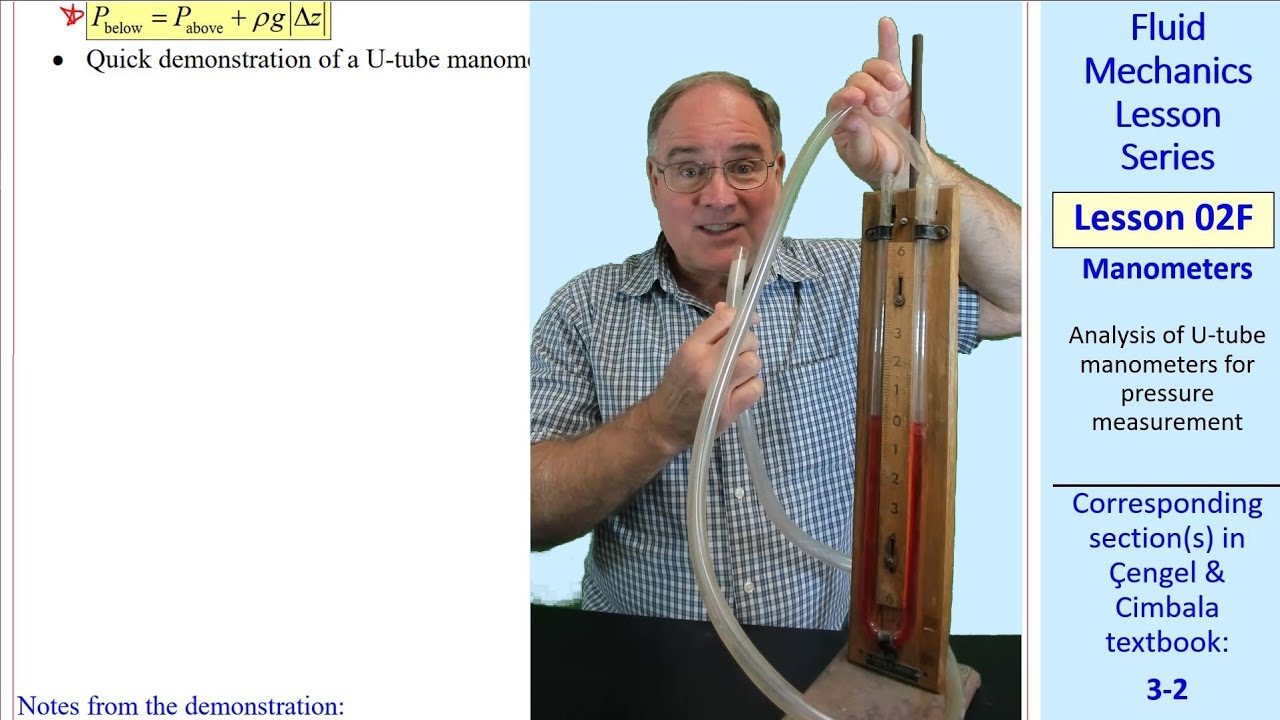

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Manometer Problems
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now let us come it to a manometer problems. So there is a inclined manometer shown in the figure below. Reservoir is large. That is the, its surface maybe assumed to be remain as a fixed elevations. A is connected to a gas pipeline. The deflection is noted on the inclined gas tube. This is what the inclined gas tube is 100 millimeters the theta the angle of inclined manometers theta equal to 30 degrees and manometric fluid as oil with a specific gravity of 0.86.
Detailed Explanation
In this section, we introduce the concept of manometers, which are devices used to measure fluid pressure. This particular example describes an inclined manometer, which is used in situations where precise measurements of pressure differences are required. The inclined manometer connects to a gas pipeline, and the angle of inclination helps in amplifying the measurable deflection, making it easier to read. The specific gravity of the oil indicates its density compared to water, which is essential for calculations involving pressure.
Examples & Analogies
Imagine you have a medical syringe filled with a fluid. If you push the plunger, you can see how far the fluid rises in the tubular part of the syringe. Similarly, an inclined manometer works by showing how a fluid rises or falls in a tube when connected to a pressure source, helping to measure that pressure accurately.
Calculating the Pressure at A
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
What is the pressure at A point which is a GATE 2004 questions. So that way let we it is a fluid in static problems. So the NCC constants fluid can consider is homogeneous. Now let us have a the assumption is that considering this manometric lake what we have that diameter should be more than 12 millimeters so that there is no capillarity effect.
Detailed Explanation
To calculate the pressure at point A in the inclined manometer, we start by considering that the manometer is in static equilibrium. We assume that the fluid inside the manometer is homogeneous and that the diameter of the manometer's legs is wide enough to avoid capillarity effects, which would otherwise affect pressure readings. The calculations involve understanding how the height of the liquid column relates to the pressure difference exerted by both the gas pressure and the atmospheric pressure acting on the fluid in the manometer.
Examples & Analogies
Think of a tall glass filled with water. If you were to place your finger over the top of the glass and lift it out quickly, the water would stay in the glass due to the pressure difference created. Similarly, in a manometer, the pressure of gas trying to escape is balanced by the pressure exerted by the height of the liquid column inside the tube.
Pressure Calculations in the Manometer
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now what I doing it to equate the pressures to compute what will be the pressures acting on this. So if you look it that there is no pressure variations between the C to A. This is the gas part. Assuming it that since the density of gas is very less. So let us assume it there is not significant difference, variations of the pressure at the P and C levels. If it is that case, the PC the pressure at these locations, we can compute it as at this point the pressure is equal to the atmosphere pressures.
Detailed Explanation
In calculating the pressures, we compare the pressure at point C (connected to the open atmosphere) with point A (connected to the gas pipeline). Since the gas has a much lower density, we can assume that pressure differences between C and A are negligible. Thus, we simplify the equation by treating the pressure at C as equal to atmospheric pressure. The height of the liquid column in the inclined manometer indicates the pressure measurement at point A relative to point C.
Examples & Analogies
Envision a balloon filled with air. The air pushes against the inner walls of the balloon, creating pressure. When you connect this balloon using a flexible tube to a manometer, the manometer tells you how much pressure the air inside the balloon is exerting, much like how point C relates to atmospheric pressure.
Final Pressure Calculation Steps
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Pressure at C, P_C = 0.86 X 100 X sin30 + P_atm = 0.86 X 50 = 43 mm of water.
Detailed Explanation
To find the pressure at point C, we can use the equation that incorporates the height of the liquid column in the inclined manometer. We first calculate the effective height contribution of the inclined manometer, which is adjusted by the sine of its angle. The specific gravity of the liquid (in this case, oil) converts the height of the liquid column into an equivalent height of water to find the pressure at point C. The final result indicates how much pressure is acting at point C when expressed in terms of millimeters of water.
Examples & Analogies
Imagine if you had two scales to measure pressure: one for liquid and one for gas. The oil in your manometer acts like the liquid scale, converting heights into a pressure reading. Just as you would measure how high a column of water is to gauge pressure, you measure the oil's height to find that pressure in relatable terms.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Manometer Basics: Manometers measure pressure differences using fluids contained within tubes, utilizing gravity to relate pressure to height differences between fluid columns.
-
Inclined Manometer: We specifically examine inclined manometers which provide enhanced sensitivity for small pressure variations. The fluid’s specific gravity and the angle of inclination significantly affect readings.
-
Pressure Calculations: Calculating the pressure at a point in the system by analyzing the pressures at various points within the manometer and ensuring that they satisfy hydrostatic pressure equations. A detailed example involves a 100 mm deflection in a manometer tube with oil of specific gravity 0.86, where the calculations yield pressure values in relation to atmospheric pressure.
-
Capillarity and Surface Tension: The section briefly touches on capillarity where surface tension affects measurements, especially in narrow tubes, stressing the importance of tube dimensions.
-
Understanding these concepts is critical for engineering exams and real-world applications, as they form the groundwork for analyzing fluid systems effectively.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
An oil-filled inclined manometer showing a deflection of 100 mm, with a specific gravity of 0.86, helps gauge gas pressures with precise readings.
-
Using mercury as a manometric fluid necessitates recalculating based on its higher density compared to water, enhancing pressure measurement accuracy.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Measure the height, feel the flow, manometer magic, watch it go.
📖 Fascinating Stories
-
Imagine a manometer as a brave knight, measuring height differences to assess the pressure of the kingdom’s liquids.
🧠 Other Memory Gems
-
P-H-S: Pressure = Height × Specific gravity is key in manometer calculations.
🎯 Super Acronyms
M-P-D
- Manometers are for Pressure Differences!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Manometer
Definition:
A device used for measuring pressure differences by evaluating the height of liquid columns.
-
Term: Inclined Manometer
Definition:
A specific type of manometer designed to enhance sensitivity for measuring smaller pressure changes through inclination.
-
Term: Hydrostatic Pressure
Definition:
The pressure exerted by a fluid at rest due to its weight.
-
Term: Specific Gravity
Definition:
The ratio of the density of a fluid to the density of a reference substance, typically water.
