Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding the Governing Equation
Unlock Audio Lesson
Today, we are discussing how we can model the response of structures to transient loads using the governing equation of motion: $$m\frac{d^2x}{dt^2} + c\frac{dx}{dt} + kx = F(t)$$. Can anyone tell me what each term represents?
The 'm' represents the mass of the structure, right?
Correct! And how about 'c'?
That's the damping coefficient, which models energy loss.
Exactly! And 'k' is the stiffness of the structure. Now, what do you think 'F(t)' represents?
It's the external forcing function, like an earthquake or wind force.
Great job! These components are essential in understanding how we predict structures' behaviors under dynamic influences.
Applying the Laplace Transform
Unlock Audio Lesson
Now, let's explore how to use the Laplace transform to simplify our governing equation. How can we transform the left side of our equation?
We apply the Laplace transform to each term in the equation!
Exactly! Let's transform the terms. The Laplace transform of the second derivative leads to $$m[s^2X(s) - sx(0) - \dot{x}(0)]$$. Can anyone explain why we have those initial condition terms?
They represent the initial displacement and velocity of the structure.
Correct! This helps us understand how the structure was set up before any loads were applied.
So, after transforming all terms, we get an algebraic equation in 's'!
Exactly! And this simplifies analysis significantly.
Finding x(t) from X(s)
Unlock Audio Lesson
Now that we have the algebraic representation $X(s)$, how do we find the displacement as a function of time, $x(t)$?
We have to use the inverse Laplace transform, right?
Correct! The inverse Laplace transform retrieves the time domain response. What are some techniques we can use to perform this inverse transform?
We can use partial fraction decomposition to break down complex fractions.
Exactly, and then apply known inverse transforms to recover $x(t)$. Why is this process important?
It allows us to understand how structures respond over time to the loads!
Great conclusion! This understanding is vital for designing infrastructures that can withstand dynamic loads.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, the use of Laplace transforms to analyze the behavior of structures under transient forces, such as earthquakes and vehicular impacts, is explored. It highlights the process of converting differential equations describing motion into algebraic equations, facilitating the determination of displacement responses over time.
Detailed
Applications in Structural Dynamics
In the realm of civil engineering, structures are frequently subjected to transient loads from various sources, including earthquake forces, wind gusts, and vehicular impacts. The governing equations that describe the motion of a structure under these dynamic loads typically take the form of a second-order linear differential equation:
Governing Equation
$$m\frac{d^2x}{dt^2} + c\frac{dx}{dt} + kx = F(t)$$
Where:
- m is the mass of the structure,
- c is the damping coefficient,
- k is the stiffness,
- F(t) is the applied time-dependent forcing function, and
- x(t) is the displacement of the structure.
To effectively analyze these equations, Laplace transforms are applied which helps in the transformation of the differential equation into an algebraic equation in the s-domain:
- Transform the Differential Equation: By applying the Laplace transform to each term, one can convert the time-dependent differential equation into a format that is easier to manipulate,
- Solve the Algebraic Equation: The resulting equation, denoted as X(s), allows for solving for the structural responses without the complications of time derivatives,
- Inverse Transform: Finally, performing the inverse Laplace transform retrieves the displacement response x(t) as a function of time.
Significance
This approach provides valuable insights into the time history response of structures, making it a critical tool in ensuring the safety and reliability of civil engineering designs. The capability to predict how structures will behave under dynamic loads is vital for designing resilient infrastructures.
Youtube Videos
![[5/8] An introduction to dynamic crowd loading | Duhamel Integral Project | DegreeTutors.com](https://img.youtube.com/vi/7EybBdpdoQs/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Modeling of Transient Loads
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

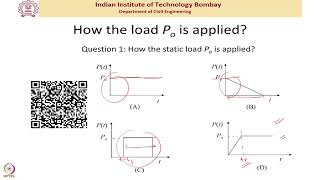

In real-world civil engineering, transient loads such as earthquake forces, wind gusts, and vehicular impact are modeled using time-dependent forcing functions.
Detailed Explanation
This chunk introduces the concept of transient loads in civil engineering—forces that vary with time, such as those caused by earthquakes or strong winds. Engineers need to understand how these loads affect structures over time, which is why they use time-dependent functions for their modeling.
Examples & Analogies
Imagine a bridge swaying during a strong windstorm. Just as a tree bends and flexes with gusts, structures must be designed to respond to changing loads. The challenge lies in predicting how the bridge will move and deflect.
Governing Equations for Structural Dynamics
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The governing equations are usually: d²x/dt² + c(dx/dt) + kx = F(t)
Detailed Explanation
This equation is known as the equation of motion for structural dynamics. Here, d²x/dt² represents acceleration, c(dx/dt) accounts for damping (resistance to motion), kx reflects the stiffness of the structure, and F(t) is the external force applied to the structure. By understanding this equation, engineers can predict how structures will behave under transient loads.
Examples & Analogies
Think of the equation as describing a car's motion: acceleration, brakes (damping), and the car's suspension system (stiffness) combine to determine how the car responds to a bump (the applied force) in the road.
Using Laplace Transforms
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Using Laplace transforms: • Turn the differential equation into an algebraic equation in s • Solve for X(s) • Invert to get displacement x(t)
Detailed Explanation
Laplace transforms allow engineers to simplify complex differential equations into algebraic equations that are easier to solve. In a step-by-step process: first, they convert the original differential equation into the s-domain using Laplace transforms. Next, they solve for X(s), which represents the displacement in this transformed domain. Finally, they invert X(s) back to the time domain to find x(t), the actual displacements over time.
Examples & Analogies
Imagine solving a maze: first, you step back, look at the maze from above (the s-domain), which makes it easier to find the path (solution). Once you have your path figured out, you can trace it back to the starting point in the maze (time domain).
Insights into Structural Response
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
This gives insight into the time history response of structures.
Detailed Explanation
By solving for the displacement x(t), engineers gain valuable insights into how a structure will respond to transient loads over time. They can track the movement of the structure and predict potential issues, such as excessive stress, deflections, or failures.
Examples & Analogies
Think of a singer hitting a high note. Their vocal cords vibrate at specific frequencies depending on the note. Engineers, too, must understand the 'response' of buildings to transient loads, similar to how a singer must understand their voice's response to different pitches to avoid straining or breaking.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Governance of motion: The governing equation involves mass, damping, and stiffness interacting with forces acting on the structure.
-
Laplace transforms: A key tool for transforming the governing equations into a solvable algebraic form.
-
Dynamic loads: Understanding how transient forces affect structural displacement is crucial for design safety.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Using the Laplace transform, the governing equation for a cantilever beam under an earthquake load can be simplified to determine its response.
-
In analyzing vehicular impact on a bridge, Laplace transforms can provide insights into the displacement and stress reaction of the structure over time.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When structures shake and shudder, Laplace helps us find the utter.
📖 Fascinating Stories
-
Imagine a bridge feeling the weight of cars, the Laplace transform helps gather the responses from afar.
🧠 Other Memory Gems
-
Governing Dynamics Might Create Force – Remember: Gravity, Damping, Motion, with Force acting on structure.
🎯 Super Acronyms
SLIDE
- Simplifying Loss under Impact Dynamics with Equations.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Transient Loads
Definition:
Sudden forces acting on structures that vary with time, such as forces from earthquakes or wind.
-
Term: Governing Equation
Definition:
Mathematical representations of physical laws applied to model the behavior of structures.
-
Term: Laplace Transform
Definition:
A mathematical operation that transforms a function of time into a function of a complex variable, s, facilitating the analysis of systems.
-
Term: Algebraic Equation
Definition:
An equation where the variables are not differentiated, allowing for easier manipulation compared to differential equations.
-
Term: Displacement
Definition:
The change in position of a structure under external loading.
