Definition of CBR
Unlock Audio Lesson
Today, we're exploring the California Bearing Ratio, or CBR. Can anyone tell me what we measure with the CBR test?
Is it the strength of the soil under a load?
Exactly! The CBR test evaluates the load-bearing capacity of the soil by comparing it to a standard crushed stone. This is crucial for determining the suitability of subgrade for pavement.
How do we express that load capacity in an equation?
Good question! The CBR is calculated as: CBR equals the load carried by the soil divided by the load carried by a standard material, multiplied by 100%. This gives us a percentage that indicates strength.
So, a CBR percentage helps us understand how strong the soil is compared to that standard?
Precisely! Why do you think knowing this value is important for engineers?
It helps in designing the right thickness for pavements, right?
Spot on! Higher CBR values allow for thinner pavements, saving materials and costs. Let’s recap: The CBR test measures subgrade strength, expressed as a percentage, and informs pavement design.
Test Procedure
Unlock Audio Lesson
Now let's talk about how we conduct the CBR test. What do you think is the first step in the procedure?
Maybe preparing the soil samples?
Correct! The soil sample must be compacted to a specific density. This ensures we get accurate, reliable results. After compaction, what’s the next step?
We use a plunger to penetrate the soil, right?
Exactly! We apply a standard plunger to penetrate the surface of the sample. This penetration will help us measure the load. What do we measure at that point?
The load at a specific depth, like 0.1 inches?
That’s right! The load applied at the set penetration depth is crucial for calculating the CBR value. Remember, the procedure also includes testing both soaked and unsoaked samples to account for moisture conditions.
Why is that important?
Excellent question! Soaked conditions help evaluate the worst-case scenario for the soil’s strength regarding water presence. Let’s recap the procedure!
CBR and Pavement Design
Unlock Audio Lesson
Finally, let's connect the dots between CBR values and pavement design. How does a CBR value influence pavement?
Higher CBR means stronger soil, which could mean thinner pavements?
Exactly! A higher CBR value indicates that the soil can support greater loads. Thus, less thickness is required for the pavement structure. Can anyone recall the implication of a low CBR value?
It means we need thicker pavements to handle the weaker subgrade.
Right! Engineers need to design pavements accordingly. Why do you think accurate CBR testing improves road maintenance?
If we know the soil's capacity, we can predict maintenance needs better?
Exactly! Knowing the soil's properties allows for proactive maintenance planning. Recap: CBR values directly impact pavement thickness and maintenance.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The California Bearing Ratio (CBR) test measures the load-bearing capacity of soil and is an essential aspect of pavement design. By comparing the strength of a soil sample to a standard crushed stone, engineers can ascertain the suitability of the subgrade, thereby allowing for more informed design choices in road construction and maintenance.
Detailed
California Bearing Ratio (CBR) Test
The California Bearing Ratio (CBR) test is a crucial evaluation used to determine the strength and load-bearing capacity of subgrade soil and unbound base/subbase materials in pavement design. This section details the CBR test's definition, procedure, and its significance in pavement engineering.
Definition
The CBR value is derived from the formula:
CBR = (Load carried by soil / Load carried by standard crushed stone) × 100%
This value provides a relative measure of the strength of the soil compared to a standard material. A higher CBR value indicates better load-bearing capacity and, consequently, a more suitable subgrade for supporting pavement structures.
Test Procedure
The CBR test involves a penetration test conducted on soaked and unsoaked soil samples:
1. Sample Preparation: The soil sample is compacted to a specified density.
2. Penetration: A standard plunger is used to penetrate the surface of the sample.
3. Load Measurement: The load at a specific penetration depth (usually 0.1 inches) is recorded.
CBR and Pavement Design
The CBR value plays a pivotal role in the empirical design of pavement thickness. It provides guidelines on the structural support required for different pavement layers. A higher CBR value correlates with a reduced requirement for pavement thickness since it indicates a stronger subgrade. Therefore, accurate CBR testing is essential for ensuring the longevity and stability of pavement structures.

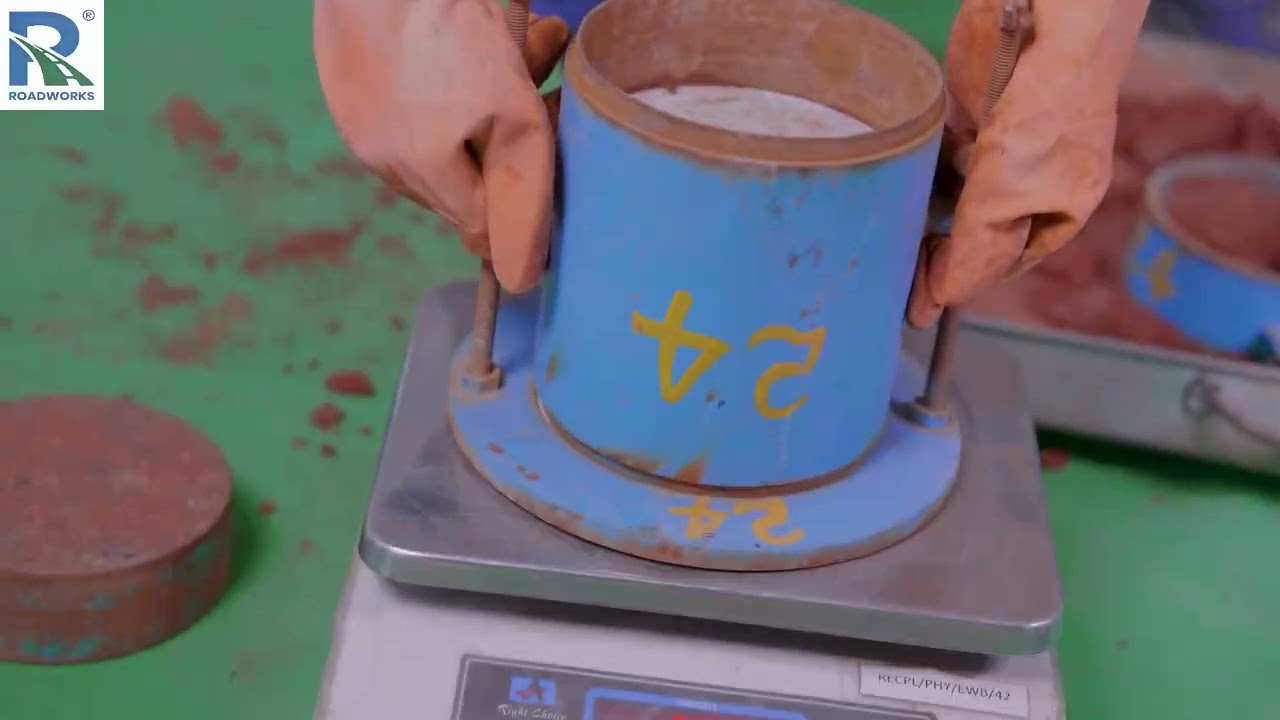

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Definition of CBR
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
CBR = Load carried by soil / Load carried by standard crushed stone × 100%
Detailed Explanation
The California Bearing Ratio (CBR) is a measure used to evaluate the strength of soil for pavement design. It is defined as the ratio of the load that the soil can carry compared to the load of a standard crushed stone. The result is then multiplied by 100 to express it as a percentage. This percentage gives engineers a quick understanding of how capable the soil is of supporting traffic loads.
Examples & Analogies
Think of it like measuring the strength of different materials to hold up a heavy table. If we compare a piece of wood (the soil) to a metal support (the crushed stone), and we find that the wood can only hold half the weight that the metal can, we can say the wood's bearing capacity is 50%. In this analogy, the CBR is the percentage that tells us how strong the soil is relative to a standard.
Test Procedure
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Penetration test conducted on soaked/unsoaked samples
Detailed Explanation
The CBR test involves a penetration test where a plunger is driven into the soil sample. This can be done on both soaked and unsoaked samples to observe how moisture affects the soil's bearing capacity. The depth of penetration and the load applied are measured, allowing engineers to calculate the CBR value based on how much load the sample can carry before failing.
Examples & Analogies
Imagine you are testing the strength of a sponge versus a brick to see how much weight each can handle before collapsing. Just like pushing a plunger into the soil, this test would reveal that the sponge squishes down with much less weight compared to the brick, helping you understand their respective strengths.
CBR and Pavement Design
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Used for empirical pavement thickness design. CBR value determines strength classification of subgrade.
Detailed Explanation
The CBR value plays a crucial role in the design of pavement thickness. It is used as a guideline to determine how thick the pavement layers need to be based on the type of load and traffic that will be on the road. A higher CBR value indicates a stronger subgrade, which can support greater loads with thinner pavement structures, while a lower CBR value might require thicker pavement to ensure durability and safety.
Examples & Analogies
Consider how the foundation of a house is built. If the ground underneath is solid and stable (high CBR), the foundation can be thinner and still support the house's weight. However, if the ground is weak (low CBR), a deeper and more robust foundation is necessary to prevent the house from settling or cracking over time. This concept applies similarly to roads, where the 'foundation' must be adequately designed based on soil strength.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
CBR Value: A percentage representing the strength of subgrade soil compared to a standard material.
-
Test Procedure: Steps involved in conducting a CBR test, including sample preparation and penetration measurements.
-
Soaked vs. Unsoaked: Comparison of soil samples tested under different moisture conditions.
-
Pavement Design: The way CBR influences the thickness and structure needed for effective pavement.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
If a soil has a CBR value of 20%, it signifies that it can support 20% of the load that a standard crushed stone can.
-
A typical design for a road in a wet area may require additional pavement thickness if the CBR of local soils tests at 5%, indicating weak subgrade conditions.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
CBR measures soil's might, a higher value means it's right!
📖 Fascinating Stories
-
Imagine laying a road on a sandy beach; the sand isn’t strong enough. Now, on a rocky path, it holds up cars! That’s the CBR change—strong rocks support better!
🧠 Other Memory Gems
-
To remember CBR steps: Prep (prepare the sample), Penetrate (use the plunger), Measure (load at depth).
🎯 Super Acronyms
CBR stands for **C**alifornia **B**earing **R**atio, reflecting how we rate soil strength in roads.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: California Bearing Ratio (CBR)
Definition:
A measure of the strength of subgrade soil, expressed as a percentage of the load-bearing capacity of a standard crushed stone.
-
Term: Subgrade
Definition:
The underlying soil layer that supports the pavement structure.
-
Term: Penetration Test
Definition:
A test to evaluate the resistance of soil against penetration by a plunger.
-
Term: Soaked Sample
Definition:
A soil sample that has been saturated with water before testing.
-
Term: Unsoaked Sample
Definition:
A soil sample that is tested in its natural moisture condition without prior saturation.
