Definition of Resilient Modulus
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we’re discussing the resilient modulus or Mr. Can anyone explain what we mean by this term?
Is it a measure of how well soil can recover after being compressed?
Exactly! The resilient modulus is indeed the ratio of repeated axial stress to recoverable strain. It's crucial for understanding the elastic behavior of soil in response to loading.
So, it’s like measuring the flexibility of the soil?
Good way to put it! We can think of it as a way to gauge how 'bouncy' the soil is. Remember, higher resilient modulus means better support for pavements!
What does that mean for practical designs in engineering?
Great question! A resilient modulus helps determine potential pavement designs and influences choices about materials and layers. It’s particularly useful in mechanistic pavement designs, where we rely on actual soil performance data.
And it’s better than just using the CBR test, right?
Correct! While CBR is widely used, resilient modulus provides a more dynamic representation of how these materials will perform in real environments. Let's keep exploring its applications!
Mathematical Representation
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s dive into the formula defining the resilient modulus. It’s expressed as Mr = σr / εr. Can anyone break this down?
Is σr the stress applied on the soil?
Right! And εr represents the recoverable strain that the soil exhibits. By measuring these, we can calculate the resilient modulus.
So, higher stress with the same strain means a higher modulus?
Spot on! This relationship shows the soil's stiffness. If we increase the stress but the strain remains low, the material is strong, and conversely, if strain increases without stress, the soil may be failing under load.
What kind of strain are we looking at?
We're focusing on recoverable axial strain, which gives us insight into how the soil behaves under cyclic loading, making this parameter very applicable in real-life scenarios!
Significance in Design
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's talk about the significance of the resilient modulus in pavement design. Why do we consider it important?
Because it tells us how well the pavement will perform with traffic loads?
Exactly! By utilizing resilient modulus values, engineers can predict pavement performance more accurately than with the California Bearing Ratio alone.
Does this mean we can design better highways?
Yes! It provides a more definitive understanding of material behaviors under various conditions, which leads to enhanced design strategies and more durable infrastructures.
How does it compare with other tests we’ve learned about?
Well, while tests like CBR assess strength, the resilient modulus gives us insight into flexibility and recovery, capturing how soils behave over time.
So, it plays a crucial role in ensuring long-lasting pavements?
Exactly, and that's why understanding resilient modulus is fundamental for all of you aspiring engineers!
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
This section elaborates on the definition of resilient modulus (Mr), emphasizing its significance in mechanistic pavement design. It explains how Mr serves as a better indicator of soil performance than traditional tests like the California Bearing Ratio (CBR), highlighting its role in assessing subgrade behavior under loading conditions.
Detailed
Resilient Modulus (Mr)
In the context of pavement engineering, the resilient modulus is a crucial parameter defined as the ratio of repeated axial stress to recoverable strain. Mathematically, this is expressed as:
\[ M_r = \frac{\sigma_r}{\epsilon_r} \]
where:
- \(\sigma_r\) is the repeated axial stress applied to the soil, and
- \(\epsilon_r\) is the recoverable axial strain resulting from that stress.
Importance in Mechanistic Design
The resilient modulus is integral in mechanistic pavement design, as it reflects the real-life elastic behavior of soil under varying loads and environmental conditions. It acts as a more accurate measure of the soil's structural capacity compared to CBR, allowing engineers to predict how well the pavement will perform over its lifespan, especially under dynamic loads such as traffic. An accurate assessment of the resilient modulus informs decisions about material selection and pavement design methodologies, crucial for ensuring longevity and serviceability of highways, roads, and other transportation infrastructures.

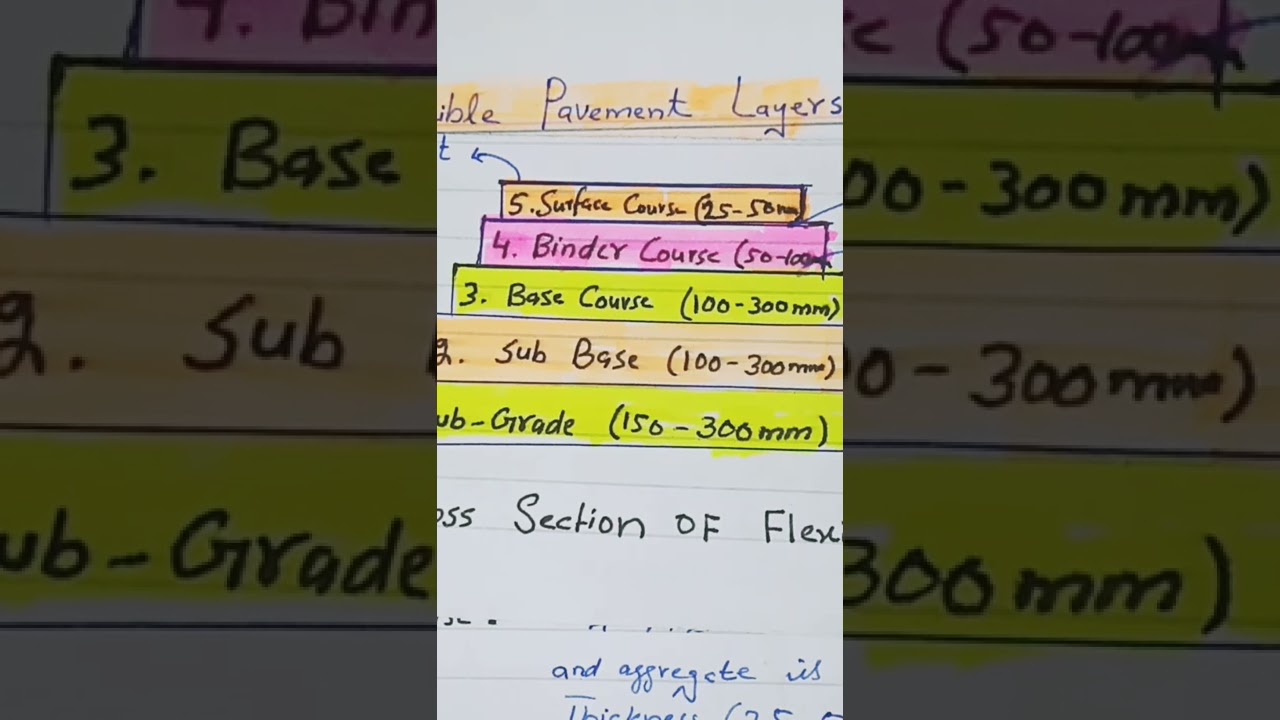

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Definition of Resilient Modulus (Mr)
Chapter 1 of 2
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The Resilient Modulus (Mr) is defined as the ratio of repeated axial stress to recoverable strain.
\[ M_r = \frac{\sigma}{\epsilon_r} \]
Detailed Explanation
The Resilient Modulus, often denoted as M_r, is a key parameter in understanding how materials behave under repeated loading conditions. It measures the material's ability to deform under stress and then return to its original shape after the load is removed. More simply, it tells us about elasticity: how flexible or stiff a soil is when forces are applied to it.
The equation \( M_r = \frac{\sigma}{\epsilon_r} \) helps us understand this relationship better: here, \( \sigma \) represents the amount of stress applied to the soil, while \( \epsilon_r \) is the recoverable strain, or how much the soil can return to its original state after the load is taken away. This ratio gives engineers a clear insight into the material's resilience under traffic loads, which is crucial for pavement performance.
Examples & Analogies
Imagine a rubber band. When you stretch it, you apply stress, and it changes shape; however, once you release it, it returns to its original shape. This behavior resembles what happens to soil under similar conditions. The Resilient Modulus helps engineers understand how different types of soil will react like a rubber band under the weight of vehicles. If a soil has a high resilient modulus, it's like a strong rubber band that doesn't stretch much when pulled; this indicates good stability for roads and highways.
Importance of Resilient Modulus in Pavement Design
Chapter 2 of 2
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The Resilient Modulus is important in mechanistic pavement design and serves as a better indicator of real-life performance when compared to California Bearing Ratio (CBR).
Detailed Explanation
In the field of civil engineering, specifically pavement design, the Resilient Modulus is a critical measure that helps predict how pavement will perform over time under repeated loads from traffic. Unlike older methods that relied heavily on the California Bearing Ratio (CBR), the Resilient Modulus provides a more comprehensive understanding of the soil's behavior under actual conditions. It accounts for the cycles of loading and unloading that pavement experiences daily, allowing engineers to create designs that are both efficient and durable over the pavement's service life.
Examples & Analogies
Think of a car driving over a bumpy road versus a smooth on-ramp. On the bumpy road, the car needs to navigate through a lot of uneven surfaces over time, akin to repeated loads on a pavement. The Resilient Modulus helps engineers analyze how well that pavement can endure repeated stress and remain stable, ensuring a smoother ride, just like you would want smooth pavement on the road!
Key Concepts
-
Resilient Modulus: A key parameter in pavement design that reflects the soil's ability to recover from stress.
-
Axial Stress: The force applied perpendicular to the material's surface, impacting how the material deforms.
-
Recoverable Strain: The deformation that can be reverted after removing the load, relevant for predicting pavement performance.
Examples & Applications
In a typical engineering scenario, the resilient modulus is measured under controlled laboratory conditions to predict how well a road will carry the weight of vehicles over time.
A soil with a high resilient modulus value indicates that it can withstand heavy loads without significant deformation, making it suitable for supporting highways.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
When stress weighs heavy, and strain must act, resilient modulus shows the soil's tact.
Stories
Once in a kingdom, a wise old wizard used a magical formula to determine how strong his roads were. He learned from the resilient modulus that some roads would last long while others would wear out quickly.
Memory Tools
Remember 'MR = stress over strain' to never forget the resilient modulus!
Acronyms
MRS - Modulus Reflects Soil behavior under load.
Flash Cards
Glossary
- Resilient Modulus (Mr)
The ratio of repeated axial stress to recoverable strain in the soil, indicating its elastic behavior under loading.
- Axial Stress
The load applied perpendicular to the cross-section of a material, resulting in deformation.
- Recoverable Strain
The portion of the total strain that can be recovered after the stress is removed, indicative of elastic behavior.
