Understanding Atterberg Limits
Unlock Audio Lesson
Today, we are going to explore Atterberg limits, which help us understand how fine-grained soils behave under different moisture conditions. Can anyone tell me what you think Atterberg limits might be?
Are they some sort of measurements related to soil moisture?
Exactly! They are used to measure moisture content and help identify when soil transitions between different states, like liquid to solid. Let's talk about the three main limits: the Liquid Limit, Plastic Limit, and Shrinkage Limit.
What is the Liquid Limit exactly?
The Liquid Limit (LL) is the moisture content where the soil changes from a plastic state to a liquid state. It indicates the point at which the soil can flow like liquid.
And how do we determine that?
Good question! We use a specific test that involves placing a soil sample in a cup and measuring the moisture content required for it to flow within a specified distance.
What comes next after knowing the Liquid Limit?
Next, we look at the Plastic Limit (PL), where soil begins to behave more like a solid than a plastic material. The difference between LL and PL gives us the Plasticity Index.
So a high Plasticity Index means the soil has a lot of moisture content?
Not quite! A high PI indicates that the soil is very plastic and subject to significant volume changes. This can be challenging for construction. Remember the acronym LL-PL=PI!
And the Shrinkage Limit?
The Shrinkage Limit (SL) is the moisture level at which soil stops shrinking when dried further. It’s essential when considering soil stability. Today we learned the three limits: LL, PL, and SL!
Application of Atterberg Limits in Engineering
Unlock Audio Lesson
Now that we've covered the Atterberg limits, how do you think they are applied in pavement engineering?
They might help determine how strong the pavement will be, right?
Precisely! The Atterberg limits help engineers predict how soils will behave under load. What happens if we have a soil with a high Plasticity Index?
It could cause problems, like cracking in pavements.
Spot on! High PI indicates expansive soil that can lead to damage over time. In contrast, soils with low PI are typically more stable and preferred for subgrades.
So, if we know our limits, we can choose the right soil for construction?
Exactly! Engineers rely on these limits to select materials that will ensure stability and durability. Now, let's summarize: what are the three Atterberg limits?
Liquid Limit, Plastic Limit, and Shrinkage Limit!
Great job! Let's keep practicing how to apply these concepts in real-world scenarios.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The Atterberg limits are essential parameters in soil mechanics that indicate the moisture content at which fine-grained soils exhibit different states of consistency: liquid, plastic, and solid. These limits help in assessing the plasticity index, which relates to the soil's behavior and suitability for construction and engineering applications.
Detailed
Detailed Summary of Atterberg Limits
The Atterberg limits are vital indicators of the consistency and behavior of fine-grained soils as they undergo changes in moisture content. These limits classify soil behavior into three key stages:
- Liquid Limit (LL): Refers to the moisture content at which the soil changes from a plastic state to a liquid state. At this point, the soil flows as a liquid.
- Plastic Limit (PL): This is the moisture content at which the soil transitions from a plastic state to a semi-solid state. Below this moisture level, the soil behaves as a rigid material.
- Shrinkage Limit (SL): This limit indicates the maximum moisture content at which the soil remains solid without any reduction in volume upon drying.
The Plasticity Index (PI), calculated as PI = LL - PL, quantifies the range of moisture content at which the soil remains plastic. A high PI typically indicates expansive soil, which is unfavorable for subgrades in pavement engineering. In contrast, soils with a low PI are generally preferred due to their stability and lower potential for volume change.

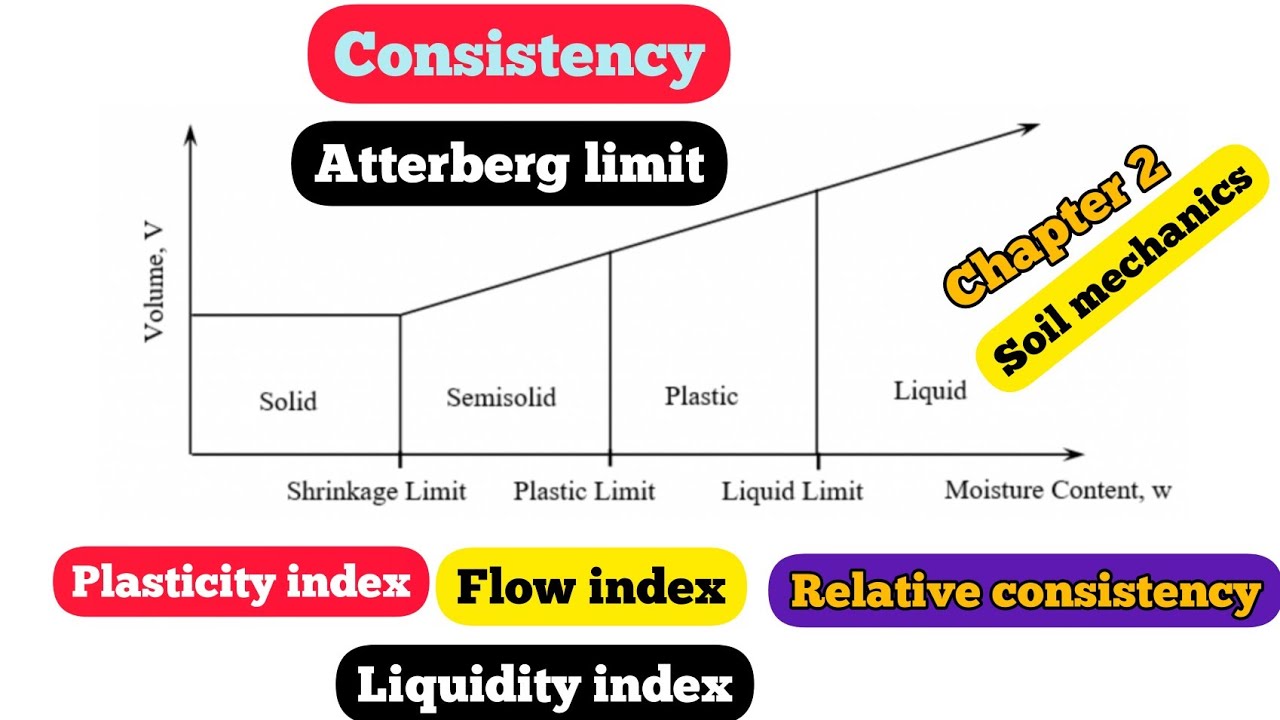

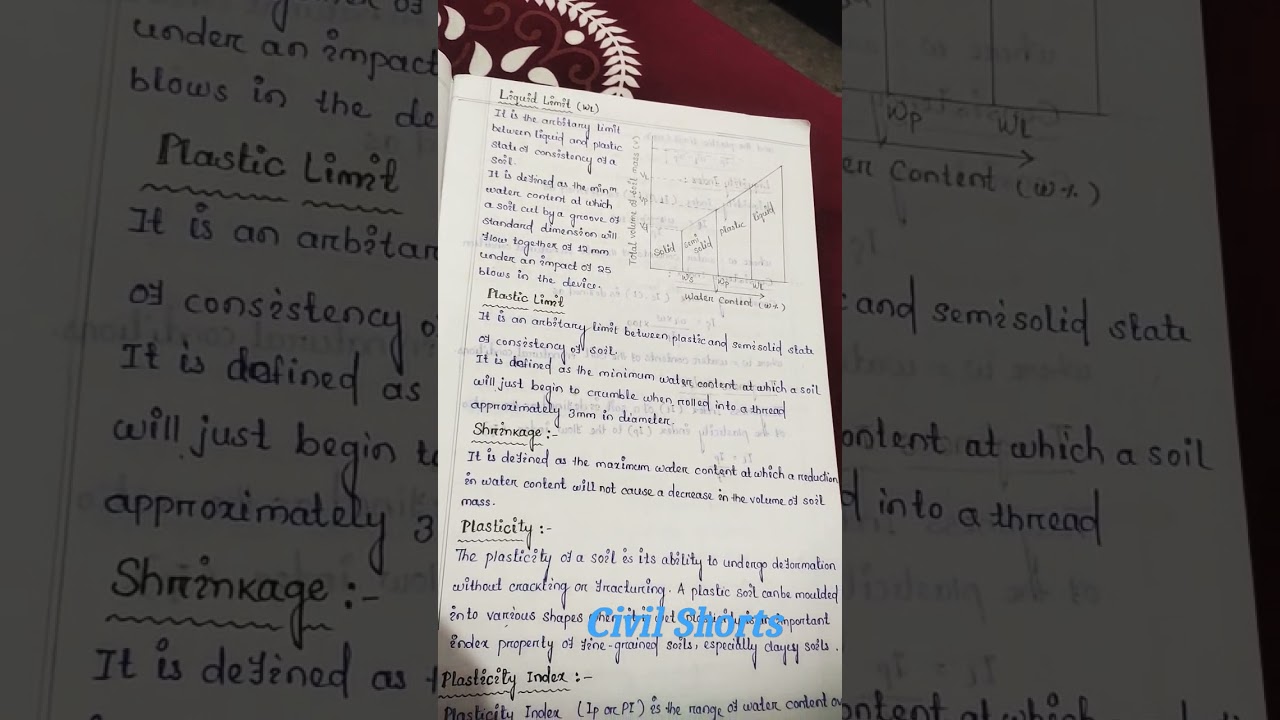

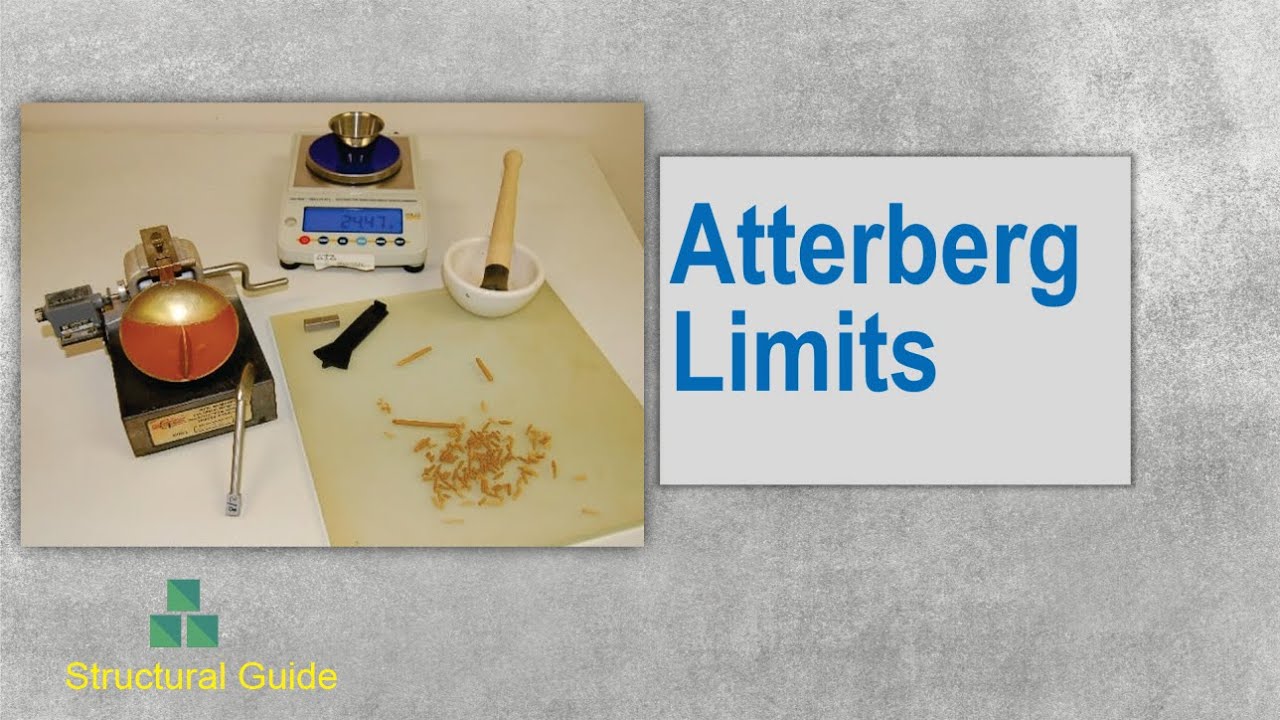

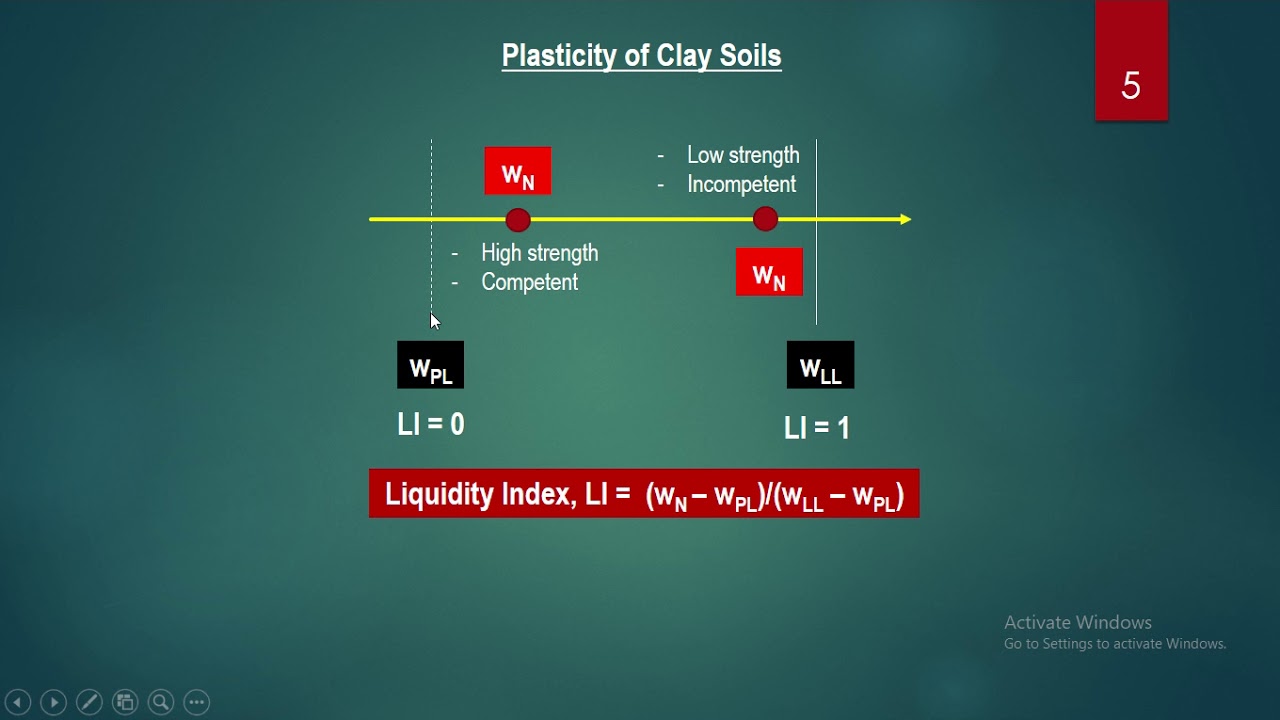

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Overview of Atterberg Limits
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Atterberg Limits describe the behavior of fine-grained soils under varying moisture.
Detailed Explanation
Atterberg Limits are crucial for understanding how fine-grained soils behave as their moisture content changes. When water is added to a soil sample, its consistency and characteristics will change. This change can be quantified using the Atterberg Limits, which identify three critical moisture content points: the liquid limit (LL), plastic limit (PL), and shrinkage limit (SL). Each of these limits denotes a different state of the soil and helps in predicting how the soil will perform under various conditions.
Examples & Analogies
Imagine a sponge. When it's dry, it crumbles; when it's soaked, it might not hold its shape. The Atterberg Limits show similar behavior in soils. By measuring the moisture levels at which a soil begins to behave like a liquid, a plastic material, or shrinks, engineers can anticipate how it will perform when it rains or dries out.
Liquid Limit (LL)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Liquid Limit (LL) is the moisture content at which soil changes from a plastic state to a liquid state.
Detailed Explanation
The Liquid Limit is a key indicator of the soil's ability to flow. Essentially, it marks the point where a soil can no longer maintain a fixed shape when pressure is applied. At this moisture content, the soil behaves like a thick liquid; it can change shape but will not hold together well enough to provide stability. Knowing the LL helps engineers understand the conditions under which the soil might fail.
Examples & Analogies
Consider making dough for cookies. If you add just the right amount of water, it will hold together perfectly (plastic stage). If you keep adding water, it turns into a soupy mess (liquid stage) that can’t hold a cookie shape. The LL is like that tipping point where the dough transitions from being moldable to being unmanageable.
Plastic Limit (PL)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Plastic Limit (PL) is the moisture content at which soil changes from a semi-solid state to a plastic state.
Detailed Explanation
At the Plastic Limit, the soil reaches a moisture content where it can be shaped like modeling clay but still retains enough cohesion to avoid falling apart. This represents the transition from dry soil that cracks when stressed to wet soil that can be molded. Knowing the PL can help in understanding the range of moisture content where the soil will remain workable and less likely to crumble or collapse.
Examples & Analogies
Think of wet clay when making pottery. When it's too dry, it won't shape well and will crack; when it's just right (the PL), it can be shaped easily. At the Plastic Limit, the clay is malleable enough to work with, similar to how soils behave at their plastic limit.
Shrinkage Limit (SL)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Shrinkage Limit (SL) is the moisture content at which further loss of moisture does not cause a decrease in the volume of soil.
Detailed Explanation
The Shrinkage Limit indicates the point at which soil can no longer shrink as it dries out. Beyond this point, when soil loses moisture, it doesn’t change volume any further because its particles are compacted together tightly. This limit is crucial for predicting how much a soil might settle or compact upon drying, affecting the stability of structures built on it.
Examples & Analogies
Imagine a sponge that, after being soaked, has reached its maximum absorbency. Once it’s fully absorbed, squeezing out more water doesn’t change its size. The Shrinkage Limit works similarly for soil — it's the point beyond which removing moisture won't reduce its size anymore.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Atterberg Limits: Defined as the Liquid Limit, Plastic Limit, and Shrinkage Limit, which help classify soil behavior under varying moisture content.
-
Plasticity Index (PI): A crucial measure in assessing soil behavior, calculated as LL - PL.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A soil with a Liquid Limit of 45% and a Plastic Limit of 20% has a Plasticity Index of 25%, indicating it may exhibit significant volume change when moisture levels fluctuate.
-
When designing a road in an area with high PI clay, engineers might consider using drainage systems to cope with potential swelling and shrinking.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
From liquid to solid, we’ll take a ride; LL, PL, SL, it’s the Atterberg guide.
📖 Fascinating Stories
-
Imagine a river (Liquid Limit), a mud pie (Plastic Limit), and a dried-up lake (Shrinkage Limit), showing the journey of soil from wet to dry.
🧠 Other Memory Gems
-
Remember the acronym 'LPS' for the order: Liquid, Plastic, Shrinkage.
🎯 Super Acronyms
Use 'L-P-S' as a reminder for the three Atterberg limits
- Liquid Limit
- Plastic Limit
- and Shrinkage Limit.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Liquid Limit (LL)
Definition:
The moisture content at which soil changes from a plastic state to a liquid state.
-
Term: Plastic Limit (PL)
Definition:
The moisture content at which soil transitions from a plastic state to a semi-solid state.
-
Term: Shrinkage Limit (SL)
Definition:
The moisture content at which soil remains solid without volume change upon drying.
-
Term: Plasticity Index (PI)
Definition:
The difference between the Liquid Limit and Plastic Limit; indicates soil plasticity.
