2.5 - Permeability and Drainage
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Darcy's Law
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we will explore Darcy's Law, which is essential for understanding how water flows through soil. Can anyone tell me what Darcy's Law states?
Isn’t it something about water flow through soil?
Exactly! Darcy's Law is expressed as q = k·i·A. Here, 'q' is the discharge or flow rate, 'k' is the coefficient of permeability, 'i' is the hydraulic gradient, and 'A' is the cross-sectional area. Let's remember the formula as ‘Quick Kids Access Water’. What do you think each part of the formula represents?
'Quick' for discharge, 'Kids' for coefficient of permeability?
Right! And ‘Access Water’ stands for hydraulic gradient and area. This helps us connect the concept easily.
So, if 'k' is higher, does that mean more water flows through?
Exactly, great observation! Higher permeability means faster water flow through the soil.
To summarize, Darcy's Law helps us understand water movement in soil and its parameters.
Factors Affecting Permeability
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Next, let’s talk about the factors that affect permeability. Who can name one?
I think grain size matters, right?
Absolutely! Larger grain sizes lead to a higher permeability because they create larger voids. And what about the void ratio, how does that affect it?
More voids might mean more space for water to flow through?
Exactly! A higher void ratio generally increases permeability. What about fluid viscosity? How does that come into play?
Thicker fluids don't flow as easily, right?
Precisely! Higher viscosity fluids will slow down the flow, making low-viscosity fluids preferable to speed up drainage.
To recap, grain size, void ratio, and fluid viscosity are crucial factors impacting soil permeability.
Importance in Pavement Design
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let's connect our understanding of permeability to pavement design. Why is knowing about soil permeability critical for engineers?
It might affect how water drains under the pavement?
Exactly! High-permeability soils help drain water away, reducing excessive pore pressure that can cause pavement failure. What about low-permeability soils?
They must hold water, which can weaken the pavement?
Spot on! Looking at clayey soils—those have a low permeability and can trap water, reducing strength. Why would that matter during design?
Because they can lead to cracking or other damages in pavements?
Exactly! It is crucial for engineers to choose suitable materials based on their permeability characteristics to ensure the stability and durability of roads and airfields. To summarize, understanding soil permeability helps in making informed design choices that prevent drainage-related issues in pavement projects.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
Understanding permeability and drainage is vital in transportation engineering as they directly influence water flow through soils. Factors such as grain size and soil structure affect permeability, which is governed by Darcy's Law, and it plays a crucial role in pavement design by preventing water accumulation that can weaken the soil structure.
Detailed
In the realm of engineering characteristics of soils, permeability and drainage are critical for managing groundwater and ensuring the stability and longevity of pavement structures. Darcy's Law, articulated mathematically as q = k·i·A, helps describe the flow of water through soil layers, where 'k' represents the coefficient of permeability. Key factors affecting permeability include grain size (larger grains facilitate higher flow rates), void ratio (more voids within soil can increase drainage), fluid viscosity (thicker fluids flow slower), and overall soil structure. The implications of soil permeability in pavement design are significant; soils with high permeability allow efficient water drainage, reducing pore water pressures that can cause structural damage. In contrast, low-permeability soils, like clays, tend to trap water, potentially leading to decreased strength and durability of pavement systems.

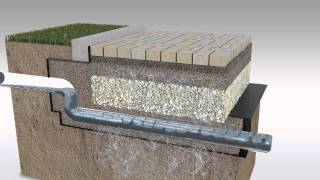

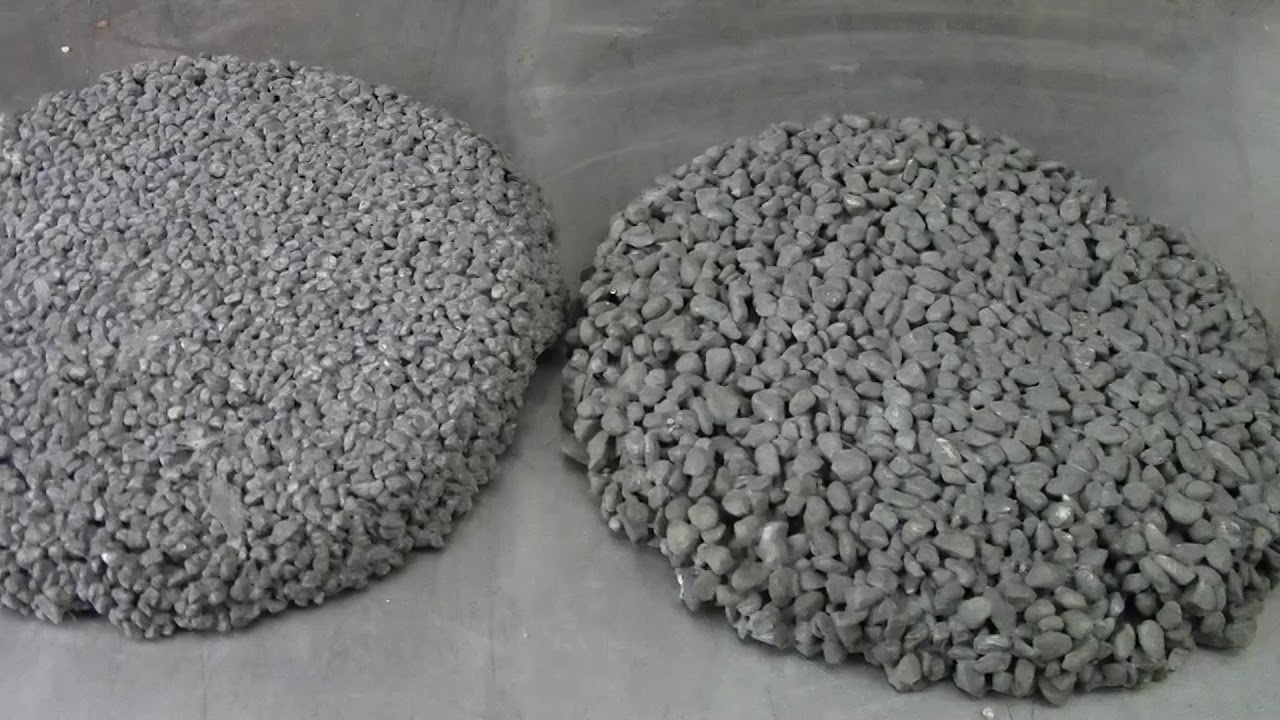

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Darcy’s Law
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Darcy’s Law
- Governs flow of water through soil
- q=k⋅i⋅A, where k = coefficient of permeability
Detailed Explanation
Darcy's Law is a fundamental equation used to describe how water moves through soil. In this law, 'q' represents the flow rate of water, 'k' is the coefficient of permeability which indicates how easily water can flow through the soil, 'i' is the hydraulic gradient (the change in water level over a distance), and 'A' is the cross-sectional area through which water is flowing. Essentially, Darcy's Law shows that the flow of water is directly proportional to the permeability of the soil and the hydraulic gradient.
Examples & Analogies
Imagine trying to pour water through a sponge and a rock. The sponge, with its many openings, allows water to flow easily through it, similar to soil with high permeability. Conversely, the rock represents soil with low permeability; water will trickle out very slowly. Darcy's Law helps us predict how quickly and easily water can move through different types of soil.
Factors Affecting Permeability
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Factors Affecting Permeability
- Grain size, void ratio, fluid viscosity, soil structure
Detailed Explanation
The permeability of soil is influenced by several key factors. First, the grain size dictates how easily water can pass between particles; larger grains usually allow for higher permeability. Second, the void ratio, which is the ratio of voids (spaces between particles) to solids in the soil, affects how much water can flow through. A higher void ratio means more space for water flow. Third, the viscosity of fluid, or how thick the water is, influences its movement—thicker fluids flow slower. Lastly, soil structure, which refers to how soil particles are arranged, can either facilitate or hinder water flow through the soil.
Examples & Analogies
Think of a highway filled with different types of potholes. If you had a pothole filled with gravel (large grains) and another filled with mud (small grains), you would find that water drains much faster through the gravel. Similarly, in construction or landscaping, if soil is very compact (low void ratio), it won't drain well, which can lead to pooling water—akin to how a clogged drain fails to let water flow freely.
Importance in Pavement Design
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Importance in Pavement Design
- High permeability soils allow water to drain, reducing pore pressure and damage
- Clayey soils (low permeability) retain water → reduced strength
Detailed Explanation
Understanding permeability is crucial for pavement design because it directly impacts how water interacts with the underlying soil. Soils with high permeability can drain water efficiently, which leads to reduced pore water pressure. This reduction in pressure minimizes the risk of damage to structures like pavements during wet conditions. On the other hand, clayey soils, known for their low permeability, tend to retain water. This retention can lead to increased pore pressure within the soil, weakening its overall strength and stability, which can ultimately cause pavement failures.
Examples & Analogies
Consider a sponge versus a brick. If it rains and both are outdoors, the sponge (high permeability) will quickly release water, while the brick (low permeability) will soak up moisture without letting it go. In this analogy, a well-designed pavement structure needs the sponge properties to effectively handle stormwater, preventing issues like cracking or undermining—the same way a road with good drainage can handle rain without damage, while a road built on clay might buckle and crack.
Key Concepts
-
Darcy's Law: A fundamental understanding of water flow in soils.
-
Coefficient of Permeability: Determines how quickly water can move through soil.
-
Hydraulic Gradient: Affects the rate of flow based on elevation differences.
-
Factors Affecting Permeability: Grain size, void ratio, and fluid viscosity.
Examples & Applications
Sandy soils have higher permeability compared to clayey soils due to larger particle size and void ratio.
A drainage layer composed of gravel allows for quick removal of water from a construction site to support foundation stability.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Water flows through sand, quick and grand; clay's a trap, it holds that flap.
Stories
Imagine a sandy beach where water drains fast after a rain, compared to a clay-filled forest that keeps the water and makes puddles last.
Memory Tools
For Darcy's Law, remember 'Quick Kids Access Water'.
Acronyms
e.g. KIV (K = permeability, I = hydraulic gradient, V = volume area) to remember key parts of Darcy's calculation.
Flash Cards
Glossary
- Darcy's Law
A principle that describes the flow of water through soil, represented as q = k·i·A.
- Coefficient of Permeability
A measure of a soil's ability to transmit water, indicated by 'k' in Darcy's Law.
- Hydraulic Gradient
The slope of the water table; represents the change in water head per unit distance.
- Void Ratio
The ratio of the volume of voids to the volume of solid particles in a soil sample.
- Viscosity
A measure of a fluid's resistance to flow; higher viscosity fluids flow slower.
