2.6.1 - Mohr-Coulomb Failure Criterion
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to the Mohr-Coulomb Criterion
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today we will explore the Mohr-Coulomb failure criterion. Can anyone tell me what they think shear strength of soil means?
Is it how well the soil can resist sliding under loads?
Correct! Shear strength is vital for determining the ability of soil to support structures. The Mohr-Coulomb criterion provides a formula to calculate this strength.
What are the main factors that affect this shear strength?
Great question! The formula incorporates cohesion $c$ and the angle of internal friction $\phi$. We're going to look deeper into these terms.
How do cohesion and internal friction relate to the type of soil?
Cohesion relates to how particles stick together, while internal friction depends on particle interlock. For instance, clay has higher cohesion compared to sandy soils.
So, higher cohesion means better stability?
Exactly! In summary, the Mohr-Coulomb criterion shows that higher shear strength can significantly improve soil stability, which is crucial in civil engineering projects.
Understanding Cohesion and Internal Friction
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's discuss cohesion $c$ first. Who can remember how we define it in terms of soil mechanics?
Cohesion is the force that holds soil particles together, right?
Exactly! Now, what about the angle of internal friction $\phi$? How does it affect our calculations?
Isn’t it related to the soil type? Like, sand has less internal friction compared to clay?
Yes! The internal friction helps us understand how easily a soil can slide over itself. For instance, angular particles would have a higher angle compared to rounded ones.
So how do we measure these properties?
Typically, we use shear tests like the direct shear test or triaxial tests to determine these values in the laboratory.
Applications of the Mohr-Coulomb Criterion
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let's consider why knowing the Mohr-Coulomb criterion is essential. Can anyone think of a practical application?
In designing pavements, right? We need to know the soil's strength to support the structure.
Correct! In pavement design, if the shear strength is insufficient, we may need to stabilize the soil, which can include methods like mechanical mixing or using additives.
What happens if we ignore these properties?
Ignoring them may lead to structural failures like cracking or even catastrophic collapses. Good soil assessment is key.
So, understanding these concepts helps not just in design but also in preventing future issues?
Exactly! Always remember that effective soil management is crucial for infrastructure longevity. In conclusion, the Mohr-Coulomb failure criterion allows us to predict and enhance soil stability, which is essential for safe construction.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
This section outlines the Mohr-Coulomb failure criterion, which provides a formula to predict the shear strength of soils. It defines the parameters of cohesion and internal friction angle, both crucial for understanding soil behavior under load, especially in transportation engineering.
Detailed
Detailed Summary of Mohr-Coulomb Failure Criterion

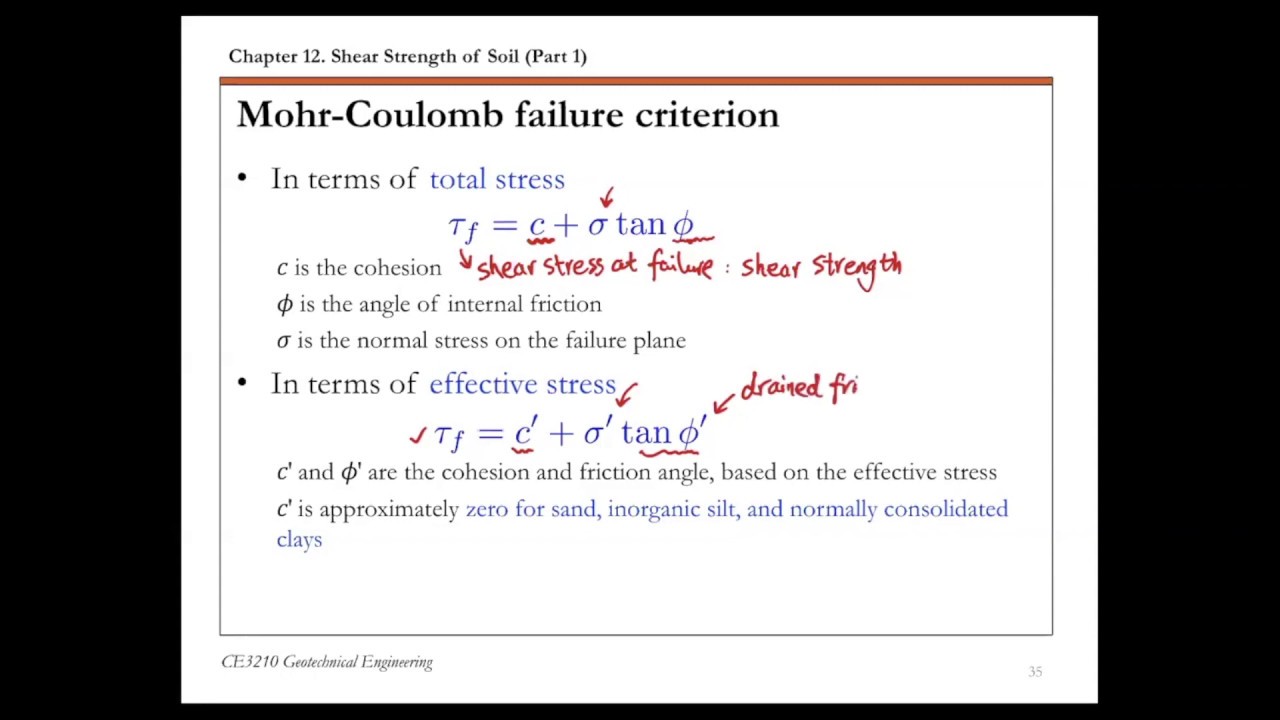

The Mohr-Coulomb failure criterion is a fundamental principle in soil mechanics that establishes a linear relationship between shear strength, effective stress, and soil properties. This criterion is represented mathematically by the equation:
$$\tau = c + \sigma \cdot \tan(\phi)$$
Where:
- $\tau$ is the shear strength of the soil,
- $c$ is the cohesion, which is the intercept value when the normal stress is zero,
- $\sigma$ is the normal stress, and the angle of internal friction $\phi$ defines the soil’s resistance to sliding based on its internal structure.
This relationship is significant for predicting the stability and load-bearing capacity of soil in various constructions, including roadways and buildings. Understanding cohesion and the angle of internal friction is critical, as high shear strength generally indicates good load-support capacity while low shear strength may necessitate stabilization techniques.

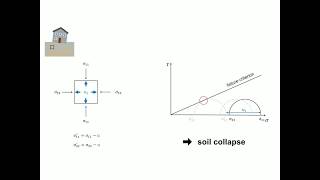

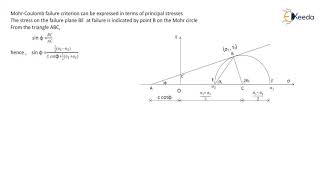

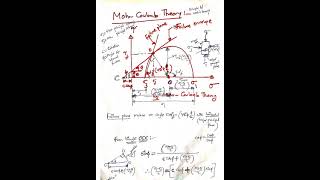

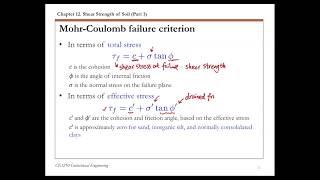

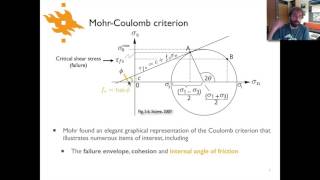

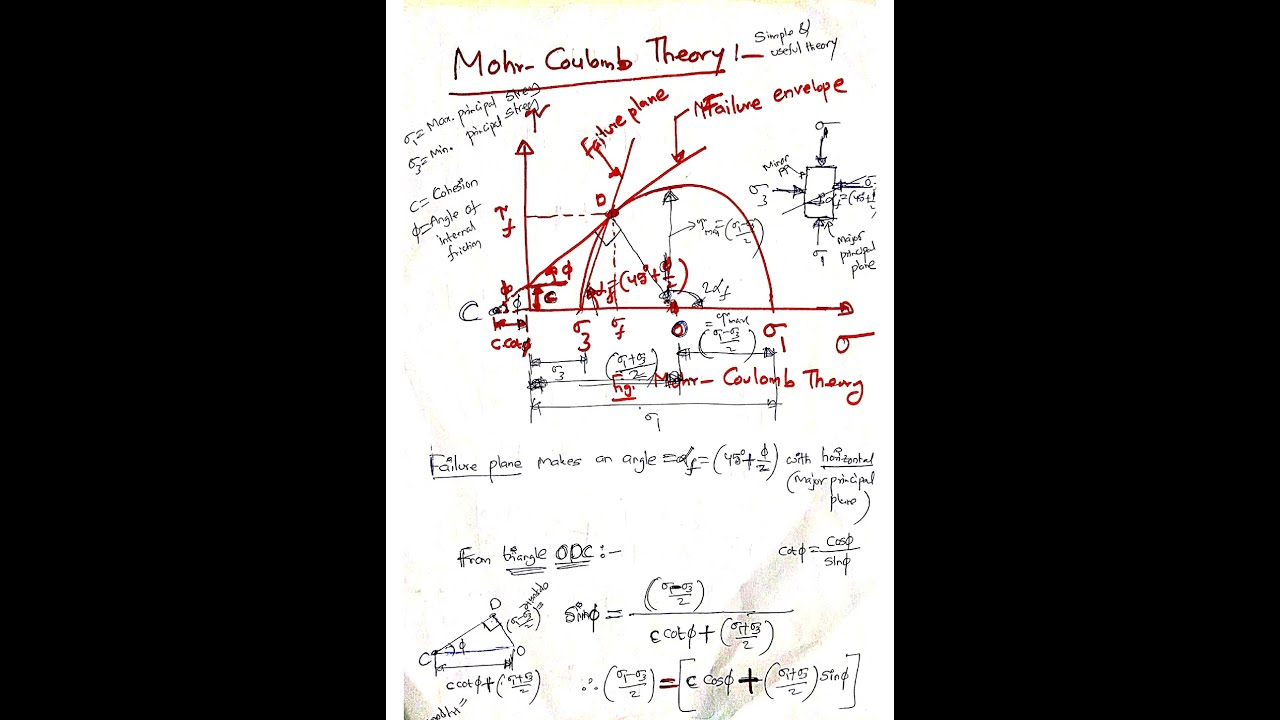

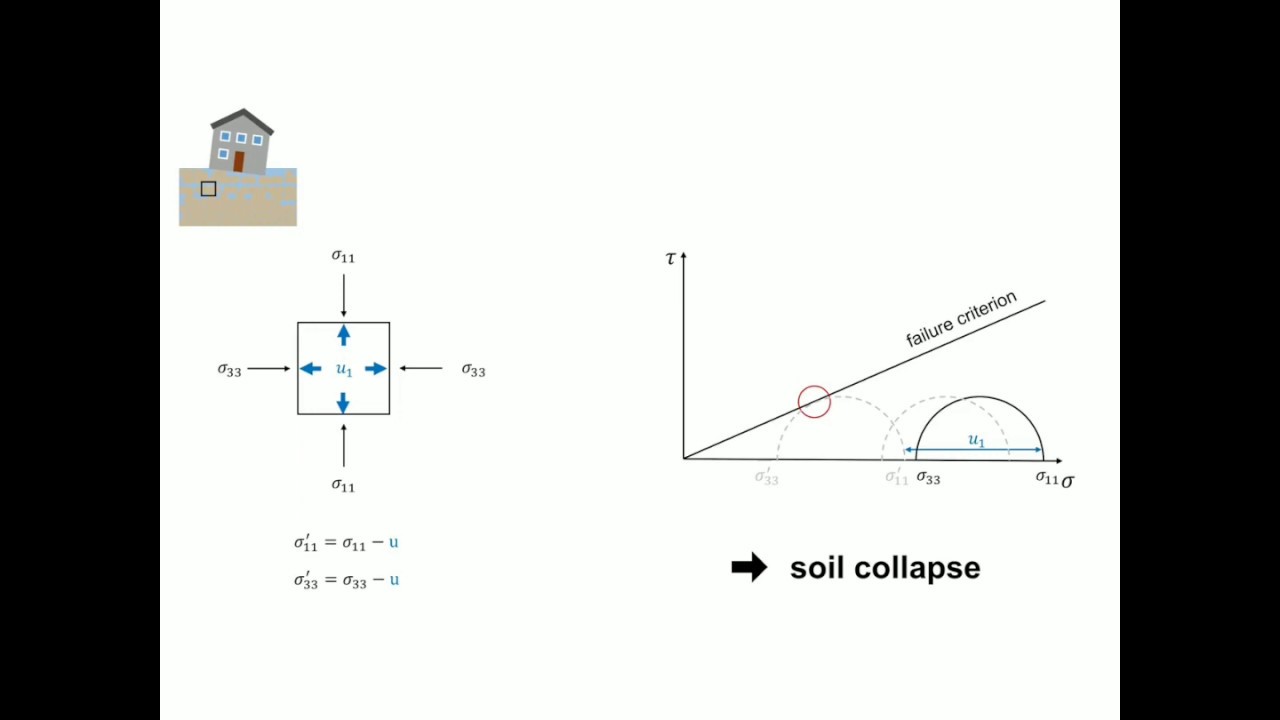

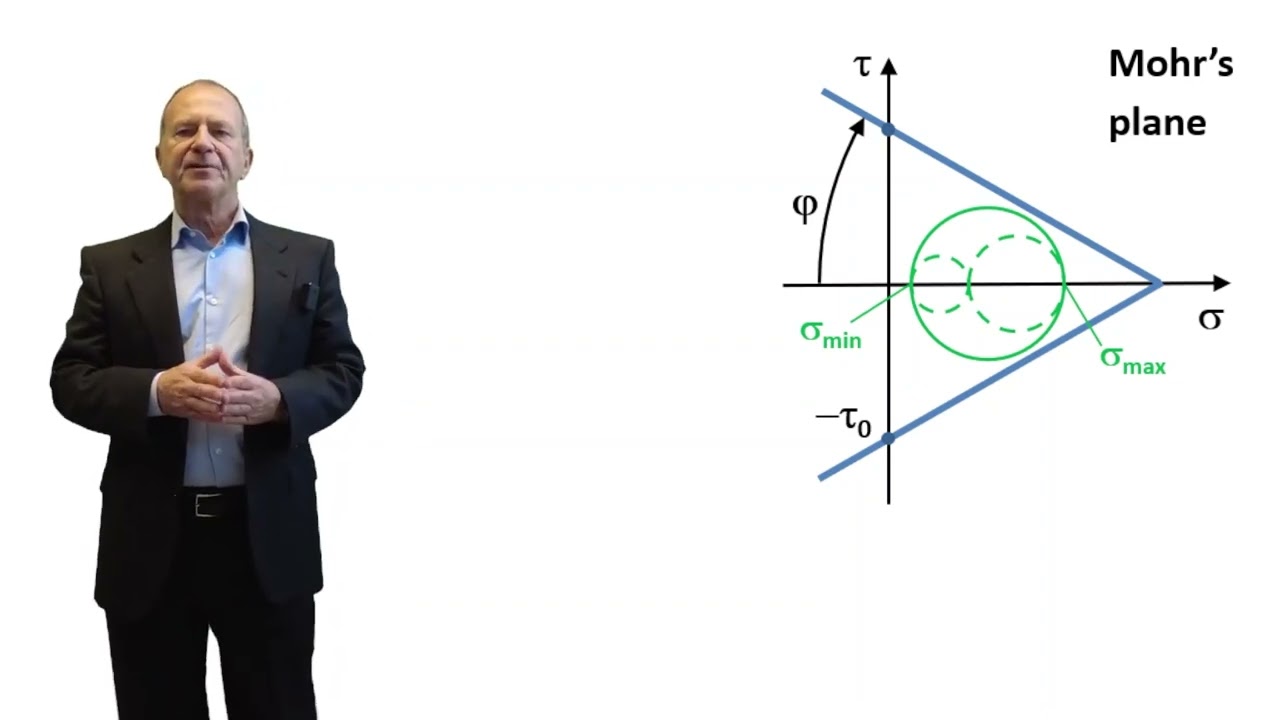

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Overview of the Mohr-Coulomb Failure Criterion
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The Mohr-Coulomb Failure Criterion is expressed mathematically as τ = c + σ ⋅ tan(ϕ).
Detailed Explanation
The Mohr-Coulomb Failure Criterion is a fundamental concept in soil mechanics that describes how soil behaves under shear stress. The equation consists of two main components: τ (shear strength), which is the resistance of soil to sliding along a failure plane, and σ (normal stress), which is the stress acting perpendicular to that plane. The term c represents the cohesion of the soil, indicating how well soil particles stick together, while ϕ (phi) is the angle of internal friction, which describes how much resistance soil provides when under stress due to friction between the particles.
Examples & Analogies
Imagine a stack of books on a table. The normal stress is the weight of the books pushing down on the table (which is like the normal stress on a soil layer). The cohesion is likened to glue holding some of the books together, preventing them from slipping. The angle of internal friction is similar to the roughness of the table surface that helps resist the sliding of the books when someone tries to push them. Together, just as with the books, these factors affect how likely the soil will slide or fail under applied loads.
Components of the Mohr-Coulomb Equation
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
In the equation, c is the cohesion and φ is the angle of internal friction.
Detailed Explanation
The two critical components of the Mohr-Coulomb equation are cohesion (c) and the angle of internal friction (ϕ). Cohesion refers to the attractive forces between soil particles that help hold them together, which is particularly significant in clay soils. On the other hand, the angle of internal friction reflects the resistance to sliding due to the roughness and interlocking of soil grains, often more dominant in sandy soils. When engineers analyze soil for stability, they calculate these values to predict how the soil will behave under different loading conditions.
Examples & Analogies
Think of cohesion as the sticky notes used to keep pages attached in a notebook. The sticky note is effective (high cohesion) when it’s moist, just as moist clay has high cohesion. Meanwhile, the angle of internal friction is like the amount of grip you have when holding onto a rope. If the rope is rough (high ϕ), it won’t slip easily. Understanding how these properties interact helps engineers ensure structures, such as roads or buildings, remain stable.
Significance in Engineering Applications
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The Mohr-Coulomb Failure Criterion plays a crucial role in assessing the shear strength of soils for various engineering applications.
Detailed Explanation
This criterion is vital for engineers, especially in geotechnical and civil engineering, as it helps determine the stability of soil structures. For example, when designing foundations, slopes, or earth-retaining structures, engineers must understand how soil will respond to loads and environmental changes. Using the Mohr-Coulomb criterion, they can calculate the maximum loads a structure can handle before the soil fails, preventing potential disasters like landslides or foundation failures.
Examples & Analogies
Consider the design of a dam. Engineers need to know how much water the dam can safely hold without causing the soil below to slide and fail. By applying the Mohr-Coulomb criterion, they can determine how much pressure the soil can withstand given its cohesion and friction angle, ensuring the dam remains stable under various conditions, much like ensuring a shelf can hold a certain amount of weight without collapsing.
Key Concepts
-
Mohr-Coulomb Criterion: A formula used to determine the shear strength of soils based on cohesion and internal friction.
-
Shear Strength: The resistance of soil to shear loading, crucial for stability in construction.
-
Cohesion: A key factor that quantifies how well the particles of soil stick together.
-
Angle of Internal Friction: A measure of the sliding resistance of soil, based on its structure.
Examples & Applications
In a construction project, if engineers determine that the shear strength of the soil using the Mohr-Coulomb criterion is below the threshold, they may recommend stabilizing the site with chemical additives.
A highway embankment built in a clayey area requires understanding several soil mechanics concepts, including cohesion and angle of internal friction to safely distribute the load.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
In soils where sliding's a fright, cohesion and friction hold tight.
Stories
Imagine a sandcastle built on the beach. It stands as long as the sand particles stick together; otherwise, waves will wash it away, illustrating cohesion and friction.
Memory Tools
CIF - Cohesion, Internal Friction, and the friction angle helps you recall the parameters for the Mohr-Coulomb criterion.
Acronyms
MCS - Mohr-Coulomb Shear.
Flash Cards
Glossary
- Shear Strength
The maximum resistance of soil to shearing forces.
- Cohesion (c)
The component of shear strength that is independent of the normal stress applied.
- Angle of Internal Friction (φ)
The angle at which soil particles tend to slide upon each other.
- Effective Stress
The stress that contributes to the strength of the soil.
