Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Compaction vs. Consolidation
Unlock Audio Lesson
Today, we’ll dive into two crucial concepts: compaction and consolidation. Can anyone tell me the difference between these two processes?
Isn't compaction about making the soil denser?
Exactly, Student_1! Compaction involves densifying soil by removing air. Whereas consolidation is a slow change over time as water moves out from the soil. Both are essential in understanding soil behavior for pavement design.
So does that mean compaction happens right away?
Good point, Student_2! Yes, compaction happens quickly compared to consolidation, which can take days or even months. Remember: 'Compaction quick, consolidation stick!'
Proctor Tests in Soil Compaction
Unlock Audio Lesson
Next, let’s discuss the Proctor tests. Who can explain what the Standard Proctor test evaluates?
It measures the maximum dry density of soil at different moisture contents, right?
Exactly! And what about the Modified Proctor test? Why do we use it?
It uses more energy, so it gives a higher density, which is essential for soils that need more compaction.
Correct, Student_4! And these tests help find the **Optimum Moisture Content (OMC) and Maximum Dry Density (MDD)** for effective field compaction. A handy way to remember this is: 'Proctor Densifies, Moisture Just Right!'
Field Compaction Equipment and Methods
Unlock Audio Lesson
Let’s shift our focus to field methods. Can anyone name some types of rollers used in soil compaction?
There’s the vibratory roller and the pneumatic roller!
Great! Each type serves a specific purpose based on the soil type and project requirements. Remember: 'Smooth wheels for smooth jobs!' What’s important to monitor during compaction?
We need to keep an eye on density to ensure it meets specifications.
Exactly, Student_2! Tools like nuclear density gauges help us ensure that we achieve the required density set by specifications—generally about 95–100% of the laboratory MDD. Good job!
Compaction Specifications
Unlock Audio Lesson
Finally, let’s talk about compaction specifications. Why do you think it’s important to follow these specifications?
To ensure the pavement can handle traffic loads without failing!
Exactly right, Student_3! If we don't achieve the right compaction, we risk issues like settlement and cracking. Remember: 'Good compaction leads to good construction!'
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section discusses the crucial differences between compaction and consolidation, detailing essential testing methodologies such as Standard and Modified Proctor tests. Additionally, it explores various compaction methods and specifications necessary for effective pavement engineering.
Detailed
Detailed Summary of Compaction Characteristics
Compaction Characteristics are vital in the field of transportation engineering, particularly when designing and constructing pavement structures. This section distinguishes between compaction—the process of densifying soil by expelling air—and consolidation, which involves time-dependent volume changes resulting from water expulsion.
Key Areas Covered:
- Compaction vs Consolidation:
- Compaction refers to the mechanical densification of soil primarily caused by external forces, while consolidation deals with how soils settle over time due to the removal of water.
- Standard and Modified Proctor Tests:
- These laboratory tests are critical for determining the Optimum Moisture Content (OMC) and Maximum Dry Density (MDD) of soil, indicating how soil should be compacted in real-world applications. The Modified Proctor test uses a higher energy input, resulting in a higher MDD compared to the Standard test.
- Field Compaction Methods:
- Various equipment like rollers (smooth wheel, pneumatic, vibratory, sheep-foot) are employed to achieve adequate compaction in the field. The effectiveness of these methods can be monitored using tools like nuclear density gauges.
- Compaction Specifications:
- To ensure structural integrity, compaction typically requires reaching around 95–100% of the MDD as determined from laboratory tests. Specifications may vary based on the layer of pavement and expected traffic loads.
Understanding these characteristics is essential for the effective design and performance of transportation infrastructure.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Compaction vs Consolidation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Compaction: Densification by expelling air
- Consolidation: Time-dependent volume change due to water expulsion
Detailed Explanation
Compaction and consolidation are two important processes related to how soils behave under load. Compaction refers to the process of increasing soil density by removing air from the soil pores, making it denser and stronger. This is usually done during construction by using heavy machinery. On the other hand, consolidation happens over time when soil is subjected to load, causing water within the soil to be expelled slowly. This often leads to settling of the soil.
Examples & Analogies
Imagine filling a sponge with water. When you compress the sponge (like compaction), the water is pushed out, and it becomes tighter and denser. However, if you leave the sponge on a flat surface and add something heavy on top of it, over time, the sponge will continue to squeeze out some water (like consolidation), causing it to settle even more.
Standard and Modified Proctor Tests
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Determines Optimum Moisture Content (OMC) and Maximum Dry Density (MDD)

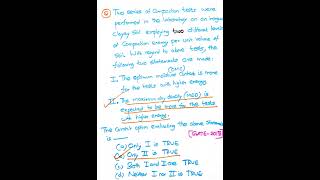

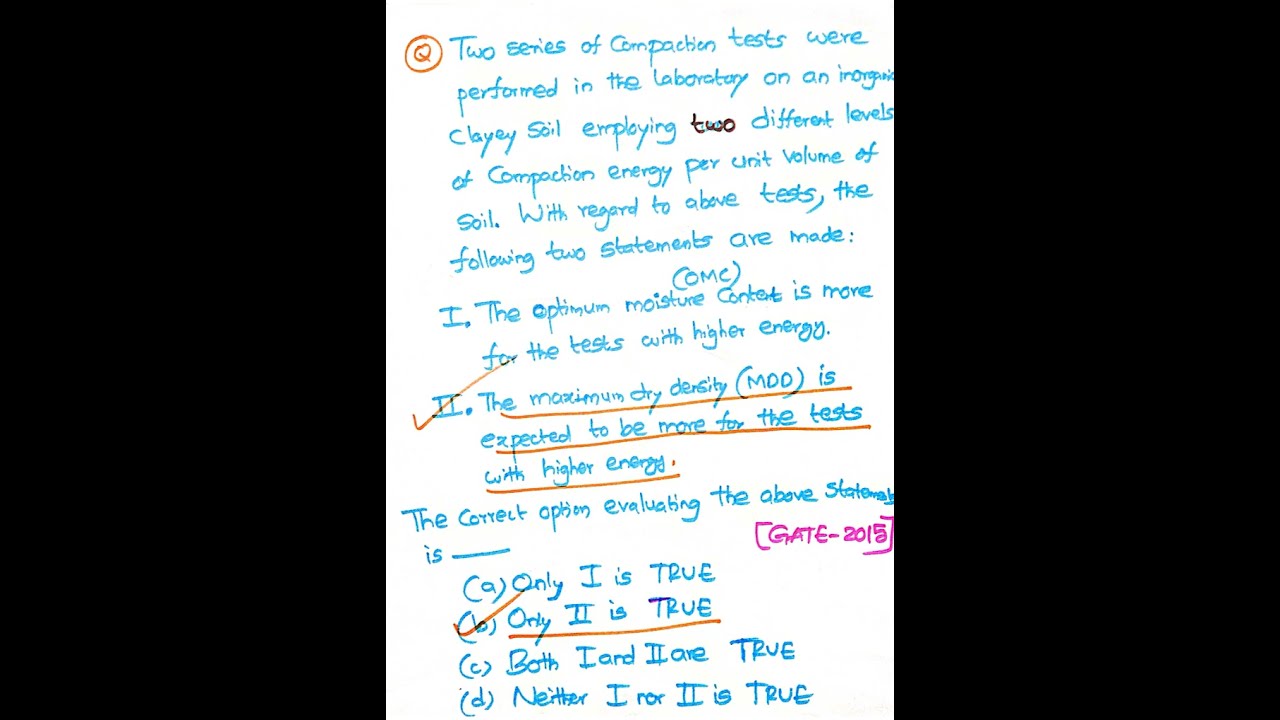

- Higher compactive effort → higher MDD and lower OMC
Detailed Explanation
The Standard and Modified Proctor Tests are laboratory procedures used to find the optimum moisture content (OMC) and maximum dry density (MDD) of soil. The OMC is the moisture level at which soil can be compacted to achieve the highest density. The tests involve compacting soil in a mold with a specified amount of moisture to determine these values. Increasing the effort used to compact the soil generally results in a higher maximum dry density, but often means that the optimum moisture content decreases as well.
Examples & Analogies
Think of packing a suitcase. The more you push down on the clothes, the more you can fit into the suitcase. However, if you try to add a wet shirt instead of a dry one, it may take up more space at first but will help you fit more clothes if you pack it just right.
Field Compaction Methods
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

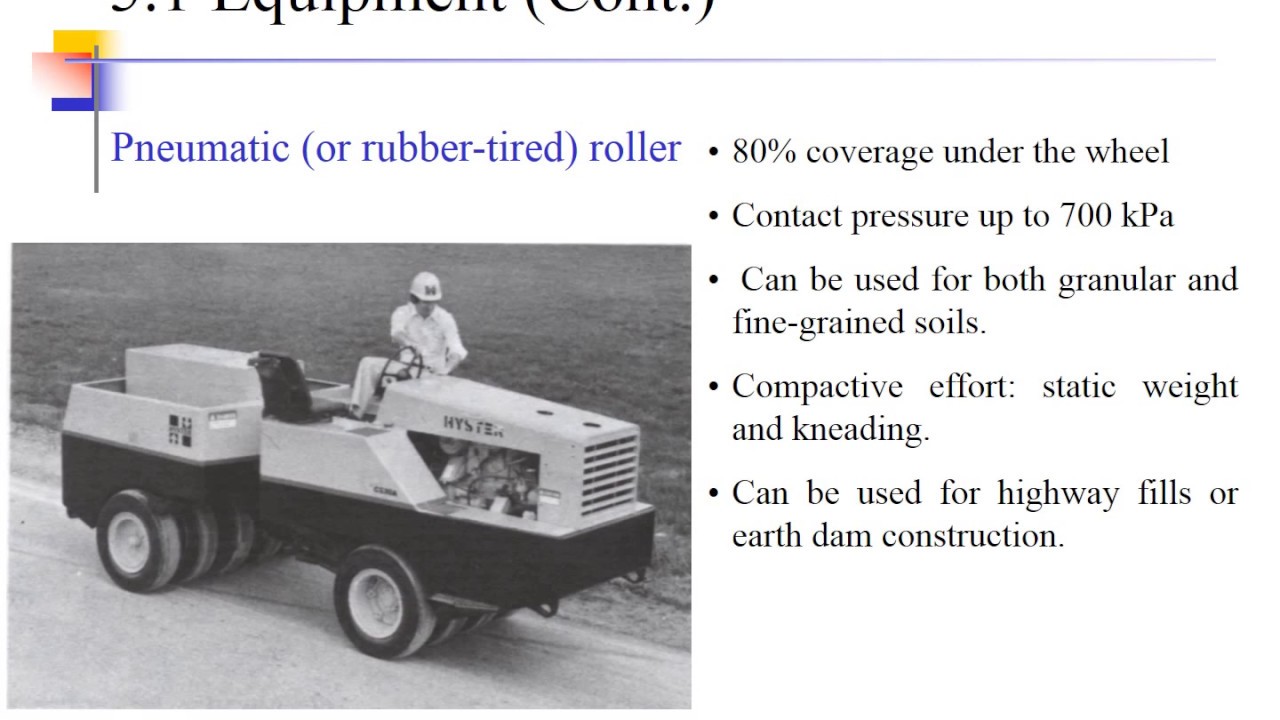

- Rollers: Smooth wheel, pneumatic, vibratory, sheep-foot

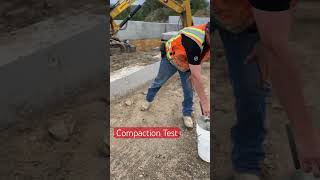

- Compaction monitored using nuclear density gauge or sand cone method
Detailed Explanation
There are various methods employed in the field to compact soil effectively. Different types of rollers, such as smooth wheel, pneumatic, vibratory, and sheep-foot rollers, are used based on the soil type and the requirements of the project. Additionally, the level of compaction achieved is monitored using instruments like nuclear density gauges or the sand cone method to ensure that the soil achieves the necessary density for stability.
Examples & Analogies
Consider playing with Play-Doh. When you press it down with your hands or a smooth surface, you are compacting it to make it dense and firm. Similarly, the heavy rollers in construction work act like your hands, ensuring the soil is pressed down tightly. The tools that test the density are like checking if your Play-Doh creation is just the right firmness.
Compaction Specifications
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Typically 95–100% of laboratory MDD
- Required compaction varies with layer and traffic load
Detailed Explanation
Compaction specifications are critical to ensure that the soil layers in construction projects achieve the right density. Typically, the target for field compaction is set between 95% to 100% of the maximum dry density determined in the laboratory tests. The required level of compaction can vary based on factors such as the layer of soil being compacted and the expected traffic load on the pavement or structure to be built.
Examples & Analogies
Imagine baking a cake. If you want it to be dense and hold its shape, you need to ensure you whisk the batter just enough. Similarly, for soil, achieving the right compaction is like making sure your cake has the correct texture; too dense or too loose could lead to problems in how the structure above it performs.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Compaction: The densification of soil achieved by removing air.
-
Consolidation: A slower, time-dependent change in soil volume due to water expulsion.
-
Proctor Tests: Laboratory processes to determine soil density and moisture content.
-
Optimum Moisture Content (OMC): The moisture content at which a soil achieves maximum dry density.
-
Maximum Dry Density (MDD): The peak density a soil can obtain when optimally compacted.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In a typical road construction project, engineers would perform Proctor tests on soil samples to determine the best moisture content for compaction to achieve the required strength.
-
When constructing a highway, rollers like vibratory rollers are used, and the density must meet specifications of 95–100% of MDD to ensure the pavement can withstand traffic loads.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Compaction's a race, quick and concise; Consolidation, slow—it takes its time slice.
📖 Fascinating Stories
-
Imagine building a sandcastle. You first pack the sand tightly (compaction). Once the tide goes out, the sand settles and changes shape (consolidation).
🧠 Other Memory Gems
-
Think of 'Proctor' as 'Perfectly Recommended Optimum Compacted Test Output and Result.'
🎯 Super Acronyms
MDD - Maximum Density Delivered at moisture to ensure durable construction.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Compaction
Definition:
The process of densifying soil by removing air, achieved through mechanical means.
-
Term: Consolidation
Definition:
A time-dependent volume decrease of soil due to expulsion of water, leading to settlement.
-
Term: Proctor Test
Definition:
A laboratory test to determine the maximum dry density and optimum moisture content of soil.
-
Term: Optimum Moisture Content (OMC)
Definition:
The moisture level at which a particular soil can achieve its maximum dry density.
-
Term: Maximum Dry Density (MDD)
Definition:
The maximum density of soil achieved when compacted at its optimum moisture content.
