2 - Engineering Characteristics of Soils
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Soil Classification Systems
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's start today by discussing soil classification systems. Why do we classify soils, and what are the primary systems used in engineering?
I think we classify them to understand their properties better. But what systems are there?
Precisely! Classification helps us group similar soils for better engineering decisions. The main systems include the Unified Soil Classification System, or USCS, and the Indian Standard Soil Classification System, or ISCS, among others. Can anyone recall what characteristics the USCS focuses on?
It categorizes soils based on grain size and plasticity, right?
Correct! The USCS divides soils into groups like coarse-grained and fine-grained using symbols like GW for well-graded gravel. Can anyone give me an example of each type?
A well-graded gravel would be GW, and for fine-grained, it could be CL for low plasticity clay!
Excellent examples! Understanding these classifications is essential for predicting how soils will behave under loads.
Soil Texture and Gradation
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s explore soil texture and gradation. Can someone explain what particle size distribution refers to?
It’s about how different sizes of soil particles are distributed within a sample, right?
Yes! It's crucial for understanding how soil behaves during drainage and compaction. What methods do we use to analyze particle size?
Sieve analysis for larger particles, and hydrometer analysis for finer ones!
Exactly! Sieve analysis evaluates particles larger than 75 microns while hydrometer analysis looks at those smaller than that. These tests help create a gradation curve. Why is gradation important?
It helps assess drainage properties and load bearing capacity!
Correct! The characteristics of well-graded versus poorly graded soils can significantly impact pavement performance.
Shear Strength of Soils
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s shift our focus to shear strength, which is vital for our structures. What is the Mohr-Coulomb failure criterion?
Isn't it the equation involving cohesion and internal friction angle?
Yes! The equation is τ = c + σ tan(ϕ). Cohesion and soil structure affect the load support capacity. What types of tests do we use to measure shear strength?
I believe there are direct shear tests and triaxial shear tests!
Great answer! These tests help assess if soil has adequate shear strength for supporting pavements. What could happen if the shear strength is too low?
The pavement could fail or experience settlement, right?
Exactly! That's why understanding shear strength is fundamental.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section delves into various engineering properties of soils necessary for effective pavement design in transportation engineering. It describes soil classification systems, compaction characteristics, shear strength, permeability, and the significance of these properties on the stability and performance of roads, highways, airfields, and railways.
Detailed
Engineering Characteristics of Soils
Understanding the engineering characteristics of soils is pivotal in the field of transportation engineering. This section focuses on crucial properties that influence the design and performance of transportation infrastructure, particularly pavement structures. Key points covered include:
- Soil Classification Systems: The importance of categorizing soils based on their properties for better engineering judgment. Discussion includes:
- Unified Soil Classification System (USCS), which categorizes soils into coarse-grained, fine-grained, and organic soils based on grain size and Atterberg limits.
- Indian Standard Soil Classification System (ISCS), adapted for Indian soils, classifying them into major groups based on properties like plasticity.
- AASHTO Classification, used for highway engineering based on grain size and Atterberg limits with a focus on performance.
- Soil Texture and Gradation: Explains the significance of particle size distribution, sieve analysis, and hydrometer analysis, introducing terms like well-graded and gap-graded.
- Consistency and Atterberg Limits: Defines Atterberg limits (Liquid Limit, Plastic Limit, Shrinkage Limit) and their significance in performance indicators.
- Compaction Characteristics: Differentiates compaction from consolidation, discussing test methods including Proctor tests and field compaction techniques.
- Permeability and Drainage: Covers Darcy’s Law, factors affecting permeability, and implications for pavement design, particularly regarding water drainage.
- Shear Strength of Soils: Introduces the Mohr-Coulomb failure criterion, types of shear tests, and implications for pavement support.
- Compressibility and Consolidation: Discusses compressibility, one-dimensional consolidation test, and importance in predicting settlements.
- Swelling and Shrinkage Behavior: Addresses expansive soils, swelling potential testing, and effects on pavement integrity.
- California Bearing Ratio (CBR) Test: Describes the CBR test and its relevance in empirical pavement design.
- Resilient Modulus (Mr): Discusses the definition and significance in mechanistic pavement design.
- Subgrade Reaction Modulus (k-value): Covers the plate load test and its role in assessing subgrade response.
- Soil Stabilization Techniques: Discusses methods for improving soil properties, including mechanical and chemical treatments.
-
Frost Action and Soil Behavior in Cold Regions: Covers frost heave and mitigation measures for frost-susceptible soils.
This comprehensive overview emphasizes the importance of understanding soil characteristics for the stability, durability, and serviceability of transportation infrastructures.

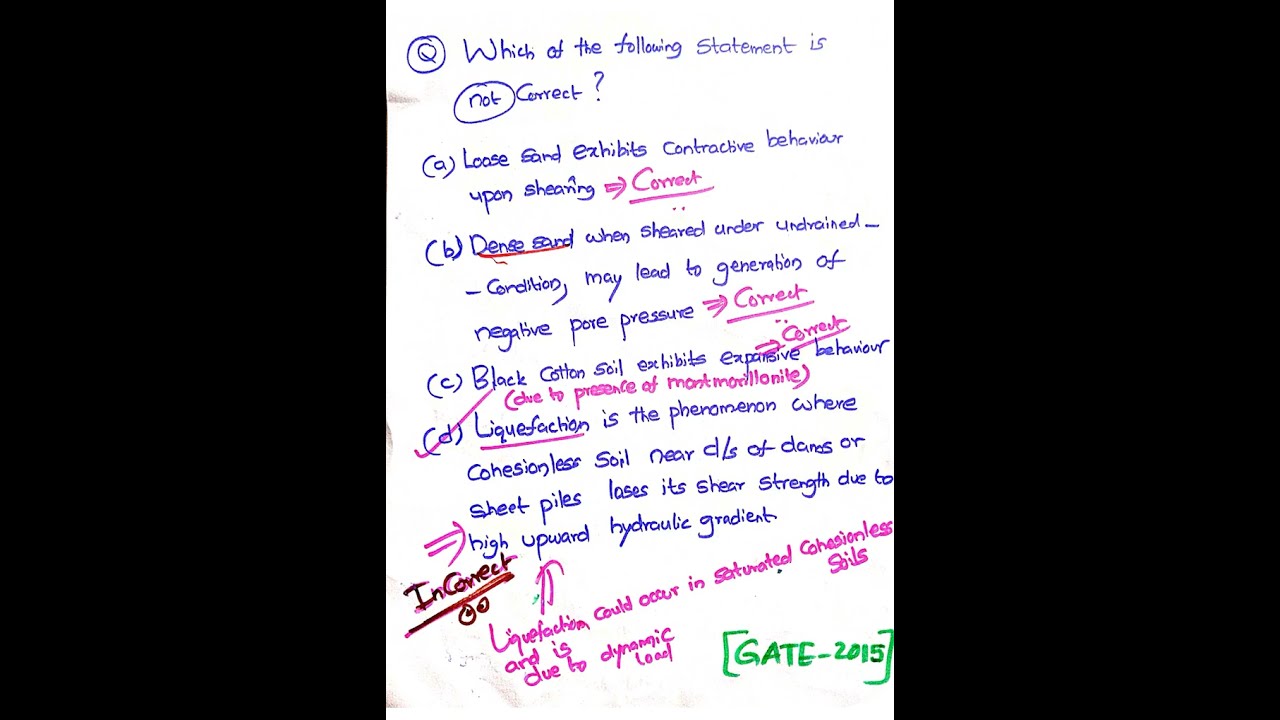

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Soil Engineering Characteristics
Chapter 1 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Understanding the engineering characteristics of soils is fundamental in transportation engineering. The design and performance of pavement structures heavily depend on the behavior of the underlying soil, also known as subgrade. Since soils vary greatly in terms of their origin, composition, texture, and strength properties, a detailed understanding is essential for ensuring the stability, durability, and serviceability of transportation infrastructure. This chapter explores the key engineering properties of soils relevant to the construction and performance of roads, highways, airfields, and railways.
Detailed Explanation
This introduction highlights the importance of understanding soil characteristics in transportation engineering. The subgrade, or the soil beneath road surfaces, affects how well pavements perform. Different soils have distinct properties such as composition and strength. Recognizing these variations allows engineers to create stable and durable infrastructure for transportation.
Examples & Analogies
Think of soil as the foundation of a house. Just like a weak foundation can lead to structural issues in a house, poor soil can lead to failures in roadways and airfields. A solid understanding of the soil ensures that roads can withstand traffic and natural conditions.
Importance of Soil Classification
Chapter 2 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Soil classification is essential to identify and group soils with similar engineering properties, helping engineers make decisions about suitability, treatment, and expected behavior under loading.
Detailed Explanation
Soil classification systems categorize soils based on their physical and mechanical properties. This classification is important because it aids engineers in selecting the appropriate treatment methods for the soil, predicting how the soil will behave under loads, and determining its suitability for different construction applications.
Examples & Analogies
Imagine you are shopping for shoes. You wouldn’t buy running shoes for hiking; similarly, engineers need to classify soil to choose the right type for different construction tasks, ensuring safety and performance.
Unified Soil Classification System (USCS)
Chapter 3 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Divides soils into coarse-grained, fine-grained, and highly organic soils based on grain-size distribution and Atterberg limits. Symbols: GW (Well-graded gravel), CL (Low plasticity clay), etc.
Detailed Explanation
The Unified Soil Classification System (USCS) organizes soils into categories like coarse-grained, fine-grained, and organic. Coarse-grained soils include sand and gravel, while fine-grained soils consist of silt and clay. Atterberg limits help determine the consistency and plasticity of fine-grained soils, which is critical while designing engineering structures.
Examples & Analogies
Think about sorting different types of fruit. Just as you would group apples with apples and oranges with oranges, soil classification helps engineers group soils by type, helping in decision-making for construction.
Indian Standard Soil Classification System (ISCS)
Chapter 4 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Similar to USCS but slightly adapted to Indian soil conditions. Soils classified based on grain size, plasticity, and compressibility. Major groups: Gravel (G), Sand (S), Silt (M), Clay (C), and Organic (O) soils.
Detailed Explanation
The Indian Standard Soil Classification System (ISCS) operates similarly to the USCS but is tailored for Indian soils' unique characteristics. It classifies soils into major groups like Gravel, Sand, Silt, Clay, and Organic based on their physical properties. This ensures that local soil conditions are adequately addressed during engineering processes.
Examples & Analogies
It’s like having a universal clothing size chart but creating a local one that better fits the average body types in your area; ISCS is designed to meet the specific needs of Indian soils.
AASHTO Classification
Chapter 5 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Used primarily in highway engineering. Soils classified into groups A-1 to A-7 based on grain-size and Atterberg limits. Group Index (GI) used to further evaluate soil performance.
Detailed Explanation
The AASHTO classification system is specifically designed for highway engineering. It classifies soils into seven groups (A-1 to A-7) based on grain size and Atterberg limits. Additionally, it uses a Group Index (GI) to provide more detailed performance evaluations of the soils in question.
Examples & Analogies
Consider this classification as giving a report card to soils based on their characteristics and performance in highways, helping engineers pick the best materials for road construction.
Soil Texture and Gradation
Chapter 6 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Soil texture, determined by particle size distribution, is crucial for understanding drainage, compaction, and load distribution.
Detailed Explanation
Soil texture refers to the proportions of different-sized particles in the soil. It's essential because it affects how water drains through the soil, how well it can hold its shape when compacted, and how loads are distributed on the ground. This understanding is vital for designing stable infrastructure.
Examples & Analogies
Think about a sponge. A fine-textured sponge holds water differently compared to a coarse one. Similarly, the texture of soil affects how it interacts with water and loads placed upon it.
Compaction Characteristics
Chapter 7 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Compaction involves densifying soil by removing air, which increases its strength and stability. This process is essential for pavements.
Detailed Explanation
Compaction is the process of reducing the volume of soil by removing trapped air. This densification enhances the soil's strength and stability, which is crucial for supporting pavements. Higher compactive efforts lead to better performance in terms of load-bearing capacity.
Examples & Analogies
It's like packing a suitcase. The more you compress clothes in the suitcase, the more you can fit in, and the sturdier it becomes. Similarly, compacted soil can support more weight without deformation.
Permeability and Drainage
Chapter 8 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Permeability is the ability of soil to transmit water and is influenced by factors like grain size and soil structure.
Detailed Explanation
Permeability is crucial for understanding how water moves through soil. It determines drainage characteristics, affecting everything from road performance to soil stability. Larger particle sizes typically allow for greater permeability, meaning water can flow through them more easily.
Examples & Analogies
Picture a sponge submerged in water. A coarse sponge allows water to flow through quickly, while a dense sponge doesn’t allow much water to pass. Similarly, the structure of soil influences how water moves through it.
Shear Strength of Soils
Chapter 9 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Shear strength is the resistance of soil to sliding or failure, described using Mohr-Coulomb criteria.
Detailed Explanation
The shear strength of soils refers to how well they can resist sliding or failure under stress. This strength is crucial for ensuring that pavements and other structures do not collapse. The Mohr-Coulomb failure criterion provides a formula to predict this strength based on soil properties.
Examples & Analogies
Imagine standing on a slope; if the ground is slippery (like wet clay), you are likely to slide down, whereas solid ground supports your weight. Soil shear strength determines how stable your footing is, which is vital in engineering.
Compressibility and Consolidation
Chapter 10 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Compressibility refers to soil's volume reduction under pressure, which can impact pavement stability.
Detailed Explanation
Compressibility is the tendency of soil to decrease in volume when subjected to pressure. This is important for understanding how roads behave over time, as increased pressure can lead to uneven surfaces or structural failures. Monitoring this is critical for long-term performance.
Examples & Analogies
Think about a balloon; when you squeeze it, it gets smaller. Similarly, when soil is compressed by traffic loads, its volume can reduce, which may affect the overlying pavement.
Key Concepts
-
Soil Classification: The grouping of soils based on their properties.
-
Compaction: The densification of soil, crucial for stability in construction.
-
Permeability: The ease with which water flows through soil, impacting drainage.
-
Shear Strength: The maximum load a soil can carry before failure.
-
California Bearing Ratio (CBR): A testing method to assess subgrade soil strength.
Examples & Applications
Examples of soil classification include gravel, sand, silt, and clay.
A poorly graded soil leads to higher compressibility and lower strength compared to a well-graded soil.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Soils that are fluffy and light, mean compaction is tight, to bear load just right!
Stories
Once upon a time, a young engineer learned how the different soils helped shape roads. He discovered that dense gravel and sand could hold up the heaviest trucks, while loose clay would bring them to a stop. This opened his mind to the importance of soil classification for safe driving!
Memory Tools
For remembering Atterberg Limits: 'Lovely Plastic Sludge' stands for Liquid Limit, Plastic Limit, and Shrinkage Limit.
Acronyms
C.S.P [Classification, Strength, Permeability] - Key properties for soil engineering.
Flash Cards
Glossary
- Soil Classification
The process of grouping soils based on their physical and engineering properties to assess suitability and performance.
- Unified Soil Classification System (USCS)
A widely used classification system that groups soils based on grain-size distribution and Atterberg limits.
- Compaction
The process of densifying soil by expelling air to increase its load-bearing capacity.
- Permeability
The ability of soil to transmit water through its voids, critically affecting drainage and stability.
- Shear Strength
The maximum stress soil can resist before failure, essential in determining its load-bearing capacity.
- California Bearing Ratio (CBR)
A measure used to evaluate the strength of subgrade soil for empirical pavement thickness design.
