Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Atterberg Limits
Unlock Audio Lesson
Today, we're going to explore the Atterberg limits, which help us evaluate fine-grained soils' consistency under moisture changes. Let's start with the Liquid Limit. Can anyone tell me what the Liquid Limit is?
Is it the point where soil starts to behave more like a liquid?
Exactly! The Liquid Limit is the moisture content where the soil changes from a plastic to a liquid state. Now, what about the Plastic Limit?
It's when the soil can be rolled into threads without crumbling, right?
Correct! And we express the difference between the Liquid Limit and Plastic Limit as the Plasticity Index. Let's establish a memory aid to remember these points: LL for 'Liquid', PL for 'Plastic'.
So, LL is high moisture and PL is lower moisture for our soil?
Precisely! Now, remember these two limits – they are essential to know before we discuss the implications in pavement engineering.
Understanding Plasticity Index (PI)
Unlock Audio Lesson
Next, let’s look at the Plasticity Index. Why do we calculate it?
Is it to understand how much the soil will change in volume with moisture?
Correct! The PI tells us about the soil's plasticity and potential volume changes. Can anyone share how to compute it?
The formula is PI = LL - PL. High PI indicates expansive soil, right?
Exactly! This performance indicator is crucial for determining whether we should use certain soils in construction. Can you think of implications high PI might have in real-life applications?
It could cause issues with pavement stability since the soil would expand or contract!
Well said! Understanding the PI helps us construct effective pavement designs.
Application of Atterberg Limits in Pavement Engineering
Unlock Audio Lesson
Now that we understand Atterberg limits and the PI, let’s apply this knowledge to pavement engineering. Why is it important to know about these properties?
To select the right soils for subgrade, so they don't expand and damage the pavement.
Great point! High PI soils can lead to poor load-bearing characteristics. Why do you think engineers prefer low PI soils?
Because they’re more stable and less likely to change volume!
Exactly! Stability and durability are key in maintaining pavements. Remember, the balance between moisture and soil plasticity is critical for infrastructure.
What happens if a high PI soil is used?
Using high PI soil can lead to issues like heaving and cracking in pavements. Always assess soil properly before using it in construction!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, the Atterberg limits–including the liquid limit (LL), plastic limit (PL), and shrinkage limit (SL)–are defined as essential measures to assess the consistency of fine-grained soils. The relationship between the plasticity index (PI) and soil behavior in pavement applications is discussed, emphasizing its importance in evaluating soil suitability for construction.
Detailed
Consistency and Atterberg Limits
The Atterberg limits are critical for understanding fine-grained soils' behavior under varying moisture content. In this context, the section outlines the following key terms and their implications:

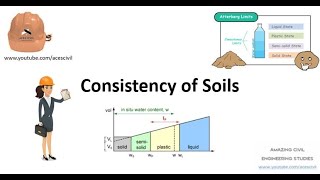

1. Definition of Atterberg Limits

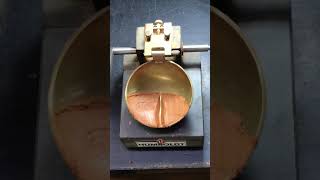

- Liquid Limit (LL): The water content at which soil transitions from a plastic to a liquid state.
- Plastic Limit (PL): The water content at which soil transitions from a semi-solid to a plastic state.
- Shrinkage Limit (SL): The maximum water content at which further loss of water will not lead to volume reduction.

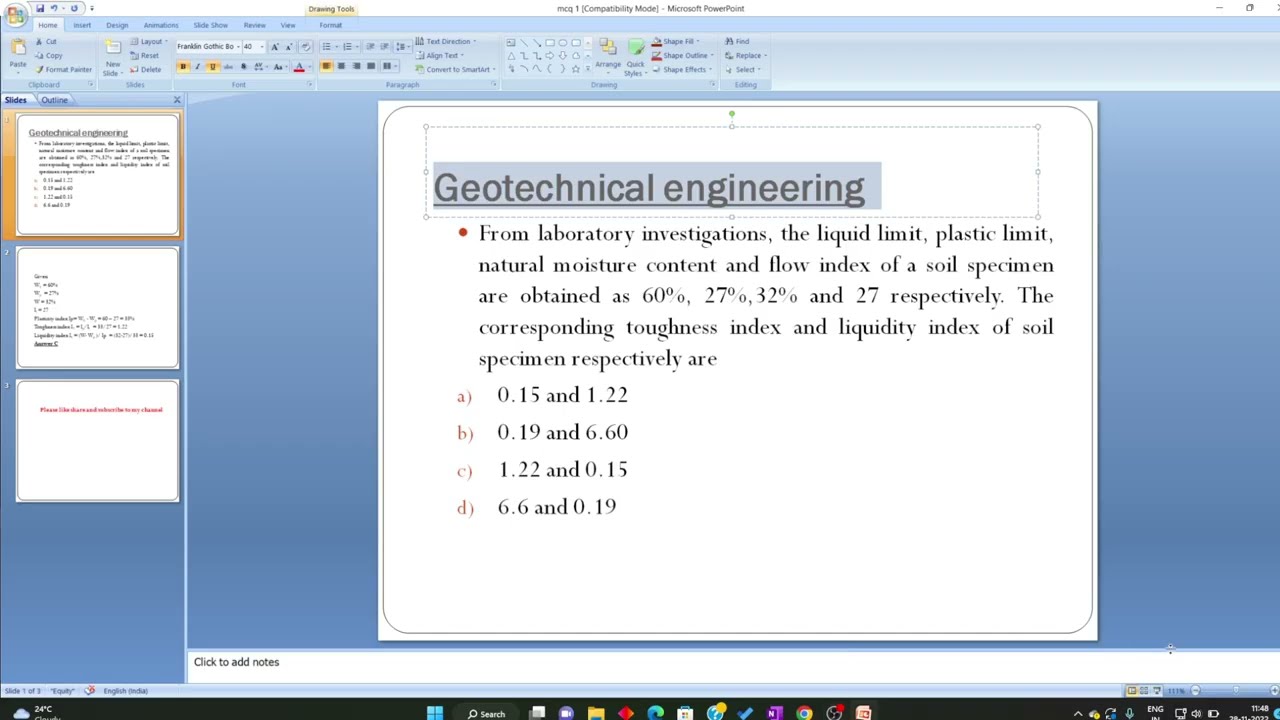

2. Plasticity Index (PI)
The Plasticity Index is defined as the difference between the LL and PL (PI = LL - PL). A high PI indicates a soil with high plasticity, which may lead to significant volume changes when exposed to moisture changes. Conversely, soils with low PI tend to be more stable and are generally preferred for construction.
3. Significance in Pavement Engineering
In the context of pavement engineering, understanding the Atterberg limits and PI is vital:
- Soils with a high PI are often expansive and can create issues such as heaving under load, making them unsuitable as a subgrade.
- Engineers seek soils with low PI for better stability and performance in pavement applications. The ability to assess soil plasticity directly influences the design and maintenance of road infrastructure.

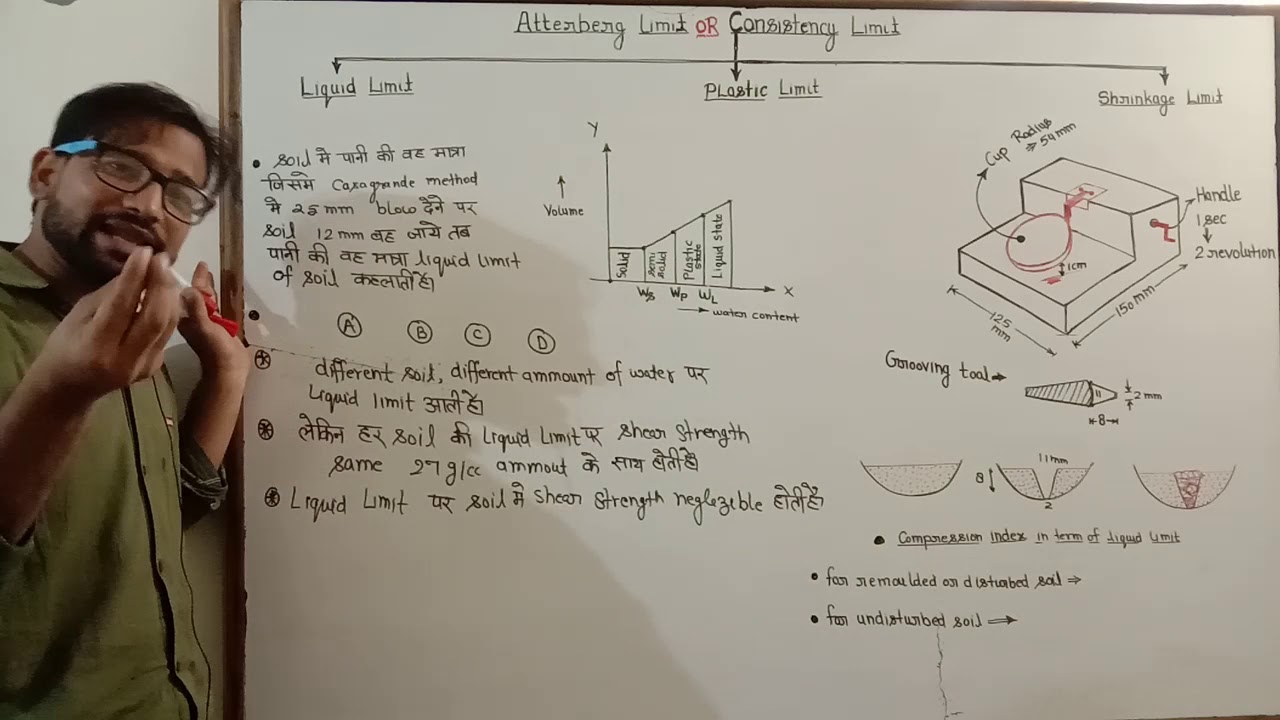

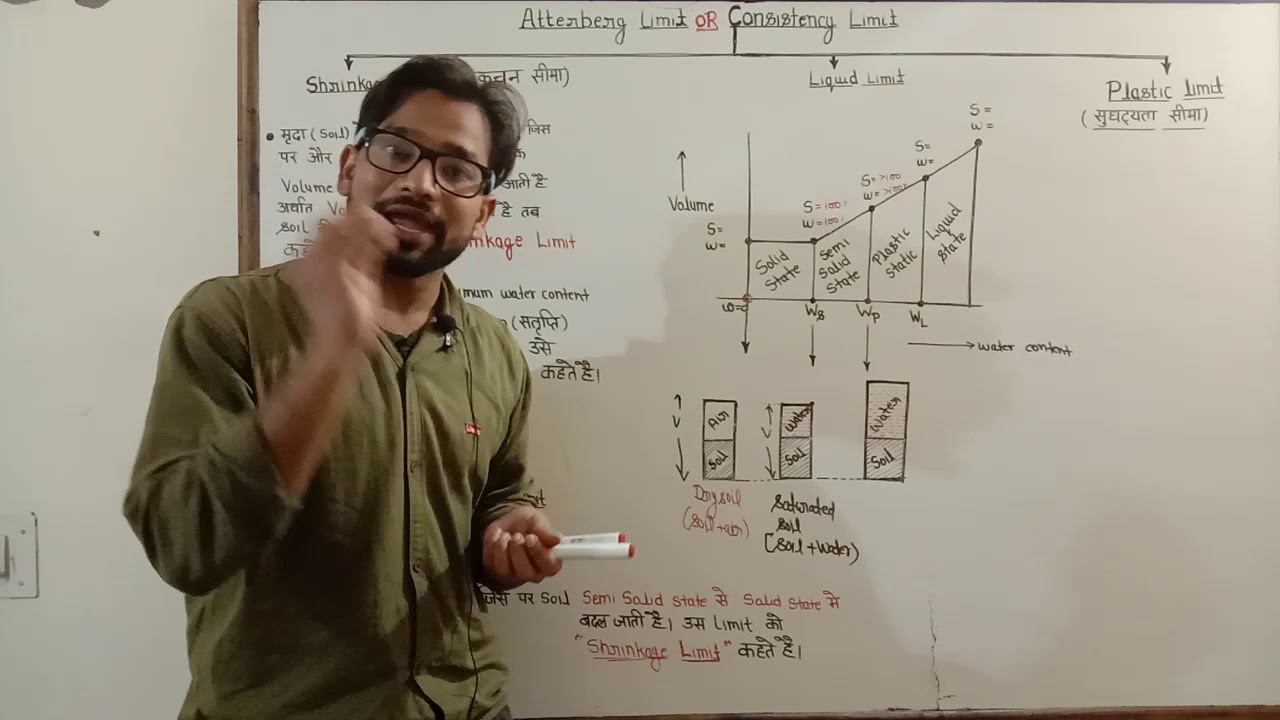

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Definition of Atterberg Limits
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The Atterberg limits describe the behavior of fine-grained soils under varying moisture. These limits include the Liquid Limit (LL), Plastic Limit (PL), and Shrinkage Limit (SL).
Detailed Explanation
The Atterberg limits are crucial for understanding how fine-grained soils respond to changes in moisture content. The Liquid Limit (LL) is the amount of moisture at which the soil changes from a plastic state to a liquid state. The Plastic Limit (PL) is the moisture content at which the soil remains plastic and can be molded. The Shrinkage Limit (SL) is the moisture level below which the soil no longer shrinks upon drying. Together, these limits help determine soil classification and behavior in construction, indicating how much a soil can change in volume as moisture levels fluctuate.
Examples & Analogies
Think of Atterberg limits like the behavior of modeling clay. When the clay is wet, it is soft and easy to mold (similar to soil at its Liquid Limit). As it dries, it becomes firmer and can hold shapes better (like soil at its Plastic Limit). However, if the clay dries too much, it can crack (similar to soil at its Shrinkage Limit), making it less usable for sculptures.
Plasticity Index (PI)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The Plasticity Index (PI) is calculated by the formula: PI = LL - PL. It indicates soil plasticity and potential volume change.
Detailed Explanation
The Plasticity Index quantifies the range of moisture content over which a soil remains plastic. A higher PI indicates a greater potential for volume change, which is important in engineering applications. If the difference between LL and PL is large, the soil is more likely to expand or contract significantly with moisture changes, affecting stability in construction. Hence, understanding PI helps engineers assess how suitable a soil is for supporting structures.
Examples & Analogies
Imagine a sponge. When you soak it in water, it expands (like high PI soils). When it dries out, it shrinks back down (indicating volume change). A sponge that doesn’t change much in size as it absorbs or loses water is akin to a soil with a low PI, making it more stable for construction.
Significance in Pavement Engineering
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In pavement engineering, a high PI indicates expansive soil, which can lead to poor subgrade conditions, while soils with low PI are usually preferred.
Detailed Explanation
In the field of pavement engineering, the characteristics of the underlying soil are critical for ensuring the longevity and durability of pavements. Soils with a high Plasticity Index (PI) suggest that they will undergo significant volume changes when wet or dry, which can lead to cracking and deformation of pavements. Therefore, engineers prefer soils with a low PI, as they provide a more stable base for road construction and reduce the potential for structural damage.
Examples & Analogies
Consider a road built on a soft, spongy pie crust. If the pie crust expands when heated (high PI soil), it will distort the shape of the pie, similar to how the road will crack or buckle in response to moisture changes. Conversely, a road built on solid ground (low PI soil) is like a well-baked pie that holds its shape regardless of temperature, leading to smoother and safer travel.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Liquid Limit (LL): The moisture content where the soil behaves like a liquid.
-
Plastic Limit (PL): The moisture content where the soil can be molded but not crumbled.
-
Plasticity Index (PI): A measure of the range of moisture content over which a soil behaves plastically.
-
Significance in Pavement Engineering: High PI indicates expansive soil, while low PI signifies stability.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example of soil with a high PL and low LL indicating stability suitable for a roadway design.
-
Illustration of how expansive soils affect pavement durability and require special designs.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Liquid is sticky, Plastic is clay, Moisture can change them, what can I say?
📖 Fascinating Stories
-
Imagine a sculptor who needs specific consistency in clay to create his masterpiece. Too wet, and it's a goo; too dry, and it crumbles. This illustrates the role of LL and PL in ensuring soil usability.
🧠 Other Memory Gems
-
Use 'LPS' (Liquid, Plastic, Stability) to remember the sequence and significance of the limits.
🎯 Super Acronyms
PI - 'Plasticity Indicator' helps remember its role in assessing soil behavior.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Liquid Limit (LL)
Definition:
The moisture content at which soil changes from a plastic to a liquid state.
-
Term: Plastic Limit (PL)
Definition:
The moisture content at which soil transitions from a semi-solid to a plastic state.
-
Term: Shrinkage Limit (SL)
Definition:
The maximum moisture content at which further water loss does not result in volume decrease.
-
Term: Plasticity Index (PI)
Definition:
The difference between the Liquid Limit and the Plastic Limit (PI = LL - PL), indicating soil plasticity.
