Introduction to the Plate Load Test
Unlock Audio Lesson
Today, we're going to explore the Plate Load Test. Can anyone tell me why we test soil under load?
To see how strong it is!
Exactly! The Plate Load Test helps us determine the soil's ability to support structures. The main metric we get from this test is known as the k-value. Let's break that down a bit. K-value shows how much load the soil can withstand before it settles. So, to find this, we use a specific formula: k = Load intensity / Settlement.
What does 'settlement' really mean in this context?
Great question! Settlement refers to the downward movement of the soil surface due to loading. Basically, it helps us understand how much the soil will compress under a specific load. Anyone want to guess why that's important?
So we know how much we need to build on it?
Correct! Knowing the settlement helps us design adequate pavement thickness for roads and other structures. Let's summarize: we measure how much the soil settles when a known load is applied, and from this, we calculate the k-value.
Procedure of the Plate Load Test
Unlock Audio Lesson
Now, let's discuss how we actually perform the Plate Load Test. Who can outline the basic steps?
Uh, do we put a plate on the ground first?

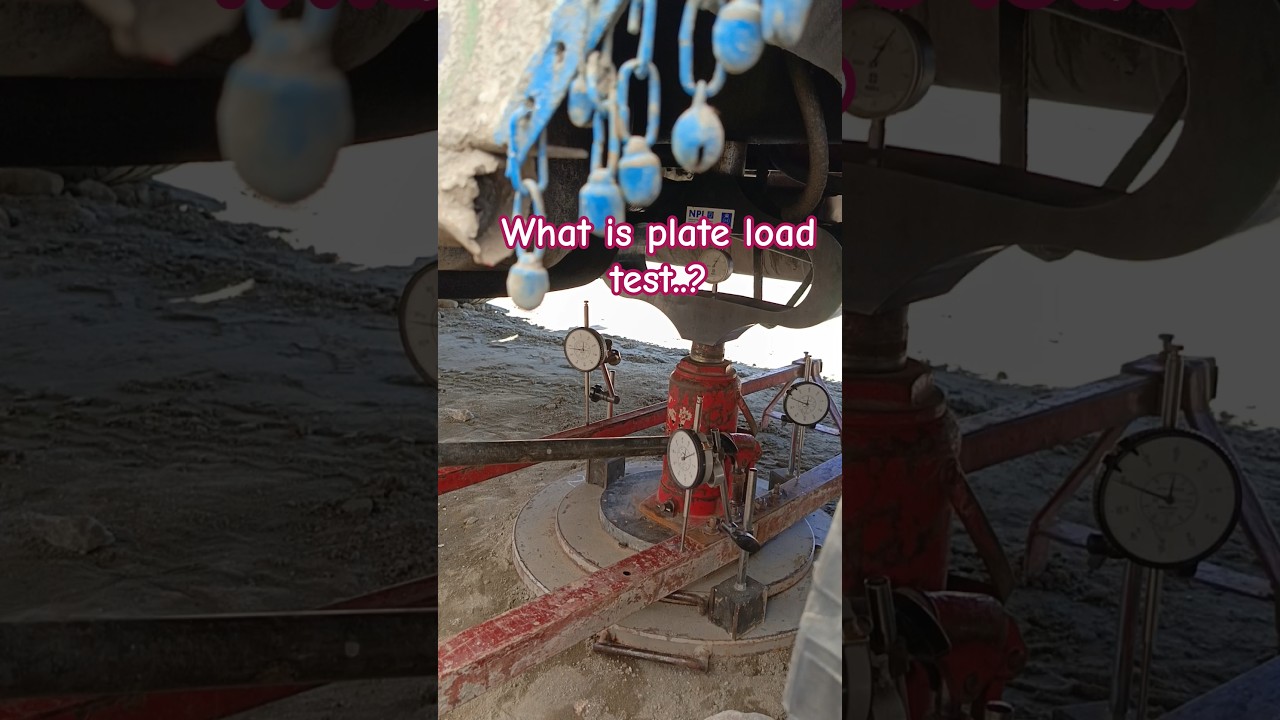

That's right! First, we place a rigid circular plate on the soil. Then we incrementally apply loads using hydraulic jacks and measure how much the plate settles under each load increment. This continues until we reach a certain threshold or a maximum load, whichever comes first.
And we keep track of the settlement every time, right?
Exactly! We need to record the settlement at each load stage, which allows us to create a plot of load versus settlement. By analyzing this plot, we can determine the point at which the soil begins to exhibit significant settlements. It's all about collecting that data for proper analysis.
What do we do with that data once we have it?
Good follow-up! The data helps engineers make critical decisions regarding the design of the pavement, ensuring it can handle expected loads without excessive settlement. Who can summarize what we've discussed?
We place a plate, add loads, measure how much it settles, and then analyze the data to find the k-value.
Well done!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The Plate Load Test is an essential method for determining the subgrade reaction modulus (k-value), which is crucial for designing rigid pavements. It involves applying a load to a circular plate and measuring the resulting settlement, thereby helping to evaluate the stiffness of the subgrade under applied loads.
Detailed
Plate Load Test
The Plate Load Test is a vital procedure in geotechnical engineering used for determining the settlement characteristics of soils under load. This test evaluates how a soil layer reacts to loading applied through a rigid circular plate.
Key Points:
- Purpose: The primary goal of the Plate Load Test is to measure the settlement of soil in response to a known intensity of load. This information is invaluable for engineers when designing pavement structures, as it provides insights into the soil’s load-bearing capacity and stiffness.
- Formula: The k-value, or subgrade reaction modulus, is calculated with the formula: k = Load intensity / Settlement. This ratio represents how well the soil can distribute the applied load.
- Application: The results from the Plate Load Test are particularly significant in the design of rigid pavements, where understanding the stiffness of the subgrade is crucial for ensuring durability and performance. By evaluating the k-value, engineers can make informed decisions regarding the necessary pavement thickness and potential soil stabilization techniques if needed.

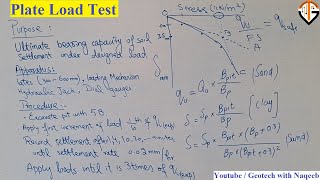

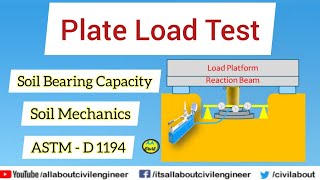

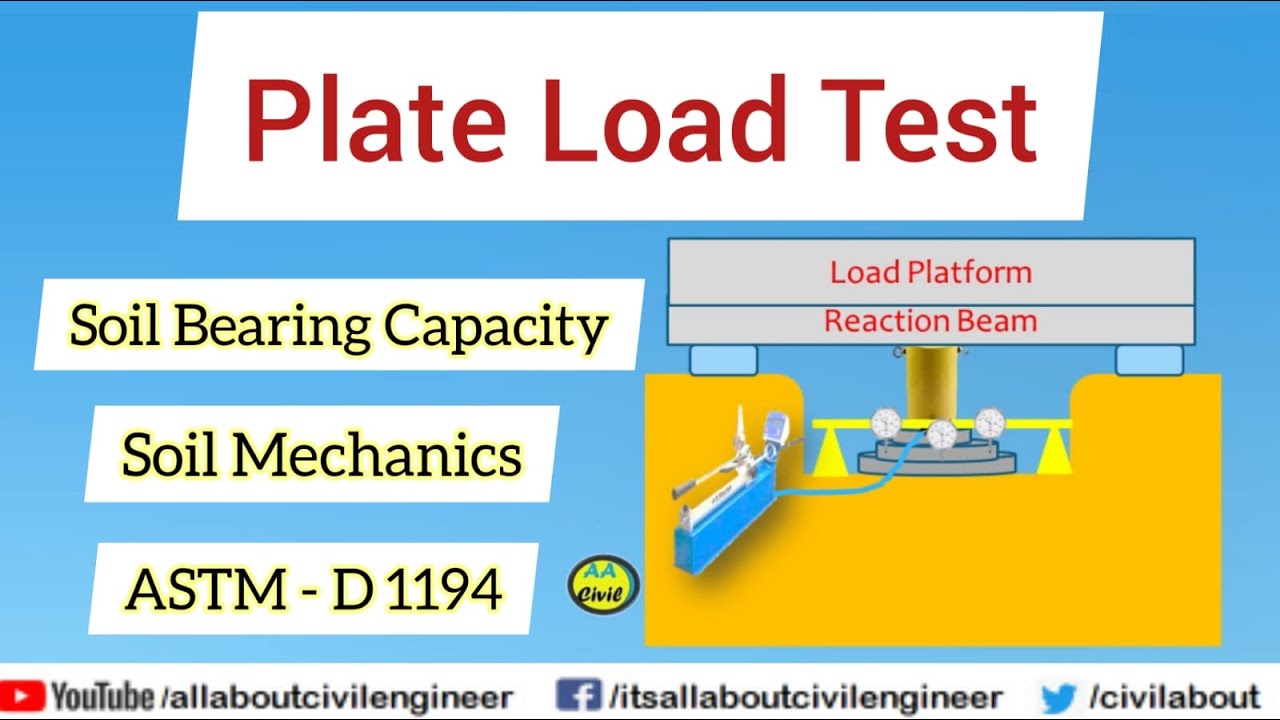

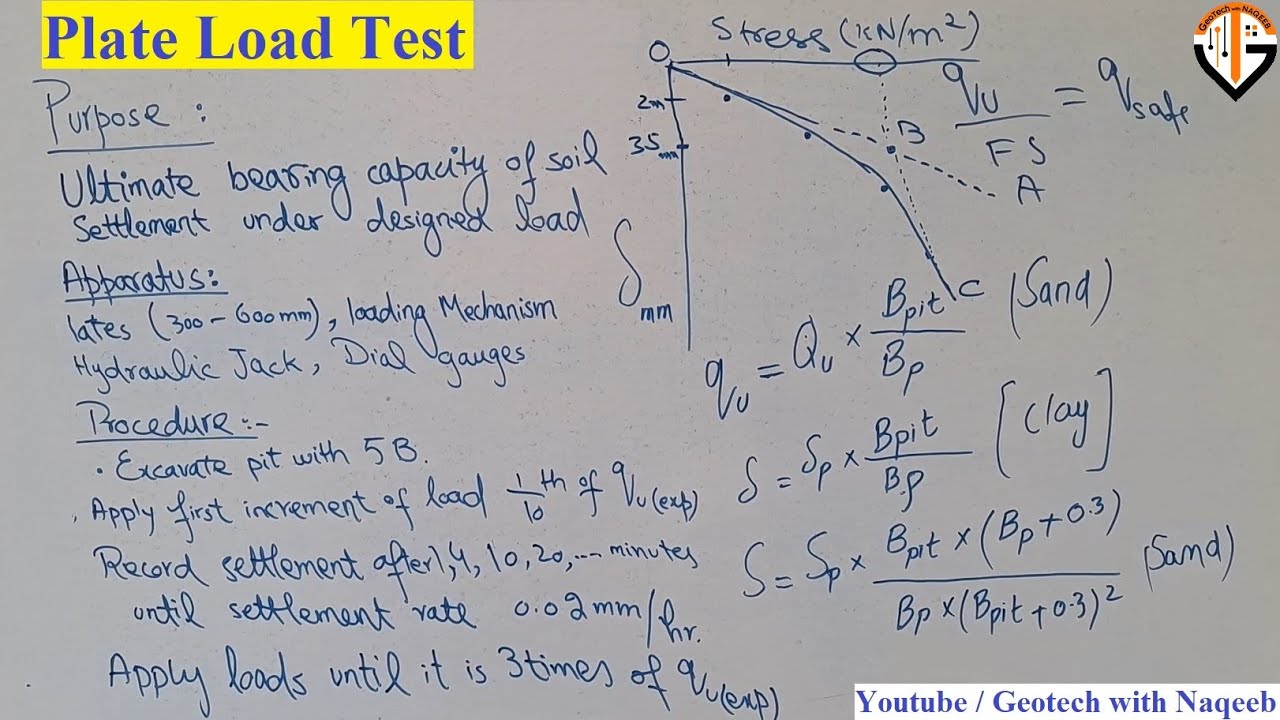

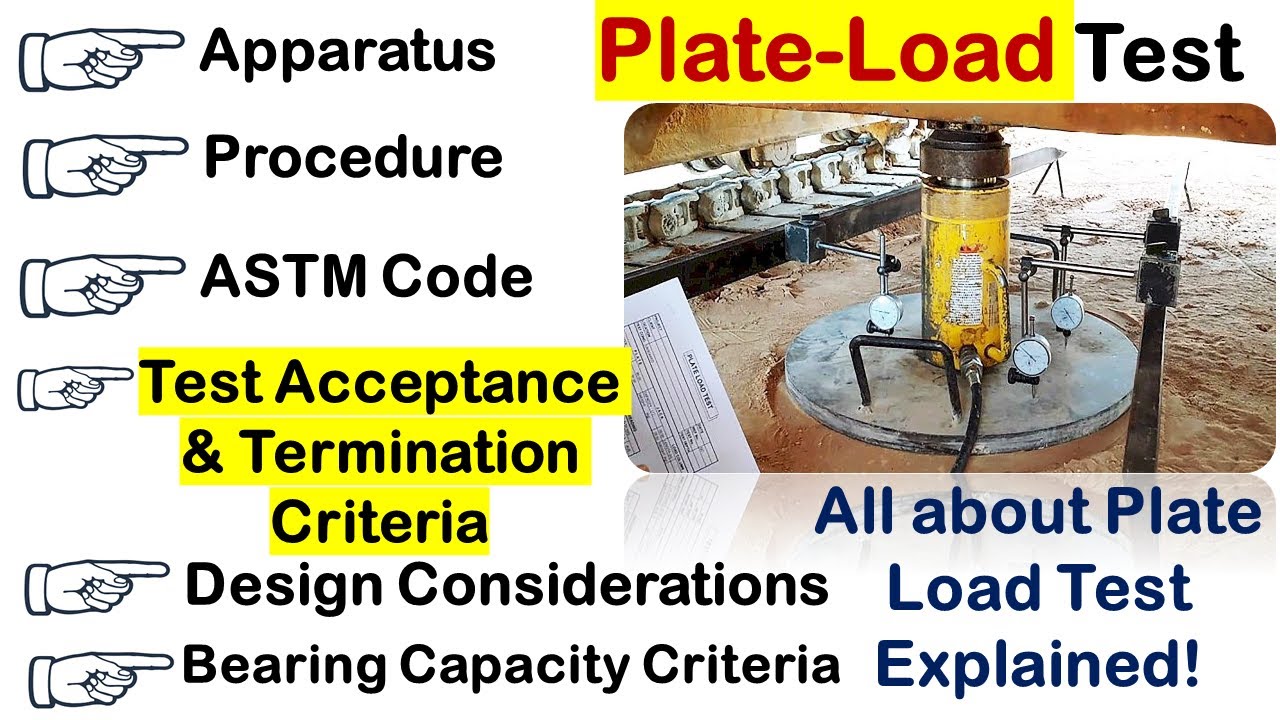

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Purpose of the Plate Load Test
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The Plate Load Test measures settlement under a rigid circular plate.
Detailed Explanation
The Plate Load Test is an essential method used to evaluate the compressive strength and stiffness of subgrade soil. In this test, a round, flat plate is placed on the ground, and a load is applied on top of this plate. The primary goal is to measure how much the ground settles (or sinks) in response to the applied load. This helps engineers understand how well the soil can support structures that will be built on it, such as roads or foundations. The less the soil settles under a given load, the stiffer and better it is for construction purposes.
Examples & Analogies
Imagine placing a stack of books on a soft mattress. If the mattress sinks a lot, it indicates that the surface won't be able to support heavy items without settling too much. Similarly, the Plate Load Test assesses how much the ground will settle under a load, just as the mattress does under the books.
Calculation of the k-value
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
k = Load intensity / Settlement.
Detailed Explanation
After conducting the Plate Load Test, engineers calculate a value known as the k-value. This k-value indicates the subgrade reaction modulus and is calculated by dividing the intensity of the load applied to the plate by the amount of settlement that occurs. This ratio helps quantify how stiff the soil is; a higher k-value means the soil is better at resisting deformation and is more suitable for heavy loads. Engineers use this number to assess whether the soil can adequately support the planned structures.
Examples & Analogies
Think of loading a sponge with weights. If you press down hard (the load intensity) and the sponge squishes down a little (settlement), you'll get a sense of how much weight that sponge can handle without becoming overly compressed. The k-value works similarly, showing how resistant the soil is to settling under heavy loads.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Plate Load Test: Measures soil settlement under load to assess load-bearing capacity.
-
k-value: Reflects the subgrade stiffness in terms of load intensity to settlement ratio.
-
Settlement: The displacement of soil surface due to applied weight.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In a Plate Load Test, a circular plate is subjected to increasing loads, and the resulting settlement is recorded to determine the k-value for the underlying soil.
-
Understanding k-values helps civil engineers design roads in areas with varying soil conditions, ensuring the pavement’s structural integrity.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When you find the k, measure load and settlement each day.
📖 Fascinating Stories
-
Imagine a strong knight testing the ground beneath his feet, measuring how much it gives under his weight - that's how the Plate Load Test works as the knight settles into the earth, finding its strength.
🧠 Other Memory Gems
-
K-Value Calculation: Load divided by Settlement gives your K's embellishment.
🎯 Super Acronyms
KSS
- K-value
- Settlement
- Strength - remember these when you test the earth's length.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Plate Load Test
Definition:
A test to determine the load-bearing capacity of soil by measuring its settlement under an applied load using a rigid circular plate.
-
Term: kvalue
Definition:
A measure of the stiffness of soil, calculated as the ratio of applied load intensity to the resulting settlement.
-
Term: Settlement
Definition:
The vertical downward movement of the ground surface due to applied load.
