Introduction to Particle Size Distribution
Unlock Audio Lesson
Welcome, class! Today, we'll be discussing Particle Size Distribution, or PSD. Why do you think knowing the size of soil particles is crucial for civil engineering?
Maybe it affects how strong the soil is?
Exactly! It also impacts drainage and how the soil can be compacted. PSD helps us figure out how soils will behave under loads, which is vital for our designs.
How do we measure it?
Great question! We use methods like sieve analysis for larger particles and hydrometer analysis for smaller ones. Let's remember: sieve for 's'ize, hydrometer for 'h'ead—it's like a mnemonic!
So, it’s important for both drainage and load-bearing.
Correct! Understanding PSD is foundational for effective soil management in engineering.
Sieve and Hydrometer Analysis
Unlock Audio Lesson
Let’s delve into the two primary methods for analyzing particle sizes: sieve analysis and hydrometer analysis. Can anyone tell me what a sieve analysis involves?
Using different mesh sizes to sort particles?
Yes, we perform mechanical sieving for particles larger than 75 micrometers. The cumulative results help us create a gradation curve. Now, who can explain hydrometer analysis?
Isn’t that for finer particles under 75 micrometers?
Exactly! It uses sedimentation principles to measure the size distribution. Remember, 'hydro' means water, and it's critical for analyzing silty and clayey soils!
So different methods based on particle size?
Yes! Understanding how we analyze PSD is vital for prediction about how soil will perform in engineering.
Types of Gradation
Unlock Audio Lesson
Let's now look at gradation. Who knows what a well-graded soil is?
It has a wide range of particle sizes, right?
That’s correct! Well-graded soils provide better load distribution and compaction. Now, what about poorly-graded soils?
They mostly have the same-sized particles, which isn’t good!
Exactly. Poorly-graded soils can lead to unstable structures. And gap-graded soils—what do you think?
They have missing sizes which can affect performance?
Correct! Each type of gradation affects how the soil behaves, and understanding this is key in our designs.
Importance of PSD in Engineering
Unlock Audio Lesson
To conclude, why do you think knowing particle size distribution is essential for pavement design?
It helps us predict drainage and load-bearing capacity!
Yes! Poor handling of these elements can lead to failures. Therefore, proper understanding of PSD ensures the stability and durability of infrastructures.
So we must classify soils properly based on their PSD?
Exactly. And with that comes better decision-making in engineering. Always remember the importance of PSD in the soil health check!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
Understanding particle size distribution (PSD) is essential in engineering as it affects drainage, compaction, and load distribution of soils. This section discusses the significance of PSD, various analysis methods, and types of gradation, providing a foundation for assessing soil suitability in civil engineering projects.
Detailed
Particle Size Distribution
Particle Size Distribution (PSD) is a crucial metric in soil mechanics that represents the range and proportion of particle sizes within a soil sample. Accurate knowledge of PSD is fundamental for understanding the engineering behaviors of soils, particularly in engineering applications such as pavement design.
Significance of PSD
- Drainage: Smaller particles typically retain more water, affecting permeability and drainage characteristics of the soil.
- Compaction: The distribution of particle sizes influences the compaction process—the ideal mixture allows for optimal density and stability under loads.
- Load Distribution: Well-graded soils tend to distribute loads more evenly compared to poorly graded soils, affecting the durability of structures constructed on them.
Types of Particle Size Analysis
- Sieve Analysis: This method is used for soil particles larger than 75 micrometers using a mechanical sieve. The results yield a gradation curve indicating the soil's distribution.
- Hydrometer Analysis: For particles less than 75 micrometers, this method applies sedimentation principles, allowing for the determination of PSD in fine-grained soils such as silts and clays.
Types of Gradation
- Well-graded: Includes a wide range of particle sizes, generally offering better compaction and drainage.
- Poorly-graded (uniform): Consists of mostly similar-sized particles which can lead to lower stability.
- Gap-graded: Contains missing intermediate particle sizes, which can affect load-bearing properties.
Understanding PSD aids engineers in soil classification, affecting the suitability of soils for specific construction projects and ensuring the stability, durability, and performance of infrastructure.

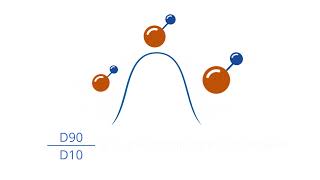

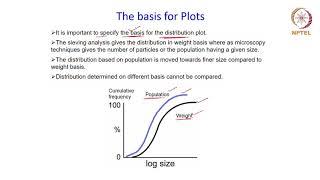

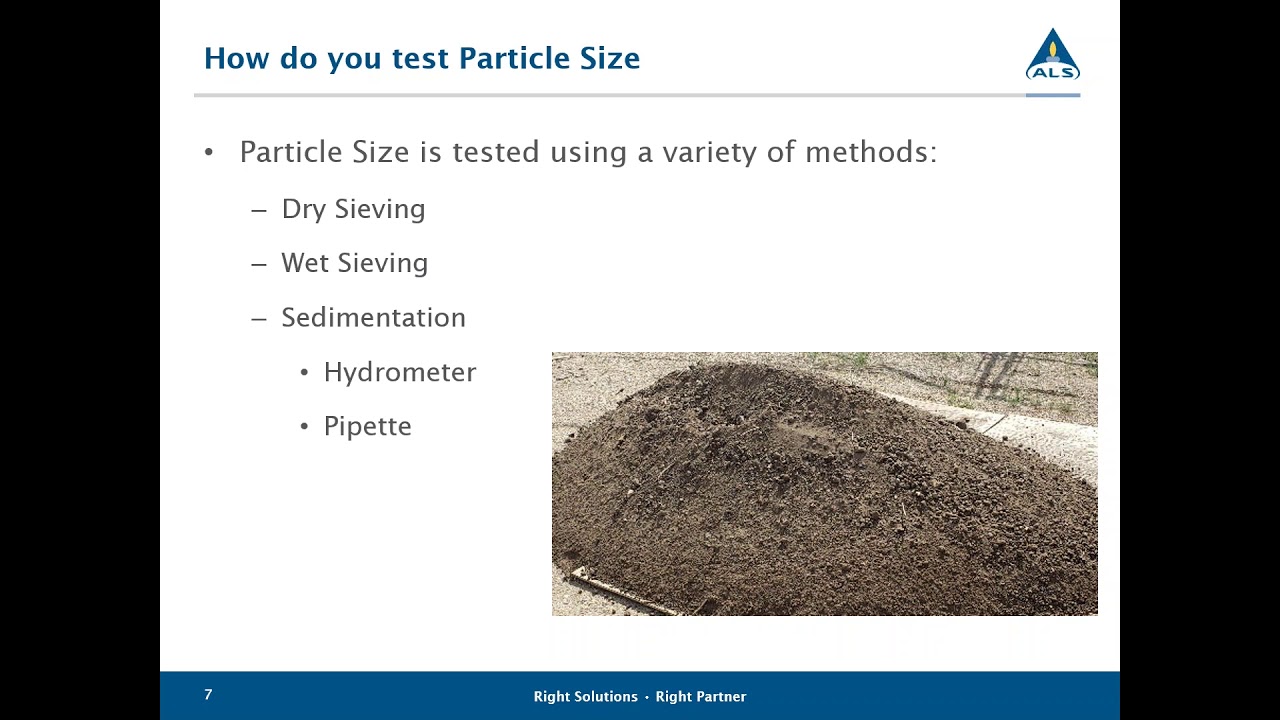

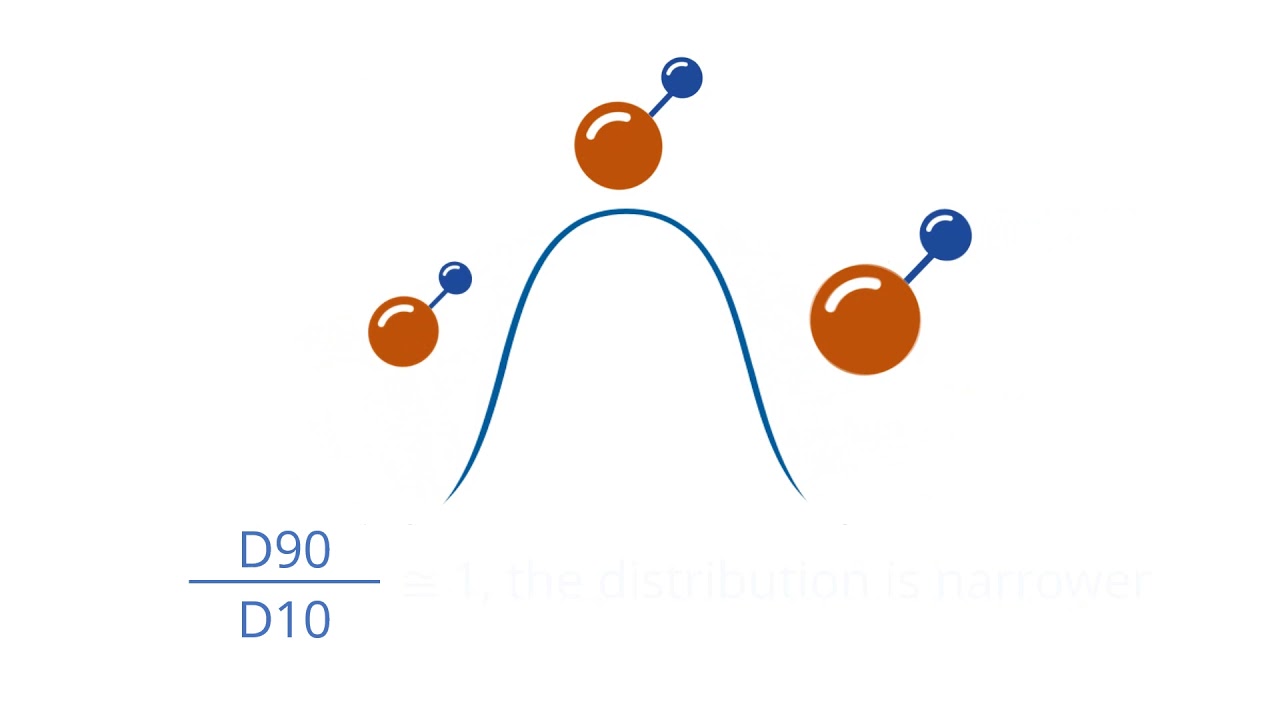

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Definition of Particle Size Distribution
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Represents the range and proportion of particle sizes
Detailed Explanation
Particle size distribution refers to the classification of soil particles based on their sizes. It describes the different sizes present within a soil sample and how much of each size is found. This distribution is crucial because it influences how the soil behaves depending on factors such as drainage, compaction, and load-bearing capabilities.
Examples & Analogies
Think of particle size distribution like a bag of mixed nuts. If you have lots of small pieces, a few medium ones, and maybe one or two large nuts, the characteristics of your 'nut' mixture will be different from a bag that contains mostly small peanuts with only a rare large walnut. Just like in soil, the variety and quantity of particle sizes will determine how the mixture behaves.
Importance of Particle Size Distribution
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Important for understanding drainage, compaction, and load distribution
Detailed Explanation
The importance of particle size distribution lies in its impact on soil engineering characteristics. For example, well-distributed particle sizes lead to good drainage properties because water can move easily between different sizes. This is crucial in construction projects, where excess water can weaken the soil. Additionally, proper distribution of particle sizes enhances compaction, allowing soil particles to fit together closely, which increases load-bearing capacity.
Examples & Analogies
Imagine trying to pack a suitcase. If you only have large, bulky clothes, you won't be able to fit much in. But if you also have small items, like socks, you can fill the gaps and fit more efficiently. In the same way, soils with a good variety of particle sizes are like a well-packed suitcase - they perform better under pressure.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Particle Size Distribution (PSD): Important for understanding soil behavior under load.
-
Sieve Analysis: Used for particles larger than 75 micrometers.
-
Hydrometer Analysis: Used for particles smaller than 75 micrometers.
-
Well-graded Soils: Provide better compaction and drainage.
-
Poorly-graded Soils: Lead to instability in structures.
-
Gap-graded Soils: Affect load-bearing capacity due to missing sizes.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A construction site that uses well-graded gravel will likely have improved drainage and stability compared to a site using poorly graded sand.
-
In a pavement design scenario, a mixture of coarse and fine aggregates (well-graded) is preferred over a uniform size to achieve the best compaction and load distribution.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In soil we find, sizes lie, all particles tell us why, compact and drain, so true, the best path comes to view.
📖 Fascinating Stories
-
Imagine a castle built on layers of soil. The well-graded stones held it up strong, while the poorly-graded pebbles couldn't handle the load, leading to cracks!
🧠 Other Memory Gems
-
PS and HD stand for Particle Size - Sieve and Hydrometer Distribution.
🎯 Super Acronyms
PSD—P for Proportions, S for Size, D for Distribution. Keep those in mind!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Particle Size Distribution (PSD)
Definition:
A representation of the range and proportion of particle sizes within a soil sample.
-
Term: Sieve Analysis
Definition:
A method for determining the particle size distribution of soil based on mechanical sieving.
-
Term: Hydrometer Analysis
Definition:
An analysis method used for particles smaller than 75 µm, based on the principles of sedimentation.
-
Term: Wellgraded Soil
Definition:
Soil that has a wide range of particle sizes, allowing for better compaction and load distribution.
-
Term: Poorlygraded Soil
Definition:
Soil containing mostly similar-sized particles, which can lead to instability.
-
Term: Gapgraded Soil
Definition:
Soils that are missing intermediate sizes in their particle distribution, affecting load-bearing performance.
