Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Classification Categories
Unlock Audio Lesson
Today, we are discussing the Unified Soil Classification System, or USCS. Can anyone tell me what the main categories of soils are as per this system?
Are they coarse-grained and fine-grained soils?
That's right! Coarse-grained and fine-grained are the two primary categories. Can anyone explain what characteristics distinguish these categories?
Coarse-grained soils have larger grain sizes, while fine-grained soils have smaller particles.
Exactly! Coarse-grained soils retain less water and often drain quickly. Good job! Now, can anybody recall some examples of each type?
Gravel and sand are examples of coarse-grained soils.
And silts and clays are examples of fine-grained soils!
Great work! Remember, coarse-grained soils are categorized into GW for well-graded gravel and GP for poorly graded gravel, among others. Keep that in mind!
Atterberg Limits
Unlock Audio Lesson
Now let's talk about Atterberg limits, which are crucial for defining fine-grained soils. Who can tell me what Atterberg limits are?
They measure the plasticity of soils, like the Liquid Limit and Plastic Limit?
Correct! The Liquid Limit indicates the moisture content at which the soil changes from plastic to liquid, while the Plastic Limit marks the transition from a plastic to a semi-solid state. How do these limits help in engineering?
They help identify how a soil will behave under moisture changes.
Yes, so if a clay has a high plasticity index, it will expand and contract more, right?
Exactly! High plasticity can lead to significant volume changes, affecting pavement performance. Let's remember the acronym 'LL for Liquid Limit, PL for Plastic Limit' to keep these concepts clear.
Soil Identification Symbols
Unlock Audio Lesson
Moving on, let's talk about soil identification symbols within the USCS. What do these symbols represent?
They are shorthand for different types of soils like GW for well-graded gravel or CL for low plasticity clay.
Perfect! These symbols make it easier for engineers to communicate and understand the characteristics of soils quickly. Can someone share why this is beneficial?
It helps in making faster decisions regarding construction without needing to look at lengthy explanations.
Exactly! Using these codes simplifies the complexity of soil types. So, as a quick breakdown, GW indicates well-graded gravel, CL for low plasticity clay, and OL for organic soil. Keep these in mind as you study!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The USCS provides a systematic approach to classify soils by grouping them into coarse-grained, fine-grained, and organic categories based on their grain-size distribution and plasticity. Key symbols such as GW (well-graded gravel) and CL (low plasticity clay) are used to easily identify soil types, which aids in engineering decisions regarding soil treatment and behavior under loading.
Detailed

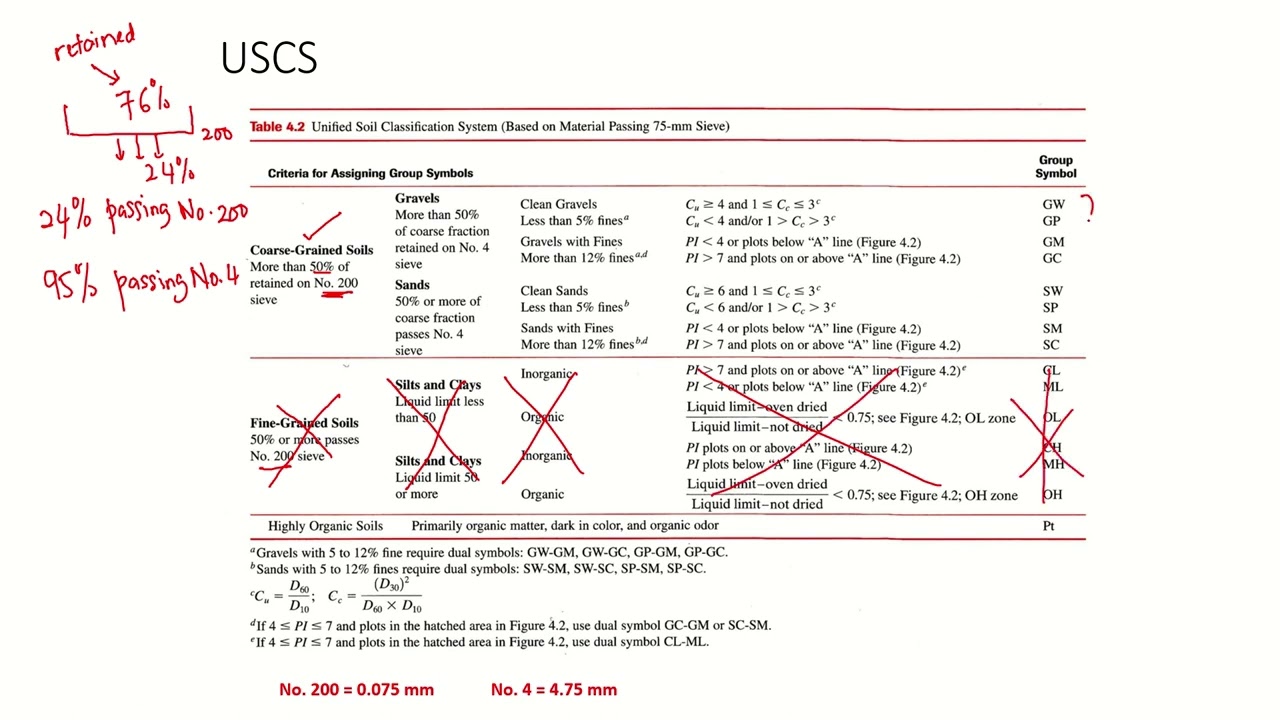

Unified Soil Classification System (USCS)
The Unified Soil Classification System (USCS) is a widely used system for categorizing soils based on their engineering properties. Primarily, the USCS divides soils into three main groups: coarse-grained soils, fine-grained soils, and highly organic soils. This classification depends on grain-size distribution and Atterberg limits, which reflect the plasticity and moisture behavior of soils.
Key Features of USCS:
- Coarse-grained soils: Including gravels (GW, GP) and sands (SW, SP).
- Fine-grained soils: Including silts (ML, MH) and clays (CL, CH).
- Highly organic soils: Representing soils with a significant organic content (OL, OH).
Symbols are used for identification; for example, GW signifies well-graded gravel, while CL represents low plasticity clay. This system helps engineers in making informed decisions related to soil suitability, treatment, and prediction of soil behavior under different loading conditions.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Types of Soils
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Divides soils into coarse-grained, fine-grained, and highly organic soils
Detailed Explanation
The Unified Soil Classification System (USCS) categorizes soils into three main types based on their grain size: coarse-grained, fine-grained, and highly organic. Coarse-grained soils are composed of larger particles such as sand and gravel, while fine-grained soils consist of smaller particles like silt and clay. Highly organic soils contain a significant amount of decomposed plant material, affecting their engineering properties.
Examples & Analogies
Think of soils like a collection of ingredients in a kitchen. Coarse-grained soils are like chunky vegetables in a salad, where the different pieces are easily distinguishable. Fine-grained soils are like flour, which has a powdery consistency where the individual particles are hard to see. Highly organic soils can be compared to compost, which has a specific smell and appearance due to its organic content.
Basis of Classification
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Based on grain-size distribution and Atterberg limits
Detailed Explanation
The classification of soils in the USCS is primarily based on two criteria: grain-size distribution and Atterberg limits. Grain-size distribution involves analyzing the proportions of different-sized particles in the soil sample. Atterberg limits refer to the critical moisture content of fine-grained soils, characterized by the liquid limit (LL) and plastic limit (PL). These limits help to determine how much moisture the soil can retain before it changes from a solid to a liquid state, affecting its behavior under load.
Examples & Analogies
Imagine you’re baking a cake. Just like the right mixture of flour, sugar, and eggs is crucial for a proper cake, the grain-size distribution and Atterberg limits are essential components that influence how soil behaves. If there’s too much flour (fine-grained) or too many chunky bits (coarse-grained), the cake won’t rise properly, just as a soil that’s not properly classified won’t perform well under engineering stress.
Soil Symbols
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Symbols: GW (Well-graded gravel), CL (Low plasticity clay), etc.
Detailed Explanation
In the USCS, each type of soil is represented by a unique symbol. For example, 'GW' denotes well-graded gravel, which means the gravel has a good distribution of particle sizes, allowing for better drainage and stability. 'CL' stands for low plasticity clay, indicating that the clay has low plasticity and may not swell or shrink significantly. These symbols make it easier for engineers to quickly understand the characteristics of the soil involved in a project.
Examples & Analogies
Consider a library where each book is classified by a specific code. The USCS symbols are like these codes; they provide quick access to important information about the soil. Just as a book with a unique code can be found in the right section of the library, a soil type identified by its symbol can quickly inform engineers how it will function in construction projects.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Grain-Size Distribution: Refers to the proportion of various sizes of soil particles.
-
Atterberg Limits: Tests that indicate the plasticity of fine-grained soils.
-
Soil Classification: The process of categorizing soils to predict their behavior under various conditions.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example of coarse-grained soil: Gravel used in base layers of pavement.
-
Example of fine-grained soil: Clay used in subgrades for enhanced stability.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Clay can sway, while gravel stays, in the ground where it lays.
📖 Fascinating Stories
-
Imagine a world where soils speak: Coarse ones rush by like gravel racers, while fine ones linger and resist the flow, revealing their plastic secrets as they adapt to the rain.
🧠 Other Memory Gems
-
GFP: Gravel is coarse, Fine is small, Plasticity Index speaks volumes all.
🎯 Super Acronyms
GFC
- Grains
- Fine
- Coarse — helps categorize soil of course!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Unified Soil Classification System (USCS)
Definition:
A soil classification system that categorizes soils based on their grain size and plasticity properties.
-
Term: GrainSize Distribution
Definition:
The proportions of different particle sizes in a soil sample.
-
Term: Atterberg Limits
Definition:
A set of tests that classify fine-grained soils based on their plasticity.
-
Term: CoarseGrained Soils
Definition:
Soils with larger particle sizes, such as gravels and sands.
-
Term: FineGrained Soils
Definition:
Soils with smaller particle sizes, such as silts and clays.
-
Term: Plasticity Index
Definition:
The difference between the liquid limit and plastic limit of a soil.
