4.2 - Velocity Gradient and Shear Rate
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Velocity Gradient
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we will explore the concept of velocity gradient in fluid dynamics. Consider a fluid flowing between two parallel plates, where one is at rest, and the other is moving at velocity V. Who can tell me what the velocity might be at the stationary plate?
I think the velocity at the stationary plate would be zero.
Correct! According to the no-slip condition, the fluid at the wall adheres to the surface. Now, what do you think happens as we move away from this wall towards the moving plate?
I guess the velocity increases linearly up to V?
Exactly! As we move further away, the fluid velocity increases gradually. This means we can express it as a linear relationship. We can say that at any height y from the rest plate, the velocity U can be described as a linear function. Remember, this transition is called the 'velocity gradient.'
How do we mathematically represent that gradient?
Great question! We can express it as the derivative of velocity concerning distance: \( rac{ ext{d}u}{ ext{d}y} \). This represents the rate at which velocity changes with distance.
In summary, we see that velocity changes linearly in this setup, which is fundamental in understanding fluid flow.
Shear Rate and Stress Relation
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let’s discuss shear rate in more detail. When we talk about shear stress, how does this relate to the shear strain rate in fluids compared to solids?
In solids, stress is related to strain, but in fluids, it’s related to shear strain rate?
"Exactly right! In fluid mechanics, we say that shear stress is proportional to the shear strain rate, which you can see in Newton's law of viscosity: \( \tau =
Viscosity and Temperature Effects
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Next, let’s explore how temperature affects the viscosity of fluids. What happens to the viscosity of liquids as we increase temperature?
I believe it decreases due to reduced intermolecular forces?
Exactly! Higher temperatures lead to greater molecular motion, hence weakening their binding forces, and reducing viscosity. What about gases? How does temperature impact their viscosity?
For gases, viscosity increases with temperature because the molecules move faster and collide more frequently.
Spot on! Increased molecular activity in gases means enhanced momentum transfer between molecules. In summarizing, temperature has opposing effects on the viscosity of liquids and gases, which is vital for understanding their behavior in various applications.
Newtonian vs. Non-Newtonian Fluids
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're going to wrap things up by differentiating between Newtonian and non-Newtonian fluids. Can someone explain what we mean by Newtonian fluids?
Newtonian fluids are those for which viscosity remains constant irrespective of the shear rate.
Correct! And what defines non-Newtonian fluids?
Non-Newtonian fluids have a viscosity that can change with shear rate.
Right! Examples include shear-thinning fluids like ketchup and shear-thickening fluids like cornstarch mixed with water. Can anyone think of a real-world application for this?
Toothpaste! It flows easily when squeezed but holds its shape otherwise.
Great example! In summary, recognizing the behavior of different fluids under shear is critical for applications in engineering, manufacturing, and daily products.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section discusses the behavior of fluids under shear stress, defining velocity gradient and shear rate. It highlights the linear velocity distribution in parallel plate flow and differentiates fluid mechanics from solid mechanics concerning stress and strain rate.
Detailed
Detailed Summary
In fluid dynamics, the velocity gradient and shear rate are crucial concepts in understanding how fluids behave under stress. This section describes a scenario where fluid flows between two parallel plates: one stationary and the other moving with a velocity V. The interaction of these plates creates a velocity gradient, as fluid velocity varies from zero at the stationary plate to V at the moving plate.
Key Points Covered:
- Velocity Distribution: The fluid velocity is zero at the stationary plate and increases linearly to V at the moving plate. If we consider a vertical distance y from the stationary plate, we can express the velocity U at any point within the fluid as a linear function of y. This linear variation illustrates how the shear forces affect adjacent fluid layers.
- Shear Rate Definition: The shear rate is expressed as the change in velocity (du) with respect to distance (dy) and is proportional to the velocity gradient, which indicates how fast the velocity of the fluid changes with position. The mathematical representation is:
\[ ext{Shear Rate} = rac{ ext{d}u}{ ext{d}y} \]
- Relationship Between Shear Stress and Shear Rate: In contrast to solid mechanics (where stress is proportional to strain), in fluid mechanics, shear stress is proportional to the shear strain rate. This relationship is encapsulated in Newton's law of viscosity:
\[ au =
u rac{ ext{d}u}{ ext{d}y} \]
where \( au \) is shear stress and \(
u \) is the dynamic viscosity of the fluid, a constant that characterizes the fluid's resistance to flow.
- Effects of Temperature on Viscosity: The section discusses how temperature influences viscosity. In liquids, increased temperature decreases viscosity due to reduced intermolecular forces, while in gases, increased temperature generally increases viscosity because the molecular activity and therefore collisions increase.
- Types of Fluids: It concludes with a distinction between Newtonian fluids (where viscosity remains constant) and non-Newtonian fluids (where viscosity can change with shear rate), elaborating on behaviors like shear thinning and thickening.
This understanding of velocity gradients and shear rates is fundamental for various applications in engineering and physics, particularly in processes involving fluid transport.

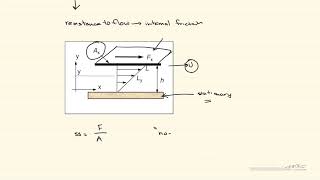

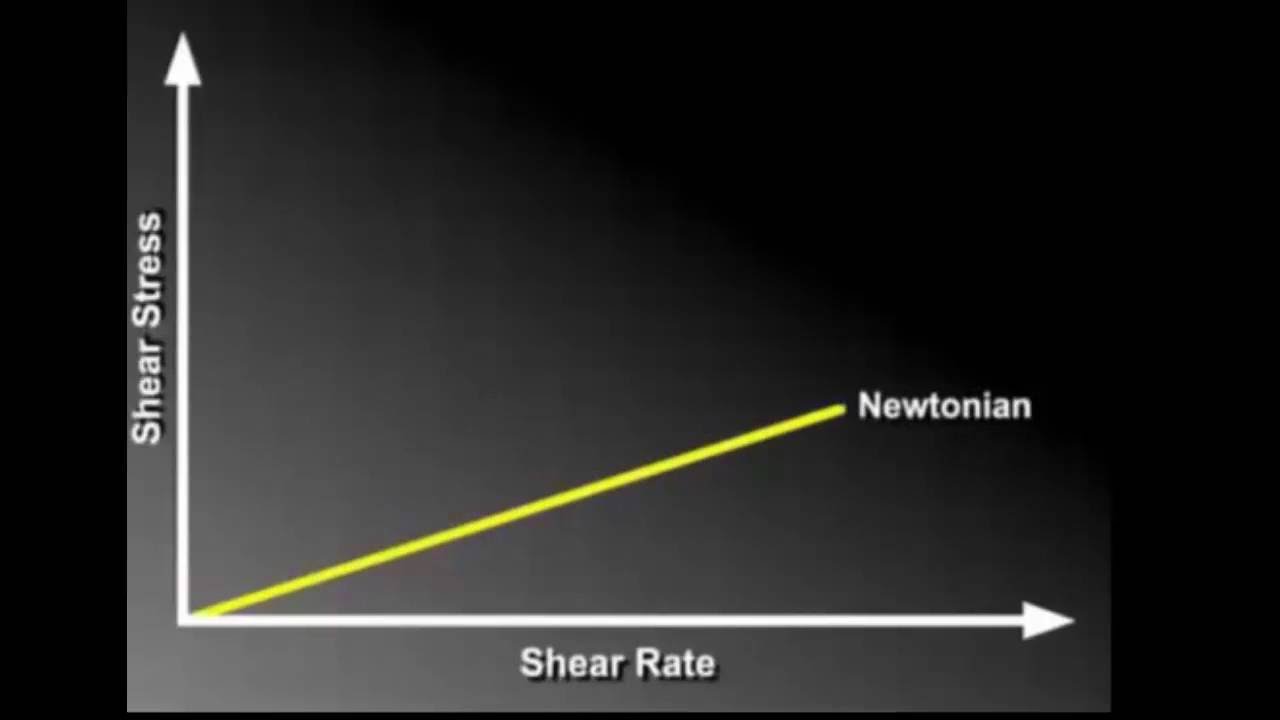

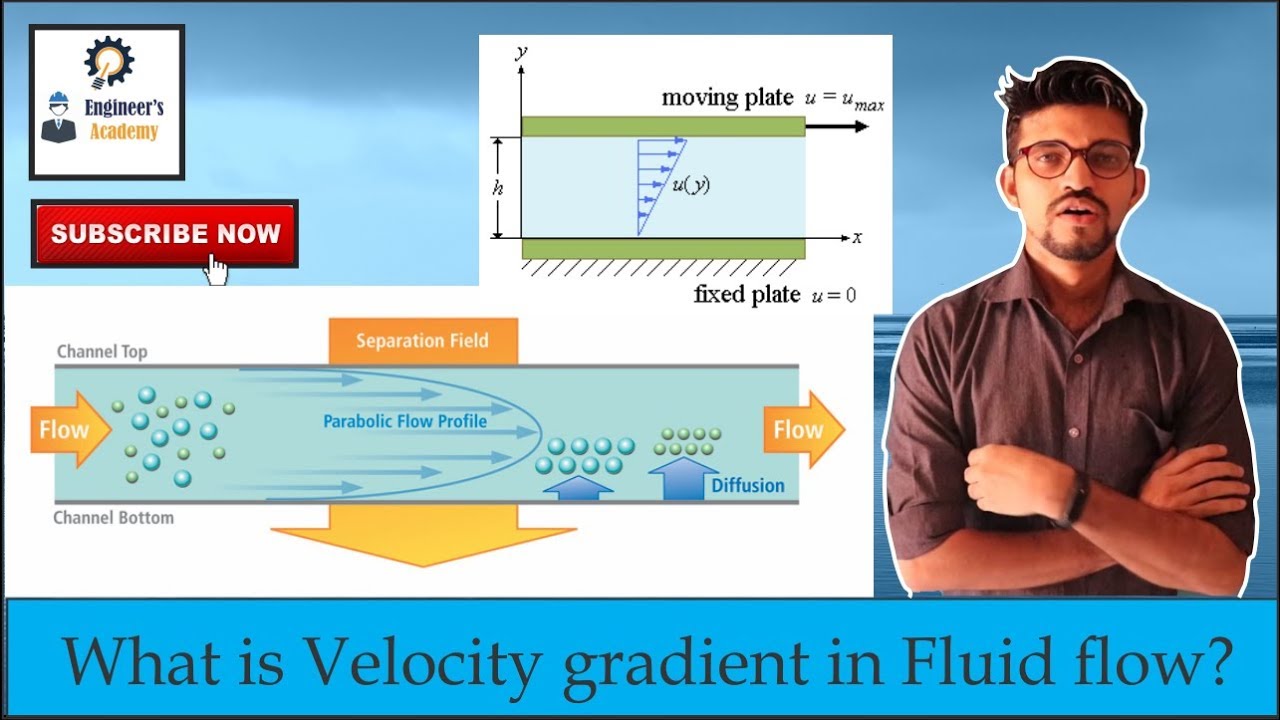

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Fluid Flow through Parallel Plates
Chapter 1 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
If I consider the same fluid flow through a parallel plate, okay. One of the plates has a velocity of zero which is at rest conditions and the other top plate is moving with a velocity V. So as a microscopic point of view, I am not talking about the molecular motions or exchange of the molecular motions or the momentum flux that is resulting in a shear stress. Here what we consider is that fluid element. That means, I consider some space of A, B, C, D, this is what defines the fluid element. At the A point we will have the velocity V as the no-slip conditions. At the B point we will have a velocity of zero. Assuming this, there will be a linear velocity variation from B to A.
Detailed Explanation
When discussing fluid flow in a parallel plate system, we imagine one plate at rest (velocity = 0) and the other moving at velocity V. This creates a situation where the fluid in between experiences a change in speed. According to the no-slip condition, the fluid right next to the stationary plate (B) has zero velocity, while the fluid element next to the moving plate (A) moves with velocity V. The variation of velocity between these two points is linear, meaning that as you go from point B (with velocity 0) to point A (with velocity V), there is a constant change in velocity observed throughout the fluid. This formation sets the stage for understanding shear rate and shear stress in fluids.
Examples & Analogies
Think of spreading butter on bread. When you start spreading near the edge of the bread, the butter moves slowly. As you move toward the center where the pressure from your knife increases, the butter spreads more quickly. In fluid mechanics, a similar velocity gradient exists between the stationary and moving plates.
Velocity Variation in Fluid Elements
Chapter 2 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The linear velocity from zero to V as the y increases, the velocity will increase, and the maximum velocity will be V.
Detailed Explanation
As we move upward from the stationary plate (point B) to the moving plate (point A), the velocity of the fluid increases in a linear manner. This means that, at any point in between, the speed of the fluid will be some value greater than zero, up to the maximum value V, depending on its distance y from the stationary plate. The further you are from the stationary plate, the faster the fluid moves as it approaches the moving plate.
Examples & Analogies
Imagine a race track: the cars near the starting line (similar to point B) are not moving, while those further down the track (closer to point A) are going full speed. Just as cars gradually accelerate down the track, fluid particles speed up as they move from the stationary plate to the moving plate.
Angular Deformation of Fluid Elements
Chapter 3 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
After a time interval ∆t, these fluid elements will be deformed. As a result, angular deformations will happen, causing a new position of points within the fluid element.
Detailed Explanation
As time progresses and the fluid continues to flow, the initially smooth fluid element becomes deformed due to the varying velocities within it. This deformation results in angles forming at different points (like B and E). This is a result of shear stress acting upon the fluid, causing adjacent layers to slide past each other. The angular distortion gives us insight into how the fluid is responding to the shear forces exerted on it.
Examples & Analogies
Consider a stack of cards laid flat on a table. If you push the top card, the bottom card moves slower because it's in contact with the table, while the top card moves freely. Gradually, the stack deforms into a slanted angle as the cards slide over each other, showcasing the concept of angular deformation in fluids.
Velocity Gradient and Shear Rate Relationship
Chapter 4 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
If I differentiate it, I will get the velocity gradient along the y directions, indicating the shear strain rate.
Detailed Explanation
The differentiation of the velocity profile gives us the velocity gradient, which is a measure of how quickly velocity changes with respect to distance in the fluid layer (along the y-axis). This gradient is directly related to the shear rate, which quantifies how much the fluid is deforming over time due to the applied shear stress. The relationship is critical in understanding the behavior of fluids under motion, particularly in determining how thick or thin a fluid is.
Examples & Analogies
Imagine stirring honey with a spoon. The closer to the spoon (where the force is being applied), the faster the honey is moving. As you move away from the spoon, the honey moves slower. This change in speed around the spoon is a velocity gradient, and how quickly it changes can tell you how 'sticky' or viscous the honey is.
Newton's Law of Viscosity
Chapter 5 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The shear stress is proportional to the shear strain rate, indicating that shear stress is a function of how fast the deformation occurs.
Detailed Explanation
In fluid mechanics, Newton's Law of Viscosity states that shear stress (the force per unit area) is proportional to the rate of shear strain (the rate at which the fluid is deforming). This means that if you increase the speed at which you stir a fluid, the shear stress increases as well. This concept is crucial in defining fluid behaviors and is a foundational principle in both theoretical and applied fluid mechanics.
Examples & Analogies
Think of mixing paint with a stirrer. If you stir slowly, it might resist. However, if you stir quickly, it becomes easier to mix. This illustrates how the shear stress (the force needed to stir) varies with the speed of mixing (shear strain rate).
Key Concepts
-
Velocity Gradient: The rate of change of velocity in a moving fluid, is crucial for calculating shear stress.
-
Shear Rate: Indicates how fast adjacent fluid layers are moving relative to each other, related to velocity gradient.
-
Newton's Law of Viscosity: Relates shear stress to shear rate in a fluid, forming a foundation for fluid dynamics.
-
Non-Newtonian Fluids: These fluids exhibit changing viscosity with varying shear rates, leading to unique behaviors.
Examples & Applications
Oil flowing between machinery subjects to shear forces illustrates a Newtonian fluid.
Ketchup exhibits shear-thining behavior, where it flows more easily when shaken.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
For Newton's law of viscosity, stress is a linear dance, shear rate in play, gives the fluid a chance!
Stories
Imagine two friends in a race: one stays still while the other runs. The one at rest feels the push from the runner. This setup tells us how quickly the fluid at rest speeds up, showing the velocity gradient.
Memory Tools
For Shear Stress, Just Remember: Shear = Viscosity * Gradient (S = V * G).
Acronyms
VISC = Velocity, Interactions, Shear, Coefficients - helps us remember the fluid dynamics basics!
Flash Cards
Glossary
- Velocity Gradient
The rate of change of fluid velocity with respect to distance in a flow field.
- Shear Rate
The rate at which adjacent layers of fluid move with respect to one another, typically represented as du/dy.
- Shear Stress
The stress component parallel to a material cross section caused by shear force.
- Newtonian Fluid
A fluid whose viscosity remains constant regardless of the shear rate.
- NonNewtonian Fluid
A fluid whose viscosity changes with the shear rate.
