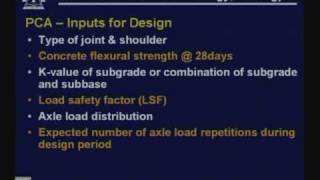

Understanding Target Flexural Strength
Unlock Audio Lesson
Today, we will start by discussing how to determine the target flexural strength for our concrete mix. Can anyone tell me what flexural strength is?
Is it the strength of concrete when it is bent?
Exactly! Flexural strength measures a material's ability to withstand bending. For our case, we have a target of 4.5 MPa, but how do we determine our adjusted target?
Do we add something to the original number?
Correct! We add a statistical margin. Specifically, we use the formula: target f equals characteristic flexural strength plus k times the standard deviation. Here, k is usually 1.65.
So, what is our final target then?
Good question! With a standard deviation of 0.6, our final target flexural strength becomes 5.49 MPa. Remember this formula: **F.K.S** – Flexural Strength, k factor, Standard deviation.
Got it! F.K.S helps me remember the components.
Exactly! Now, let's summarize what we learned: the importance of determining the target flexural strength accurately in concrete design.
Determining Water-Cement Ratio
Unlock Audio Lesson
Next, let's move on to the selection of the water-cement ratio, which is crucial for achieving durability. What do you think happens if we have too much water in concrete?
It could make the concrete weaker, right?
Correct! Too much water weakens the mixture. For M40 concrete, our ratio is 0.38. How do we find this number?
From reference tables or guidelines?
Exactly! Always check tables for the appropriate ratios based on target strength. Now, can someone remind me why it's important to keep this ratio in check?
It affects the strength and durability of the concrete!
Great recall! Let’s wrap up here with the importance of the water-cement ratio: **WCR** - Water-Cement Ratio affects workability, strength, and durability.
Final Mix Calculations
Unlock Audio Lesson
Now, let's finalize our mix calculations. We’ve determined our target strength and the water-cement ratio. What is the next step?
Calculate the water content based on the aggregate type and required workability, right?
Exactly! For the M40 mix, we are using 170 kg/m³ of water. Can anyone tell me how we calculated the cement content using this water quantity?
You divide the water content by the water-cement ratio!
Awesome! So, our cement content becomes 447.4 kg/m³. Now, what do we need to determine about the coarse and fine aggregates?
Proportions based on the requirements?
Exactly! For our design, we decided on 1140 kg/m³ for coarse aggregates and 650 kg/m³ for fine aggregates. We’ve got our mix! Let’s summarize: the three primary steps to finalizing mix calculations are: **WCAP** - Water, Cement, Aggregates Proportioning!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The design process for M40 concrete intended for highway pavement is outlined, showcasing the target flexural strength, selection of materials, water-cement ratio, and the final mix calculations to meet specific performance criteria.
Detailed
Detailed Summary
This section details the design of M40 concrete specifically tailored for highway pavement. The target flexural strength is established at 4.5 MPa. The aggregate size is limited to a maximum of 20 mm, with a required slump of 50 mm and categorized under moderate exposure conditions. To enhance performance, a superplasticizer is incorporated in the mix design. The design steps are as follows:

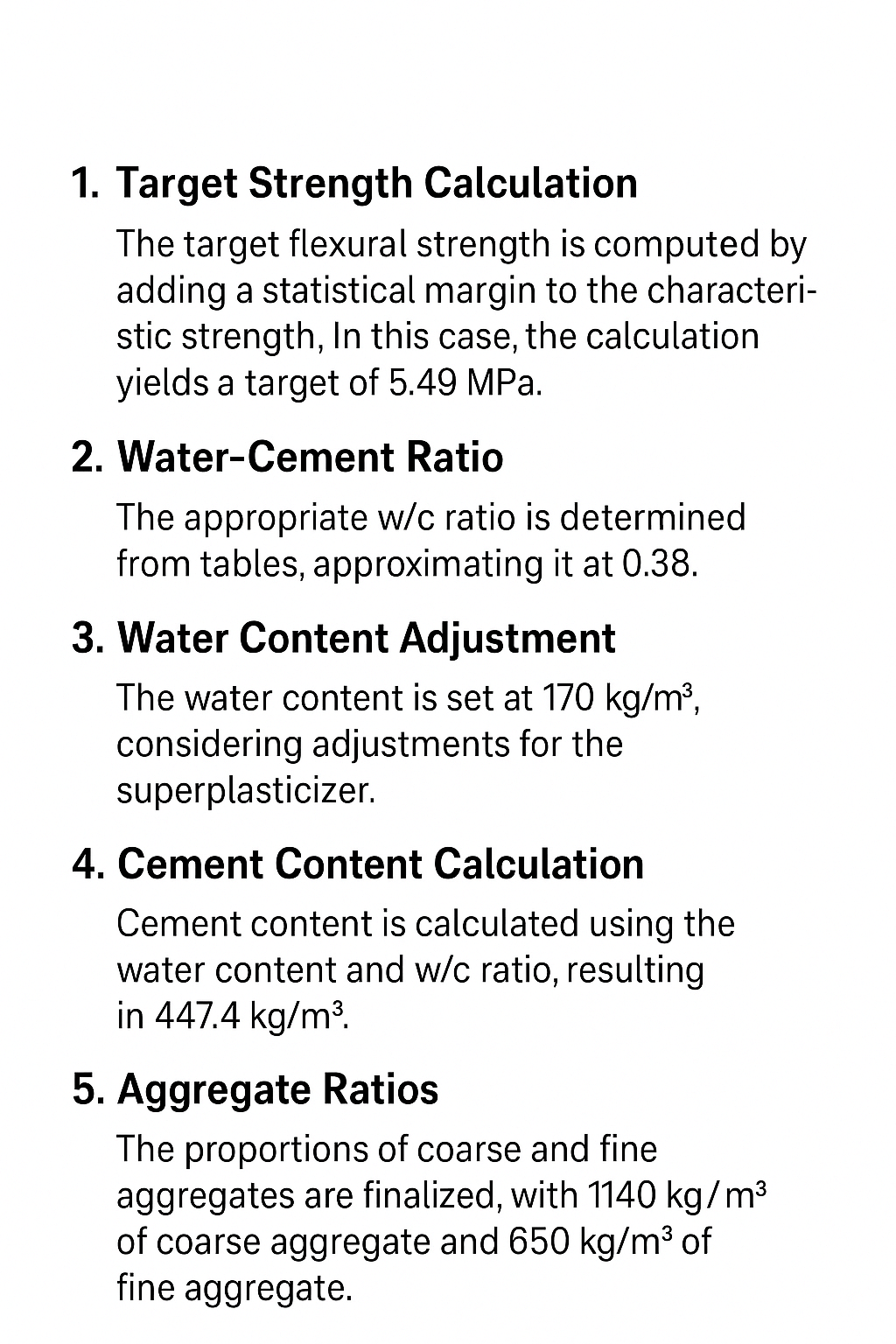

- Target Strength Calculation: The target flexural strength is computed by adding a statistical margin to the characteristic strength. In this case, the calculation yields a target of 5.49 MPa.
- Water-Cement Ratio: The appropriate w/c ratio is determined from tables, approximating it at 0.38.
- Water Content Adjustment: The water content is set at 170 kg/m³, considering adjustments for the superplasticizer.
- Cement Content Calculation: Cement content is calculated using the water content and w/c ratio, resulting in 447.4 kg/m³.
- Aggregate Ratios: The proportions of coarse and fine aggregates are finalized, with 1140 kg/m³ of coarse aggregate and 650 kg/m³ of fine aggregate.
- Admixture Addition: The superplasticizer is included at 1% weight of the cement.
This example illustrates the practical application of mix design principles discussed in the chapter, ensuring compliance with performance standards.
