Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Requirements of Concrete for Pavement Applications
Unlock Audio Lesson
Today, we will begin with the requirements of concrete for pavement applications. Can anyone tell me what compressive strength means in this context?
I think it refers to how much load concrete can withstand before failing?
Correct! For pavements, we typically need a compressive strength between 30 to 40 MPa. Now, does anyone know what flexural strength is?
Isn’t it related to how well the concrete can resist bending or flexing?
Exactly! Flexural strength is usually between 4 to 5 MPa for pavements due to their design focus. We also need to consider workability. What does that refer to?
It’s about how easily the concrete can be mixed and placed, right?
Yes, precisely! A slump value between 25 and 75 mm is ideal for proper placement. In summary, we need compressive and flexural strength, workability, durability, economy, and shrinkage resistance for effective concrete pavements.
Factors Affecting Mix Design
Unlock Audio Lesson
Now, let's explore the factors affecting mix design for pavements. Can someone name one environmental condition we need to consider?
I believe freeze-thaw cycles are important to consider!
Correct! Freeze-thaw exposure can significantly impact pavement durability. What about traffic loading?
Well, the intensity of axle loads and how often they occur must be taken into account.
Exactly! The design needs to support heavy loads and their repetitions. What other factors can influence our mix design?
The strength and conditions of the subgrade and sub-base?
Right again! Subgrade strength and drainage quality can affect performance. To summarize, the mix design must account for environmental conditions, traffic loading, and the conditions of subgrade and sub-base.
Design Procedure
Unlock Audio Lesson
Let's dive into the design procedure using IRC:44-2017. What is the first step we should take?
We need to determine the target mean flexural strength!
Perfect! We do this by adding a statistical margin to the characteristic strength. Can anyone tell me the formula?
It’s f = f_ck + k × s?
Exactly! Where k is usually 1.65 for a 95% reliability level. Next is selecting the water-cement ratio based on this target strength. How do we determine water content?
We base it on the required workability from tables or graphs!
Exactly! The final steps involve calculating cement content, selecting aggregate ratios, and adjusting based on trial mixes. To sum up, a systematic approach helps us achieve the desired concrete characteristics.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
Concrete pavements are essential in highway infrastructure, necessitating careful mix design to meet performance standards like strength, workability, and durability. This section explores the requirements for pavement concrete, factors influencing mix design, constituent materials, mix design methods, and practical design procedures.
Detailed

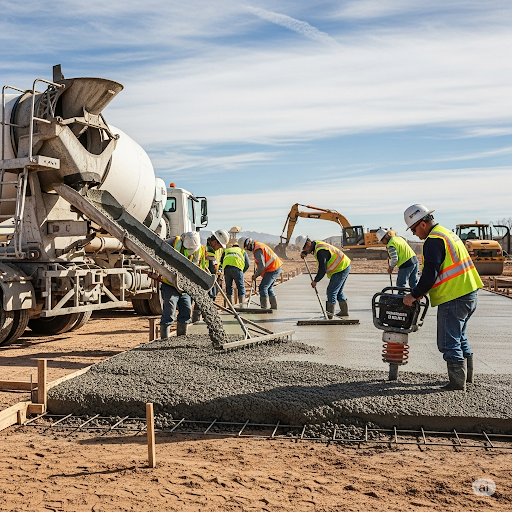

Design of Concrete Mix for Pavements
Concrete pavements are a fundamental aspect of modern highway infrastructure due to their durability and low maintenance requirements. The design of concrete mixes for pavements is paramount in achieving the right balance of strength, workability, durability, and cost-effectiveness. Proper mix design helps concrete withstand environmental conditions, heavy loads, and volume changes caused by temperature fluctuations.
Key Requirements of Concrete for Pavement Applications
Concrete used in pavements must adhere to several performance criteria:
- Compressive Strength: Typically between 30 MPa and 40 MPa for highways.
- Flexural Strength: Ranging from 4 MPa to 5 MPa, focused on flexure-based designs.
- Workability: A slump value of 25–75 mm for adequate placement and compaction.
- Durability: Resistance to freeze-thaw cycles, sulfate attack, and abrasion.
- Economy: Optimizing materials for cost-effectiveness.
- Shrinkage and Creep Resistance: Essential to reduce cracking and deformation.
Factors Affecting Mix Design
These include environmental conditions, traffic loading, subgrade quality, and the type of pavement desired such as JPCP or CRCP.
Constituents of Concrete
The concrete mix consists of key materials: cement (usually OPC), aggregates (coarse and fine), clean potable water, and admixtures that enhance properties like workability and strength.
Concrete Mix Design Methods
Three prominent methods include the IRC:44 Method, IS 10262 Method, and ACI Method, each with specific applications and focuses.
Practical Design Procedure
Adhering to the IRC:44-2017 method involves determining target flexural strength, selecting a water-cement ratio, estimating water content, and performing trial mixes to validate the design.
Quality Control
Ensuring precise batching, mixing, and curing processes are vital for achieving high-quality concrete pavements.
Ready-Mixed Concrete (RMC)
Increasingly preferred for large projects due to its consistent quality and efficient production.
Special Considerations
Use of supplementary materials for improved sustainability and performance, as well as fibers for crack resistance, are critical advancements in modern concrete pavement design.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Concrete Mix Design for Pavements
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Concrete pavements play a crucial role in modern highway infrastructure, offering durability, low maintenance, and good riding quality. One of the most vital aspects in ensuring the performance and longevity of concrete pavements is the design of the concrete mix. A properly designed concrete mix ensures the required strength, workability, durability, and economy while meeting the specific demands of pavement applications such as resistance to environmental conditions, heavy loads, and volume changes due to temperature and moisture. This chapter focuses on the principles, guidelines, and methods of concrete mix design tailored specifically for pavements. It emphasizes the parameters influencing mix proportioning, design procedures, testing methods, and relevant standards.
Detailed Explanation
The introduction provides an overview of the significance of concrete pavements in highways. It highlights that the design of the concrete mix is essential for achieving durability and low maintenance while ensuring high performance. Key requirements such as strength, workability, and resistance to various conditions are necessary for successful pavement applications. The chapter will explain principles, guidelines, and methods specific to pavement mix design, as well as detailing important parameters for proportioning.
Examples & Analogies
Think of the concrete mix design as a recipe for baking a cake. Just as you need the right ingredients in the right proportions to create a delicious cake that holds together well, the concrete mix must have the proper materials and proportions to ensure that the finished pavement is strong, durable, and can withstand heavy traffic.
Requirements of Concrete for Pavement Applications
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Concrete used for pavements must meet several performance criteria. Key requirements include:
- Compressive Strength: Typically ranging from 30 MPa to 40 MPa for highways.
- Flexural Strength: Usually between 4 MPa to 5 MPa as pavement design is flexure-based.
- Workability: Sufficient for proper placement and compaction (slump value of 25–75 mm).
- Durability: Resistance to freeze-thaw cycles, sulfate attack, abrasion, and chemical exposure.
- Economy: Optimized use of materials for cost-effectiveness.
- Shrinkage and Creep Resistance: Important to minimize cracks and long-term deformation.
Detailed Explanation
The requirements for concrete used in pavements are crucial for ensuring longevity and performance. Compressive strength indicates how well the pavement can hold up under heavy loads. Flexural strength is particularly important because pavements primarily bear loads through bending. Workability refers to how easy the concrete can be placed and compacted—a critical factor during construction. Durability ensures that the concrete can withstand environmental challenges, while economy ensures responsible material use without compromising quality. Lastly, resistance to shrinkage and creep is vital to prevent cracking over time.
Examples & Analogies
Imagine building a road like constructing a bridge over water. The materials must be strong enough to support vehicles, resistant to weather conditions like rain or freezing temperatures, and practical in terms of cost. Just like you wouldn’t use flimsy materials for a bridge, you must ensure that concrete for pavements is built to last with the right qualities.
Factors Affecting Mix Design for Pavements
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Several factors can significantly influence the concrete mix design for pavements, which include:
Environmental Conditions
- Freeze-thaw exposure.
- Sulfate presence in soils or groundwater.
- Temperature variations.
Traffic Loading
- Axle load intensity.
- Repetition of loads.
- Load transfer characteristics.
Subgrade and Sub-base Conditions
- Strength and stiffness of underlying layers.
- Drainage quality.
Type of Pavement
- Jointed Plain Concrete Pavement (JPCP).
- Continuously Reinforced Concrete Pavement (CRCP).
- Roller Compacted Concrete Pavement (RCCP).
Detailed Explanation
Mix design must consider various factors to ensure the pavement performs well. Environmental factors like freeze-thaw cycles can cause cracks, while sulfate in the soil can lead to chemical damage. Traffic loading must also be considered—heavier loads require stronger mixes. The condition of the subgrade and sub-base influences the overall performance, as weak layers could contribute to failure. Finally, the type of pavement affects the design, as different pavement types may have unique structural requirements and behaviors.
Examples & Analogies
Think of designing a phone case. If you live in a cold region, you will want a case that can handle temperature changes without cracking. For a phone that’s used in a busy city, the case needs to be sturdy enough to resist drops from being in crowded places. In the same way, the pavement mix design must address conditions it will face throughout its life, from weather to traffic.
Constituents of Concrete for Pavements
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Concrete for pavements is primarily made up of several key constituents:
Cement
- Type: Ordinary Portland Cement (OPC) – 43 or 53 grade, or blended cement like PPC or PSC.
- Properties: Consistency, setting time, fineness, strength development.
Aggregates
- Coarse Aggregates: Angular, hard, and clean crushed stone.
- Fine Aggregates: Clean river sand or manufactured sand conforming to grading limits.
- Grading: Must ensure a well-graded mix for strength and workability.
Water
- Potable water with pH between 6 and 8.
- Free from chlorides and sulfates.
Admixtures
- Water-reducing agents (Plasticizers).
- Superplasticizers for high strength or low w/c ratio.
- Air-entraining agents for freeze-thaw resistance.
- Retarders or accelerators depending on climatic conditions.
Detailed Explanation
Concrete consists of several essential materials that serve specific functions. Cement binds the mix and provides strength; different types are chosen based on the project needs. Aggregates make up most of concrete volume, providing structural integrity—coarse aggregates offer strength, while fine aggregates fill gaps. Water is critical for hydration and should be clean to avoid contamination. Admixtures are added to enhance concrete properties; they can adjust workability, setting time, or resistance to freezing, which are tailored to specific conditions during placement.
Examples & Analogies
Creating concrete is similar to making a smoothie. You need the right ingredients: strong fruits (like aggregates) that provide structure, a liquid (water) to blend everything together, and perhaps, ice or sweeteners (admixtures) to improve the final product's taste and texture. Each of these elements affects the smoothie’s consistency, just as they do in a concrete mix.
Concrete Mix Design Methods
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The following methods are commonly used for concrete mix design in pavements:
IRC:44 Method (Recommended by Indian Roads Congress)
- Tailored for pavement concrete.
- Focuses on flexural strength (modulus of rupture) instead of compressive strength.
- Incorporates durability and workability factors.
IS 10262 Method
- General mix design standard in India.
- Recently revised to include provisions for different exposure conditions.
- Modified for pavement use by targeting flexural strength indirectly through compressive strength.
ACI Method (American Concrete Institute)
- Widely used globally.
- Empirical and based on statistical relationships.
- Applicable to high-performance pavement design.
Detailed Explanation
Different methods exist for designing concrete mixes based on specific guidelines. The IRC:44 method is especially for pavements and emphasizes strength under bending rather than just compressive strength, considering how pavement actually performs. The IS 10262 method provides a general template for designing mixes but has adjustments for various elements affecting pavements. The ACI method is more globally recognized and uses statistical data to inform the design, ensuring it meets high-performance standards.
Examples & Analogies
Think of these methods as different recipes for a specialized dish. Just as a chef might choose a specific recipe based on the meal type, the method used for concrete mix design is chosen based on the pavement's required characteristics and the local conditions it will face. Each recipe has unique ingredients and cooking techniques tailored for the desired outcome.
Design Procedure (IRC:44-2017 Method)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The design procedure using the IRC:44-2017 method involves several steps:
Step 1: Target Mean Flexural Strength
- Determine characteristic flexural strength f_ck.
- Add margin to account for variation.
f = f_ck + k × s
Where:
- k = statistical constant (usually 1.65)
- s = standard deviation
Step 2: Selection of Water-Cement Ratio
- Based on target strength and durability.
- Check from graphs or tables in IRC/IS standards.
Step 3: Estimation of Water Content
- Based on required workability (slump) and aggregate type.
Step 4: Calculation of Cement Content
Water Content
Cement Content = ----------- (w/c ratio)
- Must meet minimum content for durability as per IS 456.
Step 5: Selection of Aggregate Ratio and Grading
- Decide proportion of coarse to fine aggregate.
- Confirm compatibility with grading limits (Zone II sand preferred).
Step 6: Mix Calculations (Trial Mixes)
- Compute mix proportions by weight.
- Make adjustments based on field conditions and test results.
Step 7: Trial Mixes and Adjustments
- Prepare trial batches.
- Test for:
- Flexural strength at 28 days.
- Workability (slump).
- Air content.
- Durability indicators (sulfate resistance, abrasion).
Detailed Explanation
The design procedure outlines a systematic approach to determine the concrete mix design. Starting with the target mean flexural strength helps ensure reliability in the final product. The water-cement ratio influences workability and durability, so selecting it carefully based on standards is crucial. Estimating water and cement content comes next, followed by determining the ratios for aggregates to achieve a well-balanced mix. After computing proportions, trial mixes are performed to verify that all properties meet specifications, allowing adjustments for the best results based on testing outcomes.
Examples & Analogies
Designing a concrete mix is like going through a checklist before a big event. You first identify your goals (the target strength) and make sure you have all the necessary items (water, cement, aggregates). After setting everything up, you might try a practice run (trial mixes) to ensure each component works as intended, making adjustments based on feedback to ensure everything goes smoothly on the final day.
Quality Control in Pavement Concrete
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Quality control is vital in ensuring that concrete pavements meet specified standards and durability requirements. Key aspects include:
- Batching Accuracy: Use weigh-batchers or batching plants.
- Mixing: Pan mixers or transit mixers with adequate mixing time.
- Transporting and Placing: Avoid segregation and delays.
- Compaction: Use vibrators or slip-form pavers.
- Curing: Continuous wet curing for 14 days or equivalent.
- Strength Monitoring: Regular cube or beam testing.
Detailed Explanation
Maintaining quality throughout the process is essential for the longevity of the concrete pavements. Batching involves precisely measuring ingredients, which is crucial for consistency. Adequate mixing ensures a homogeneous blend. Transporting and placement need careful handling to prevent segregation and ensure no delays in the concrete setting. Compaction is necessary to eliminate air pockets in concrete, and curing is vital for proper hydration and strength development. Regular testing helps monitor concrete's strength and ensures compliance with specified standards.
Examples & Analogies
Consider quality control in concrete production similar to a school exam. Just as students must follow guidelines for how to study and address each section of the test methodically, the quality of concrete must be carefully monitored at every stage to ensure the final product meets expectations. Poor quality control can lead to failing results, just as inadequate study can lead to poor exam performance.
Special Considerations for Concrete Pavement Mix
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
There are special considerations to enhance the performance and sustainability of concrete pavements:
Use of Supplementary Cementitious Materials
- Fly ash, GGBS, Silica fume for improved durability and sustainability.
High-Early-Strength Concrete
- Useful for fast-track pavement repairs.
Use of Fibers
- Steel or synthetic fibers to improve crack resistance and toughness.
Detailed Explanation
Incorporating supplementary materials like fly ash and silica fume can enhance the concrete's properties, making it more durable and environmentally friendly. High-early-strength concrete allows rapid repairs and quicker reopening of roads. Additionally, using fibers can significantly increase its resistance to cracking and improve toughness, which are vital for areas experiencing heavy traffic or varied environmental conditions.
Examples & Analogies
Think of special considerations as adding enhancers to a standard workout routine. Just as athletes might use protein supplements to boost their performance or resilience, including supplementary materials and fibers in concrete enhances its capabilities and makes it more adaptable to various stressors it might encounter while in use.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Compressive Strength: The ability of concrete to resist axial loads.
-
Flexural Strength: Concrete’s resistance to bending forces.
-
Workability: The ease of mixing and placing concrete.
-
Durability: Concrete’s resistance to environmental degradation.
-
Water-Cement Ratio: Influences the strength and durability based on the proportion of water to cement.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A highway concrete pavement requires a compressive strength of at least 35 MPa and flexural strength around 4.5 MPa.
-
Using a water-cement ratio of 0.38 can enhance the performance characteristics of concrete for high-stress areas.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Mix it right, make it tight, concrete strong, lasts long!
📖 Fascinating Stories
-
Imagine a team of builders preparing for a marathon. They need high-energy snacks (strength) and easy-to-carry gear (workability) to succeed.
🧠 Other Memory Gems
-
SWEET to remember Strength, Workability, Economy, Exposure, and Temperature.
🎯 Super Acronyms
C-F-W-D
- Compressive Flexural Workability Durability.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Compressive Strength
Definition:
The capacity of a material or structure to withstand axial loads without failure, typically measured in Pascals (MPa) for concrete.
-
Term: Flexural Strength
Definition:
The ability of a material to withstand bending forces without breaking, also quantified in MPa.
-
Term: Workability
Definition:
The ease with which concrete can be mixed, placed, and finished, often assessed using slump tests.
-
Term: Durability
Definition:
The ability of concrete to withstand environmental conditions and mechanical wear over time.
-
Term: Shrinkage
Definition:
The reduction in volume of concrete caused by moisture loss or temperature drop, leading to potential cracking.
-
Term: WaterCement Ratio
Definition:
The ratio of the weight of water to the weight of cement used in a concrete mix, influencing its strength and durability.
