10.5.2 - SIMD vs. SIMT (Single Instruction, Multiple Threads)
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to SIMD
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we’ll start with SIMD, which stands for Single Instruction, Multiple Data. Does anyone know what it does?
Does it mean one instruction acts on multiple pieces of data at the same time?
Exactly! SIMD processes several data points in parallel using a single instruction. This is really useful for tasks that involve repetitive data processing, like in image processing.
So, it speeds up calculations significantly, right?
Yes, you got it! To remember SIMD, think 'Single Instruction, Multiple Data'—or as we say, SIMples with Data!
Got it! So, what kinds of operations work best with SIMD?
Great question! SIMD excels at element-wise operations such as addition and multiplication across large datasets. Remember this: SIMD operates as a team of identical workers tackling similar tasks simultaneously!
Introduction to SIMT
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let’s shift gears to SIMT, which stands for Single Instruction, Multiple Threads. What sets it apart from SIMD?
Is it that each thread can do different things?
That's correct! While SIMT allows each thread to execute the same instruction, it can operate on different data or even perform different tasks altogether. This flexibility is a key strength!
So, it can handle various computations in parallel within a GPU?
Absolutely! You can think of SIMT as a group of chefs following the same recipe but using different ingredients—still coordinated, yet highly adaptable.
Are there limitations with SIMT too?
Absolutely. SEMT can take more management overhead. However, its adaptability in complex tasks is invaluable! Remember, SIMT stands for flexibility in parallel processing.
Comparing SIMD and SIMT
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s compare SIMD and SIMT more directly. What are the primary differences we should note?
Well, SIMD is all about single instructions for multiple data, while SIMT caters to multiple threads.
Right! SIMD executes identical instructions on multiple data points, while SIMT allows each thread to follow the same instruction yet operate on varied data sets.
So SIMD is more rigid, while SIMT gives us some creative freedom in tasks?
Exactly! Each has their applications. If we need to do the same thing repeatedly—like in basic mathematical algorithms—SIMD shines. But for complex processing like simulations or graphics, SIMT is the way to go!
That makes sense! Can we see real-world examples of where each model is used?
Of course! SIMD is great for audio and video codecs, while SIMT excels in rendering graphics and executing AI algorithms. That adaptability is invaluable!
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section focuses on the key distinctions between SIMD (Single Instruction, Multiple Data) and SIMT (Single Instruction, Multiple Threads) models, explaining how they operate in parallel processing within GPUs. It highlights that SIMD processes multiple data elements within a single thread, while SIMT allows each thread to operate on its own data, enhancing flexibility for diverse computational tasks.
Detailed
SIMD vs. SIMT (Single Instruction, Multiple Threads)
The comparison between SIMD and SIMT illustrates different approaches to parallel processing in computing. SIMD, which stands for Single Instruction, Multiple Data, executes the same instruction on multiple pieces of data concurrently, making it ideal for applications like image and signal processing. This approach maximizes data-level parallelism but is limited to executing identical instructions across data elements.
In contrast, SIMT, or Single Instruction, Multiple Threads, is utilized predominantly in modern GPUs. This model enables each thread to execute the same instruction while operating on different data. The key advantage of SIMT over SIMD is its flexibility; it allows threads to perform varying tasks while still being managed under the same instruction stream. This is particularly advantageous for complex applications where not all threads execute aligned operations.
Overall, both SIMD and SIMT are essential for high-performance computing, with each model offering distinct advantages depending on the application requirements.

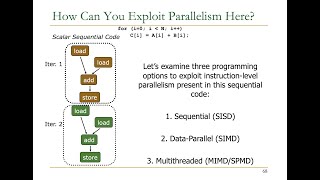

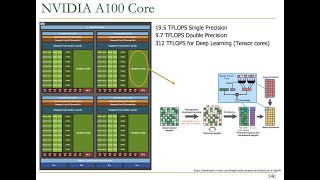

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Overview of SIMD and SIMT
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
○ SIMD refers to processing multiple data elements with a single instruction within a single thread.
○ SIMT is a model used by modern GPUs where each thread executes the same instruction on its own data element. Although similar to SIMD, SIMT provides greater flexibility by allowing different threads to perform different tasks.
Detailed Explanation
This chunk explains the differences between SIMD (Single Instruction, Multiple Data) and SIMT (Single Instruction, Multiple Threads). SIMD performs the same operation on multiple data elements under a single instruction, within a single thread. This is efficient in scenarios where identical operations are needed across several data points. In contrast, SIMT is often associated with GPUs, allowing each thread to run the same instruction on different data elements while providing the flexibility to execute different operations across different threads. This design caters to more complex workloads where certain threads may need to handle different tasks simultaneously.
Examples & Analogies
Consider a chef preparing a large number of identical sandwiches (SIMD). The chef follows a single recipe, making several sandwiches in parallel. Now, imagine another scenario where each assistant (representing a thread) can make different types of sandwiches based on varying customer orders (SIMT). This flexibility allows for diverse operations depending on individual requirements while still complying with a shared instruction.
SIMD in GPU Cores
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
● SIMD in GPU Cores: GPU cores are SIMD units that can execute the same instruction on multiple data elements in parallel. For example, in a graphics rendering pipeline, the same set of operations (such as shading) needs to be applied to many pixels or vertices.
Detailed Explanation
In modern GPUs, cores are designed to function as SIMD units, meaning they can handle multiple data elements by executing the same instruction simultaneously. This is particularly useful in graphics rendering pipelines where operations like shading must be applied uniformly across numerous pixels or vertices at once. The inherent parallelism of SIMD allows GPUs to achieve high throughput and efficiency when handling graphics data, making them ideal for graphics-intensive applications.
Examples & Analogies
Imagine a factory assembly line where each worker is responsible for painting identical components of a product (SIMD). All workers are following the same pattern and applying the same color to each item. This simultaneous action ensures that the items are produced quickly and efficiently. Just like in the factory, GPUs use SIMD principles to apply the same rendering instructions to thousands of pixels at once in a graphics rendering task.
The Need for Flexibility with SIMT
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
● SIMT provides greater flexibility by allowing different threads to perform different tasks.
Detailed Explanation
While SIMD excels at executing the same operations concurrently, there are scenarios where flexibility is necessary. SIMT caters to this need by allowing each thread to execute potentially different tasks while still following the same instruction model. This adaptability makes SIMT suitable for applications that require diverse workloads, as threads can diverge and manage various operations when needed, making it easier to handle complex algorithms or datasets that do not require uniform processing.
Examples & Analogies
Think of a concert where a conductor directs different musicians to play different melodies within the same overarching musical score (SIMT). Each musician represents a thread that might be performing a different part of the overall composition while still contributing to a unified performance. This is similar to how SIMT allows threads to diverge and handle distinct tasks, all under the guidance of a shared instruction model.
Key Concepts
-
SIMD: A method for executing a single instruction across multiple data points.
-
SIMT: A method allowing multiple threads to execute the same instruction on different data.
-
Parallel Processing: Conducting multiple calculations simultaneously to improve processing speed.
Examples & Applications
SIMD can be used in image processing applications where the same filter is applied across all pixels in an image.
SIMT is utilized in graphics rendering where each pixel or vertex in a scene may require different computations based on their attributes.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
SIMD runs in parallel, making tasks go swell; SIMT adapts each thread, different jobs to spread.
Stories
Imagine a bakery where a chef bakes the same batch of cookies all at once (SIMD), while in another bakery, each chef bakes their own unique cake (SIMT). Both can be efficient in their own tasks.
Memory Tools
For SIMD, think of 'Same Instruction, Many Data' and for SIMT, remember 'Same Instruction, Mixed Threads'.
Acronyms
SIMD = Single Instruction, Multiple Data; SIMT = Single Instruction, Multiple Threads.
Flash Cards
Glossary
- SIMD
Single Instruction, Multiple Data; a parallel computing method where a single instruction operates on multiple data points simultaneously.
- SIMT
Single Instruction, Multiple Threads; a model used by modern GPUs where each thread executes the same instruction on its own data element.
- Parallel Processing
A computing technique where multiple computations are carried out simultaneously.
