1.12.5. Compressive Strength Test
Learn content
Interactive Audio Lesson
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Today we will discuss the compressive strength test, which is essential for determining how much load cement can bear before failing. This is crucial in ensuring our structures are safe and durable.
Why do we specifically use mortar cubes for this test?
Great question! Mortar cubes provide a uniformly shaped sample and allow us to measure the cement's strength in a controlled, standard environment.
What is the typical mix ratio we use for testing?
We use a 1:3 ratio of cement to sand for preparing these mortar cubes. This ensures a consistent outcome for our tests.
How long do we cure these samples?
The cubes are cured in water for 3, 7, and 28 days, which helps us observe the strength development over time. We expect the compressive strength to increase as the curing time progresses.
What is the minimum strength we need for OPC 53 grade?
For OPC 53 grade, the minimum compressive strength after 28 days is 53 MPa. This is crucial to ensure that the concrete structures we build are sound.
In summary, the compressive strength test is vital for verifying the load-bearing capabilities of cement mixtures used in construction.
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Let's detail the procedure for conducting the compressive strength test. First, we prepare the mortar cubes using the specified ratio.
What happens next after mixing the mortar?
After mixing, we pour the mortar into molds to form cubes. Then, we need to allow these cubes to set properly before curing them in water.
Do we need to test all three curing periods at once?
Typically, yes. We prepare multiple sets of cubes—some for testing at 3 days, others at 7, and the final set for 28 days. This gives us a comprehensive view of strength development.
How do we measure the compressive strength once 28 days have passed?
We use a compression testing machine to apply force to the cube until it fails, recording the maximum load it could handle. This gives us the compressive strength in MPa.
And what if the cubes don't meet the required standards?
If they fall short of the expected strength, we may need to investigate the mix design or curing process. Quality control is essential to avoid future structural failures.
Remember, accurate testing and adherence to standards ensure our constructions remain safe and resilient.
Overview
Short Summary
The compressive strength test evaluates the strength of cement by measuring the load it can bear before failure, typically performed on mortar cubes.
Medium Summary
This section outlines the compressive strength test for cement, highlighting its significance, the preparation of mortar cubes, curing periods, and the minimum strength requirements for OPC 53 grade cement after specified periods.
Detailed Summary
Compressive Strength Test
The compressive strength test is a critical assessment in cement quality control, determining the ability of cement to withstand loads. Conducted on mortar cubes with a 1:3 cement-to-sand ratio, this test ensures that the produced cement meets industry standards. The mortar cubes are cured in water for specified durations—3, 7, and 28 days—to monitor the development of strength over time. For Ordinary Portland Cement (OPC) 53 grade, the minimum compressive strength requirement after 28 days of curing is set at 53 MPa. This rigorous testing process not only ensures the structural integrity of cement in construction projects but also aligns with industry standards, such as those established by the Bureau of Indian Standards (BIS). Understanding the procedure and significance of this test is crucial for engineers and quality control professionals in the construction industry.

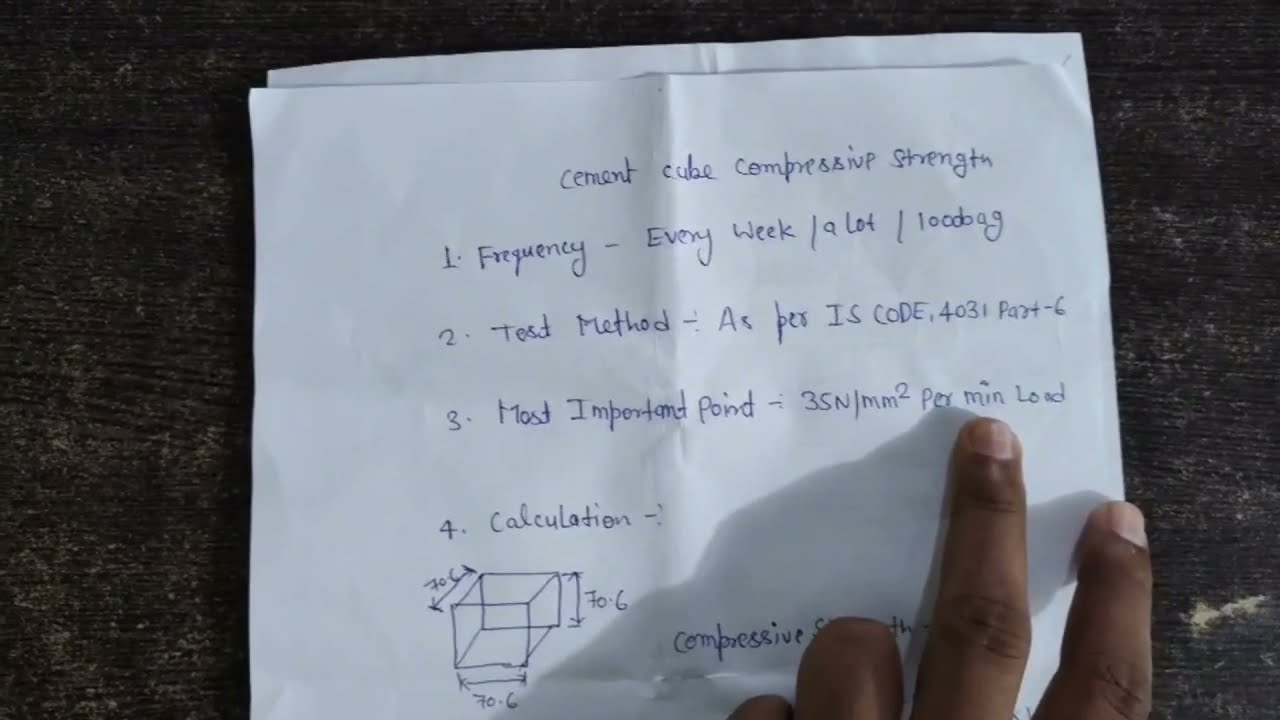

Reference YouTube Videos
Audio Book
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountThe compressive strength test is conducted on mortar cubes with a cement-to-sand ratio of 1:3.
Detailed Explanation
In this test, we create mortar cubes using a specific mix of cement and sand, with the ratio being 1 part cement to 3 parts sand. This standardized ratio helps ensure consistency in the test and accurately reflects the strength characteristics of the cement used.
Examples & Analogies
Think of making a cake: if you always use the same portions of flour and sugar, you'll end up with a cake that has a consistent taste and texture. Similarly, by using the same cement-to-sand ratio, we can evaluate if the cement performs consistently under pressure.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountThe mortar cubes are cured in water for a specific duration—3, 7, and 28 days.
Detailed Explanation
Curing is the process of maintaining adequate moisture, temperature, and time to allow the cement to hydrate and achieve its full strength. We check the compressive strength of the cubes after different time intervals: 3 days, 7 days, and 28 days. This progression helps in observing how the strength develops over time.
Examples & Analogies
Imagine soaking beans in water to help them sprout: if you take them out too early, they won't grow much, but if you give them enough time, they’ll flourish. Likewise, the longer we allow the mortar cubes to cure, the stronger they will become.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountFor Ordinary Portland Cement (OPC) 53 grade, the minimum strength required after 28 days is 53 MPa.
Detailed Explanation
The term 'MPa' stands for megapascal, which is a measure of pressure. The requirement of 53 MPa for OPC 53 grade cement indicates that after 28 days of curing, the mortar must withstand a pressure of at least 53 megapascals before it fails. This benchmark helps ensure that the cement is suitable for high-strength applications.
Examples & Analogies
Imagine testing the strength of a bridge by applying weight—if it can support a certain weight without collapsing, it is deemed safe. Similarly, the 53 MPa requirement ensures that structures built with this cement are strong enough to bear loads without risk of failure.
--
Key concepts
Core takeaways and short definitions to help you quickly recall the key ideas from this section.
- Compressive Strength:
The load-bearing capacity of cement tested through mortar cubes.
- Mortar Cubes:
Cubes prepared from cement and sand used for testing strength.
- Curing Time:
The duration for which samples are kept in water to gain strength.
Examples
Step-by-step examples to apply the section's ideas and test your understanding.
An OPC 53 grade cement, when tested after 28 days, should demonstrate a compressive strength of at least 53 MPa to be deemed suitable for construction purposes.
If a mortar cube prepared with a 1:3 cement-sand ratio fails to meet the minimum strength requirement, it indicates potential issues in mix formulation or curing conditions.
Memory aids
Imagine a building that stands tall; its strength comes from tests to ensure it won't fall. A clever engineer watches on with glee as mortar cubes show strength like a sturdy tree.
Flash Cards
Glossary
Compressive Strength
The ability of a material to withstand axial loads without failure.
Mortar Cube
A cube-shaped sample made from cement and aggregates used for testing compressive strength.
Curing
The process of maintaining adequate moisture, temperature, and time required for cement to achieve desired strength.
MPa
Megapascal, a unit of pressure or stress, equivalent to one million pascals.
OPC
Ordinary Portland Cement, a commonly used type of cement.
