1.3 - Raw Materials Used in Cement Manufacturing
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Limestone in Cement Manufacturing
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we'll start our discussion on the raw materials for cement with limestone. Limestone is primarily composed of calcium carbonate, which is vital for producing lime during cement manufacturing.
Why is lime so important?
Great question! Lime provides the necessary calcium oxide, which is crucial for the chemical reactions in cement. We can remember this by thinking of the acronym 'CaO4C'—Calcium is the Oxide for Concrete!
Does the amount of limestone affect the quality of cement?
Yes, the quality and amount of limestone significantly influence the cement's performance. Typically, limestone constitutes about 70% of the raw mix.
Clay and Shale Contributions
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s move on to clay and shale. These materials contribute silica and alumina, which are important for forming the silicates in cement.
What about iron oxide? Is that also found in these materials?
Exactly! Clay and shale also contain iron oxide. So, we can remember that clay brings 'SI'—Silica and Iron!
Do the properties of clay affect the cement?
Definitely. The ratio of silica to alumina affects the setting and hardening properties of cement. It's essential to have the right mix.
Role of Gypsum in Cement Manufacturing
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Next, let’s discuss gypsum. Gypsum is crucial for controlling the setting time of cement.
How does it regulate the time?
Gypsum acts as a retarder. Without it, cement would set almost immediately upon mixing with water. Remember, 'G' for Gypsum is for 'Gradual Setting'!
How much gypsum is typically added?
Typically, about 3-5% gypsum is added to the clinker during grinding to control setting time effectively.
Corrective Materials
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Finally, let's touch on corrective materials like bauxite and sand. Can anyone tell me why we need these?
Are they there to fix any imbalances in the raw materials?
Exactly! They help correct deficiencies and ensure we achieve the right chemical ratios. Think of them as the 'fixers' of the cement mixture!
Does using corrective materials affect the cost?
It can, but using them effectively can greatly improve the quality of cement, which is worth the investment.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
Cement manufacturing relies on raw materials like limestone, clay, laterite, gypsum, and corrective materials, each contributing essential chemical compounds necessary for the production process. Understanding these materials is crucial for ensuring the optimal quality and characteristics of cement.
Detailed
Raw Materials Used in Cement Manufacturing
Cement is produced using several key raw materials that function collectively to provide the right chemical composition for effective binding in construction applications. The main constituents include:
- Limestone (CaCO₃): This is the primary source of lime (CaO) essential for cement. Limestone constitutes about 70% of the raw material mix.
- Clay/Shale: They provide critical components like silica (SiO₂), alumina (Al₂O₃), and iron oxide (Fe₂O₃), which are fundamental for the chemical reactions that take place during cement production.
- Laterite: This material supplies iron oxide and alumina, acting as supplementary sources in the mix, which help balance the required chemical ratios.
- Gypsum (CaSO₄·2H₂O): Gypsum is crucial as it regulates the setting time of cement and ensures that it doesn’t set too rapidly upon mixing with water.
- Corrective Materials: These include bauxite, sand, and iron ore, which are added to correct any deficiencies in the raw mix, ensuring the desired chemical balance is achieved.
Understanding these raw materials and their roles is vital for cement manufacturers to produce high-quality cement that meets the specifications necessary for diverse construction needs.

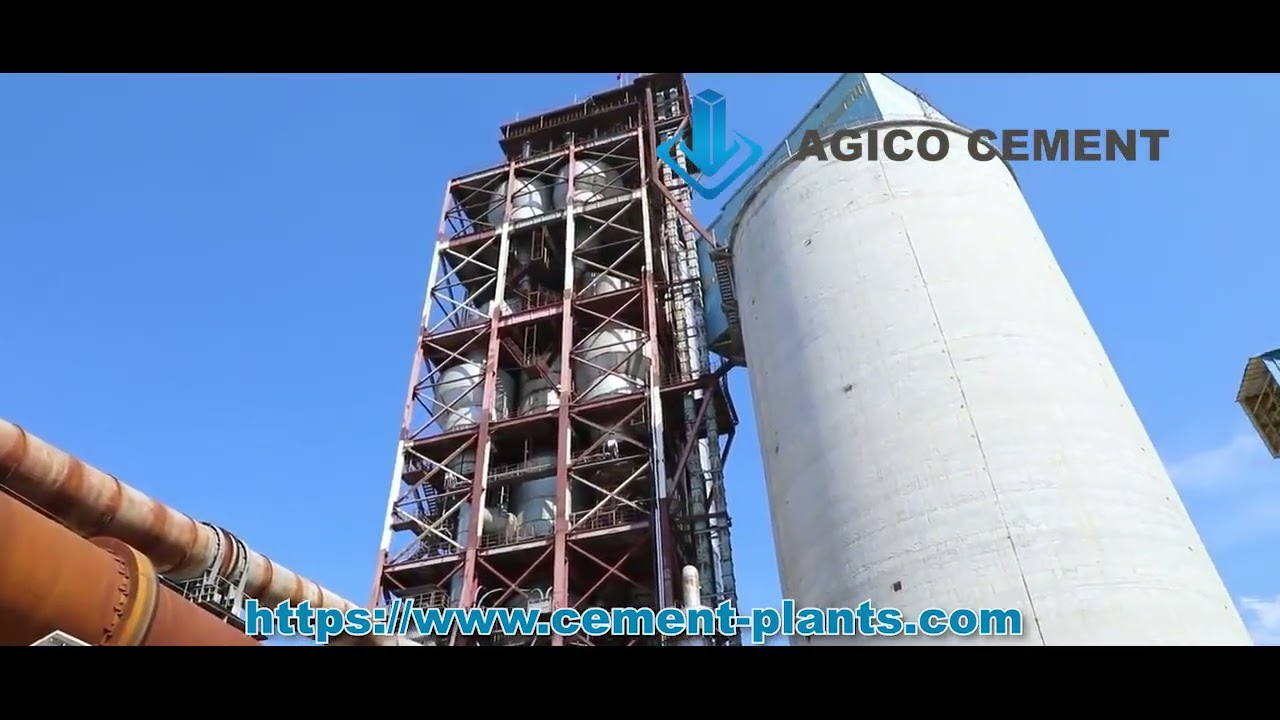

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Limestone - The Primary Component
Chapter 1 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Limestone CaCO₃ (Calcium Carbonate) Provides lime (CaO)
Detailed Explanation
Limestone is the primary raw material for cement production. It primarily consists of calcium carbonate (CaCO₃). During the manufacturing process, limestone is heated and decomposed, which produces calcium oxide (CaO), commonly known as lime. Lime is essential for the formation of several important compounds in cement that influence its setting and strength.
Examples & Analogies
Think of limestone as the essential ingredient in your favorite recipe. Just like how flour is necessary for making bread, limestone is crucial for cement production. Without it, the whole process wouldn't work effectively.
Clay and Shale - Complementary Raw Materials
Chapter 2 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Clay/Shale Silica, Alumina, Iron oxide Provides SiO₂, Al₂O₃, Fe₂O₃
Detailed Explanation
Clay and shale are additional raw materials that complement limestone. They provide essential oxides such as silica (SiO₂), alumina (Al₂O₃), and iron oxide (Fe₂O₃). These oxides play crucial roles in the chemical reactions that occur during the cement manufacturing process. Silica helps with the formation of silicate compounds which are key to the cement's strength.
Examples & Analogies
Consider clay as the eggs in a cake recipe. While flour (limestone) gives the cake its structure, eggs (clay) provide moisture and hold everything together. Similarly, clay and shale assist in achieving the right chemical balance needed for cement.
Laterite - An Alternative Source
Chapter 3 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Laterite Iron oxide and alumina source of Fe₂O₃ and Al₂O₃
Detailed Explanation
Laterite is another raw material that is used in cement production. It is rich in iron oxide and alumina, both of which are beneficial for producing high-quality cement. The inclusion of laterite can help enhance certain properties, like color and strength, in the final product. It serves as a supplementary source for the chemical components needed during manufacturing.
Examples & Analogies
Using laterite in cement production can be compared to adding spices to your food. Just as spices enhance the flavor of a dish, laterite enhances the quality and characteristics of cement.
Gypsum - The Setting Time Regulator
Chapter 4 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Gypsum CaSO₄·2H₂O Regulates setting time
Detailed Explanation
Gypsum is a critical additive in cement production that plays a key role in regulating the setting time of cement. Without gypsum, cement would harden too quickly, making it difficult to work with. By adding gypsum, manufacturers ensure that the cement sets at an appropriate pace, allowing for proper handling and placement.
Examples & Analogies
Imagine trying to bake a cake without knowing when to take it out of the oven. Gypsum acts as the timer, ensuring that the cake (cement) has enough time to bake (set) properly without burning (hardening too quickly).
Corrective Materials - Fine-Tuning the Composition
Chapter 5 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Corrective materials Bauxite, sand, iron ore Used to correct deficiencies in raw mix
Detailed Explanation
Corrective materials like bauxite, sand, and iron ore are added to address any deficiencies in the raw mix of limestone, clay, and laterite. These materials can help achieve the desired chemical composition and ensure the quality of the final cement product. They help compensate for any lack in specific oxides necessary for the desired cement properties.
Examples & Analogies
Think of corrective materials as the adjustments you make to a recipe when you realize you're missing an ingredient. Just as you might add more sugar or flour to balance flavors, corrective materials help adjust the chemical mix for optimal cement quality.
Key Concepts
-
Limestone: The primary source of lime in cement, essential for chemical reactions during production.
-
Clay: Provides critical components like silica and alumina for cement.
-
Gypsum: Used to moderate setting time, preventing rapid hydration.
-
Corrective Materials: Added to achieve the desired chemical balance in the cement mix.
Examples & Applications
Limestone constitutes about 70% of the raw materials in a typical cement mix, directly affecting the cement's quality.
Gypsum's role can be illustrated by its addition of 3-5% to the clinker to regulate the setting time, ensuring it allows for proper application.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
When the lime we need from rock so fine, Cement gets its strength, we know it’s divine!
Stories
Once upon a time, in a construction kingdom, a brave miner found limestone to bring strength to structures, ensuring they stood tall against the fiercest storms.
Memory Tools
Remember 'LCCGG' - Limestone, Clay, Corrective materials, Gypsum, Garnishes the cement!
Acronyms
Use 'L-C-GG' to remember the main raw materials
Limestone
Clay
and the two Gypsum and Corrective materials.
Flash Cards
Glossary
- Limestone
A sedimentary rock primarily composed of calcium carbonate, essential for providing lime in cement.
- Clay
A natural material mainly composed of fine-grained minerals; provides silica and alumina in cement production.
- Gypsum
A soft sulfate mineral consisting of calcium sulfate dihydrate; regulates setting time in cement.
- Corrective Materials
Materials added to correct deficiencies in the raw mix, like bauxite and sand.
