Understanding the Stress Tensor
Unlock Audio Lesson
Today, we'll explore the 2D stress tensor, which represents the state of stress at a point in a material. The stress tensor is typically written as σ = [σ_x τ_xy; τ_xy σ_y]. Can anyone explain what each component represents?
The components σ_x and σ_y are the normal stresses acting in the x and y directions, respectively, while τ_xy is the shear stress.
Exactly! Understanding these components is key to analyzing material behavior under loads. Let's now discuss how we can find the principal stresses from this tensor.
Finding Principal Stresses
Unlock Audio Lesson
To find the principal stresses, we solve the characteristic equation obtained from the determinant: det(σ - λI) = 0. What does λ represent in this context?
λ represents the eigenvalues, which turn out to be the principal stresses!
That’s correct! The eigenvalues we find through this process illustrate the maximum and minimum normal stresses experienced in our material.
Understanding Principal Planes
Unlock Audio Lesson
Along with principal stresses, we also get eigenvectors from our calculations. How do these contribute to our understanding of stress analysis?
The eigenvectors show the orientation of the principal planes where the stresses are either maximum or minimum.
Great job! This orientation is crucial for engineers when designing structures that will withstand various loads.
Applications in Civil Engineering
Unlock Audio Lesson
Let's discuss how finding principal stresses impacts civil engineering practices such as reinforcement designs and earthquake analysis.
Knowing the principal stresses helps in deciding how to reinforce weak points in structures.
Exactly! It ensures buildings can endure forces from earthquakes and other stresses. How else could this analysis be applied?
It’s essential for tunnel lining stability as well, right?
Absolutely! This knowledge allows engineers to optimize designs, contributing significantly to overall safety.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section outlines the procedure for finding principal stresses in a 2D stress tensor using eigenvalues and eigenvectors. It emphasizes that principal stresses correspond to the eigenvalues of the stress tensor, while the eigenvectors indicate the directions of principal planes. Applications in structural engineering are highlighted.
Detailed
In two-dimensional solid mechanics, the stress tensor is represented as a 2x2 matrix, comprising normal and shear stresses. To find the principal stresses, we calculate the determinant of the matrix formed by subtracting a scalar eigenvalue, λ, times the identity matrix from the stress tensor. The characteristic polynomial derived from this determinant gives us the eigenvalues, which correspond to the principal stresses of the material. The eigenvectors associated with these eigenvalues reveal the orientations of the principal planes. This analysis is crucial in civil engineering fields such as reinforcement design, earthquake stress analysis, and tunnel lining stability, providing engineers with essential information to ensure structural integrity.
Youtube Videos

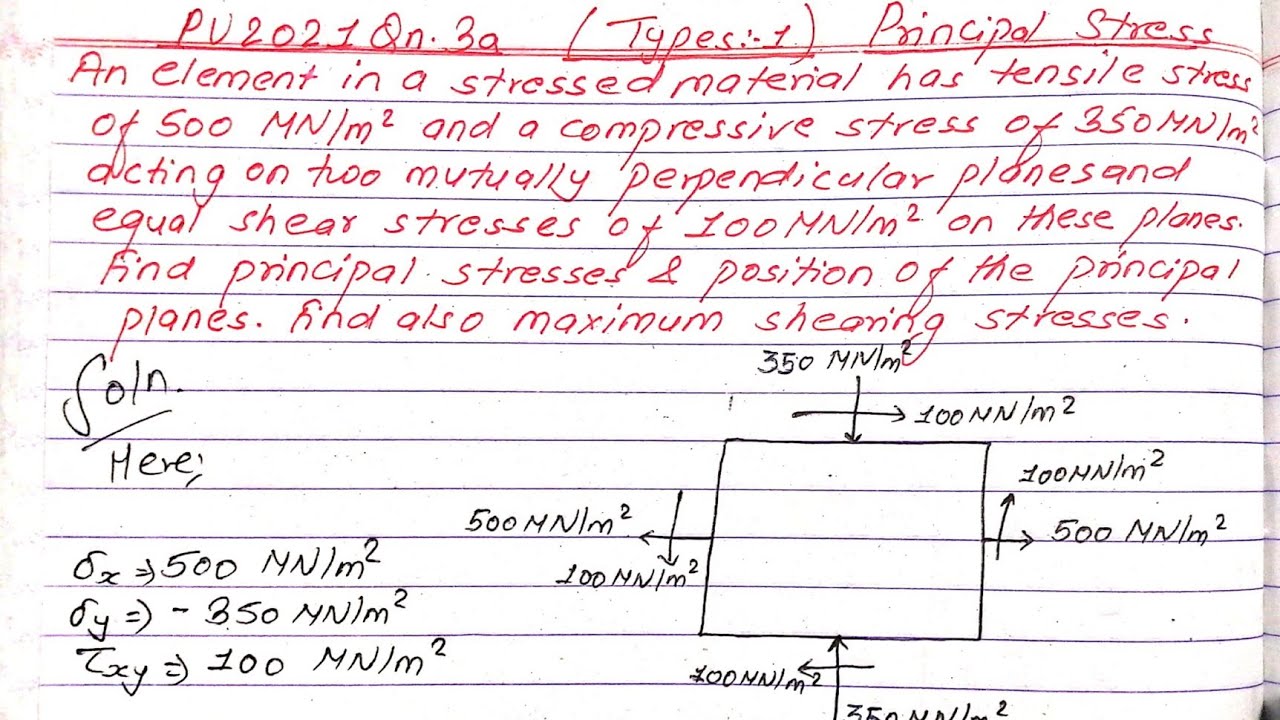

![Mohr's Circle: Normal and Tangential Stress, Principal Stress, Maximum Shear Stress [Solved Problem]](https://img.youtube.com/vi/mykHhyVeCyg/mqdefault.jpg)
