Importance of Eigenvalues in Structural Analysis
Unlock Audio Lesson
Today, we're discussing eigenvalues and their vital role in structural analysis. Can anyone tell me what eigenvalues represent in this context?
Do they represent the natural frequencies of structures, Sir?
Exactly! Larger eigenvalues indicate stiffer modes, whereas smaller eigenvalues correspond to more flexible modes. Remember this as our 'stiff-flexible spectrum'.
So, how do these eigenvalues help in practical scenarios like designing buildings?
Great question! By analyzing eigenvalues, engineers can determine how structures will respond to vibrations and loads. This informs critical decisions in the design process.
What happens if a building has too many lower eigenvalues?
If there are many low eigenvalues, it indicates that the structure may be too flexible, potentially leading to stability issues under load.
In summary, eigenvalues are essential in predicting vibration modes and ensuring structural integrity.
Applications of Eigenvalues in Stability Analysis
Unlock Audio Lesson
Next, let's talk about how eigenvalues are applied in stability and buckling analysis. Why is this important?
It helps us predict when a structure might fail under compression, right?
Exactly! In buckling analysis, we form a problem expressed as (K - λG)x = 0, where K is the stiffness matrix and G is the geometric stiffness matrix. What does the eigenvalue λ represent here?
Is it the critical load factor or something?
Yes! The eigenvalue represents critical points at which the structure may buckle. This helps in designing safe structures by identifying risk levels.
So, we can adjust designs to avoid those critical points?
Exactly, great insight! By understanding eigenvalues, we can ensure safety and performance even under extreme conditions.
Eigenvalues in Modal Analysis
Unlock Audio Lesson
Now let's explore modal analysis. Can anyone explain how eigenvalues relate to this concept?
Are they used to find mode shapes and natural frequencies?
Correct! The eigenvectors correspond to the mode shapes while eigenvalues reveal the natural frequencies. Picture it as the 'fingerprint' of a structure's dynamic response.
Why is it crucial to find those mode shapes?
Understanding mode shapes helps us anticipate how a structure will react to different loading conditions, like earthquakes or wind. It’s vital for designing resilient structures.
So, engineers can choose materials or designs that enhance stability?
Exactly! Tailoring designs helps mitigate risks and ensures longevity.
To summarize, eigenvalues are crucial in modal analysis as they inform us about how structures vibrate and react under loads.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, we will explore how eigenvalues apply specifically to structural analysis within civil engineering. It highlights their importance in revealing natural frequencies of structures and aiding in stability assessments, thereby providing a crucial mathematical foundation for analyzing various engineering problems.
Detailed
In civil engineering, the stability and behavior of structures during various loads and conditions are critical for safety and performance. Eigenvalues play a pivotal role in structural analysis by representing natural frequencies of vibrations that can occur in structures, which in turn informs engineers about the stiffness and mode shapes of structures. For instance, a higher eigenvalue corresponds to a stiffer mode, while lower eigenvalues indicate flexible modes. Additionally, the eigenvalues obtained from the stiffness matrix effectively inform buckling analysis and dynamic simulations of structures, ensuring that designs can withstand real-world forces without failure. Thus, understanding the application of eigenvalues in structural analysis is essential for engineers to create safe and effective designs.
Youtube Videos

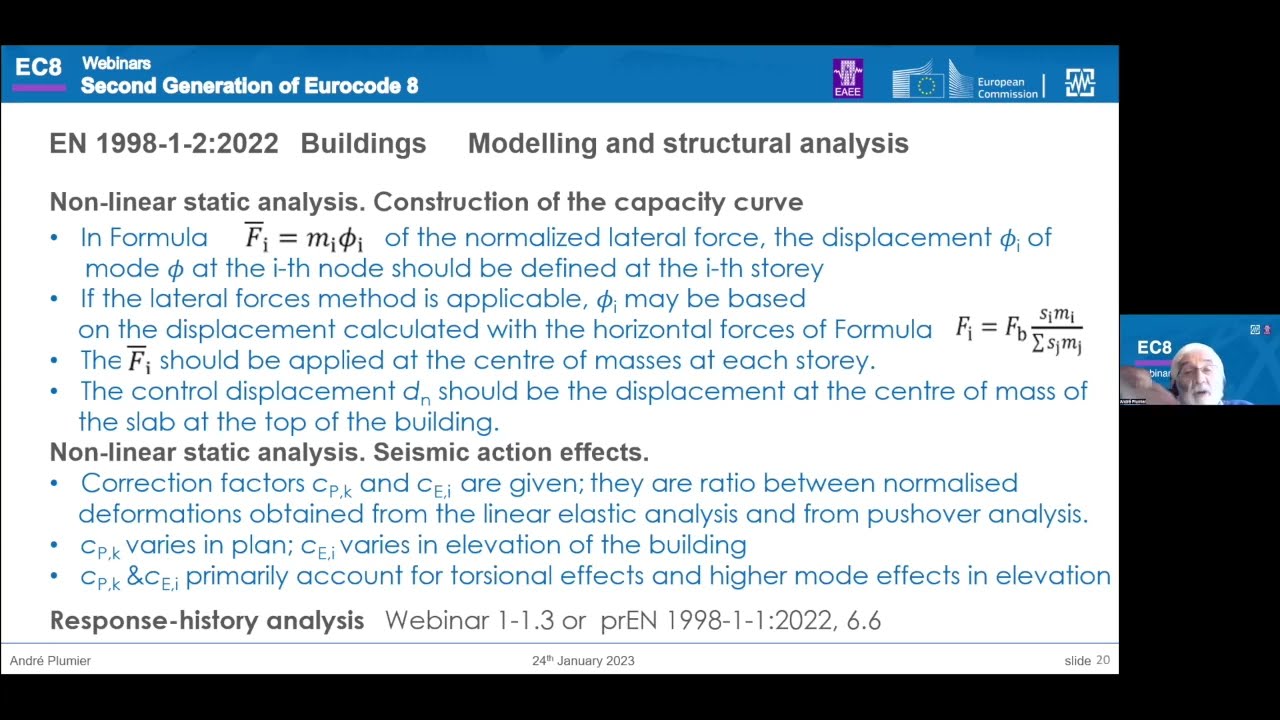

Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Stiffness Matrix Methods
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In stiffness matrix methods, eigenvalues represent natural frequencies of structures. Large eigenvalues indicate stiff modes, while small ones indicate flexible modes.
Detailed Explanation
Stiffness matrix methods are essential in structural analysis. Here, the structure's response is analyzed based on its stiffness properties. Eigenvalues play a crucial role in this context because they correlate directly to the natural frequencies at which a structure can vibrate. High eigenvalues imply that the structure can resist deformation well, behaving in a stiff manner, while lower eigenvalues signify that it might yield to forces more easily, showing flexibility.
Examples & Analogies
Imagine a tall building during an earthquake. The structure's stiffness is like its ability to resist being pushed over by the shaking. If the building experiences high eigenvalues, it means it can sway back and forth less, staying stable. In contrast, if the eigenvalues are low, the building might sway significantly, making it more vulnerable to collapse.
Eigenvalues and Stability
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Stability of Structures: Buckling analysis involves eigenvalue problems: (K−λG)x=0 Where K is the stiffness matrix and G is the geometric stiffness matrix.
Detailed Explanation
In the context of structural stability, particularly during buckling, eigenvalues are used to determine the critical points at which a structure may collapse under compression. The equation presented, (K−λG)x=0, indicates a relationship where K represents the stiffness of the material, while G reflects how geometry affects its stability. Solving this eigenvalue problem helps engineers identify conditions that lead to buckling.
Examples & Analogies
Consider a long, slender column, like a pencil. If you push down too hard, it might buckle. The eigenvalues help to calculate how much force it can handle before it collapses. Engineers use this understanding to design columns that can withstand certain loads without buckling.
Modal Analysis Fundamentals
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The dynamic behavior of buildings, bridges, and other structures is analyzed using eigenvalue problems. The eigenvectors represent mode shapes and the eigenvalues represent natural frequencies.
Detailed Explanation
Modal analysis is crucial for understanding how structures will behave under dynamic loads, such as wind or earthquakes. In this analysis, each eigenvalue corresponds to a specific natural frequency, while the associated eigenvectors describe the shape of the structure during vibration at that frequency. This information is vital for designing buildings that can withstand dynamic forces effectively.
Examples & Analogies
Think of a guitar string that vibrates when plucked. Each note it plays corresponds to a different frequency around which it resonates. Similarly, buildings and bridges 'sing' at their natural frequencies during events like earthquakes. Understanding these modes helps engineers ensure the structures can handle the 'music' of nature without falling apart.
Principal Stresses and Eigenvalues
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In stress analysis, the stress tensor is symmetric. The eigenvalues of the stress matrix are the principal stresses, and the eigenvectors indicate the principal directions.
Detailed Explanation
In structural engineering, examining stresses within materials is vital for determining their capacity to withstand loads. The stress tensor gives a complete picture of stresses acting on a material. By finding the eigenvalues of this tensor, engineers can establish the principal stresses – the maximum and minimum average stresses that can occur in various directions. The eigenvectors help identify the directions in which these principal stresses act.
Examples & Analogies
Imagine a sponge being squeezed in different directions. The stress tensor shows how hard you're squeezing it in various spots. Eigenvalues help in identifying the points of maximum stress – like when you're squeezing it the hardest – while the eigenvectors show the direction of that pressure. This helps engineers design materials that won’t fail under heavy loads by ensuring they are strong where it matters most.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Eigenvalues: Key to identifying natural frequencies and stability of structures.
-
Stiffness Matrix (K): Fundamental in evaluating how structures respond to loads.
-
Geometric Stiffness Matrix (G): Crucial for understanding stability under compression.
-
Mode Shapes: Represent the deformation patterns of structures under specific frequencies.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In a tall building, eigenvalues can reveal how flexible it is under wind loads. If the eigenvalues indicate too much flexibility, engineers may reinforce specific areas.
-
During a buckling analysis, if the eigenvalue computed is low, it suggests that the structural element is at risk of failure under compressive loads.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Eigenvalues high mean stiffness nigh, low mean flexibility, don’t let it fly!
📖 Fascinating Stories
-
Imagine an engineer designing a bridge. If they find that the eigenvalues suggest too much flexibility, they reinforce the design, making it strong enough to withstand forces like wind and earthquakes.
🧠 Other Memory Gems
-
Remember 'SFM' for eigenvalues: Stiffness (K), Frequencies, and Modes for structural safety.
🎯 Super Acronyms
E/F/M
- Eigenvalues/Frequencies/Mode shapes.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Eigenvalue
Definition:
A scalar λ that represents a value for which there exists a non-zero vector such that Ax = λx.
-
Term: Natural Frequency
Definition:
The frequency at which a system tends to oscillate in the absence of any driving force.
-
Term: Stiffness Matrix (K)
Definition:
A representation of the elastic properties of a structure, defining its response to forces applied.
-
Term: Geometric Stiffness Matrix (G)
Definition:
A representation incorporating geometric changes affecting the stability of a structure, particularly in compression.
-
Term: Mode Shape
Definition:
The shape of a structure deformation corresponding to a specific frequency of vibration.
