24.6.2. Hydraulic Gradient Line

Now, another interesting application of Bernoulli equations is that energy gradient line and the hydraulic gradient line. This is a great simplification of the fluid flow problems. Like you may have fluid flow problems with pipe arrangement, the dock arrangement, and all. Any flow, as I say that, it can have the flow distributions. But as total energy, along a streamline, if you can draw a streamlines and you want to quantify how these energies are changing it.

In this chunk, we are introduced to two important concepts: the energy gradient line (EGL) and the hydraulic gradient line (HGL). These concepts help simplify the understanding of fluid flow in various systems, like pipes and channels. The energy gradient line represents the total energy of the fluid, which includes its pressure energy, kinetic energy due to its velocity, and potential energy from its height above a reference point. Drawing these lines along a streamline allows us to visualize how energy changes at different points in a flow path.

Imagine you're on a water slide. The higher you are on the slide, the more potential energy you have due to your height. As you slide down, your potential energy decreases, but your kinetic energy (speed) increases as you go down. The energy gradient line would represent this total energy change as you move down the slide, just like how fluid behaves in a pipe or channel.

That itself as you know it, fluid flows from higher energy to the lower energy, not the higher elevation to lower elevation. Please do not have that things. The fluid flows from higher energy to lower energy. As it flows from any pipe flow, the channel flow, any dock flow, okay, always there will be a flow which starts from the higher energy to lower energy.

This chunk explains a crucial concept in fluid mechanics: fluid flows from regions of higher energy to regions of lower energy, which is essential for understanding how fluids behave in different scenarios. It's important to distinguish that this flow is based on energy levels, rather than just elevation. For instance, if two points are at the same height, the fluid will still flow from the point with higher pressure or velocity to the point with lower pressure or velocity. Understanding this helps in analyzing fluid systems more accurately.

Consider water draining from a sink. Water starts at a higher energy level when you pour it in, and it flows down the drain, which has lower energy. Even if the sink and drain are at the same height, the water will move based on the pressure difference, showing that energy gradients guide the flow.

Whenever flow from higher energy to lower energy, definitely there is an energy loss that happens. And these energy losses if you can quantify experimentally, that is what I will discuss when I discuss the pipe flow, how very interestingly this energy losses in the pipe are quantified and then you apply the Bernoulli’s equation for designing total pipe network. Same way if you know it in a different type of open channel flow, how much of energy losses is happening, you apply this Bernoulli’s equation. Also, you can design the open channel flow.

In this chunk, the focus is on the loss of energy that occurs as fluid flows from areas of high energy to low energy. This energy loss can be related to friction, turbulence, and other factors that affect flow. By measuring these energy losses, engineers can use the Bernoulli equation to design efficient piping and channel systems that minimize energy loss and optimize flow. The characterization of energy and hydraulic gradient lines allows for a more precise understanding of these losses and helps in practical applications in fluid mechanics.

Think about how a water slide might slow down due to friction with the slide material. Although it starts with high energy, some energy is lost to friction against the slide. Engineers design slides considering this energy loss to ensure riders reach the bottom safely and quickly, analogous to how they design pipelines and channels for optimal flow.

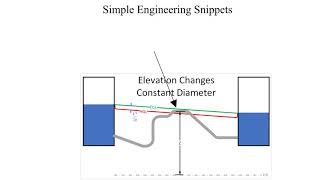

The basic concept here is called that we should always gauge energy gradient line, hydraulic gradient line. So, any flow patterns, we have to draw the energy gradient line and hydraulic gradient line. What is energy gradient line? Now, we are representing the Bernoulli’s equation again in a different form, it is the same things, okay. Same energy we talk about in terms of head, in terms of meter, okay. That means as equivalent if I have any liquid will be there, how much the lift will be there because of the pressure.

This chunk provides definitions for both the energy gradient line (EGL) and hydraulic gradient line (HGL). The EGL reflects the total energy (pressure, kinetic, and potential) of the fluid per unit weight, while the HGL represents the sum of the static pressure head and elevation head of the fluid. Understanding both lines is crucial for engineers to analyze fluid systems effectively and ensure safe and efficient designs in contexts such as water distribution and drainage.

Imagine a roller coaster ride with various heights and speeds. The energy gradient line is like marking the overall energy at different points (considering both the height and speed), while the hydraulic gradient line only counts how high the cart is above the ground. An engineer needs to know both to make sure the roller coaster keeps moving safely without derailing.

So, whenever we design the pipe flow or channel flow and all, we need to draw energy gradient line and the hydraulic gradient line. That is what I have explaining it that, so the basically piezometers and the hydraulic gradient line what I have said and the hydraulic gradient line has some of the static pressures and the elevations.

In this chunk, the importance of drawing the energy gradient and hydraulic gradient lines in the design of flow systems is emphasized. Tools like piezometers are used to measure pressures at various points in the flow. The hydraulic gradient line is plotted based on static pressures and elevations to visually represent how these factors change throughout the system. Understanding this helps engineers ensure that the design works effectively under various operating conditions, avoiding issues like backflow or excessive energy loss.

Think about engineers building a waterpark. They must ensure that the water flows correctly through slides and pools without overflowing or backflowing. By using measuring tools to analyze pressures at different points and drawing the necessary lines, they can design a waterpark that operates smoothly, just like how engineers design fluid systems.

--
