Introduction to Bernoulli's Equation
Unlock Audio Lesson
Welcome back, everyone! Today, we delve into the Bernoulli equation. Can anyone tell me what it states about energy in fluid systems?
It relates pressure, velocity, and height in a fluid flow scenario, right?
Absolutely! The equation shows that the total energy along a streamline is constant. Let's break this down further. What do we mean by 'total energy'?
Does it include kinetic energy, potential energy, and pressure energy?
Correct! We categorize the total energy along a streamline into these three components: pressure energy, kinetic energy, and potential energy. Remember, an easy way to remember this is with the acronym PKE: Pressure, Kinetic, Potential.
How does this apply in realistic scenarios?
Good question! It helps engineers design systems like pipelines and predicts fluid behavior in various applications. We'll explore more on kinetic energy correction factors shortly.
To summarize, the Bernoulli equation is key in understanding energy conservation in fluid dynamics, particularly highlighting the roles of pressure, kinetic, and potential energies.
Kinetic Energy Correction Factors
Unlock Audio Lesson
Let’s move on to kinetic energy correction factors. Can anyone explain why these are necessary in fluid mechanics?
I think it’s because the flow isn’t always uniform, right?
Exactly! In pipes, if the flow is turbulent or laminar, the velocity distribution isn’t constant. Kinetic energy correction factors help us account for this in our calculations.
So, how do we calculate these factors?
Great question! You can apply an integral approach over the flow cross-section. For laminar flows, the correction factor alpha (B1) is about 2, while for turbulent flows, it ranges from 1.04 to 1.1.
What happens if we ignore those factors?
Ignoring them can lead to significant discrepancies between theoretical and actual discharge rates. To sum it up, always remember to check your velocity distribution in fluid calculations.
Understanding Pressure Types
Unlock Audio Lesson
Now, let's talk about different types of pressure: static, dynamic, and stagnation pressures. Can anyone differentiate between them?
Static pressure is the pressure applied by a fluid at rest. Dynamic pressure is due to the fluid's motion, right?
Correct! And stagnation pressure is the sum of static and dynamic pressures at a point where the fluid is brought to rest. It’s crucial for applications like manometers and pitot tubes.
How does this impact system design?
Understanding these pressures enables better design choices in systems to minimize fluid energy losses. Remember: PDS – Pressure, Dynamic, Stagnation can help you recall these concepts.
In summary, each type contributes uniquely to fluid behavior in systems, influencing design and efficiency.
Energy and Hydraulic Gradient Lines
Unlock Audio Lesson
Moving forward, let’s focus on energy and hydraulic gradient lines. Why do you think they are important when analyzing fluid flow?
They likely help us understand energy changes at various points in a system.
Spot on! The energy gradient line shows how the total energy varies along a streamline, while the hydraulic gradient line considers only the pressure and height.
And what does that tell us about flow direction?
It indicates that flow moves from higher to lower energy levels. Remember: energy gradient indicates potential flow—think ‘uphill to downhill’ but in terms of energy, not elevation!
So, how would we actually draw these lines on a graph?
You’ll plot the height of energy versus distance along the streamline. It’s a powerful visual tool for design and analysis. To sum it up, using these gradient lines can simplify complex fluid dynamics.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section elaborates on Bernoulli's equation, detailing how it facilitates understanding of fluid motion and energy conservation among various components such as pressure, kinetic, and potential energy. It also addresses practical applications of Bernoulli's principle, including kinetic energy correction factors and energy gradient lines.
Detailed
In this section, the Bernoulli equation and its applications are explored, emphasizing total energy along streamlines. The significance of this equation, proposed in 1752, is highlighted in the context of fluid flow simplifications which have facilitated advancements in engineering practices related to pipe and channel flow. Key topics encompass the derivation of kinetic energy correction factors to account for non-uniform flow distributions, the definition of different types of pressure (static, dynamic, and stagnation), and understanding hydraulic and energy gradient lines. The section denotes that understanding flow dynamics and energy losses in systems such as pumps and turbines is critical, further presenting examples of real-world applications, including automotive efficiency and experimental setups like orifice meters and venturimeters.

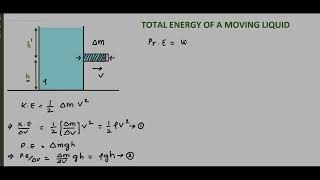

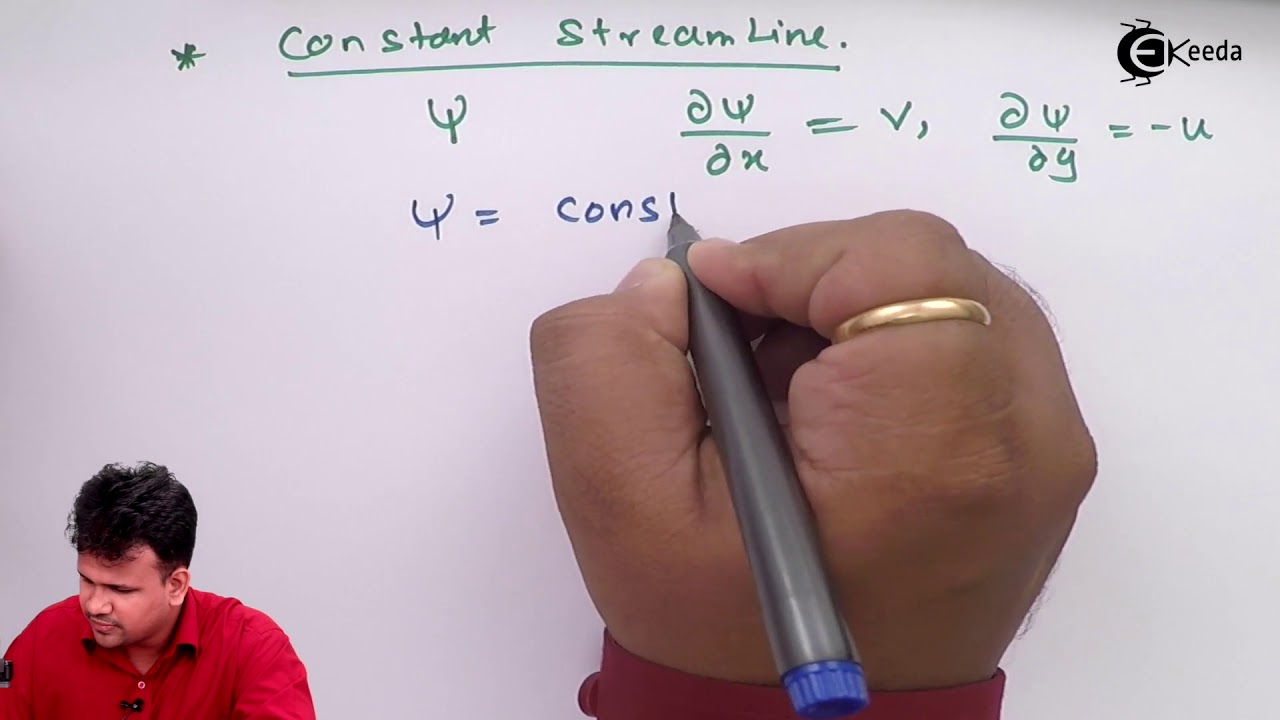

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Bernoulli's Equation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Whenever you have a fluid flow problem, the velocity distribution is not uniform. The fluid flows from higher energy to lower energy, with three energy components: flow energy (pressure), kinetic energy (due to velocity), and potential energy (due to elevation).
Detailed Explanation
In fluid mechanics, Bernoulli's equation describes the conservation of energy along a streamline of fluid. There are three main types of energy considered in the equation: flow energy (related to fluid pressure), kinetic energy (dependent on the speed of the fluid), and potential energy (related to the height of the fluid). The fundamental point is that fluid always flows from regions of higher energy to regions of lower energy, which means that as the fluid moves, its energy can change forms but the total energy along a streamline remains constant.
Examples & Analogies
Think of a slide at a playground. At the top of the slide, a child has potential energy due to their height. As they slide down, this potential energy transforms into kinetic energy, making them go faster at the bottom. In the same way, in fluid mechanics, fluid energy is converted and balanced along its path, with total energy remaining constant.
Pressure Types in Fluid Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
We can define three different types of pressures: static pressure, dynamic pressure, and stagnation pressure. Static pressure is the pressure that acts on the fluid particles, dynamic pressure is caused by the movement of the fluid, and stagnation pressure is the total pressure when fluid is brought to rest.
Detailed Explanation
In fluid flow, static pressure refers to the pressure exerted by a fluid at rest, while dynamic pressure is associated with the motion of the fluid and is calculated from its speed. Stagnation pressure is a key concept; it represents the total pressure when fluid is brought to a complete stop. Mathematically, stagnation pressure is the sum of static and dynamic pressures. This is significant because it helps us understand the energy conversions and pressures involved in fluid flow, such as in pipes or around airplane wings.
Examples & Analogies
Consider a water hose. When you pinch the end, the water stops flowing and builds up pressure behind the pinch (stagnation pressure). When you release it suddenly, the water rushes out, converting some of that stored pressure into dynamic pressure as it moves quickly out of the hose.
Energy Gradient Line and Hydraulic Gradient Line
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The energy gradient line (EGL) represents the total head of the fluid flow (pressure head + velocity head + elevation head), while the hydraulic gradient line (HGL) only considers the pressure head and elevation head. These lines are essential in analyzing and designing fluid systems.
Detailed Explanation
The energy gradient line and the hydraulic gradient line are graphical representations used to visualize the energy and pressure within a fluid system. The EGL identifies the overall energy of the fluid at different points along a streamline. In contrast, the HGL focuses only on pressure energy and gravitational potential energy. Understanding these lines is vital for engineers to design efficient pipeline systems and open-channel flows, as they show how energy is distributed and where losses occur.
Examples & Analogies
Think of a mountain stream. The water's height represents potential energy (elevation head), while its flow speed represents kinetic energy. By monitoring the height of the water along the stream (similar to the hydraulic gradient line), you can tell how pressure changes and ensure proper flow, similar to how engineers use EGL and HGL to maintain optimal conditions in pipelines.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Total Energy Conservation: The sum of static pressure, dynamic pressure, and potential energy remains constant along a streamline.
-
Energy Gradient Line (EGL): Represents the total energy of the fluid flow system.
-
Hydraulic Gradient Line (HGL): Represents static pressure and elevation head, crucial for analyzing fluid systems.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In automotive design, reducing drag coefficient significantly improves fuel efficiency by optimizing fluid flow around the vehicle.
-
Venturimeters and orifice meters effectively demonstrate real-world applications of Bernoulli’s principle by measuring fluid flow rates.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In a fluid's flow, energy won't go low, from pressure to motion, it’s the happy commotion.
📖 Fascinating Stories
-
Imagine a river flowing from a hilltop, its journey reveals the secrets of pressure and speed, blending like a dance of energy upstream.
🧠 Other Memory Gems
-
Use PKE to remember Pressure, Kinetic, and Potential energy relationships.
🎯 Super Acronyms
Remember EGL for Energy Gradient Line and HGL for Hydraulic Gradient Line in fluid analysis!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Bernoulli's Equation
Definition:
An equation that describes the conservation of energy in flowing fluids, relating pressure, velocity, and height.
-
Term: Kinetic Energy Correction Factor
Definition:
A factor used to account for non-uniform flow distribution when calculating kinetic energy.
-
Term: Stagnation Pressure
Definition:
The pressure a fluid attains when brought to rest, equal to the sum of static and dynamic pressures.
-
Term: Energy Gradient Line (EGL)
Definition:
A line representing the total energy along a streamline in a fluid flow system.
-
Term: Hydraulic Gradient Line (HGL)
Definition:
A line representing the static pressure head and elevation from a reference point in fluid systems.
