10.2.2. Incompressible Viscous Flow Between Plates

We will have a look at a simple solutions for incompressible viscous flow between a fixed and a moving plate.

In this section, we focus on understanding the flow of a fluid that is both incompressible and viscous between two plates. One plate is fixed, while the other moves to create shear in the fluid. This scenario allows us to explore how viscosity affects fluid flow and the relationship between fluid velocity and shear stress.

Think about spreading butter on a slice of bread. The bread represents the fixed plate, while the butter represents the fluid. When you press the knife (the moving plate) against the butter, it moves and spreads, illustrating how the motion induces flow due to viscosity.

We can neglect the gravity component if the plates are moving horizontally and also the pressure gradient due to free movement.

For simplicity in analyzing the fluid flow, we make two critical assumptions: first, we ignore the effect of gravity because the flow is horizontal and does not change vertically. Second, we disregard the pressure gradient because, under conditions of uniform motion, the pressures on the plates don't change significantly, allowing for a simpler analysis.

Imagine a water slide where gravity causes water to flow downward. If the slide is perfectly horizontal and smooth, you can ignore gravity’s effect because the water will naturally flow horizontally without needing additional pressure to push it along.

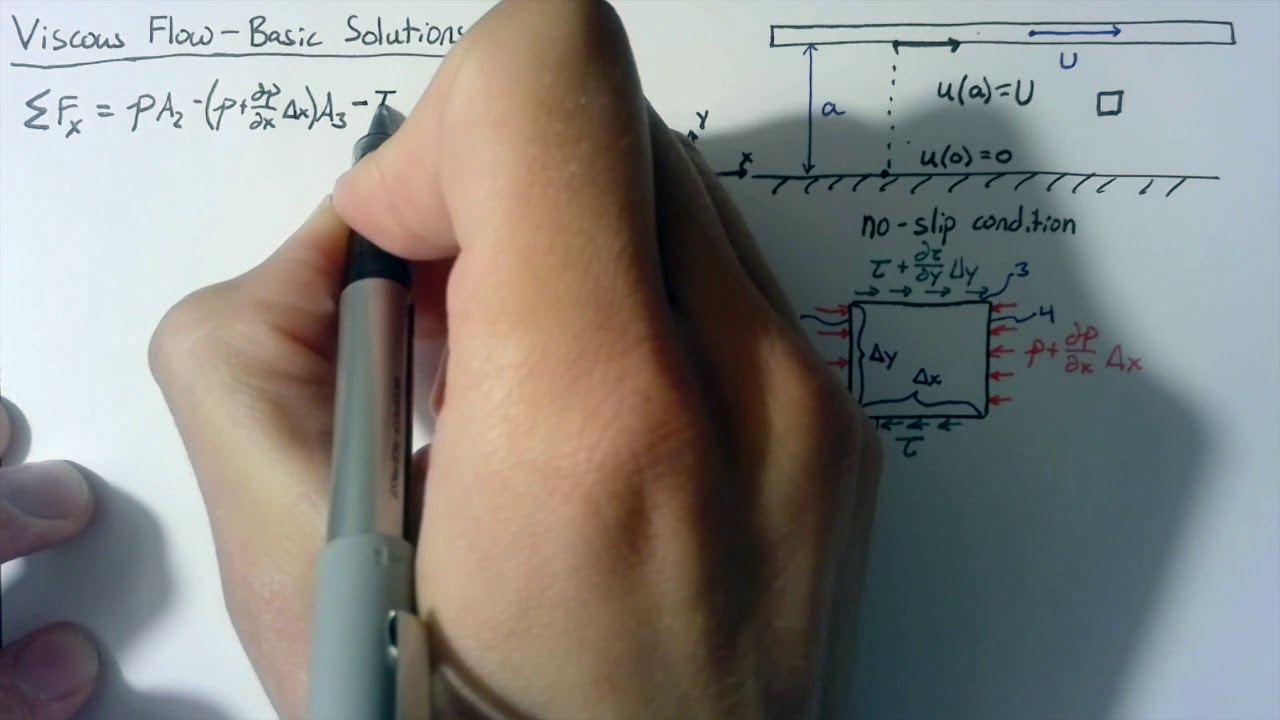

If a plate is moving with velocity v, we will analyze what the velocity distributions will be and how shear stress is determined.

When one of the plates moves at a constant velocity 'v', this creates a velocity gradient in the fluid. The fluid closest to the moving plate will move at velocity 'v', while the fluid nearest to the fixed plate will remain at rest. This sets up a linear velocity distribution in the fluid, showcasing how viscosity resists the flow. To find the shear stress, we can utilize the relationship between viscosity, shear rate, and velocity gradients.

Consider a slow-moving crowd in a narrow corridor. At the front of the crowd, people might be moving quickly towards the exit (the moving plate), while those at the back are stationary (the fixed plate). This creates a flow of people that starts quickly and slows down the further back you go, similar to how the velocity profile works in a fluid.

We assume the flow is fully developed after some distance along the plate, meaning the velocity does not change with respect to the length of the plate.

Fully developed flow means that, after a certain distance from the entrance of the flow region, the velocity profile becomes stable and does not change as we move further along the length of the plates. This allows us to treat the flow as uniform along the length, simplifying our calculations significantly. We define the flow characteristics once the system reaches this balance.

Imagine a long, gently sloping waterslide. At the top, the water may be turbulent and swirling, but as it flows down for a while, it reaches a point where it flows smoothly and uniformly. This stable state represents fully developed flow.

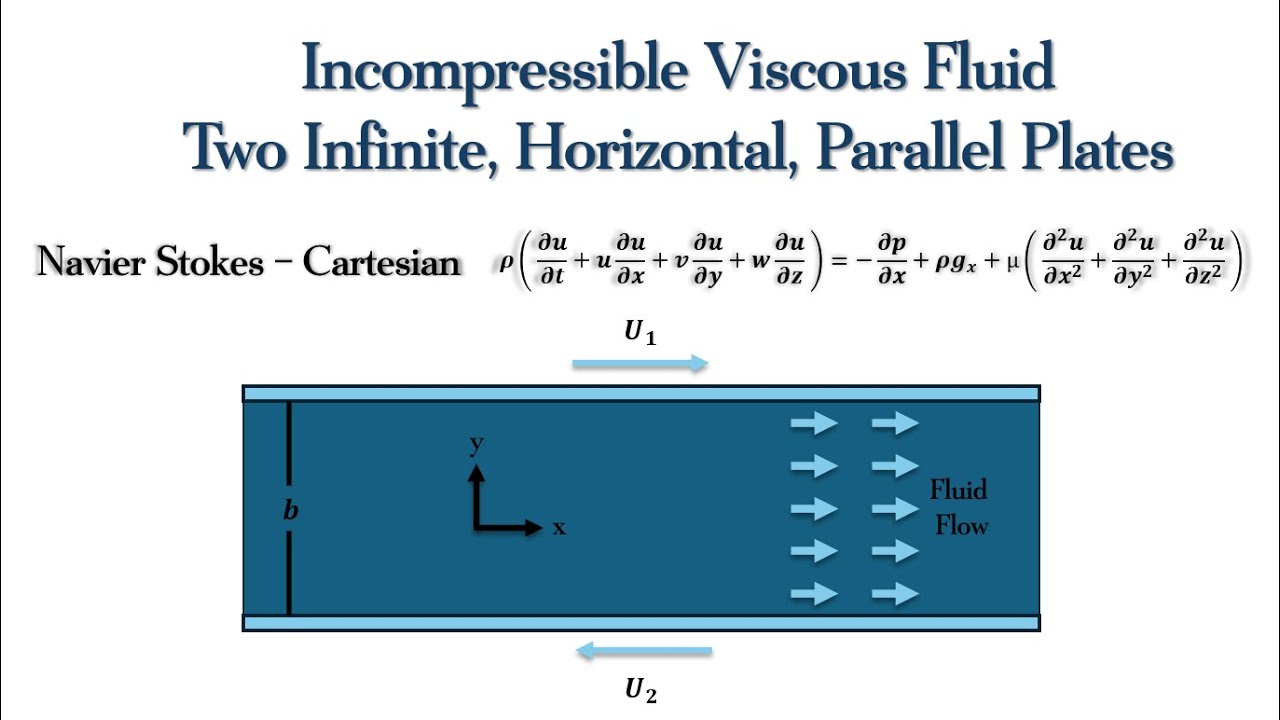

By simplifying the Navier-Stokes equations under our assumptions, we can analyze the fluid flow and understand how to derive the velocity distribution.

The Navier-Stokes equations, which describe fluid motion, can be quite complex, but under our specific conditions, we can simplify them. We focus on terms relevant to our flow, like those associated with shear stress and velocity gradients, to derive a straightforward expression for our velocity profile.

Think of trying to get a complicated recipe down to just the essential steps to make it easier to follow. When we simplify the Navier-Stokes equations, we’re just honing in on what we really need to understand the flow behaviors, much like cutting out unnecessary detail from a recipe.

The analysis shows that we can obtain linear velocity profiles for incompressible viscous flow between moving and fixed plates.

Through the assumptions and simplifications, we learn that the velocity profile in an incompressible viscous flow between the plates is linear. This linearity comes from the balance of forces acting on the fluid due to viscosity and the uniform motion of the moving plate.

Imagine sliding two books across a table. The book on top (moving plate) slides with a consistent speed, dragging the book below (fixed plate) at varying rates until they synchronize. This reflects how fluid layers interact under similar mechanisms in the plates.

--
