Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Reynolds Number
Unlock Audio Lesson
Let's kick off by discussing Reynolds numbers. Who can tell me what the critical values are for laminar and turbulent flow?
Is it 2300 for laminar flow and 4000 for turbulent flow?
What happens in between those values?
Great question! The region in between is considered transitional flow. It's a range where the flow can fluctuate between laminar and turbulent behaviors. Remember: L for Laminar, T for Transitional, and T for Turbulent! Let's summarize that again.
Friction Factors in Different Flow Regimes
Unlock Audio Lesson
In laminar flow, the friction factor is simply 64 divided by Reynolds number. What about in turbulent and transitional flows?
I think it gets more complicated, right? Because roughness starts to affect it?
Exactly! In the turbulent zone, friction factors depend on both Reynolds numbers and relative roughness. Here’s a mnemonic: 'Turbulence Ties to Roughness'. Can anyone explain why that happens?
It’s because as the roughness increases, the viscous effects become less significant than the effects of roughness itself.
Moody's Chart and Its Application
Unlock Audio Lesson
Now, let’s delve into Moody’s Chart. Why is it important in our calculations?
It helps visualize the relationship between Reynolds number and friction factors based on surface roughness.
Correct! Remember the acronym 'M-Chart' to link Moody's Chart with Friction Factors. How about the regions it covers?
It covers laminar, transitional, and turbulent zones based on pipe roughness!
Energy Losses Due to Friction
Unlock Audio Lesson
Let’s wrap up our discussion with energy losses due to friction. What can you tell me about it?
Higher roughness increases the energy losses in the system, right?
Yes! And to remember, think ‘More Roughness, More Loss’. Can anyone think of how this understanding is applied in engineering?
We need to account for this when designing pipes to ensure we minimize energy use and keep it efficient!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
Surface roughness significantly affects friction factors in fluid dynamics, especially in turbulent flow. Understanding this relationship is crucial for accurate pipe design and energy loss calculations in engineering applications.
Detailed
Implications of Roughness on Friction Factors
Overview
In fluid mechanics, especially when analyzing viscous flow through pipes, the roughness of the pipe's inner surface plays a critical role in determining friction factors. This section examines how roughness influences frictional resistance in both laminar and turbulent flow conditions.
Key Points
- Reynolds Number and Flow Type: The flow behavior in pipes is classified based on the Reynolds number, which indicates if the flow is laminar (Re < 2300), transitional (2300 < Re < 4000), or turbulent (Re > 4000).
- Friction Factors Dependency: For laminar flow, the friction factor can be calculated directly using the formula 64/Re. In transition and turbulent flows, the relationship between friction factors and Reynolds numbers becomes complex, particularly influenced by the roughness of the pipe surface.
- Moody's Chart: The Moody chart is a vital tool for calculating friction factors based on both Reynolds number and relative roughness. It demonstrates that in rough flow conditions, friction factors become largely independent of Reynolds number, relying instead on relative roughness alone.
- Energy Losses: Understanding the implications of roughness on friction factors is essential for predicting energy losses in pipe systems. Engineers must consider this when designing piping systems to minimize energy use and ensure efficient flow.

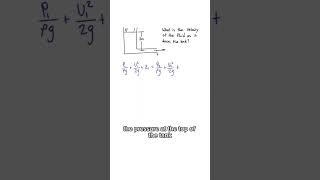

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Friction Factors and Their Dependence
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now if you try to understand the physics wise, what it happens it as we increase the roughness, then the Reynolds numbers which represent you the inertia forces, this part does not have a much significant. The viscous effects are not significant, more the effect of the roughness is comes it. The mu components, not much significance as you are going more the roughness, it becomes independent to the Reynolds numbers.
Detailed Explanation
The friction factor in a fluid flow context is crucial because it determines how much resistance is met as the fluid flows through a pipe. As we increase the roughness of the pipe's inner surface, the roughness becomes a dominating factor over the impact of inertia, represented by Reynolds numbers. In smoother pipes, viscous effects (related to the fluid's thickness and how it deforms) play a role in determining flow behavior. However, as the pipe surface becomes rougher, the influence of these viscous effects becomes negligible. Instead, the friction factor starts to depend mainly on the relative roughness of the pipe, making it independent of Reynolds numbers, which indicates a transition from laminar to turbulent flow conditions.
Examples & Analogies
Imagine sliding on different surfaces: when you slide on a smooth ice surface, you glide easily because there is minimal friction. But if you were to slide on a rough gravel road, you'd face a lot more resistance and have to exert much more effort. Similarly, when flowing through pipes, if the surface is very rough, it 'grabs' the fluid particles, causing greater resistance and higher friction, regardless of how fast the fluid is moving.
Transition Zones and Their Importance
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now you try to understand it that if you have a increase the relative roughness of and the higher Reynolds numbers, you it depends upon the friction factors. Only these relative roughness, not the Reynolds numbers. These things you can conceptually just think it that how the process happens it.
Detailed Explanation
In fluid dynamics, transition zones refer to the range of Reynolds numbers (between 2300 and 4000) where flow behavior can shift from laminar to turbulent, and vice versa. In these transition zones, the friction factors start to fluctuate significantly due to both relative roughness and Reynolds numbers affecting how the fluid interacts with the pipe surface. This means that for engineers, when assessing or designing pipe systems, accurately predicting flow behavior is essential to ensure efficiency and minimize energy losses.
Examples & Analogies
Think of riding a bicycle along a smooth road versus a bumpy one. On the smooth road, you can effortlessly maintain speed without much effort; it’s like laminar flow. But when you encounter bumps, your speed may fluctuate unpredictably depending on how rough the surface is—this resembles the transition zone where flow doesn't behave predictably. For cyclists, predicting how much effort you will need can directly affect when and where you choose to ride!
Understanding Major vs. Minor Losses in Pipes
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
But there are minor losses like this is the band is there. There are loss will be there. The band is here, there will be loss. Here also we have the band and there are the valves are there. So all these are called minor losses, as well as there will be the exit loss or contractions loss.
Detailed Explanation
In fluid mechanics, energy losses in pipes can be classified as major and minor losses. Major losses are the energy lost due to friction along the length of a straight pipe caused by the viscosity of the fluid. Minor losses, on the other hand, arise from factors like bends, valves, and fittings within the piping system. These components disrupt flow, creating turbulence, which results in additional energy loss, also called localized losses. Understanding both types of losses is essential for engineers as they design efficient fluid flow systems.
Examples & Analogies
Consider a straw; when you sip through it normally, the only resistance you feel is from the length of the straw (major loss). But if you were to bend the straw or have small holes in it (minor losses), you’ll find it much harder to sip, and your effort increases. This is akin to what pipes experience when introducing bends and fittings, which disrupt the smooth flow and create more resistance.
Friction Factors in Rough Zones
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So the friction factors for the turbulent flow is a function of Reynolds numbers and relative roughness value. But it is there if you look it that function dependency is there still at this point after the pipe we call rough pipe zone.
Detailed Explanation
In turbulent flows, friction factors depend on both the Reynolds numbers and the relative roughness of the pipe until the roughness of the pipe reaches a certain threshold, marking the transition to the 'rough pipe zone.' In this zone, the relationship between the friction factor and Reynolds numbers diminishes, meaning the friction factors start to rely solely on the relative roughness of the pipe. This greatly simplifies calculations for engineers working with rough pipes, as they can focus solely on the roughness factor rather than Reynolds numbers, streamlining their design process.
Examples & Analogies
Think of a coarse sandpaper compared to a smooth one. When you're sanding wood, the paper's roughness dictates how quickly you can remove material. If you're using very rough sandpaper, regardless of how much pressure you apply (akin to Reynolds numbers), the effectiveness mainly hinges on that roughness. This realization helps when producing textured surfaces as you design, similar to how engineers will choose pipe roughness in designs.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Reynolds Number: A key dimensionless quantity to classify flow as laminar, transitional, or turbulent.
-
Friction Factor: A critical value influencing the energy loss due to friction in flow through pipes.
-
Moody's Chart: A vital tool that relates friction factor with the Reynolds number and relative roughness.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example: A pipe with a smooth internal surface versus a rough internal surface exhibits varied friction factors at the same flow conditions.
-
Example: Using the Moody chart to calculate friction factors for a given Reynolds number and roughness, allowing for efficient pipe design.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When the flow turns stout, roughness causes doubt; energy loss is all about!
📖 Fascinating Stories
-
Imagine a smooth river, flowing swiftly without interruption, then picture a rugged mountain stream where pebbles and rocks cause chaos and slow the flow. This illustrates how rough surfaces impact fluid flow in pipes.
🧠 Other Memory Gems
-
RRT for remembering: Reynolds, Roughness, and Turbulence relate closely to friction factors.
🎯 Super Acronyms
RFT for 'Roughness Friction Dependence'.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Reynolds number
Definition:
A dimensionless number used to predict flow patterns in different fluid flow situations.
-
Term: Friction factor
Definition:
A dimensionless number that describes the frictional resistance within a pipe.
-
Term: Moody Chart
Definition:
A graphical representation that shows the relationship between Reynolds number and friction factor for different surface roughness.
-
Term: Surface Roughness
Definition:
The texture of a surface, measured as the vertical deviations from its ideal form.
-
Term: Energy Loss
Definition:
The work lost due to friction in fluid flow, often expressed in terms of head loss.
