19.7.1 - Understanding Reynolds Numbers
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Reynolds Numbers
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Welcome, everyone! Today, we are diving into Reynolds numbers, a key concept in fluid mechanics. Can anyone tell me what they think Reynolds numbers represent?
Is it related to how fluids flow in pipes?
Exactly! Reynolds numbers help us differentiate between laminar and turbulent flow. Remember, 'Re' is crucial for understanding behavior within pipes. Now, let's establish that it measures the ratio of inertia forces to viscous forces in a fluid.
So, what are the key values we need to remember?
Great question! If the Reynolds number is less than 2300, the flow is laminar. If it's greater than 4000, the flow is turbulent. You might remember this with the mnemonic '2-3-4: From smooth to wild.'
Applications of Reynolds Numbers
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let's talk about applications. Understanding Reynolds numbers is crucial for engineers when designing piping systems. How do you think this knowledge affects our day-to-day lives?
It seems like it would be important for everything from household plumbing to large irrigation systems.
Exactly! For instance, in water supply systems, engineers must know the energy loss in pipes to optimize sizes and configurations. This directly relates to Reynolds numbers and flow regimes.
What happens if the Reynolds number falls into the transitional range?
Good point! The transitional range can be unpredictable, and designing for this can be challenging. It's often best to keep flows either laminar or turbulent for stability.
Measuring and Calculating Reynolds Numbers
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s practice calculating a Reynolds number! Suppose we have a water flow with a density of 1000 kg/m³, a velocity of 2 m/s, and a diameter of 0.1 m. Can someone calculate the Reynolds number?
Using the formula, Re = (density * velocity * diameter) / viscosity. So, Re = (1000 * 2 * 0.1) / dynamic viscosity.
Remember to use a proper value for dynamic viscosity, which is around 0.001 Pa.s for water. What do you get?
The calculation gives us 200000. So, it’s turbulent!
Exactly! The high Reynolds number indicates a turbulent flow.
Understanding Flow Patterns
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s connect flow patterns to Reynolds numbers. What are some characteristics of laminar flow?
It's smooth and orderly, right? Like layers sliding over one another.
That's correct! Turbulent flow, on the other hand, is chaotic with swirls and eddies. Understanding these patterns helps engineers in design strategies.
Are there any visual aids to help us understand these concepts better?
Absolutely! Visualizing streamlines and using sketches of flow patterns can make these concepts more tangible. Remember the practical implications these flow regimes have.
Final Recap and Clarification
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now that we’ve explored various aspects of Reynolds numbers, let’s summarize. What are the critical Reynolds thresholds, and why do they matter?
Re < 2300 means laminar, and Re > 4000 means turbulent, important for system design!
Exactly! Knowing these helps in predicting flow behavior and minimizing energy losses in piping systems. Any last questions before we wrap up?
No questions, thank you! This was really helpful.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section focuses on Reynolds numbers, defining them as a measure of the relationship between inertial and viscous forces in fluid flow. It outlines various thresholds for classification (laminar, transitional, turbulent) and discusses practical implications for pipe flow applications in engineering.
Detailed
Understanding Reynolds Numbers
Reynolds numbers play a critical role in fluid mechanics by providing insights into the flow characteristics of fluids in motion. Specifically, they represent the ratio of inertial forces to viscous forces, which helps in classifying the flow regime in pipes and other applications. The Reynolds number () is calculated using the formula:
$$
Re = \frac{\rho V D}{ }
$$
where is the Reynolds number, \u03C1 is the density of the fluid, V is the flow velocity, and D is the hydraulic diameter.
Key Points
- If Re < 2300, the flow is classified as laminar, where fluid particles move in parallel layers with minimal disruption between them.
- If Re > 4000, the flow shifts to turbulent, characterized by chaotic fluctuations and vortices.
- The transitional regime exists between these two thresholds, indicating the range of flow behavior that can span laminar and turbulent characteristics.
Understanding Reynolds numbers is essential for designing efficient piping systems and predicting flow behavior in real-world applications such as water supply systems and hydraulic networks.

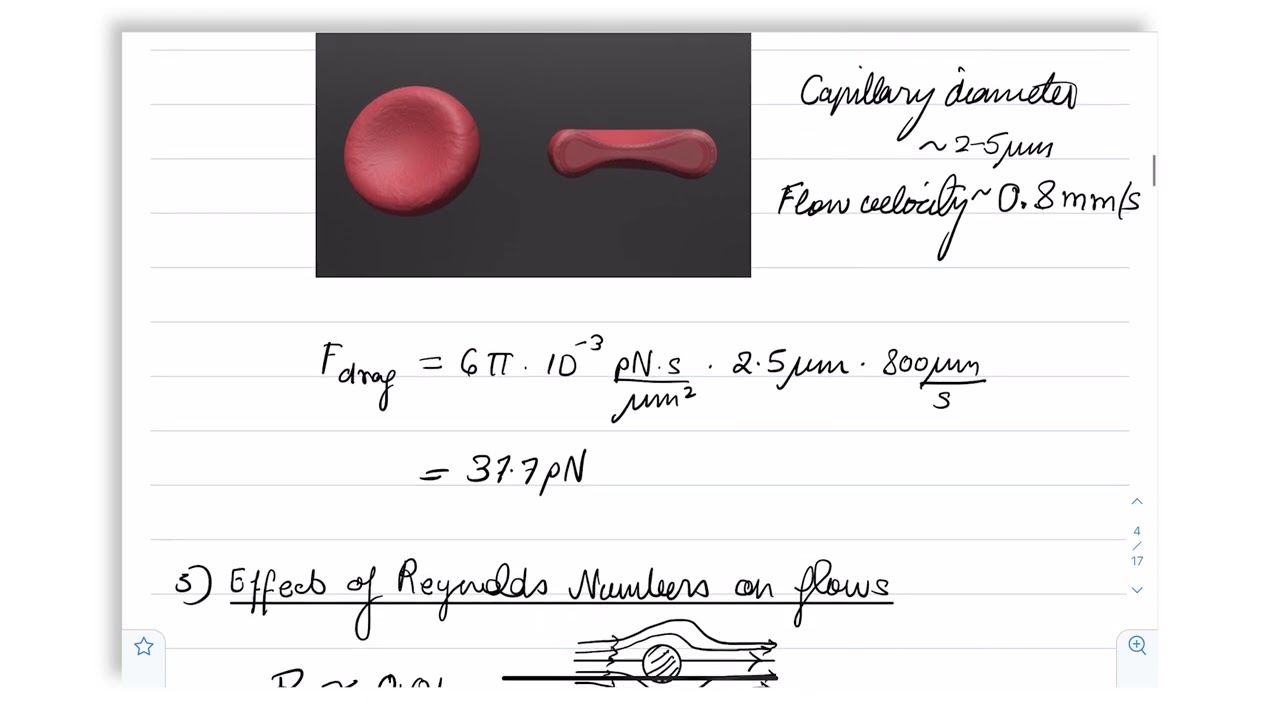

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Reynolds Numbers
Chapter 1 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
When you talk about turbulence, do not look at the figures like these type of vortex phenomena and all. Always we quantify the turbulence with respect to Reynolds numbers.
Detailed Explanation
Reynolds numbers are used to measure the flow regime of a fluid. They compare inertia forces (which cause the fluid to flow and continue moving) to viscous forces (which resist the flow). This comparison helps determine whether the flow will be laminar (smooth and orderly) or turbulent (chaotic and unpredictable).
Examples & Analogies
Think of driving a car on a smooth highway versus a bumpy country road. On the highway, your car glides smoothly without much resistance (laminar flow), while on the bumpy road, the car shakes and struggles to maintain speed (turbulent flow). Just like this, fluids behave differently under varying conditions.
Definition and Importance of Reynolds Numbers
Chapter 2 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The Reynolds numbers, if it is a greater than some threshold values then we call the turbulent flow. That means, the Reynolds numbers when you talk about that, it is a ratio between inertia forces and the viscous forces.
Detailed Explanation
The formula for calculating Reynolds number (Re) is: Re = (inertia forces) / (viscous forces). For pipe flow, this translates to a critical value of 2300; below this value, flow is typically laminar, and above 4000, it is turbulent. Between these two numbers, the flow is considered transitional, which indicates fluctuating flow characteristics.
Examples & Analogies
Imagine a river flowing slowly (laminar) versus spilling over rocks wildly (turbulent). The flow type significantly impacts how we design structures like bridges or dams, similar to how we use Reynolds numbers to predict flow behavior in pipes.
Determining Flow Types using Reynolds Numbers
Chapter 3 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
If it is a Reynolds number less than 2300, the flow is laminar. If Reynolds numbers greater than 4000, the flow is turbulent. In between, you have a transition flow system.
Detailed Explanation
This classification into laminar, transitional, and turbulent flow helps engineers and scientists predict how fluids will behave under different conditions. When designing systems like piping, understanding these flow regimes is critical to ensure efficiency and avoid problems like excessive noise or damage.
Examples & Analogies
Consider a garden hose. If you turn it on just a little, the water flows smoothly (laminar). If you turn it on full blast, it splashes everywhere (turbulent). Knowing how much to turn it for your plants helps you manage water usage effectively.
Visualizing Turbulence and Flow Patterns
Chapter 4 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
You can see here the photograph of showing how turbulence vortices are there or eddies formations are there. So we can visualize that and today many of the best fluid mechanics labs have the facilities to measure this type of turbulent structures.
Detailed Explanation
Understanding how turbulence manifests through vortices and eddies gives practical insights into fluid flow. Research facilities use advanced technologies to measure turbulence, which helps develop better theoretical models and practical applications.
Examples & Analogies
Think of stirring a cup of coffee. The swirls you see are like small eddies in the fluid. By studying these, scientists learn to predict how fluids travel around obstacles, which is crucial in many fields, from aerospace engineering to oceanography.
Key Concepts
-
Reynolds Number: A dimensionless quantity important in classifying fluid flows as laminar, turbulent or transitional.
-
Laminar Flow: Occurs at low Reynolds numbers and is characterized by parallel layers of flow.
-
Turbulent Flow: High Reynolds number flow marked by chaotic fluctuations.
-
Transitional Flow: The middle range of flow behaviors that can either fall into laminar or turbulent characteristics.
Examples & Applications
Example 1: A water flow in a pipe showing as laminar with a Reynolds number of 2000 indicating smooth fluid motion.
Example 2: An industrial oil pipeline with a Reynolds number of 4500 indicating turbulent flow with eddies and swirls.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
In pipes that flow, Re's the way, Less than two-three-hundred, smooth and gray. Over four-thousand, eddies play, Turbulent their wild ballet.
Stories
Imagine a river flow: when calm, the fish glide smoothly like a line of students, but when the storm comes, it swirls chaotically with debris – that's the transition from laminar to turbulent.
Memory Tools
The acronym 'LT-T' can help you remember: L for Laminar (Re < 2300), T for Transitional (2300 < Re < 4000), and the other T for Turbulent (Re > 4000).
Acronyms
Remember 'LTT' - L for Laminar, T for Transitional, and T for Turbulent.
Flash Cards
Glossary
- Reynolds Number
A dimensionless number that measures the ratio of inertial forces to viscous forces in fluid flow, indicated as Re.
- Laminar Flow
A smooth and orderly flow of fluid where layers move parallel without disruption, typically occurring at Reynolds numbers less than 2300.
- Turbulent Flow
A chaotic and fluctuating fluid flow characterized by vortices and eddies, occurring at Reynolds numbers greater than 4000.
- Transitional Flow
A type of flow that exhibits characteristics of both laminar and turbulent flow, usually occurring between Reynolds numbers of 2300 and 4000.
- Hydraulic Diameter
A measurement used in non-circular ducts, calculated as four times the cross-sectional area divided by the wetted perimeter.
