Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Control Volume Analysis
Unlock Audio Lesson
Good morning! Today we will learn about control volume analysis, a crucial concept in fluid mechanics, used to assess how fluids behave in systems like streams and channels.
What exactly is a control volume?
A control volume is a designated region in space where we analyze fluid flow. We apply the principles of conservation of mass and energy to this volume to understand how fluids move and interact.
How does this relate to open channel flow?
In an open channel, like a river or canal, we analyze how water flows by applying these principles. This helps us predict flow rates and understand energy losses, which are significant in designing hydraulic structures.
So, are there specific equations we use?
Absolutely! We use the continuity equation for mass conservation, and energy equations to analyze losses due to friction or changes in flow depth.
And what happens in hydraulic jumps?
Great question! Hydraulic jumps occur when supercritical flow transitions to subcritical flow, causing energy dissipation. This is vital for managing water flow in channels.
In summary, control volume analysis provides a structured approach to understanding fluid mechanics. It helps engineers make informed decisions about channel design and flow management.
Hydraulic Jumps
Unlock Audio Lesson
Let's delve deeper into hydraulic jumps. They are crucial in civil engineering as they often cause significant energy loss and turbulence.
What causes these jumps?
Hydraulic jumps are caused when a high-velocity flow, characterized as supercritical, encounters an obstruction, leading to a drop in velocity and an increase in depth, thus transitioning to subcritical flow.
How do we calculate the energy losses during this jump?
We calculate the energy loss by comparing the specific energy before and after the jump. Energy losses are crucial for energy management in hydraulic structures.
Can you give us a real-world example?
Certainly! Think about a spillway where water is released suddenly. As it flows down, it transitions from supercritical to subcritical, and you can observe a hydraulic jump creating turbulence and mixing. It's fascinating!
So, hydraulic jumps play an integral role in designing effective water flow systems. Understanding their behavior helps us optimize flow and minimize energy loss.
Specific Energy and Froude Number
Unlock Audio Lesson
Now, let’s talk about specific energy and the Froude number. Both are critical for analyzing open channel flows.
What is specific energy?
Specific energy is the total mechanical energy of the fluid per unit weight. It's a function of flow depth and velocity. The formula is E = y + v²/2g.
And the Froude number?
The Froude number compares the flow's inertia to its gravitational forces, helping us categorize flow types: subcritical, critical, and supercritical. It’s defined as Fr = v/(g*y)⁰.⁵.
How do these concepts interact in real scenarios?
Together, they help engineers understand transitions in flow – such as those leading to hydraulic jumps or in designing canal cross-sections. A high Froude number indicates supercritical flow where energy is higher.
In essence, knowing specific energy and the Froude number lets us predict flow behavior under varying conditions.
Best Hydraulic Cross Sections
Unlock Audio Lesson
Lastly, let’s discuss the best hydraulic cross-sections for channels. Finding the most economical shape is key in civil engineering.
What shapes do we typically consider?
We typically look at rectangular, trapezoidal, triangular, and circular shapes. Each has advantages in terms of construction cost and flow efficiency.
What factors should we consider when designing these sections?
We consider factors like minimizing the wetted perimeter to reduce construction costs while maximizing flow depth, which enhances velocity.
How does the hydraulic radius come into play?
Great question! The hydraulic radius is crucial for determining velocity. A larger radius generally correlates to higher velocities, optimizing flow.
In summary, selecting the right shape and understanding hydraulic flow principles are fundamental to efficient channel design.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, we explore control volume analysis as a fundamental tool for understanding open channel flow. Topics include mass and energy conservation laws, the significance of hydraulic jumps, and how specific energy concepts influence the design of hydraulic structures. Additionally, we discuss the optimal shapes for channel cross sections to minimize construction costs while maximizing hydraulic efficiency.
Detailed
Control Volume Analysis
This section delves into the principles of control volume analysis in the context of fluid mechanics, particularly within open channel flows. Control volume analysis is a vital tool that leverages the conservation laws of mass and energy to analyze fluid movement and behavior in civil engineering applications.
Key Concepts Covered:
- Conservation of Mass and Energy: The section begins by outlining the fundamental laws governing fluid flow, emphasizing the mathematical descriptions of mass and energy conservation in steady, incompressible, and one-dimensional flows.
- Hydraulic Jumps: We explore the phenomenon of hydraulic jumps, where discontinuities in flow velocity and depth occur due to changes in energy, leading to turbulent conditions and energy losses. Understanding hydraulic jumps is crucial for designing effective drainage and spillway systems.
- Specific Energy and Froude Number: The discussion includes specific energy curves and critical flow conditions (subcritical, critical, and supercritical flows) using the Froude number to characterize flow conditions.
- Best Hydraulic Cross Sections: The section wraps up by examining optimal channel geometries for cost-effective design while ensuring efficient flow during varied hydraulic conditions. Different shapes such as rectangular, trapezoidal, triangular, and circular sections are analyzed for their efficiency and practicality in real-world applications.
Overall, this section highlights the interplay between theoretical concepts and practical applications in civil engineering, equipping students with necessary analytical skills to approach fluid flow problems effectively.

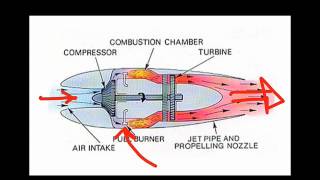

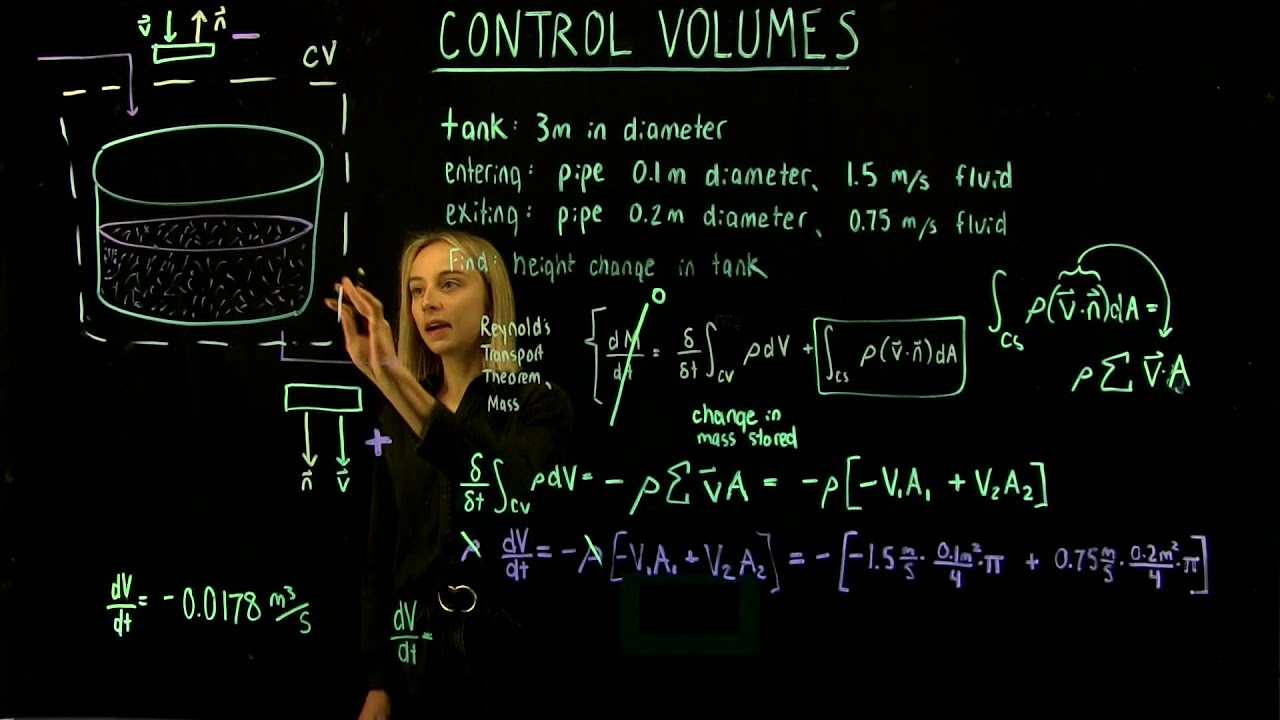

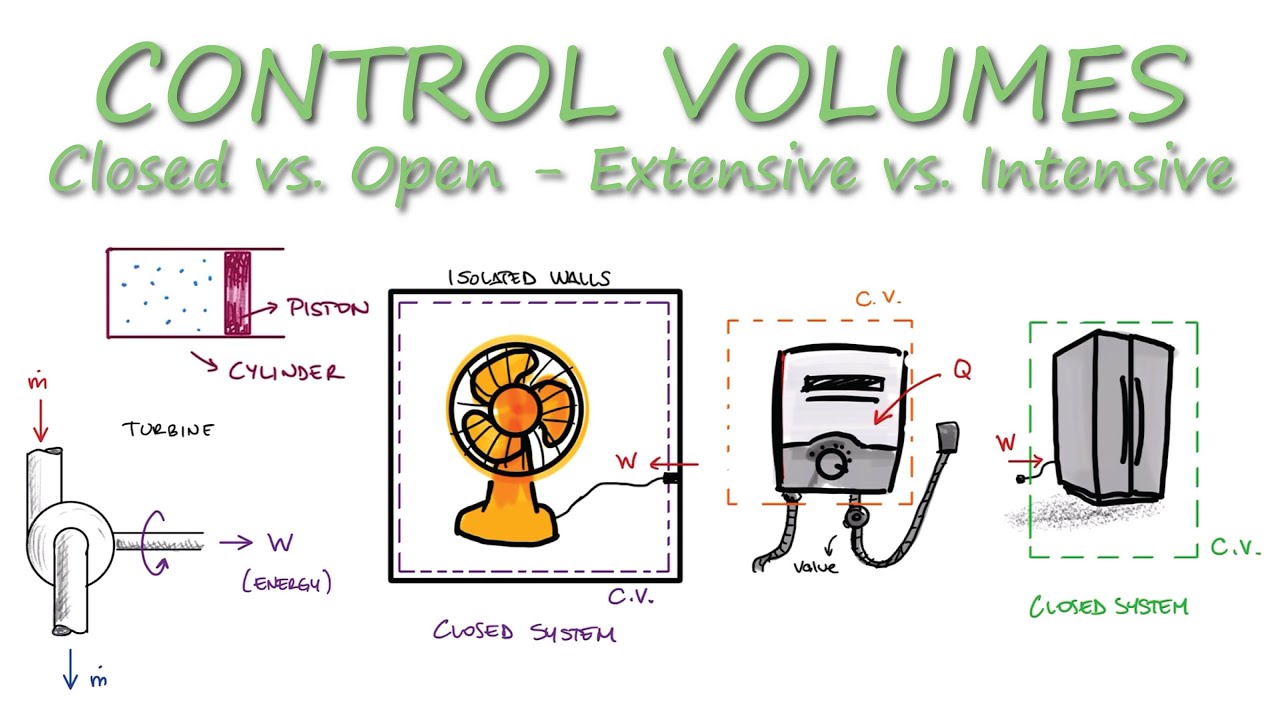

Youtube Videos
![System Approach and Control Volume Approach [Fluid Mechanics]](https://img.youtube.com/vi/quK9rvsZTPA/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Basic Concepts of Control Volume Analysis
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The basic idea to know it, the flow depth variations in open channels, the velocity variations, how the velocity changes it, how much of energy losses, okay. losses is happening it because of the flow and mostly it is governed by the gravity forces and the frictional forces as I discussed earlier.
Detailed Explanation
Control volume analysis is used to study the behavior of fluids in specified boundaries or volumes. In terms of open channel flow, understanding how flow depth and velocity vary is essential, as these factors greatly influence energy losses due to gravity and friction. Energy losses occur because, as water flows, it interacts with its channel, resulting in frictional resistance and variations in depth. Recognizing these concepts allows us to apply conservation laws effectively.
Examples & Analogies
Imagine a water slide. As water flows down a slide, it starts at a high point (maximum depth) and rushes down to the bottom (minimum depth). To keep the slide fun and efficient, we need to understand how quickly the water flows (velocity) and how deep the water is at different points. The energy losses in this context can be compared to how the water splashes and swirls near the bottom, similar to how it loses energy as it moves through open channels.
Energy Considerations and Flow Types
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
As we discuss about the specific energy and the critical depth, the same concept we will talk about and more details I will today talk how we can use a specific energy which is a graphical representations of energy versus the flow depth of a channel cross section where the datum is considered as a channel bottoms more or less the horizontal channel slopes. In that case, we can use a specific energy concept that is to understand how the flow variations will be there and most importantly.
Detailed Explanation
Specific energy in open channel flow is defined as the energy available to a fluid per unit weight as it flows over the bottom of the channel. This energy is represented graphically against flow depth. Critical depth is where the flow transitions from different states (subcritical to supercritical flow). Understanding critical depth helps in evaluating how energy and velocity distribute as they change due to flow conditions and channel geometry.
Examples & Analogies
Think of specific energy like the gas in your car's tank. The higher the fuel level (energy), the further you can drive (flow depth). As you drive, fuel is used up, similar to how energy is consumed by water flowing through a channel. When you're moving at a steady speed (critical depth), your gas mileage is optimal, much like maintaining optimal flow conditions prevents energy loss.
Understanding Different Flow Conditions
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
We have a subcritical flow okay as we discuss more details subcritical flow that means when you have a flow Froude number lesser than 1. So in terms of the flow velocity in terms of the speed of the surface wave you can interpret it what is the conditions comes it when you have a subcritical flow.
Detailed Explanation
In fluid mechanics, the Froude number is a dimensionless number that compares inertial forces to gravitational forces. When the Froude number is less than 1, the flow is considered subcritical and is characterized by slower water flow speeds. This condition signifies that the flow can adjust itself to changes in channel geometry or flow rates because gravitational forces dominate over inertial forces.
Examples & Analogies
Imagine a calm pond where you throw a small stone. The ripples spread slowly outward, reflecting a calm environment (subcritical flow). In contrast, if you drop a larger boulder in a raging river, the waves can’t keep up with the volume and speed of water – this demonstrates supercritical flow. Understanding these dynamics is key for managing water flows in rivers and designing effective hydraulic structures.
Hydraulic Jump Phenomena
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
When the flow passes through the supercritical to subcritical with very limited ranges then there are a lot of turbulent structures created okay. There are a lot of mixings, the turbulent structures are necessary created that is what we call hydraulic jump.
Detailed Explanation
A hydraulic jump occurs when flowing water transitions from a high-velocity state (supercritical flow) to a slower, deeper flow (subcritical flow). This transition results in a dramatic increase in the water height and is characterized by turbulence. During this jump, energy losses occur, often resulting in turbulence, splashing, and mixing, which are significant in many hydraulic systems.
Examples & Analogies
Think of a waterfall. Water speeding off the edge creates a tumultuous splash at the bottom (hydraulic jump). This turbulence mixes the water and creates a frothy appearance. Just as the waterfall energy decreases dramatically upon impact, water in an open channel experiences similar transformations during hydraulic jumps, which is crucial for not only understanding flow dynamics but also for effective hydraulic engineering.
Analyzing the Hydraulic Jump
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
How do we really analyze a hydraulic jumps. It is a very simple problems I have that I have a upstream flow it is a coming it there is a hydraulic jumps then flow is coming here it is it is a steady nature now this is the downstream the flow is coming here and going out here.
Detailed Explanation
To analyze hydraulic jumps, engineers often use control volume techniques, which involve defining a volume where fluid flows in and out, and applying the principles of conservation of mass and momentum. By knowing the upstream conditions (like flow depth and velocity), we can estimate downstream conditions and energy losses caused by the jump. This analysis can help design more effective hydraulic structures.
Examples & Analogies
Consider a busy traffic intersection where cars (water flow) must navigate a stoplight (hydraulic jump). Cars coming from one direction must slow down to safely turn or proceed, analogous to how flow adjusts in response to a hydraulic jump. By analyzing the amount of traffic (flow) and timing of the signal (energy losses), city planners can create more efficient traffic systems, similar to hydraulic engineers optimizing water flow.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Conservation of Mass and Energy: The section begins by outlining the fundamental laws governing fluid flow, emphasizing the mathematical descriptions of mass and energy conservation in steady, incompressible, and one-dimensional flows.
-
Hydraulic Jumps: We explore the phenomenon of hydraulic jumps, where discontinuities in flow velocity and depth occur due to changes in energy, leading to turbulent conditions and energy losses. Understanding hydraulic jumps is crucial for designing effective drainage and spillway systems.
-
Specific Energy and Froude Number: The discussion includes specific energy curves and critical flow conditions (subcritical, critical, and supercritical flows) using the Froude number to characterize flow conditions.
-
Best Hydraulic Cross Sections: The section wraps up by examining optimal channel geometries for cost-effective design while ensuring efficient flow during varied hydraulic conditions. Different shapes such as rectangular, trapezoidal, triangular, and circular sections are analyzed for their efficiency and practicality in real-world applications.
-
Overall, this section highlights the interplay between theoretical concepts and practical applications in civil engineering, equipping students with necessary analytical skills to approach fluid flow problems effectively.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In a rectangular channel, reducing width can lead to critical depth conditions, prompting the necessity of hydraulic jumps to manage flow.
-
The design of a trapezoidal channel can optimize flow efficiently by minimizing the wetted perimeter, thus reducing costs.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In a channel wide and deep, energy flows and takes a leap, super to sub, watch it jump, careful now, or it may slump!
📖 Fascinating Stories
-
Imagine a river that rushes down a steep slope. As it meets a flat surface, it suddenly slows and jumps, creating bubbles and splashes while losing some energy. This is a hydraulic jump, and it’s essential for calm waters ahead.
🧠 Other Memory Gems
-
Remember: Froude is for flow types, use a Ratio to define the waves and heights: Ratio of Inertial over Gravity, a Froude number for clarity!
🎯 Super Acronyms
Remember 'S.H.E.F.' - Specific energy, Hydraulic jump, Energy losses, Froude number.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Control Volume
Definition:
A defined region in space used to analyze fluid flow and apply conservation laws.
-
Term: Specific Energy
Definition:
The total mechanical energy per unit weight of the fluid.
-
Term: Froude Number
Definition:
A dimensionless number that compares inertial and gravitational forces in fluid flow.
-
Term: Hydraulic Jump
Definition:
A sudden change in flow condition from supercritical to subcritical, leading to energy loss.
-
Term: Best Hydraulic Section
Definition:
The optimal cross-sectional shape for channels that minimizes cost while maximizing efficiency.
