Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Open Channel Flow
Unlock Audio Lesson
Good morning, everyone! Today, we'll explore the fundamentals of open channel flow. Who can tell me what open channel flow is?
Isn't it the flow of a liquid in a channel that is open to the atmosphere?
Exactly! Open channel flow is when a liquid flows through a channel that's not fully enclosed. It's essential for irrigation and drainage systems. Now, what equations do you think we might use to analyze this flow?
Um, maybe the conservation of mass and energy equations?
Correct! We rely on those equations to simplify our analysis to one-dimensional, incompressible, and steady flow. Remember, the key here is understanding how flow depth and velocity are interconnected through these equations.
What do you mean by 'specific energy' in this context?
Great question! Specific energy is the total energy relative to the channel bottom. It's a vital concept for analyzing flow conditions. Let’s now discuss how the Froude number helps us categorize flow states.
To help memorize, think of 'F-Factors': Froude for Flow states! F < 1 is subcritical, F = 1 is critical, and F > 1 is supercritical. Any suggestions about why this classification is important?
It probably helps us understand how the flow will behave under different conditions?
Exactly! And knowing these states is crucial for predicting hydraulic jumps and energy losses. Let me summarize key points: Open channel flow is governed by mass and energy conservation, and we categorize flow using the Froude number with specific energy being a critical component in design.
Hydraulic Jumps
Unlock Audio Lesson
Now that we understand flow states, let’s discuss hydraulic jumps. What happens during a hydraulic jump?
Isn't it when the flow changes from supercritical to subcritical?
Exactly! A hydraulic jump occurs as a flow transitions, resulting in energy loss and turbulence. Can anyone explain why this might be important for engineers?
We need to consider it for designing structures like spillways or channels to manage energy loss efficiently.
Great connection! Managing energy losses is vital in avoiding structural damage and handling sediment transport. Let’s consider the specific energy curve as a graphical tool. Why do you think it’s useful?
It helps visualize how energy changes with flow depth, making it easier to understand hydraulic jumps!
Exactly! So, remember, hydraulic jumps represent critical transition points in flow, affecting design decisions and necessitating robust analysis to ensure safety. To recap: Hydraulic jumps denote changes in flow conditions, leading to turbulent flows and energy losses, which are critical for engineering design.
Optimal Channel Design
Unlock Audio Lesson
In our last session, we learned about the importance of hydraulic jumps. Now, let's focus on designing channels. What shapes can channels take?
They can be rectangular, trapezoidal, or even circular, right?
Absolutely! Each shape has its advantages based on context. What objectives do we aim for in channel design?
To minimize costs and maximize flow efficiency!
Exactly! By minimizing the wetted perimeter, we reduce construction costs while enhancing flow capacity. Can anyone relate the hydraulic radius to the velocity in channel design?
Higher hydraulic radius means greater velocity, right?
Correct! Therefore, maximizing hydraulic radius is crucial. For rectangular channels, an ideal depth is half the width! Use the mnemonic H-B: 'Half the width means best efficiency!' Let’s summarize: Optimal channel design involves selecting appropriate shapes to minimize costs while maximizing flow capacity and efficiency, mainly by focusing on hydraulic radius and channel dimensions.
Application of Concepts
Unlock Audio Lesson
Let's apply what we've learned to real-world scenarios. How would the principles of hydraulic jumps assist us in designing a spillway?
We would need to anticipate the energy loss to prevent overflow or damage during floods!
Exactly! Anticipating energy behaviors is crucial for safety. How can we leverage specific energy calculations for irrigation channels?
We could optimize flow depth to ensure we meet crop irrigation needs efficiently!
Exactly! Understanding flow behavior allows us to manage water resources responsibly. Remember, real-world applications require integration of theoretical concepts for successful design. Before we wrap up, can anyone list some design considerations for optimal channel shapes?
Cost, hydraulic radius, flow efficiency, and minimizing turbulence!
Excellent! To conclude, we discussed applying hydraulic principles in various engineering contexts, bridging theory and practical applications in channel design.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, we explore the principles of open channel design, focusing on specific energy calculations, the dynamics of hydraulic jumps, and the significance of various cross-sectional shapes in achieving cost-effective and efficient water flow management.
Detailed
Detailed Summary
The design of open channels is critical in hydraulic engineering, and this section focuses on core concepts needed for effective channel design. Central to these concepts are the conservation of mass and energy equations, which guide the understanding of one-dimensional, incompressible, and steady flows. The specific energy of a channel, calculated as the sum of potential and kinetic energies, helps determine flow conditions and variations in flow depth and velocity.
Flow can occur in three states based on the Froude number: subcritical flow (F < 1), critical flow (F = 1), and supercritical flow (F > 1). These states impact how hydraulic jumps occur, specifically when flow transitions from supercritical to subcritical, leading to energy losses and turbulence.
The section also emphasizes the design of hydraulic channels, detailing how optimal cross-section shapes (rectangular, trapezoidal, and circular) can affect the cost and efficiency of channel construction. A primary goal in design is to minimize the wetted perimeter to reduce construction costs while maximizing the hydraulic radius to enhance flow velocity. Overall, these concepts are crucial for engineers seeking to create efficient and environmentally friendly water management systems.

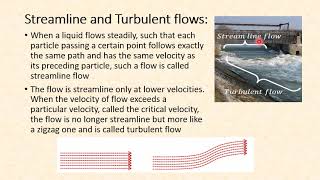

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Open Channel Design
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The basic concept used in designing open channels involves conservation of mass and energy equations, which are simplified for one-dimensional flow. This makes it easier to solve problems related to open channel flow, gates, and spillways.
Detailed Explanation
When engineers design open channels, they rely heavily on the principles of conservation of mass and energy. In practical terms, this means considering how water (or another fluid) flows through the channel under idealized conditions, where we assume the flow is steady, incompressible, and one-dimensional. This simplification allows us to focus on key variables like flow depth and velocity without getting bogged down in more complex phenomena that occur in real-world conditions.
Examples & Analogies
Think of this process like planning a road for a river. Just as you would want a straight and steady road for smooth travel, engineers want the flow in channels to be uniform and steady to avoid floods or stagnation.
Hydraulic Dimensions and Energy Loss
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The flow variations including flow depth and velocity are vital in understanding energy loss in an open channel. Energy loss is mainly governed by gravity and frictional forces.
Detailed Explanation
In open channel design, knowing how flow depth and velocity change is crucial to determine the energy loss during the flow. Energy loss generally occurs due to the resistance faced by the water as it moves through the channel, which is influenced by gravity and friction. Understanding these concepts allows engineers to predict how much water can move through a channel without causing problems like overflow or erosion.
Examples & Analogies
Imagine water flowing down a slide. If the surface is smooth (less friction), water flows quickly; if it's rough (more friction), the water slows down. Similarly, when designing channels, engineers need to carefully consider these 'friction' factors to ensure water moves efficiently.
Specific Energy and Its Role
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Specific energy concepts help in understanding flow variations by plotting energy against flow depth, where the datum is the channel bottom.
Detailed Explanation
Specific energy is a key concept in hydraulic design, representing the energy per unit weight of fluid associated with the flow depth and velocity. By plotting this energy against flow depth, engineers can visualize and understand how varying flow depths affect the energy available for the water to continue flowing, leading to the identification of critical flow depths and conditions necessary for efficient channel design.
Examples & Analogies
Think of specific energy like the amount of energy a car has based on its speed and incline. Just as a car traveling downhill can go faster with less energy used, water flows more efficiently at certain depths. By visualizing this, engineers can design channels that ensure water flows smoothly.
Understanding Flow Types: Subcritical, Critical, and Supercritical
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Different flow conditions are defined based on the Froude number. Subcritical flow has a number less than 1, critical flow equals 1, and supercritical flow is greater than 1.
Detailed Explanation
The Froude number is essential for classifying flow types in channels: subcritical flow (Froude < 1) is slow-moving and stable; critical flow (Froude = 1) represents a transition; and supercritical flow (Froude > 1) is fast and unstable. Understanding where in these categories a specific flow falls enables engineers to design channels that effectively manage the energy and behavior of the water flowing through them.
Examples & Analogies
Consider a crowded highway (subcritical flow) where cars are moving slowly compared to an open racetrack (supercritical flow) where cars zip by. The shift from slow to fast requires different designs (like adding barriers on racetracks) to ensure safety and efficiency.

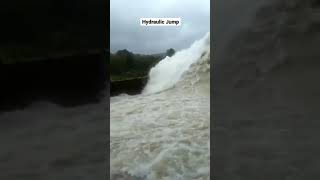

Hydraulic Jump and Its Significance
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
A hydraulic jump occurs when flow transitions from supercritical to subcritical, creating turbulence and energy loss. It's essential in channel design for mixing and aeration processes.
Detailed Explanation
When water flows from a faster state (supercritical) to a slower state (subcritical), a hydraulic jump occurs. This transition causes turbulence and energy loss but also provides benefits in mixing air and chemicals in water. Understanding hydraulic jumps is crucial for ensuring that channels can handle various flow conditions and promote effective mixing, especially in systems where water treatment is involved.
Examples & Analogies
Imagine a waterfall splashing down into a pool. The falling water creates turbulence, mixing air and water beneath, much like how a hydraulic jump works. In designing treatment plants or irrigation systems, engineers may intentionally create hydraulic jumps to enhance water quality through mixing.
Evaluating Energy Loss in Hydraulic Jumps
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Evaluating energy loss due to hydraulic jumps can be done by assessing upstream and downstream flow conditions. Key equations include energy conservation and relationships based on flow depths and velocities.
Detailed Explanation
Calculating energy loss in hydraulic jumps involves comparing the energy of the flow before and after the jump. By applying the principles of mass conservation and energy equations, engineers can determine how much energy gets lost in the transition and how it affects the overall performance of the channel. These calculations enable better designs for managing energy efficiently while allowing for necessary turbulence.
Examples & Analogies
Think of energy loss like a basketball shot that hits the rim but bounces back instead of going in. The energy from the throw is lost in the transition, but understanding this helps players (engineers) adjust their shots (designs) for better outcomes during games (flow conditions).

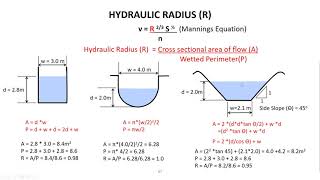

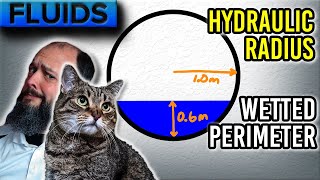

Designing Efficient Channel Cross Sections
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Optimizing channel cross-sections (like rectangular, trapezoidal, or circular) involves minimizing wetted perimeter to reduce construction costs while maximizing hydraulic efficiency.
Detailed Explanation
When designing open channels, engineers often compare different cross-section shapes to find which offers the best performance for the desired flow. The goal is to minimize the wetted perimeter, which directly affects the construction costs and efficiency of the flow. For instance, rectangular channels are simpler to build, while trapezoidal ones may offer better hydraulic performance. Each shape has its pros and cons and can be chosen based on specific project needs.
Examples & Analogies
Selecting a shape for a channel is similar to choosing the shape for a water bottle. A round bottle might hold liquid better (less surface area), while a rectangular bottle might be easier to fit in a bag. Engineers make similar decisions based on the flow characteristics and cost considerations.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Specific Energy: Total energy relative to the bottom of the channel, crucial for flow analysis.
-
Froude Number: Dimensionless number indicating flow state, influencing design considerations.
-
Hydraulic Jump: A critical phenomenon impacting energy and flow transition between states.
-
Optimal Channel Design: Selecting channel shapes to maximize efficiency and minimize costs.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
For a sluice gate operation, if the upstream depth is reduced, the downstream velocity increases due to conservation of mass.
-
During a flood event, hydraulic jumps can cause significant turbulence, requiring careful design to manage energy losses.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In channels wide, the water glides, from deep to high, it will abide. Turbulent jumps, energy climbs, optimizing flows through peaks and dives.
📖 Fascinating Stories
-
Imagine a river journey: Water flows steadily, but when it hits a steep, sudden drop (the hydraulic jump), it splashes and swirls, losing energy, just like how turbulent rapids are formed.
🧠 Other Memory Gems
-
Remember 'H-W-F': Hydraulic jumps yield turbulent water; Wider channels bring flow efficiency. Focus on minimizing P (perimeter) for cost-saving designs.
🎯 Super Acronyms
Use 'FSS' to remember
- Flow State = Specific Energy to categorize and analyze flows!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Specific Energy
Definition:
The total energy of water per unit weight, relative to the bottom of the channel.
-
Term: Froude Number
Definition:
A dimensionless number used to characterize the flow regime, defined as the ratio of flow velocity to wave speed.
-
Term: Hydraulic Jump
Definition:
A sudden change in flow regime from supercritical to subcritical, resulting in turbulence and energy loss.
-
Term: Wetted Perimeter
Definition:
The length of the line of contact between the water surface and the channel boundary.
-
Term: Hydraulic Radius
Definition:
The ratio of the cross-sectional area of flow to the wetted perimeter.
