Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Specific Energy
Unlock Audio Lesson
Today, we are going to explore the concept of specific energy in open channel flow. Can anyone tell me what specific energy signifies?
Is it the total energy per unit weight of the fluid?
Exactly! Specific energy can be thought of as the energy available for doing work, expressed per unit weight of the fluid. It is essential for understanding flow behaviors.
How do we determine specific energy?
Good question! Specific energy, E, can be calculated using the formula E = y + (v^2)/(2g), where y is the flow depth, v is the flow velocity, and g is the acceleration due to gravity. Always remember this relationship; I use the mnemonic 'E = y + 1/2 v squared over g' to recall it!
What about its graphical representation?
Great point! We can plot specific energy against flow depth. The curve shows how energy changes across different depths, which leads us to understand critical depth, where energy is minimized.
To summarize, specific energy is crucial to analyzing how energy is distributed in an open channel, and we determine it through the formula E = y + (v^2)/(2g).
Flow Types: Subcritical, Critical, and Supercritical
Unlock Audio Lesson
Now let's differentiate between subcritical, critical, and supercritical flows. Can anyone tell me about these types?
I think subcritical flow is when the Froude number is less than 1, right?
Yes! Subcritical flow occurs when the Froude number is less than 1. This indicates that the flow velocity is lower than the wave speed. In this state, waves can travel upstream.
And critical flow?
Correct again! Critical flow happens right at the transition point, where the Froude number equals 1, meaning flow velocity equals wave speed. It’s a crucial state for hydraulic design.
What about supercritical flow?
Supercritical flow occurs when the Froude number exceeds 1. In this case, the flow is faster than the wave speed, and no waves can propagate upstream. Remember: 'F < 1 = subcritical, F = 1 = critical, F > 1 = supercritical.'
To summarize, we classify flows based on their Froude numbers: less than 1 is subcritical, equal to 1 is critical, and greater than 1 is supercritical.
Hydraulic Jumps and Energy Losses
Unlock Audio Lesson
Next, let’s talk about hydraulic jumps. Who can explain what a hydraulic jump is?
Isn't it when the flow goes from supercritical to subcritical?
Exactly! A hydraulic jump occurs during the transition from supercritical to subcritical flow. This transition is often characterized by turbulence and energy losses.
How do we calculate these energy losses?
To calculate energy losses, we can represent them as hL, where energy conservation principles say E1 = E2 + hL. This means you take the specific energy before the jump and subtract the downstream energy.
Why are these energy losses important?
Great question! Understanding energy losses is crucial for engineers to design structures such as spillways and sluice gates. We want to ensure energy is dissipated safely. Remember: 'Losses happen at jumps!'
In summary, hydraulic jumps involve energy loss during the transition from supercritical to subcritical flow, quantified by the equation E1 = E2 + hL.
Practical Application: Energy Gradient Lines
Unlock Audio Lesson
Finally, let's discuss energy gradient lines. What do you think they represent in our flow?
They show the energy losses during flow transitions?
Correct! Energy gradient lines visually represent the total mechanical energy along the channel. We can see where energy decreases due to losses.
How do we plot them?
To plot energy gradient lines, you take points representing specific energies at various sections. The difference in lines before and after a jump illustrates energy loss, marked as hL.
Can we use these lines for future designs?
Absolutely! Understanding energy gradients helps engineers design more effective channel systems.
In summary, energy gradient lines show how energy levels change along the channel and help us understand and visualize energy losses.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section examines the flow dynamics in open channels focusing on energy gradient lines and energy losses. It defines key concepts such as specific energy, hydraulic jumps, and the effect of flow depth on velocity and energy. Various scenarios of flow (subcritical, critical, and supercritical) and their implications on hydraulic designs are discussed.
Detailed
Energy Gradient Line and Energy Losses
This section focuses on the concepts of energy gradient lines and energy losses that occur in open channel flow. The discussion begins with the importance of specific energy, which is the total mechanical energy of the fluid per unit weight, and how it varies with flow depth. Key points include:
- Specific Energy: The section explains that specific energy is represented graphically as a curve, highlighting the relationship between energy and flow depth. The critical depth, where specific energy reaches its minimum, is essential for understanding how energy changes during flow transitions.
- Flow Types: The text distinguishes between subcritical (Froude number < 1), critical (Froude number = 1), and supercritical flows (Froude number > 1). These states affect how the fluid behaves under different conditions, particularly during hydraulic jumps.
- Hydraulic Jump: The concept of hydraulic jump is introduced, described as a phenomenon that occurs when the flow transitions from a supercritical to a subcritical state. This transition involves a significant energy loss, which is depicted in energy gradient lines demonstrating differences before and after the jump.
- Energy Losses: Energy losses are quantified in relation to hydraulic jumps, with the section emphasizing the importance of understanding these losses for the design of hydraulic structures, such as sluice gates and spillways.
- Practical Application: Insights are provided on how to compute energy losses and flow conditions through practical examples, including numerical exercises that encapsulate the theoretical concepts discussed.
Overall, the section builds a comprehensive foundation for understanding energy dynamics in open channels, critical for civil engineering applications.
Youtube Videos

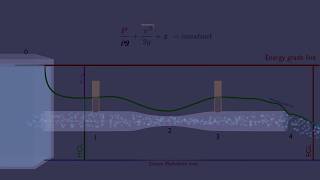

![Hydraulic and Energy Grade Line ? with animation [ HGL and EGL ]](https://img.youtube.com/vi/moI4DQNirAw/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Hydraulic Jumps: Understanding the Basics
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
See if I take a section here 1 1, 2 2 or 3 3. So these regions I will have a flow which is less than 1, this is the region's flow greater than 1, less than 1. So this is a supercritical flow to subcritical flow. When the flow passes through the supercritical to subcritical with a very limited ranges then there are a lot of turbulent structures created okay. There are a lot of mixings, the turbulent structures are necessary. created that is what we call hydraulic jump that is what is hydraulic jump there is a energy losses happens it there is a energy losses happen it when flow goes through the supercritical please remember supercritical to subcritical.
Detailed Explanation
A hydraulic jump occurs when fluid flow transitions from supercritical to subcritical flow. The term 'supercritical flow' refers to a flow that is faster than the wave speed in the fluid, which reflects a Froude number greater than 1. In this state, the flow is characterized by higher velocities and lower depths. Conversely, 'subcritical flow' is when the Froude number is less than 1, where the flow moves more slowly and the depths are greater. When a hydraulic jump happens, turbulence develops as the flow transitions from the high-energy state of supercritical flow to the lower-energy state of subcritical flow, leading to energy losses in the system. This can be visualized as a sudden increase in water depth and decrease in flow velocity, causing mixing and turbulence.
Examples & Analogies
Imagine a high-speed train coming to a sudden halt at a station. The shift from the fast-moving train to a stationary position represents the transition of water from supercritical to subcritical flow. Just as the train creates turbulence and movement in the surrounding air as it stops, the hydraulic jump creates turbulence and chaotic mixing in the water as it slows down and builds in depth.
Energy Gradient Line and Analysis of Energy Losses
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
If you look at how do we really analyze a hydraulic jumps. That means if I know the upstream conditions okay very simple way just look at the hydraulic jump part I can just simple way write it it is a jump like this okay it is a jump part here again I am writing a cross section 1 1 so just to you to coming back to the book levels which is given in the pre-off streams will have the 11 and downstream will be 22. So that means at the 11 I have a y1 flow depth, I have a flow proud numbers, upstream flow proud numbers, I have velocity. Similar way I have a y2, I have a v2, I have a flow proud numbers at the second level that is what you can look it okay.
Detailed Explanation
To analyze hydraulic jumps, it's crucial to assess the flow conditions both upstream and downstream of the jump. By defining the flow parameters at two critical sections before and after the jump, we can apply the principles of conservation of mass and energy. The flow depth (y1 and y2), flow velocities (v1 and v2), and Froude numbers help us understand the energy transformation occurring due to the jump. The energy losses, represented as hl, can be quantified by comparing the specific energy values at upstream and downstream, where specific energy E = y + v² / (2g), allowing us to calculate how much energy is lost during the jump.
Examples & Analogies
Think of a water slide at a theme park. As a rider zips down the slide (representing supercritical flow), they hit the bottom where the slide ends abruptly (the hydraulic jump). The energy they've built up is suddenly transformed as they splash into the pool (representing subcritical flow), causing ripples and waves. The height from which they jumped to the pool gives a visual representation of energy loss as the rider transitions from a fast-moving state to one that causes turbulence and mixing in the water.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Specific Energy: The total mechanical energy per unit weight of fluid.
-
Froude Number: A dimensionless number used to describe flow types in open channels.
-
Hydraulic Jump: A sudden transition from supercritical to subcritical flow, leading to energy loss.
-
Energy Gradient Line: A visual representation that illustrates changes in energy along the channel.
-
Energy Losses: Reduction in energy due to factors like turbulence or friction during flow.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Understanding energy losses through a hydraulic jump when calculating specific energy before and after the jump.
-
Utilizing Froude numbers to predict flow behavior in different scenarios—subcritical, critical, or supercritical.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In the channel where water flows, energy’s key for how it goes.
📖 Fascinating Stories
-
Imagine a stream where specific energy is a playful character experiencing dips and jumps, illustrating the physics of flow that engineers measure carefully.
🧠 Other Memory Gems
-
Remember 'F-C-S' for Froude = Critical = Supercritical flows.
🎯 Super Acronyms
Use 'SHE' for 'Specific, Hydraulic, Energy' to remind yourself of core concepts in this section.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Specific Energy
Definition:
Total mechanical energy of fluid per unit weight, crucial for analyzing flow dynamics.
-
Term: Froude Number
Definition:
A dimensionless number that compares flow velocity to wave speed, determining flow conditions.
-
Term: Hydraulic Jump
Definition:
A rapid transition from supercritical to subcritical flow characterized by turbulence and energy loss.
-
Term: Energy Gradient Line
Definition:
A graphical representation of the total mechanical energy along a channel.
-
Term: Energy Losses
Definition:
The reduction in total mechanical energy due to flow transitions, turbulence, or friction.
