Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Specific Energy
Unlock Audio Lesson
Today, we will explore the concept of specific energy. Can anyone tell me what specific energy is in the context of fluid mechanics?
Is it the total energy per unit weight of fluid?
Exactly! Specific energy combines both potential energy, defined by the flow depth, and kinetic energy, determined by the flow velocity. The key is that it can show us how the energy in a channel changes with flow depth.
How do we calculate specific energy?
Good question! It's calculated using the formula E = y + v²/2g, where y is the flow depth, v is velocity, and g is gravitational acceleration. Remember this formula as it will help us understand energy variations!
Can we visualize this concept?
Certainly! We often use specific energy curves to visualize how energy changes with different depths in a flow. Let's summarize: specific energy is crucial for designing channels effectively.
Critical Depth
Unlock Audio Lesson
Now, let’s talk about critical depth. What do we understand by 'critical depth'?
Isn't it the depth at which the flow transitions from subcritical to supercritical?
Correct! It’s defined when the Froude number equals 1. This means the flow is influenced as the velocity of the fluid equals the speed of surface waves. Remember, these transitions are crucial for identifying flow behavior.
What are the implications of reaching critical depth in a design?
Great point! When flow reaches critical depth, energy losses can occur, often leading to hydraulic jumps. Understanding this helps in designing effective structures to manage flow.
This sounds vital for hydraulic structures!
Absolutely! Critical depth and specific energy are key considerations for civil engineers designing canals and spillways.
Hydraulic Jumps
Unlock Audio Lesson
Next, we’ll delve into hydraulic jumps. Can anyone describe what happens during a hydraulic jump?
Isn't that when fast-moving water slows down abruptly, causing turbulence?
That's right! A hydraulic jump occurs when supercritical flow abruptly transitions to subcritical flow, resulting in energy losses and turbulence.
What causes these energy losses?
Energy is lost due to turbulence and interactions within the flow. We can quantify this energy loss using the formula E1 = E2 + hL, where hL represents energy losses.
How do we apply these concepts in engineering?
In engineering, understanding hydraulic jumps allows us to design structures that mitigate energy losses, ensuring efficiency in waterways.
Design Implications
Unlock Audio Lesson
Finally, let’s discuss the implications in hydraulic design. Why are specific energy and critical depth so critical for engineers?
They help us predict flow behavior and energy losses, right?
Exactly! This understanding aids in designing efficient and effective hydraulic structures, preventing unnecessary energy losses.
Could you give us an example of where this applies?
Sure! In spillway design, knowing the critical depth helps ensure the structure can handle various flow conditions safely.
Thanks! This really clarifies these concepts for us!
I’m glad to hear that! Remember, grasping these concepts is essential for anyone working in fluid mechanics or civil engineering.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, we explore the concepts of critical depth and minimum specific energy as they relate to open channel flow. We examine how variations in flow depth and velocity affect energy losses due to phenomena such as hydraulic jumps, emphasizing the importance of these principles in the design of hydraulic structures.
Detailed
Detailed Summary
In open channel flow, critical depth and minimum specific energy are vital concepts for understanding flow dynamics and energy conservation principles. Critical depth is defined as the flow depth at which the flow transitions from subcritical to supercritical, marked by a Froude number equal to 1. This transition can lead to unique phenomena such as hydraulic jumps, where flow rapidly shifts from supercritical (high velocity) to subcritical (lower velocity) conditions.
Specific energy, given as a combination of flow depth and velocity head, can be plotted to show how the energy of the flow varies with depth. For rectangular channels, the minimum specific energy occurs at critical depth. The section elucidates the relationship between specific energy curves and flow characteristics, emphasizing how energy losses occur at hydraulic jumps and how to minimize these losses in design. Furthermore, students are introduced to the equations governing mass flow and energy conservation, and the practical implications in designing channel structures are outlined.
Youtube Videos

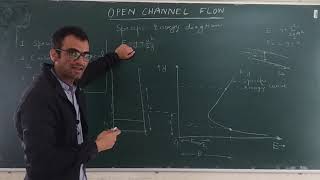

![Open Channel Flow - 23 [Concept of Specific energy, conditions of critical flow, Froude number]](https://img.youtube.com/vi/rzVDDrE9UpU/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Critical Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
As we discuss about the specific energy and the critical depth, the same concept we will talk about and more details I will today talk how we can use a specific energy which is a graphical representation of energy versus the flow depth of a channel cross section where the datum is considered as a channel bottom.
Detailed Explanation
Critical flow is a state in which the flow of water in an open channel achieves a particular velocity that is equal to the wave speed. This scenario occurs when the Froude number is equal to 1, suggesting that the flow regime is neither subcritical (Froude < 1) nor supercritical (Froude > 1). The concept of specific energy relates to the total energy per unit weight of water at any point in the channel and is expressed in terms of flow depth. A graphical representation connects specific energy with flow depth, highlighting key transition points such as critical depth.
Examples & Analogies
Imagine a calm river section where the water flows smoothly (subcritical), versus a fast, shallow stretch where the water pours rapidly downstream (supercritical). The transition point where the water starts to move rapidly while also maintaining a certain depth can be seen as critical flow, similar to when a car shifts gears to accelerate efficiently.
Subcritical, Critical, and Supercritical Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
When you have a subcritical flow, that means when you have a flow Froude number less than 1. In contrast, critical flow occurs when the flow Froude number is equal to 1, and supercritical flow arises when the flow Froude number is greater than 1.
Detailed Explanation
Flow classification is essential in understanding how water behaves in channels. In subcritical flow, the water travels at a slower pace and waves travel faster than the flow, allowing disturbances to propagate upstream. In critical flow, the flow velocity equals the wave speed, while in supercritical flow, the flow is faster than wave speed, preventing disturbances from moving upstream. This distinction greatly influences hydraulic design and analysis.
Examples & Analogies
Consider throwing a stone into a lake; waves radiate outward (subcritical) as the stone drops. In a river with a steep drop-off, throwing a stone means it might not cause ripples to travel upstream. This likens to supercritical flow, where the current speeds past any disturbances without them having a chance to affect upstream flow.
Role of Hydraulic Jumps
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
When the flow passes from supercritical to subcritical, hydraulic jumps occur, creating turbulence and energy loss.
Detailed Explanation
A hydraulic jump is a sudden change in flow condition, typically from supercritical flow to subcritical flow, resulting in a rapid rise in water level accompanied by turbulence. During this transition, there is significant energy dissipation, crucial for flow stability in hydraulic structures. This phenomenon can define design parameters for structures like spillways.
Examples & Analogies
Think of a water slide at a theme park. As you slide down quickly (supercritical), when the slide levels out abruptly, the water rapidly splashes up around you—that's your hydraulic jump! The turbulence and splashes represent the significant energy dissipation that occurs in real hydraulic scenarios.
Specific Energy and Its Curve
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

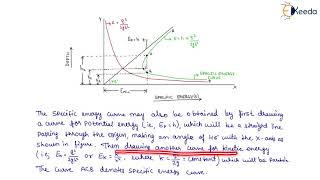

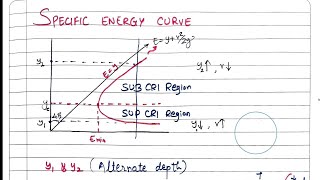

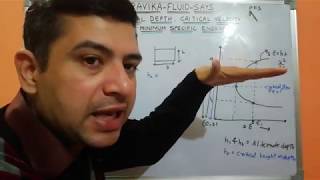

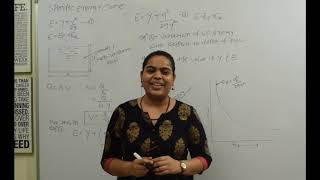

The specific energy curve relates flow depth to the corresponding specific energy, allowing the determination of critical and minimum energy states.
Detailed Explanation
Specific energy is calculated as the sum of the flow depth and the kinetic energy head, expressed mathematically. The specific energy curve illustrates this relationship graphically as flow depth varies, showing points of minimum energy (critical depth) where efficient flow can be achieved. Analyzing this curve helps engineers understand how to design channels for optimal flow conditions.
Examples & Analogies
Imagine filling a bathtub. The more you fill it with water (increasing depth), the heavier and deeper the water pressure gets (specific energy). At a certain level, you achieve a ‘balanced’ flow out of the drain (critical depth), indicating an efficient state where energy is neither lost too quickly nor wasted. Visualizing this flow helps plan effective drainage systems.
Design Implications for Best Hydraulic Sections
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The best hydraulic cross-section design seeks to minimize perimeter while maximizing flow efficiency, influenced by the shape of the channel.
Detailed Explanation
Selecting the optimal channel shape (rectangular, trapezoidal, circular) is crucial for minimizing construction costs and maximizing hydraulic efficiency. The hydraulic radius, which is the area divided by the wetted perimeter, provides insight into how well a channel can convey flow. By maximizing this radius (or minimizing the perimeter), engineers are able to enhance flow velocities and reduce energy losses.
Examples & Analogies
Think of different shapes of pasta; a hollow tube (like a circular channel) allows liquid to flow through efficiently, while a flat noodle might not convey as much at once. Choosing the right pasta shape (channel type) for your sauce (flow) makes cooking easier and more effective!
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Specific Energy: A measure of the energy in a flow, combining depth and velocity.
-
Critical Depth: The flow depth at which conditions change from subcritical to supercritical.
-
Hydraulic Jump: A rapid transition where flow changes state, causing turbulence and energy loss.
-
Froude Number: A measure of flow condition, important for identifying critical and supercritical flow.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In a channel with a width of 5m and a discharge of 10m³/s, the specific energy can be plotted against varying depths to identify critical flow conditions.
-
At a sluice gate, water flowing at 2 m depth and 5 m/s would be classified as supercritical due to the Froude number exceeding 1.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In the channel flow quite deep, specific energy is what we keep.
📖 Fascinating Stories
-
Imagine a river moving fast, reaching a point where it can't last. It jumps and swirls, a dance so free, this jump shows energy lost like a tree.
🧠 Other Memory Gems
-
E = y + v²/2g helps us see the relation clear like a tree.
🎯 Super Acronyms
S.E.C. stands for Specific Energy and Critical depth!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Specific Energy
Definition:
Total energy per unit weight of fluid, combining potential and kinetic energy.
-
Term: Critical Depth
Definition:
The depth at which flow transitions from subcritical to supercritical, marked by a Froude number of 1.
-
Term: Hydraulic Jump
Definition:
Sudden transition of flow from supercritical to subcritical, causing turbulence and energy losses.
-
Term: Froude Number
Definition:
A dimensionless number comparing flow velocity to surface wave speed.
-
Term: Energy Losses
Definition:
Energy dissipated due to turbulence and flow interactions during transitions.
